2010 CHRYSLER 300 SRT keyless entry

•The pedals can be adjusted while driving.
•The pedalscannotbe adjusted when the vehicle is in
REVERSE or when the Electronic Speed Control is on.
One of the following messages will display in the
Electronic Vehicle Information Center (EVIC) if a pedal
adjustment is attempted when the system is locked
out: “Adjustable Pedal Disabled — Cruise Control
Engaged” or “Adjustable Pedal Disabled — Vehicle In
Reverse.”
NOTE: For vehicles equipped with Driver Memory
Seat, you can use your Remote Keyless Entry (RKE)
transmitter or the memory switch on the driver’s door
trim panel to return the adjustable pedals to pre-
programmed positions. Refer to “Driver Memory Seat”
in “Understanding the Features of Your Vehicle” for
further information.
WARNING!
Do not adjust the pedals while the vehicle is moving.
You could lose control and have an accident. Always
adjust the pedals while the vehicle is parked.
CAUTION!
Do not place any article under the adjustable pedals
or impede its ability to move as it may cause damage
to the pedal controls. Pedal travel may become lim-
ited if movement is stopped by an obstruction in the
adjustable pedal’s path.
154 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Courtesy/Reading Lights
At the forward end of the console are two courtesy/
reading lights.
Press the lens to turn on the light. Press it a second time
to turn off the light.
These lights also turn on when a door is opened, when
the UNLOCK button on the Remote Keyless Entry (RKE)
transmitter is pressed, when the Passive Entry door
handle is used (refer to “Passive Entry” in “Things to
Know Before Starting Your Vehicle” for further informa-
tion) or when the dimmer control is turned fully upward,
past the second detent.
Sunglasses Storage
At the rear of the overhead console, a compartment is
provided for the storage of a pair of sunglasses.The storage compartment access is a
push/pushdesign.
Push on the raised bar on the compartment door to open.
Push on the raised bar to close.
GARAGE DOOR OPENER — IF EQUIPPED
HomeLink replaces up to three remote controls (hand-
held transmitters) that operate devices such as garage
door openers, motorized gates, lighting or home security
systems. The HomeLink unit operates off your vehicle’s
battery.
The HomeLink buttons are located in the overhead
console, and contain one, two or three dots/lines desig-
nating the different HomeLink channels.
164 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

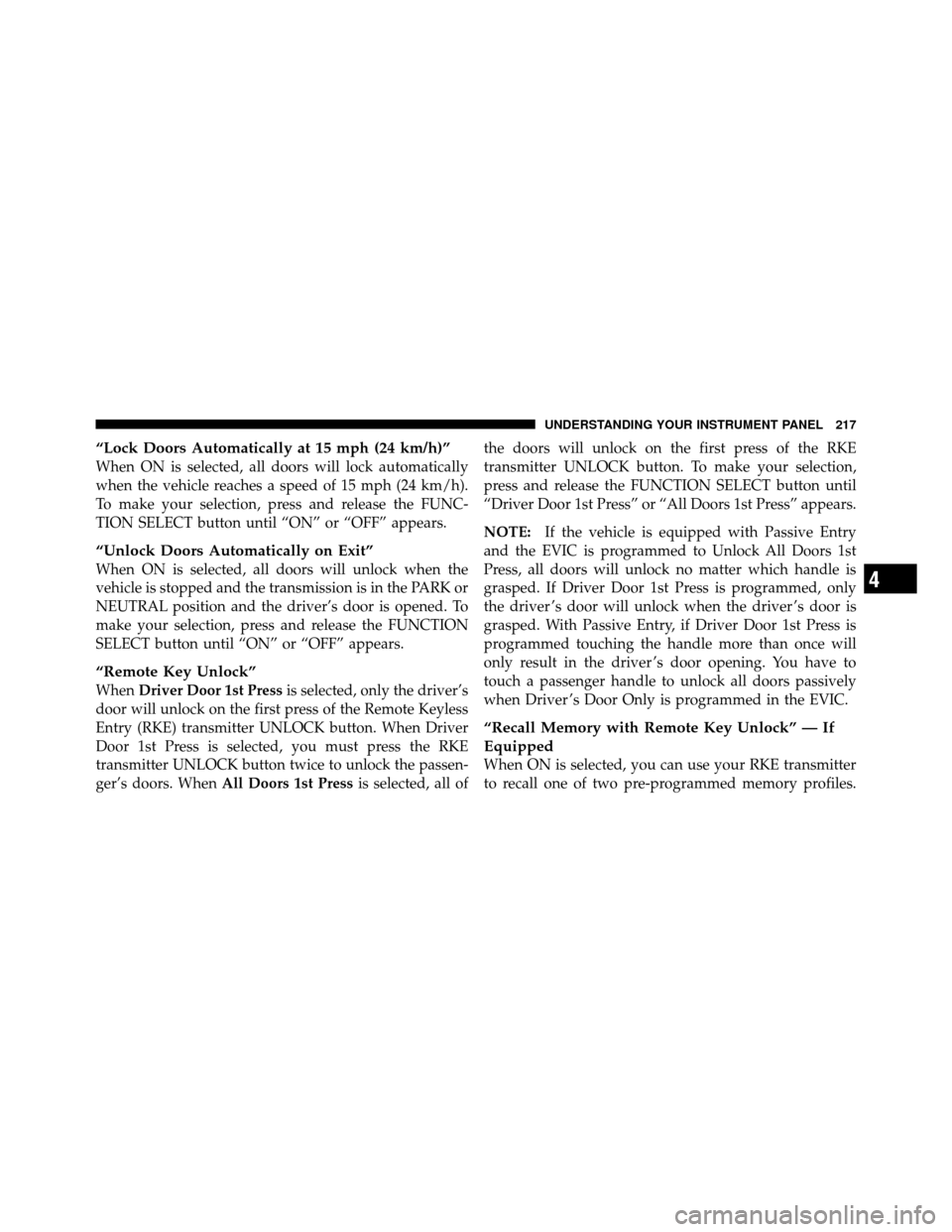

“Lock Doors Automatically at 15 mph (24 km/h)”
When ON is selected, all doors will lock automatically
when the vehicle reaches a speed of 15 mph (24 km/h).
To make your selection, press and release the FUNC-
TION SELECT button until “ON” or “OFF” appears.
“Unlock Doors Automatically on Exit”
When ON is selected, all doors will unlock when the
vehicle is stopped and the transmission is in the PARK or
NEUTRAL position and the driver’s door is opened. To
make your selection, press and release the FUNCTION
SELECT button until “ON” or “OFF” appears.
“Remote Key Unlock”
WhenDriver Door 1st Press is selected, only the driver’s
door will unlock on the first press of the Remote Keyless
Entry (RKE) transmitter UNLOCK button. When Driver
Door 1st Press is selected, you must press the RKE
transmitter UNLOCK button twice to unlock the passen-
ger’s doors. When All Doors 1st Press is selected, all ofthe doors will unlock on the first press of the RKE
transmitter UNLOCK button. To make your selection,
press and release the FUNCTION SELECT button until
“Driver Door 1st Press” or “All Doors 1st Press” appears.
NOTE:
If the vehicle is equipped with Passive Entry
and the EVIC is programmed to Unlock All Doors 1st
Press, all doors will unlock no matter which handle is
grasped. If Driver Door 1st Press is programmed, only
the driver ’s door will unlock when the driver ’s door is
grasped. With Passive Entry, if Driver Door 1st Press is
programmed touching the handle more than once will
only result in the driver ’s door opening. You have to
touch a passenger handle to unlock all doors passively
when Driver ’s Door Only is programmed in the EVIC.
“Recall Memory with Remote Key Unlock” — If
Equipped
When ON is selected, you can use your RKE transmitter
to recall one of two pre-programmed memory profiles.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 217

Do notpress the accelerator. Use the Fob with Integrated
Key to briefly turn the ignition switch to the START
position and release it as soon as the starter engages. The
starter motor will continue to run, and it will disengage
automatically when the engine is running. If the engine
fails to start, the starter will disengage automatically in
10 seconds. If this occurs, turn the ignition switch to the
LOCK position, wait 10 to 15 seconds, then repeat the
“Normal Starting” procedure.
Keyless Go™
This feature allows the driver to oper-
ate the ignition switch with the push
of a button, as long as the ENGINE
START/STOP button is installed and
the Remote Keyless Entry (RKE) trans-
mitter is in the passenger compart-
ment.
Installing and Removing the ENGINE
START/STOP Button
Installing the Button
1. Remove the key fob from the ignition switch.
2. Insert the ENGINE START/STOP button into the
ignition switch with the lettering facing up and readable.
3. Press firmly on the center of the button to secure it into
position.
Removing the Button
1. The ENGINE START/STOP button can be removed
from the ignition switch for key fob use.
2. Insert the metal part of the emergency key under the
chrome bezel at the 6 o’clock position and gently pry the
button loose.
276 STARTING AND OPERATING

Hood Release.......................... 140
Ignition ............................... 14
Key ............................... 12,14
Ignition Key Removal ..................... 14
Illuminated Entry ........................ 19
Immobilizer (Sentry Key) ................... 15
Infant Restraint ........................ 69,70
Information Center, Vehicle ................. 199
Instrument Cluster .................... 188,189
Instrument Panel and Controls .............. 187
Instrument Panel Lens Cleaning ............. 396
Integrated Power Module (Fuses) ............ 398
Interior Appearance Care .................. 395
Interior Lights .......................... 147
Intermittent Wipers (Delay Wipers) ........... 149
Introduction ............................. 4
Jump Starting .......................... 355 Key, Programming
........................ 17
Key, Replacement ........................ 16
Key, Sentry (Immobilizer) ................... 15
Key-In Reminder ......................... 15
Keyless Entry System ...................... 20
Keyless Go ....................... 12,212,276
Keys ................................. 12
Kicker Sound System ..................... 257
Knee Bolster ............................ 53
Lane Change and Turn Signals .............. 145
Lane Change Assist ...................... 146
Lap/Shoulder Belts ....................... 44
LATCH (Lower Anchors and
Tether for CHildren) .................... 73,74
Latch Plate ............................. 45
Latches ................................ 83
Hood .............................. 140
Lead Free Gasoline ...................... 333
452 INDEX

PretensionersSeat Belts ............................ 50
Programmable Electronic Features ............ 216
Programming Transmitters
(Remote Keyless Entry) .................... 20
Radial Ply Tires ......................... 320
Radiator Cap (Coolant Pressure Cap) .......... 385
Radio Operation ........................ 263
Radio Remote Controls .................... 260
Radio, Satellite (Uconnect studios)........... 252
Rain Sensitive Wiper System ................ 150
Rear Cupholder ......................... 177
Rear Park Sense System ................... 158
Rear Seat, Folding ....................... 134
Rear Window Defroster ................... 181
Rear Window Features .................... 181
Reclining Front Seats ..................... 129
Recreational Towing ...................... 342 Reformulated Gasoline
.................... 333
Refrigerant ............................ 376
Release, Hood .......................... 140
Reminder, Lights On ..................... 144
Reminder, Seat Belt ....................... 51
Remote Control Starting System ........................ 24
Remote Keyless Entry (RKE) ................. 20
Remote Sound System (Radio) Controls ........ 260
Remote Starting System .................... 24
Remote Trunk Release ..................... 40
Replacement Bulbs ....................... 406
Replacement Keys ........................ 16
Replacement Parts ....................... 368
Replacement Tires ....................... 322
Reporting Safety Defects ................... 438
Restraint, Head ......................... 130
Restraints, Child ......................... 69
Restraints, Occupant ...................... 42
10
INDEX 457

Life of Tires.......................... 322
Load Capacity ..................... 313,314
Pressure Monitor System (TPMS) ........... 326
Pressure Warning Light .................. 196
Quality Grading ....................... 441
Radial .............................. 320
Replacement ......................... 322
Rotation ............................ 324
Safety ........................... 307,317
Sizes ............................... 309
Snow Tires ........................... 323
Spinning ............................ 320
Tread Wear Indicators ................... 321
To Open Hood .......................... 140
Towing ............................... 342
24-Hour Towing Assistance ............... 108
Behind a Motor Home .................. 342
Disabled Vehicle ....................... 360
Recreational .......................... 342 Towing Assistance
....................... 108
Towing Vehicle Behind a Motor Home ......... 342
Traction Control ......................... 301
Trailer Towing .......................... 342
Transmission ........................... 390
Automatic ...................... 280,285,390
Fluid ............................... 414
Shifting ............................. 280
Transmitter Battery Service
(Remote Keyless Entry) .................... 23
Transmitter, Garage Door Opener (HomeLink) . . 164
Transmitter Programming
(Remote Keyless Entry) .................... 20
Transmitter, Remote Keyless Entry (RKE) ........ 20
Transporting Pets ........................ 78
Tread Wear Indicators .................... 321
Trip Odometer .......................... 194
Trunk Lid (Deck Lid) .................... 40,42
Trunk Release, Emergency .................. 42
10
INDEX 461
