2010 CHRYSLER 300 radio controls

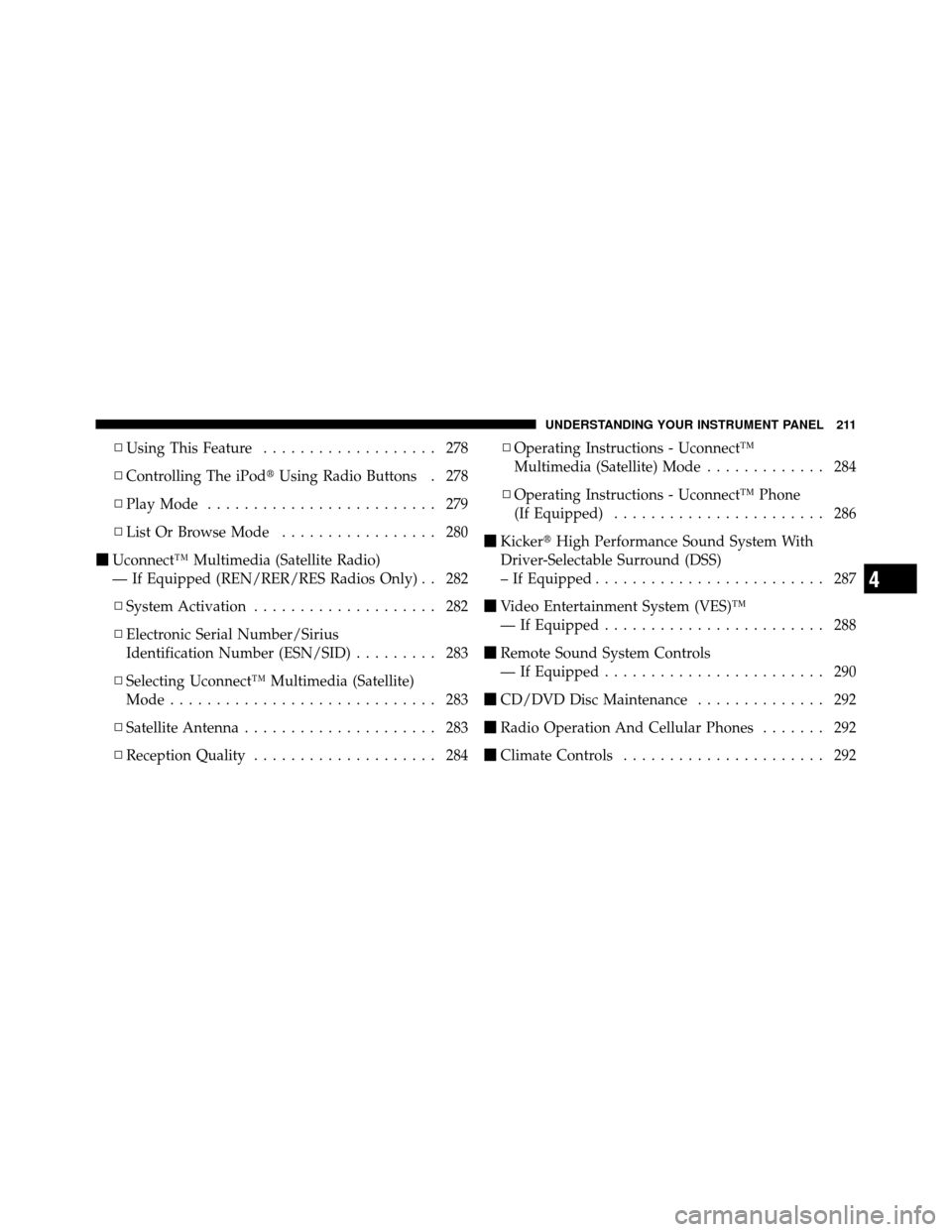

▫Using This Feature ................... 278
▫ Controlling The iPod Using Radio Buttons . 278
▫ Play Mode ......................... 279
▫ List Or Browse Mode ................. 280
 Uconnect™ Multimedia (Satellite Radio)
— If Equipped (REN/RER/RES Radios Only) . . 282
▫ System Activation .................... 282
▫ Electronic Serial Number/Sirius
Identification Number (ESN/SID) ......... 283
▫ Selecting Uconnect™ Multimedia (Satellite)
Mode ............................. 283
▫ Satellite Antenna ..................... 283
▫ Reception Quality .................... 284 ▫
Operating Instructions - Uconnect™
Multimedia (Satellite) Mode ............. 284
▫ Operating Instructions - Uconnect™ Phone
(If Equipped) ....................... 286
 Kicker High Performance Sound System With
Driver-Selectable Surround (DSS)
– If Equipped ......................... 287
 Video Entertainment System (VES)™
— If Equipped ........................ 288
 Remote Sound System Controls
— If Equipped ........................ 290
 CD/DVD Disc Maintenance .............. 292
 Radio Operation And Cellular Phones ....... 292
 Climate Controls ...................... 292
4
UNDERSTANDING YOUR INSTRUMENT PANEL 211

•Surround Sound modes (if equipped with Driver-
Selectable Surround [DSS])
The system allows the driver to select information by
pressing the following buttons mounted on the steering
wheel. Press and release the MENU button and the
mode displayed will change between Trip
Functions, Navigation (if equipped), System
Status, and Personal Settings.
Press the FUNCTION SELECT button to accept
a selection. The FUNCTION SELECT button
also functions as a remote sound system con-
trol. Refer to “Remote Sound System Controls”. Press the SCROLL button to scroll through Trip
Functions, Navigation (if equipped), System
Status Messages, and Personal Settings
(Customer-Programmable Features). The
SCROLL button also functions as a remote
sound system control. Refer to “Remote Sound
System Controls”.
Press the AUDIO MODE button to select the
Compass/Temp/Audio screen. Along with
compass reading and outside temperature, this
screen will display radio and media mode
information depending on which radio is in the
vehicle. Refer to “Remote Sound System
Controls”.
MENUButton
FUNCTION SELECTButton
SCROLL
Button
AUDIOMODEButton
4
UNDERSTANDING YOUR INSTRUMENT PANEL 231

NOTE:Close the armrest after the LCD screen has been
raised to its viewing position.
•The radio and DVD player controls allow front seat
operation for easy setup in the case of younger rear
seat passengers.
•A battery-powered infrared remote control snaps into
a molded compartment in the center console armrest
upper storage bin.
•Two wireless infrared headsets allow rear seat passen-
gers to listen to the same or individual audio sources.
VES™ Video Screen
VES™ Remote Control
4
UNDERSTANDING YOUR INSTRUMENT PANEL 289

Vehicles equipped with steering wheel-mounted buttons
are also equipped with the Electronic Vehicle Information
Center (EVIC). The EVIC features a driver-interactive
display which is located in the instrument cluster.The VOLUME button controls the sound level
of the sound system. Press the top of the
VOLUME button to increase the sound level.
Press the bottom of the VOLUME button to
decrease the sound level.
Press the AUDIO MODE button to select the
Compass/Temp/Audio screen. This screen
displays radio and media mode information
depending on which radio is in the vehicle. If the Compass/Temp/Audio screen is already displayed
when the AUDIO MODE button is pressed, then the
mode will change (i.e. from AM to FM, to Media mode,
etc., depending on which radio is in the vehicle).
When the EVIC is in the Compass/Temp/
Audio screen, press the FUNCTION SELECT
button to operate various radio, media, and
Universal Customer Interface (UCI) functions
(i.e., advance presets, select next folder, jump to
or start playing songs in playlists, etc., depend-
ing on which radio is in the vehicle and if equipped with
UCI).
When the EVIC is in the Compass/Temp/
Audio screen, press the SCROLL button to seek
up and down radio stations, tracks, chapters,
files, etc., depending on which radio is in the
vehicle.
VOLUMEButton
AUDIO
MODEButton
FUNCTION SELECTButton
SCROLL
Button
4
UNDERSTANDING YOUR INSTRUMENT PANEL 291

CD/DVD DISC MAINTENANCE
To keep a CD/DVD in good condition, take the following
precautions:
1. Handle the disc by its edge; avoid touching the
surface.
2. If the disc is stained, clean the surface with a soft cloth,
wiping from center to edge.
3. Do not apply paper or tape to the disc; avoid scratch-
ing the disc.
4. Do not use solvents such as benzene, thinner, cleaners,
or anti-static sprays.
5. Store the disc in its case after playing.
6. Do not expose the disc to direct sunlight.
7. Do not store the disc where temperatures may become
too high.NOTE:
If you experience difficulty in playing a particu-
lar disc, it may be damaged (i.e., scratched, reflective
coating removed, a hair, moisture or dew on the disc)
oversized, or have protection encoding. Try a known
good disc before considering disc player service.
RADIO OPERATION AND CELLULAR PHONES
Under certain conditions, the cellular phone being on in
your vehicle can cause erratic or noisy performance from
your radio. This condition may be lessened or eliminated
by relocating the cellular phone antenna. This condition
is not harmful to the radio. If your radio performance
does not satisfactorily “clear” by the repositioning of the
antenna, it is recommended that the radio volume be
turned down or off during cellular phone operation.
CLIMATE CONTROLS
The air conditioning and heating system is designed to
make you comfortable in all types of weather.
292 UNDERSTANDING YOUR INSTRUMENT PANEL

About Your Brakes....................... 335
ABS (Anti-Lock Brake System) .............. 338
Adaptive Cruise Control (ACC) (Cruise Control) . . 162
Adding Engine Coolant (Antifreeze) .......... 446
Adding Fuel ........................... 379
Adding Washer Fluid ..................... 440
Additives, Fuel ......................... 377
Adjustable Pedals ....................... 156
Air Cleaner, Engine (Engine Air Cleaner Filter) . . . 433
Air Conditioner Maintenance ............... 436
Air Conditioning ..................... 293,295
Air Conditioning Controls ................. 293
Air Conditioning Filter .................302,437
Air Conditioning, Operating Tips ............ 303
Air Conditioning Refrigerant .............436,437
Air Conditioning System ..........293,295,296,436
Air Pressure, Tires .................... 226,356
Airbag .............................. 56,65
Airbag Deployment ....................... 66 Airbag Light
..................... 64,69,82,221
Airbag Maintenance ....................... 68
Airbag, Side .......................... 62,65
Airbag, Window (Side Curtain) ...........59,62,65
Alarm, Panic ............................ 25
Alarm (Security Alarm) .................18,225
Alarm System (Security Alarm) ............... 18
All Wheel Drive (AWD) ................329,454
Alterations/Modifications, Vehicle ............. 7
Antenna, Satellite Radio ................... 283
Antifreeze (Engine Coolant) ...........445,446,480
Disposal ............................ 448
Anti-Lock Brake System (ABS) ............338,340
Anti-Lock Warning Light .................. 220
Anti-Theft Security Alarm (Theft Alarm) ........ 18
Appearance Care ........................ 455
Arming Theft System (Security Alarm) ......... 18
Assistance Towing ....................... 110
Auto Down Power Windows ................ 41
516 INDEX

Power Steering Fluid..................... 483
Pregnant Women and Seat Belts .............. 55
Preparation for Jacking .................... 404
Pretensioners Seat Belts ............................ 53
Programmable Electronic Features ............ 245
Programming Transmitters
(Remote Keyless Entry) .................... 20
Radial Ply Tires ......................... 358
Radiator Cap (Coolant Pressure Cap) .......... 447
Radio Operation ........................ 292
Radio Remote Controls .................... 290
Radio, Satellite (Uconnect studios)........... 282
Rain Sensitive Wiper System ................ 153
Rear Cupholder ......................... 203
Rear Park Sense System ................... 184
Rear Seat, Folding ....................... 136
Rear Window Defroster ................... 206 Rear Window Features
.................... 206
Rearview Mirrors ........................ 91
Reclining Front Seats ..................... 131
Recreational Towing ...................... 396
Reformulated Gasoline .................... 375
Refrigerant ............................ 437
Release, Hood .......................... 142
Reminder, Lights On ..................... 147
Reminder, Seat Belt ....................... 53
Remote Control Starting System ........................ 27
Remote Keyless Entry (RKE) ................. 20
Remote Sound System (Radio) Controls ........ 290
Remote Starting System .................... 27
Remote Trunk Release ..................... 43
Replacement Bulbs ....................... 468
Replacement Keys ........................ 17
Replacement Parts ....................... 428
Replacement Tires ....................... 362
530 INDEX
