Page 249 of 538

NOTE:The seat will return to the memorized seat
location (if Recall Memory with Remote Key Unlock is set
to ON) when the RKE transmitter is used to unlock the
door. Refer to “Driver Memory Seat” in “Understanding
The Features Of Your Vehicle” for further information.
“Flash Lights with Remote Key Lock”
When ON is selected, the front and rear turn signals will
flash when the doors are locked or unlocked with the
RKE transmitter. This feature may be selected with or
without the sound horn on lock feature selected. To make
your selection, press and release the FUNCTION SE-
LECT button until “ON” or “OFF” appears.
“Headlights On with Wipers” (Available with Auto
Headlights Only)
When ON is selected, and the HEADLIGHT switch is in
the AUTO position, the headlights will turn on approxi-
mately 10 seconds after the wipers are turned on. The
headlights will also turn off when the wipers are turned off if they were turned on by this feature. To make your
selection, press and release the FUNCTION SELECT
button until “ON” or “OFF” appears.
NOTE:
Turning the headlights on during the daytime
causes the instrument panel lights to dim. To increase the
brightness, refer to “Lights” in “Understanding The
Features Of Your Vehicle”.
“Delay Turning Headlights Off”
When this feature is selected, the driver can choose to
have the headlights remain on for 0, 30, 60, or 90 seconds
when exiting the vehicle. To make your selection, press
and release the FUNCTION SELECT button until “0,”
“30,” “60,” or “90” appears.
“Tilt Mirrors Down in Reverse” — If Equipped
When ON is selected, the outside rearview mirrors will
tilt downward when the ignition switch is in the RUN
position and the transmission is in the REVERSE posi-
tion. The mirrors will move back to their previous
248 UNDERSTANDING YOUR INSTRUMENT PANEL
Page 310 of 538

STARTING PROCEDURES
Before starting your vehicle, adjust your seat, adjust the
inside and outside mirrors, fasten your seat belt, and if
present, instruct all other occupants to buckle their seat
belts.
WARNING!
Never leave children alone in a vehicle. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be seri-
ously or fatally injured. Do not leave the key fob in
the ignition switch. A child could operate power
windows, other controls, or move the vehicle.
Automatic Transmission
The shift lever must be in the NEUTRAL or PARK
position before you can start the engine. Apply the brakes
before shifting into any driving gear.
CAUTION!
Damage to the transmission may occur if the follow-
ing precautions are not observed:
•Shift into PARK only after the vehicle has come to
a complete stop.
•Shift into or out of REVERSE only after the
vehicle has come to a complete stop and the engine
is at idle speed.
•Do not shift from REVERSE, PARK, or NEUTRAL
into any forward gear when the engine is above
idle speed.
•Before shifting into any gear, make sure your foot
is firmly on the brake pedal.
Using Fob With Integrated Key (Tip Start)
NOTE:Normal starting of either a cold or a warm
engine is obtained without pumping or pressing the
accelerator pedal.
5
STARTING AND OPERATING 309
Page 460 of 538

To minimize the possibility of scratching the lenses and
reducing light output, avoid wiping with a dry cloth. To
remove road dirt, wash with a mild soap solution fol-
lowed by rinsing.
Do not use abrasive cleaning components, solvents, steel
wool or other aggressive material to clean the lenses.
Glass Surfaces
All glass surfaces should be cleaned on a regular basis
with MOPARGlass Cleaner or any commercial
household-type glass cleaner. Never use an abrasive type
cleaner. Use caution when cleaning the inside rear win-
dow equipped with electric defrosters or the right rear
quarter window equipped with the radio antenna. Do
not use scrapers or other sharp instrument that may
scratch the elements.
When cleaning the rear view mirror, spray cleaner on the
towel or rag that you are using. Do not spray cleaner
directly on the mirror.
Cleaning Plastic Instrument Cluster Lenses
The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plastic.
1. Clean with a wet soft rag or micro-fiber towel. A mild
soap solution may be used, but do not use high alcohol
content or abrasive cleaners. If soap is used, wipe clean
with a clean damp rag.
2. Dry with a soft tissue.
Seat Belt Maintenance
Do not bleach, dye, or clean the belts with chemical
solvents or abrasive cleaners. This will weaken the fabric.
Sun damage can also weaken the fabric.
If the belts need cleaning, use MOPAR Total Clean, a
mild soap solution, or lukewarm water. Do not remove
the belts from the vehicle to wash them.
7
MAINTAINING YOUR VEHICLE 459
Page 467 of 538
Cavity Car-tridge
FuseMini-
Fuse
Description
22———
23———
24———
25———
26———
27 — 10 Amp RedOccupant Restraint Con-
troller (ORC)
28 — 10 Amp RedIgnition Run, AC Heater
Control/Headlights/
Park Assist – If
Equipped/Tire Pressure
Monitoring – If
Equipped/Occupant
Restraint Controller
(ORC)Cavity Car-
tridge
FuseMini-
Fuse
Description
29 — 5 Amp OrangeAdaptive Cruise Control
(ACC) – If Equipped/
Cluster/Electronic Sta-
bility Program (ESP) – If
Equipped/Powertrain
Control Module (PCM)/
STOP LIGHT Switch
30 — 10 Amp RedDoor Modules/Power
Mirrors/Steering Con-
trol Module (SCM)
31———
32———
33———
34———
466 MAINTAINING YOUR VEHICLE

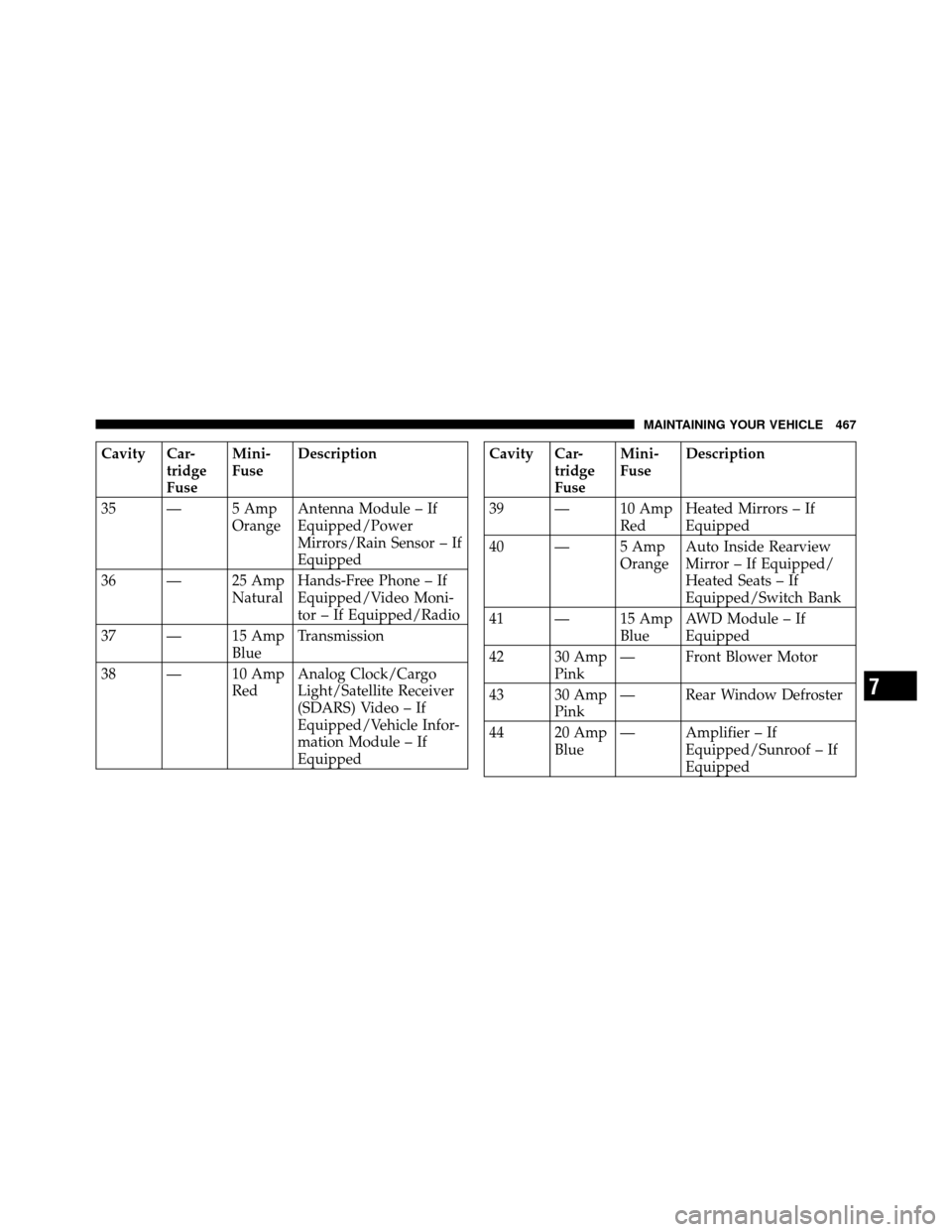

Page 468 of 538
Cavity Car-tridge
FuseMini-
Fuse
Description
35 — 5 Amp OrangeAntenna Module – If
Equipped/Power
Mirrors/Rain Sensor – If
Equipped
36 — 25 Amp NaturalHands-Free Phone – If
Equipped/Video Moni-
tor – If Equipped/Radio
37 — 15 Amp BlueTransmission
38 — 10 Amp RedAnalog Clock/Cargo
Light/Satellite Receiver
(SDARS) Video – If
Equipped/Vehicle Infor-
mation Module – If
EquippedCavity Car-
tridge
FuseMini-
Fuse
Description
39 — 10 Amp RedHeated Mirrors – If
Equipped
40 — 5 Amp OrangeAuto Inside Rearview
Mirror – If Equipped/
Heated Seats – If
Equipped/Switch Bank
41 — 15 Amp BlueAWD Module – If
Equipped
42 30 Amp Pink— Front Blower Motor
43 30 Amp Pink— Rear Window Defroster
44 20 Amp Blue— Amplifier – If
Equipped/Sunroof – If
Equipped
7
MAINTAINING YOUR VEHICLE 467
Page 470 of 538

NOTE:For lighted switches, see your authorized dealer
for replacement instructions.
All of the interior bulbs are glass wedge base or glass
cartridge types. Aluminum base bulbs are not approved
and should not be used for replacement.
Exterior (300 Models) Bulb Number
Low Beam Headlamp ..................... 9006
High Beam Headlamp .................... 9005
Front Park/Turn Lamp .................... 3157
Front Inner Park Lamp .................. 194NA
Front Outer Park Lamp .................. 194NA
Front Fog Lamp – If Equipped ............PSX24W
Front Sidemarker ....................... W5W
(Serviced at Authorized Dealer)
Tail/Stop/Turn Lamp ..................... 3057
Rear Sidemarker ......................... 168
Backup Lamp .......................... 3057
Center High Mount Stop Lamp (CHMSL) ....... LED
(Serviced at Authorized Dealer)
License ................................ 168 Exterior (300C Models)
Bulb Number
Low Beam Headlamp (Standard Halogen) ....9006XS
Low Beam Headlamp – High Intensity Discharge
(HID) ................................ D1S
(Serviced at Authorized Dealer)
High Beam Headlamp .................... 9005
Front Park/Turn Lamp .................3157AK
Front Fog Lamp ...................... PSX24W
Front Sidemarker ....................... W5W
(Serviced at Authorized Dealer)
Tail/Stop Lamp ......................... 3057
Tail Lamp ............................. 3057
Turn Signal Lamp ...................... 3757A
Backup Lamp .......................... 3057
Center High Mount Stop Lamp (CHMSL) ....... LED
(Serviced at Authorized Dealer)
Outside Mirror Turn Signal & Approach Lamps . . LED
(Serviced at Authorized Dealer)
License .............................. W5W
7
MAINTAINING YOUR VEHICLE 469
Page 518 of 538

Auto Unlock, Doors....................... 34
Auto Up Power Windows .................. 41
Automatic Dimming Mirror ................. 92
Automatic Door Locks ................... 32,34
Automatic Headlights .................... 145
Automatic Oil Change Indicator ..........219,236
Automatic Temperature Control (ATC) ......... 296
Automatic Transaxle Special Additives ...................... 453
Automatic Transmission ...........319,324,452,453
Adding Fluid ...................... 453,483
Autostick ............................ 328
Fluid and Filter Changes ................. 453
Fluid Change ......................... 453
Fluid Level Check ..................... 452
Fluid Type ........................... 483
Gear Ranges ....................... 319,324
Overdrive ........................... 321
Shifting .......................... 319,324Special Additives
...................... 453
Torque Converter ...................... 322
Automatic Transmission Limp Home Mode . . 323,327
Autostick ............................. 328
Axle Fluid ............................. 483
Axle Lubrication (Axle Fluid) ............... 483
Battery ............................... 434
Keyless Transmitter Replacement (RKE) ....... 26
Location ............................ 434
Belts, Seat ............................ 46,82
Body Mechanism Lubrication ............... 439
B-Pillar Location ........................ 351
Brake Assist System ...................... 341
Brake Control System, Electronic ............. 340
Brake Fluid ............................ 483
Brake, Parking .......................... 335
Brake System ........................... 449
Anti-Lock (ABS) ....................... 338
10
INDEX 517
Page 521 of 538

Deck Lid, Power Release................... 43
Defroster, Rear Window ................... 206
Defroster, Windshield ................83,294,300
Delay (Intermittent) Wipers ................. 151
Diagnostic System, Onboard ................ 426
Dimmer Switch, Headlight ................. 149
Dipsticks Oil (Engine) .......................... 430
Power Steering ........................ 334
Disabled Vehicle Towing ................... 418
Disposal Antifreeze (Engine Coolant) ............... 448
Engine Oil ........................... 433
Door Locks ............................. 30
Door Locks, Automatic .................... 32
Door Opener, Garage ..................... 190
Driving On Slippery Surfaces ................... 330 Through Flowing, Rising, or Shallow
Standing Water
........................ 331
DVD Player (Video Entertainment System™) .... 288
Electric Rear Window Defrost ............... 206
Electric Remote Mirrors .................... 94
Electrical Power Outlets ................... 200
Electronic Brake Control System ............. 340
Anti-Lock Brake System ................. 340
Brake Assist System .................... 341
Electronic Stability Program ............... 341
Traction Control System ................. 340
Electronic Power Distribution Center (Fuses) .... 460
Electronic Speed Control (Cruise Control) ....158,162
Electronic Stability Program (ESP) ............ 341
Electronic Throttle Control Warning Light ...... 225
Electronic Vehicle Information Center (EVIC) .... 230
Emergency Deck Lid Release ................ 44
520 INDEX
