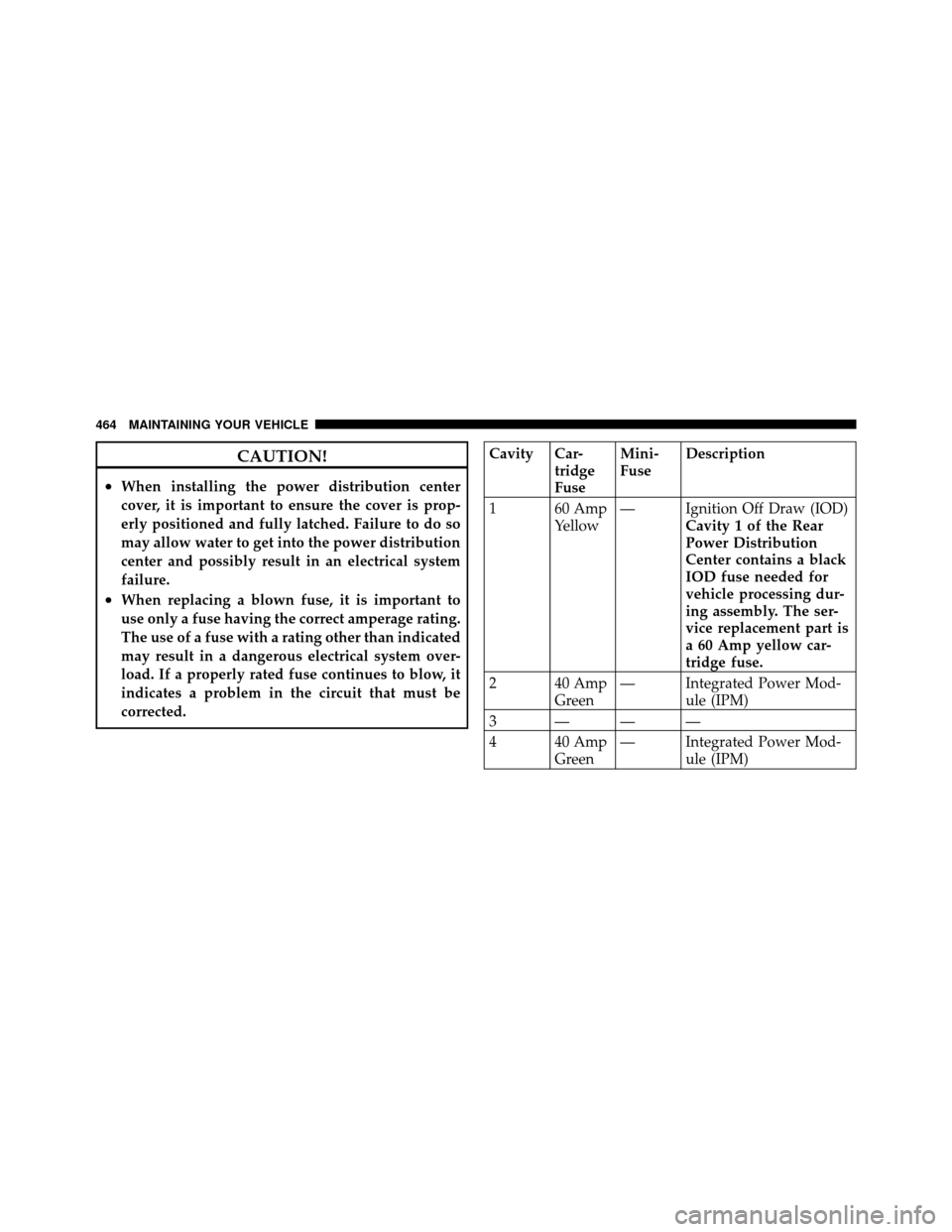

CAUTION!
•When installing the power distribution center
cover, it is important to ensure the cover is prop-
erly positioned and fully latched. Failure to do so
may allow water to get into the power distribution
center and possibly result in an electrical system
failure.
•When replacing a blown fuse, it is important to
use only a fuse having the correct amperage rating.
The use of a fuse with a rating other than indicated
may result in a dangerous electrical system over-
load. If a properly rated fuse continues to blow, it
indicates a problem in the circuit that must be
corrected.
Cavity Car-tridge
FuseMini-
Fuse
Description
1 60 Amp Yellow— Ignition Off Draw (IOD)
Cavity 1 of the Rear
Power Distribution
Center contains a black
IOD fuse needed for
vehicle processing dur-
ing assembly. The ser-
vice replacement part is
a 60 Amp yellow car-
tridge fuse.
2 40 Amp Green— Integrated Power Mod-
ule (IPM)
3 ———
4 40 Amp Green— Integrated Power Mod-
ule (IPM)
464 MAINTAINING YOUR VEHICLE

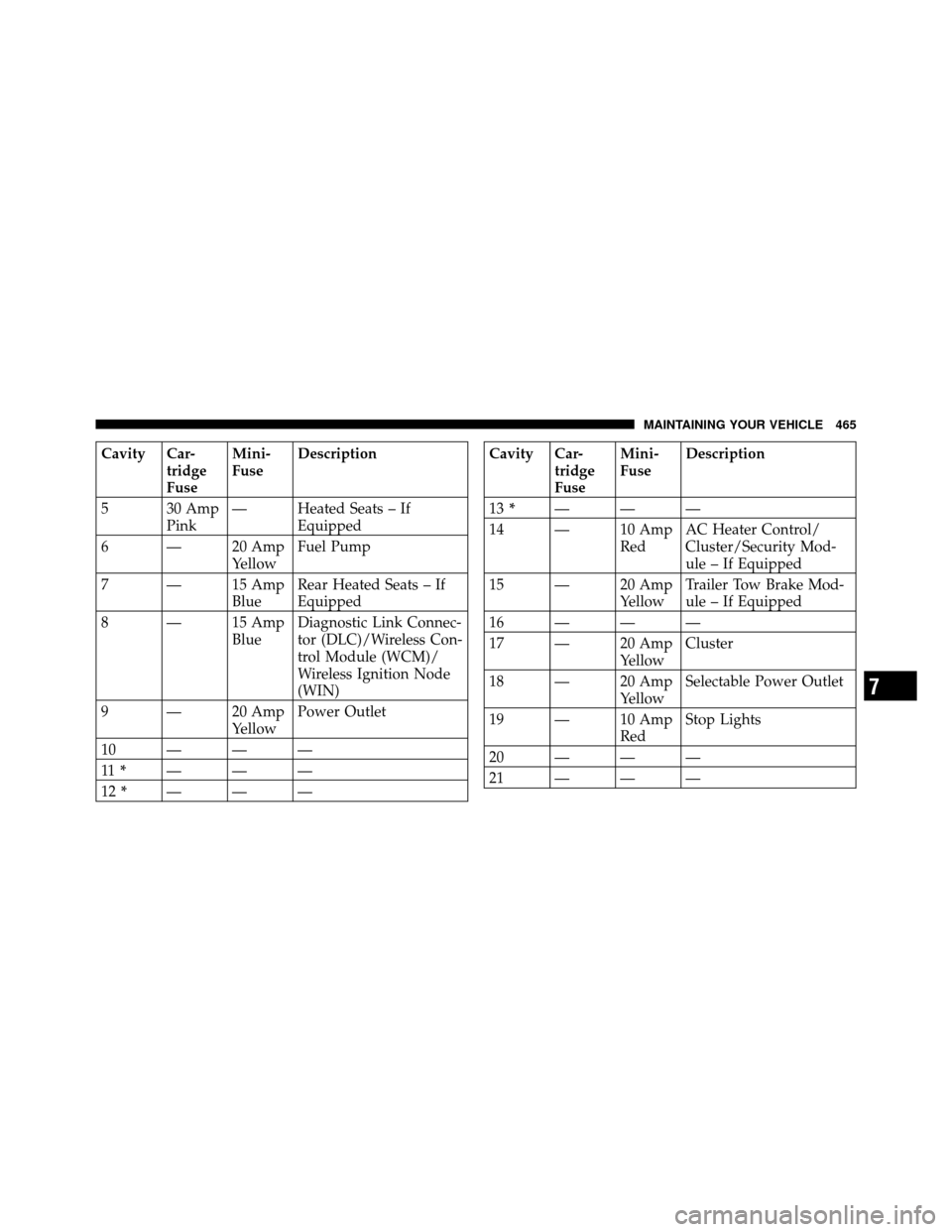

Cavity Car-tridge
FuseMini-
Fuse
Description
5 30 Amp Pink— Heated Seats – If
Equipped
6 — 20 Amp YellowFuel Pump
7 — 15 Amp BlueRear Heated Seats – If
Equipped
8 — 15 Amp BlueDiagnostic Link Connec-
tor (DLC)/Wireless Con-
trol Module (WCM)/
Wireless Ignition Node
(WIN)
9 — 20 Amp YellowPower Outlet
10———
11 * ———
12 * ———Cavity Car-
tridge
FuseMini-
Fuse
Description
13 * ———
14 — 10 Amp RedAC Heater Control/
Cluster/Security Mod-
ule – If Equipped
15 — 20 Amp YellowTrailer Tow Brake Mod-
ule – If Equipped
16———
17 — 20 Amp YellowCluster
18 — 20 Amp YellowSelectable Power Outlet
19 — 10 Amp RedStop Lights
20———
21———
7
MAINTAINING YOUR VEHICLE 465

Cavity Car-tridge
FuseMini-
Fuse
Description
22———
23———
24———
25———
26———
27 — 10 Amp RedOccupant Restraint Con-
troller (ORC)
28 — 10 Amp RedIgnition Run, AC Heater
Control/Headlights/
Park Assist – If
Equipped/Tire Pressure
Monitoring – If
Equipped/Occupant
Restraint Controller
(ORC)Cavity Car-
tridge
FuseMini-
Fuse
Description
29 — 5 Amp OrangeAdaptive Cruise Control
(ACC) – If Equipped/
Cluster/Electronic Sta-
bility Program (ESP) – If
Equipped/Powertrain
Control Module (PCM)/
STOP LIGHT Switch
30 — 10 Amp RedDoor Modules/Power
Mirrors/Steering Con-
trol Module (SCM)
31———
32———
33———
34———
466 MAINTAINING YOUR VEHICLE
