Black plate (5,1)Cadillac Escalade/Escalade ESV Owner Manual - 2010
Additional Required Services At Each Fuel Stop .
Engine oil level check. See Engine Oil on
page 7 ‑ 17
..
Engine coolant level check. See Engine Coolant
on page 7 ‑ 29 ..
Windshield washer fluid level check. See
Windshield Washer Fluid on page 7 ‑ 39 .
Once a Month .
Tire inflation check. See Inflation - Tire Pressure
on page 7 ‑ 65 ..
Tire wear inspection. See Tire Inspection and
Rotation on page 7 ‑ 71 .
Once a Year .
Starter switch check. See Owner Checks and
Services on page 8 ‑ 8 ..
Parking brake and automatic transmission P (Park)
mechanism check. See Owner Checks and
Services on page 8 ‑ 8 . .
Automatic transmission shiftlock control system
check. See Owner Checks and Services on
page 8 ‑ 8 . .
Ignition transmission lock check. See Owner
Checks and Services on page 8 ‑ 8 . .
Engine cooling system and pressure cap pressure
check. Radiator and air conditioning condenser
outside cleaning. See Cooling System
on
page 7 ‑ 27 . .
Exhaust system and nearby heat shields
inspection for loose or damaged components. .
Accelerator pedal check for damage, high effort,
or binding. Replace if needed. .
Hood and liftgate support gas strut inspection for
signs of wear, corrosion, cracks, loss of lubricant,
or other damage. Check the hold open ability of
the gas strut. If necessary, replace with genuine
parts from your dealer.
8-5

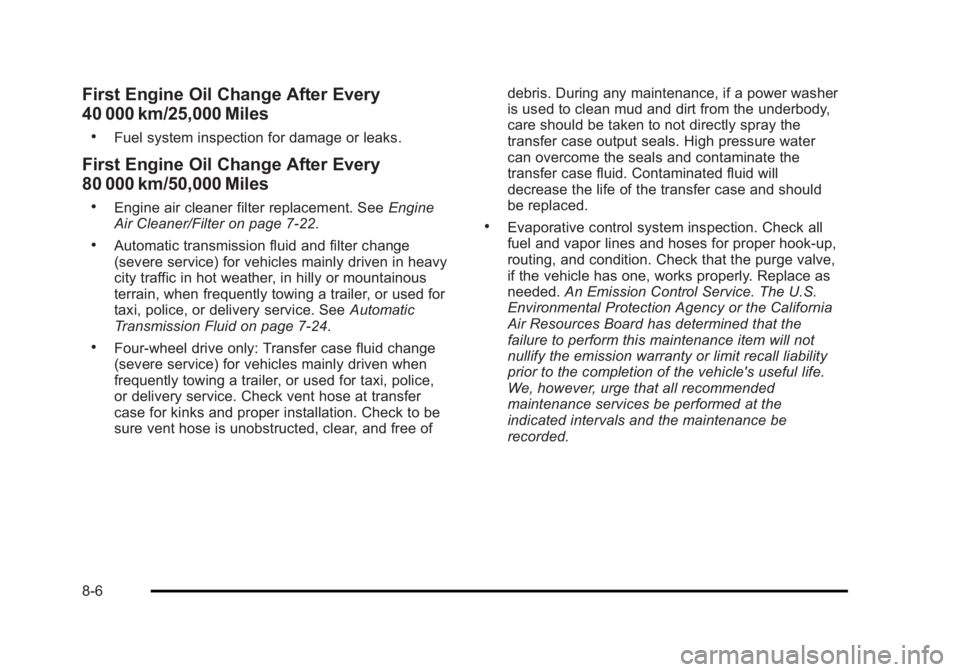

Black plate (6,1)Cadillac Escalade/Escalade ESV Owner Manual - 2010
First Engine Oil Change After Every
40 000 km/25,000 Miles .
Fuel system inspection for damage or leaks.
First Engine Oil Change After Every
80 000 km/50,000 Miles .
Engine air cleaner filter replacement. See Engine
Air Cleaner/Filter on page 7 ‑ 22 ..
Automatic transmission fluid and filter change
(severe service) for vehicles mainly driven in heavy
city traffic in hot weather, in hilly or mountainous
terrain, when frequently towing a trailer, or used for
taxi, police, or delivery service. See Automatic
Transmission Fluid on page 7 ‑ 24 ..
Four ‐ wheel drive only: Transfer case fluid change
(severe service) for vehicles mainly driven when
frequently towing a trailer, or used for taxi, police,
or delivery service. Check vent hose at transfer
case for kinks and proper installation. Check to be
sure vent hose is unobstructed, clear, and free of debris. During any maintenance, if a power washer
is used to clean mud and dirt from the underbody,
care should be taken to not directly spray the
transfer case output seals. High pressure water
can overcome the seals and contaminate the
transfer case fluid. Contaminated fluid will
decrease the life of the transfer case and should
be replaced. .
Evaporative control system inspection. Check all
fuel and vapor lines and hoses for proper hook ‐ up,
routing, and condition. Check that the purge valve,
if the vehicle has one, works properly. Replace as
needed. An Emission Control Service. The U.S.
Environmental Protection Agency or the California
Air Resources Board has determined that the
failure to perform this maintenance item will not
nullify the emission warranty or limit recall liability
prior to the completion of the vehicle's useful life.
We, however, urge that all recommended
maintenance services be performed at the
indicated intervals and the maintenance be
recorded.
8-6

Black plate (7,1)Cadillac Escalade/Escalade ESV Owner Manual - 2010
First Engine Oil Change After Every
160 000 km/100,000 Miles .
Automatic transmission fluid and filter change
(normal service). See Automatic Transmission
Fluid on page 7 ‑ 24 ..
Four ‐ wheel drive only: Transfer case fluid change
(normal service). Check vent hose at transfer case
for kinks and proper installation. Check to be sure
vent hose is unobstructed, clear, and free of
debris. During any maintenance, if a power washer
is used to clean mud and dirt from the underbody,
care should be taken to not directly spray the
transfer case output seals. High pressure water
can overcome the seals and contaminate the
transfer case fluid. Contaminated fluid will
decrease the life of the transfer case and should
be replaced. .
Spark plug replacement and spark plug wires
inspection. An Emission Control Service. First Engine Oil Change After Every
240 000 km/150,000 Miles .
Engine cooling system drain, flush, and refill,
cooling system and cap pressure check, and
cleaning of outside of radiator and air conditioning
condenser (or every 5 years, whichever occurs
first). See Engine Coolant
on page 7 ‑ 29 . An
Emission Control Service. .
Engine accessory drive belt inspection for fraying,
excessive cracks, or obvious damage and
replacement, if needed. An Emission Control
Service.
8-7

Black plate (8,1)Cadillac Escalade/Escalade ESV Owner Manual - 2010
Owner Checks and Services Starter Switch Check
{ WARNING: When you are doing this inspection, the vehicle
could move suddenly. If the vehicle moves, you or
others could be injured.
1. Before starting this check, be sure there is enough
room around the vehicle.
2. Firmly apply both the parking brake and the regular
brake. See Parking Brake on page 3 ‑ 38 .
Do not use the accelerator pedal, and be ready to
turn off the engine immediately if it starts.
3. Try to start the engine in each gear. The vehicle
should start only in P (Park) or N (Neutral). If the
vehicle starts in any other position, contact your
dealer for service. Automatic Transmission Shift Lock
Control System Check
{ WARNING: When you are doing this inspection, the vehicle
could move suddenly. If the vehicle moves, you or
others could be injured.
1. Before starting this check, be sure there is enough
room around the vehicle. It should be parked on a
level surface.
2. Firmly apply the parking brake. See Parking Brake
on page 3 ‑ 38 .
Be ready to apply the regular brake immediately if
the vehicle begins to move.
3. With the engine off, turn the ignition to ON/RUN,
but do not start the engine. Without applying the
regular brake, try to move the shift lever out of
P (Park) with normal effort. If the shift lever moves
out of P (Park), contact your dealer for service.
8-8

Black plate (9,1)Cadillac Escalade/Escalade ESV Owner Manual - 2010
Ignition Transmission Lock Check While parked, and with the parking brake set, try to turn
the ignition to LOCK/OFF in each shift lever position. .
The ignition should turn to LOCK/OFF only when
the shift lever is in P (Park). .
The ignition key should come out only in
LOCK/OFF.
Contact your dealer if service is required.
Parking Brake and Automatic
Transmission P (Park) Mechanism
Check
{ WARNING: When you are doing this check, the vehicle could
begin to move. You or others could be injured and
property could be damaged. Make sure there is
room in front of the vehicle in case it begins to
roll. Be ready to apply the regular brake at once
should the vehicle begin to move. Park on a fairly steep hill, with the vehicle facing
downhill. Keeping your foot on the regular brake, set the
parking brake. .
To check the parking brake's holding ability: With
the engine running and the transmission in
N (Neutral), slowly remove foot pressure from the
regular brake pedal. Do this until the vehicle is held
by the parking brake only. .
To check the P (Park) mechanism's holding ability:
With the engine running, shift to P (Park). Then
release the parking brake followed by the regular
brake.
Contact your dealer if service is required.
8-9

Black plate (10,1)Cadillac Escalade/Escalade ESV Owner Manual - 2010
Recommended Fluids and
Lubricants Fluids and lubricants identified below by name, part
number, or specification can be obtained from your
dealer.
Usage Fluid/Lubricant
Engine Oil The engine requires a special engine
oil meeting GM Standard GM4718M.
Oils meeting this standard can be
identified as synthetic, and should
also be identified with the American
Petroleum Institute (API) Certified for
Gasoline Engines starburst symbol.
However, not all synthetic API oils
with the starburst symbol will meet
this GM standard. Look for and use
only oil that meets GM Standard
GM4718M. For the proper viscosity,
see Engine Oil on page 7 ‑ 17 . Usage Fluid/Lubricant
Engine Coolant 50/50 mixture of clean, drinkable
water and use only DEX-COOL ®
Coolant. See Engine Coolant on
page 7 ‑ 29
.
Hydraulic Brake
System DOT 3 Hydraulic Brake Fluid
(GM Part No. U.S. 12377967, in
Canada 89021320).
Windshield
Washer Optikleen ®
Washer Solvent.
Power Steering
System GM Power Steering Fluid
(GM Part No. U.S. 89021184, in
Canada 89021186).
Automatic
Transmission DEXRON ®
-VI Automatic Transmission
Fluid.
Key Lock
Cylinders Multi-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241, in
Canada 10953474).
8-10

Black plate (12,1)Cadillac Escalade/Escalade ESV Owner Manual - 2010
Maintenance Replacement Parts Replacement parts identified below by name, part number, or specification can be obtained from your dealer.
Maintenance Replacement PartsPart GM Part Number ACDelco Part Number
Engine Air Cleaner/Filter 15908916 A3086C
Oil Filter 89017524 PF48
Spark Plugs 12621258 41-110
Wiper Blades
Front – 21.6 in (55.0 cm) 25877402 —
Rear – 11.8 in (30.0 cm) 25820122 —
8-12

Black plate (13,1)Cadillac Escalade/Escalade ESV Owner Manual - 2010
Engine Drive Belt Routing
If your vehicle is a Two-mode Hybrid, see the
Two-mode Hybrid manual for more information.
8-13
