Controls
55Reference
At a glance
Driving tips
Communications
Navigation
Entertainment
Mobility
a downshift that would cause the engine to
overrev will not be executed by the system. The
gear selected is briefly displayed in the instru-
ment cluster, followed by the gear actually
in use.

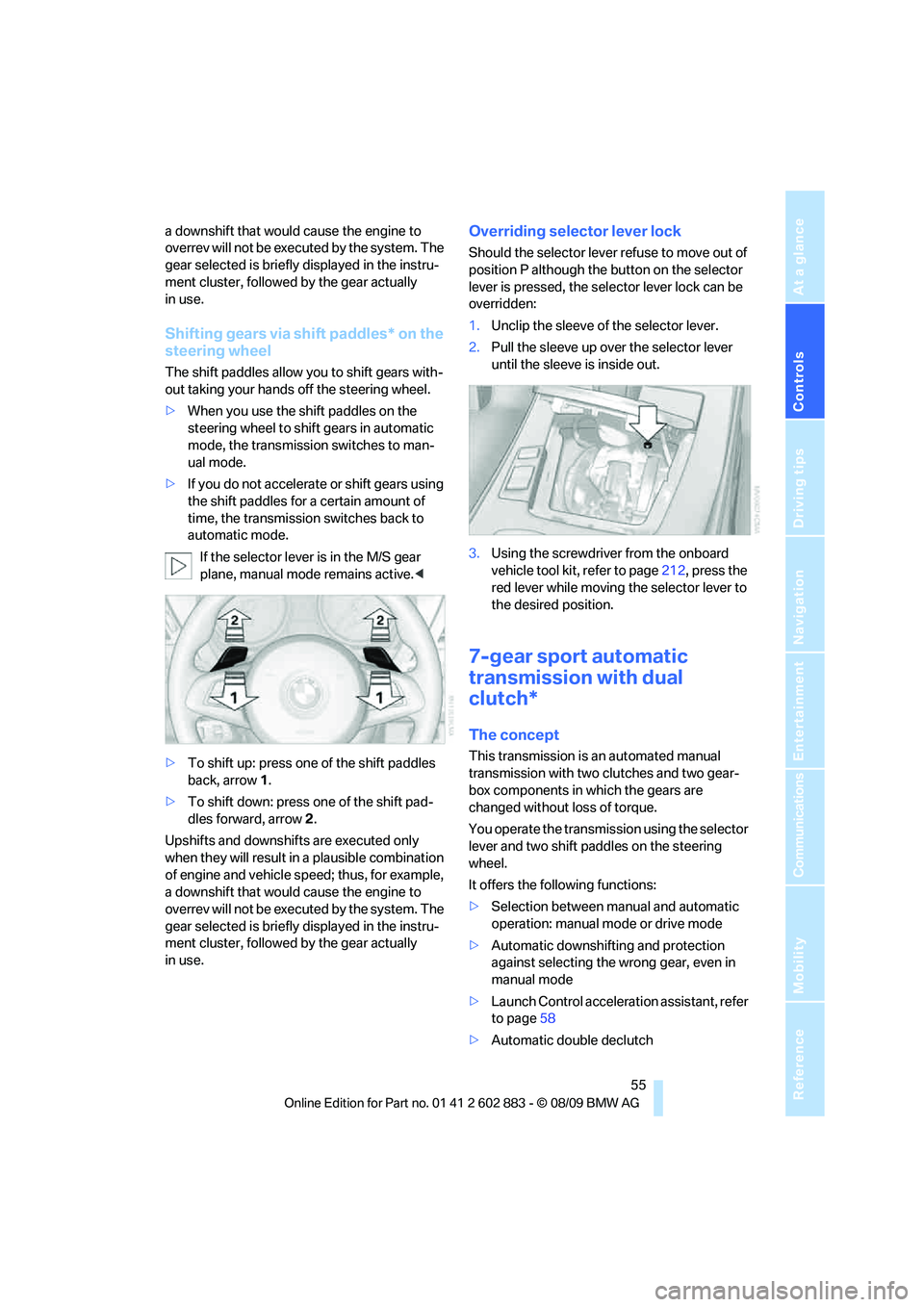

Shifting gears via shift paddles* on the
steering wheel
The shift paddles allow you to shift gears with-
out taking your hands off the steering wheel.
>When you use the shift paddles on the
steering wheel to shift gears in automatic
mode, the transmission switches to man-
ual mode.
>If you do not accelerate or shift gears using
the shift paddles for a certain amount of
time, the transmission switches back to
automatic mode.
If the selector lever is in the M/S gear
plane, manual mode remains active.<
>To shift up: press one of the shift paddles
back, arrow 1.
>To shift down: press one of the shift pad-
dles forward, arrow 2.
Upshifts and downshifts are executed only
when they will result in a plausible combination
of engine and vehicle speed; thus, for example,
a downshift that would cause the engine to
overrev will not be executed by the system. The
gear selected is briefly displayed in the instru-
ment cluster, followed by the gear actually
in use.
Overriding selector lever lock
Should the selector lever refuse to move out of
position P although the button on the selector
lever is pressed, the selector lever lock can be
overridden:
1.Unclip the sleeve of the selector lever.
2.Pull the sleeve up over the selector lever
until the sleeve is inside out.
3.Using the screwdriver from the onboard
vehicle tool kit, refer to page212, press the
red lever while moving the selector lever to
the desired position.
7-gear sport automatic
transmission with dual
clutch*
The concept
This transmission is an automated manual
transmission with two clutches and two gear-
box components in which the gears are
changed without loss of torque.
You operate the transmission using the selector
lever and two shift paddles on the steering
wheel.
It offers the following functions:
>Selection between manual and automatic
operation: manual mode or drive mode
>Automatic downshifting and protection
against selecting the wrong gear, even in
manual mode
>Launch Control acceleration assistant, refer
to page58
>Automatic double declutch

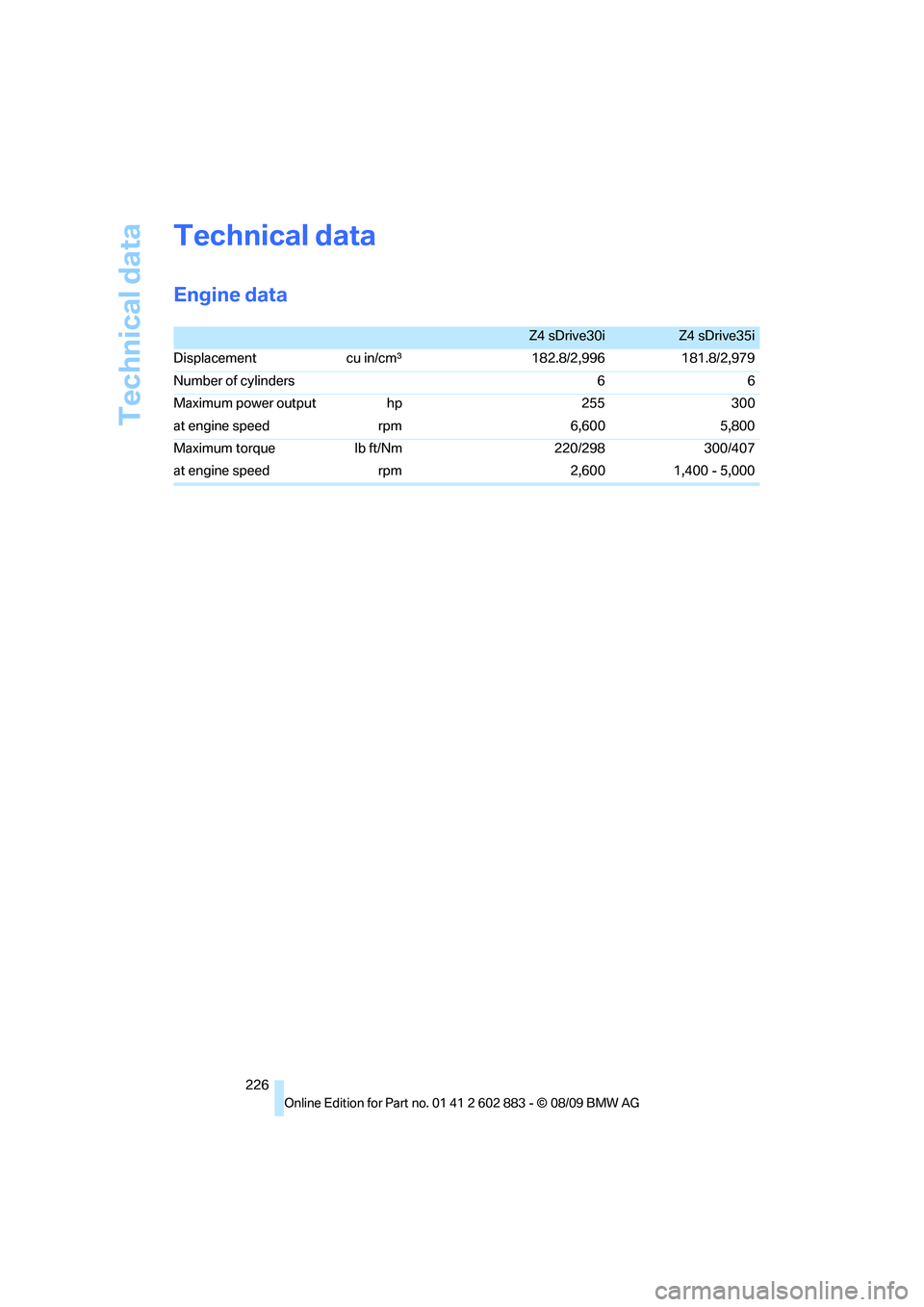

Technical data
226
Technical data
Engine data
Z4 sDrive30iZ4 sDrive35i
Displacement cu in/cmμ182.8/2,996 181.8/2,979
Number of cylinders 6 6
Maximum power output hp 255 300
at engine speed rpm 6,600 5,800
Maximum torque lb ft/Nm 220/298 300/407
at engine speed rpm 2,600 1,400 - 5,000
Reference 249
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility

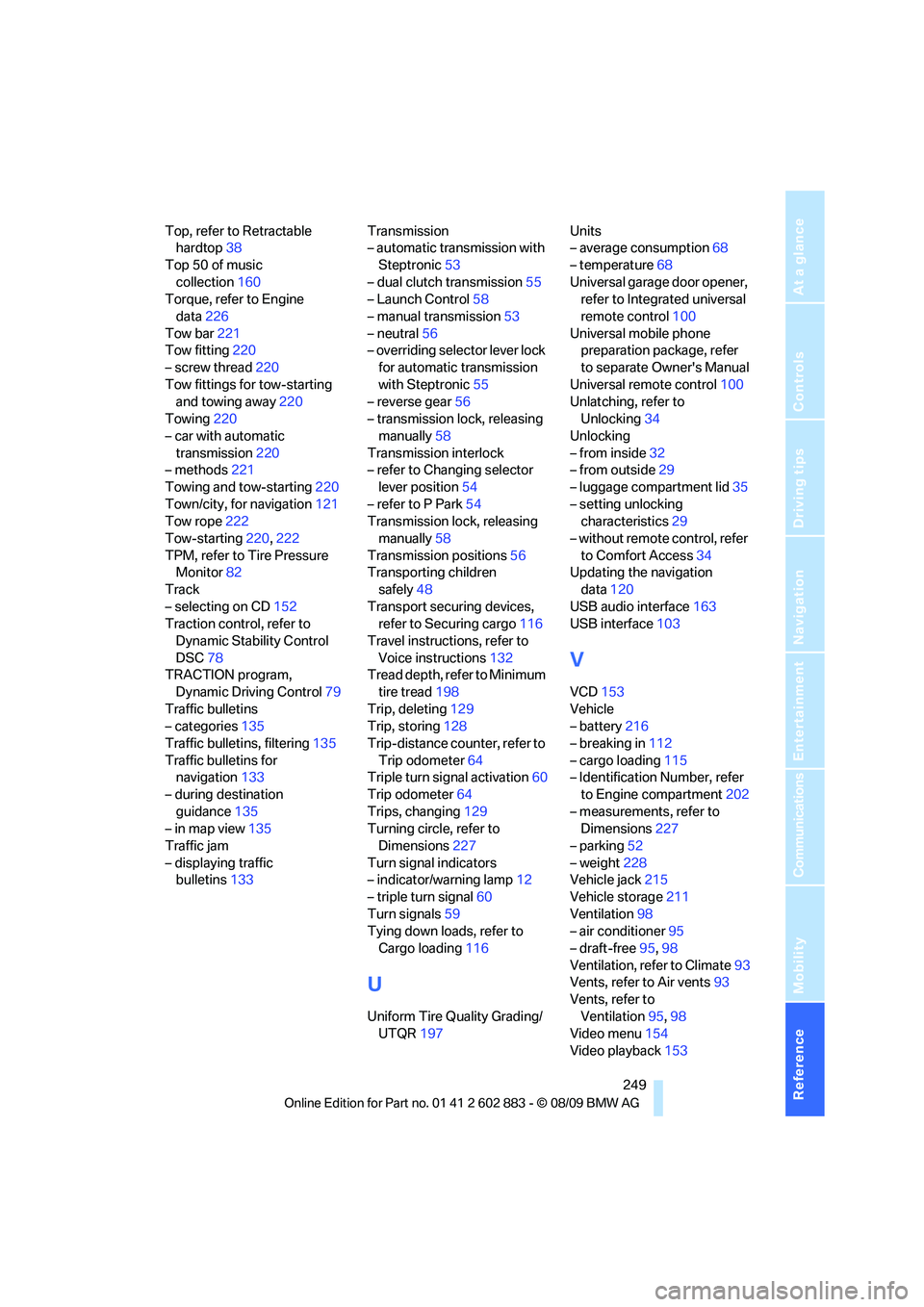

Top, refer to Retractable
hardtop38
Top 50 of music
collection160
Torque, refer to Engine
data226
Tow bar221
Tow fitting220
– screw thread220
Tow fittings for tow-starting
and towing away220
Towing220
– car with automatic
transmission220
– methods221
Towing and tow-starting220
Town/city, for navigation121
Tow rope222
Tow-starting220,222
TPM, refer to Tire Pressure
Monitor82
Track
– selecting on CD152
Traction control, refer to
Dynamic Stability Control
DSC78
TRACTION program,
Dynamic Driving Control79
Traffic bulletins
– categories135
Traffic bulletins, filtering135
Traffic bulletins for
navigation133
– during destination
guidance135
– in map view135
Traffic jam
– displaying traffic
bulletins133Transmission
– automatic transmission with
Steptronic53
– dual clutch transmission55
– Launch Control58
– manual transmission53
– neutral56
– overriding selector lever lock
for automatic transmission
with Steptronic55
– reverse gear56
– transmission lock, releasing
manually58
Transmission interlock
– refer to Changing selector
lever position54
– refer to P Park54
Transmission lock, releasing
manually58
Transmission positions56
Transporting children
safely48
Transport securing devices,
refer to Securing cargo116
Travel instructions, refer to
Voice instructions132
Tread depth, refer to Minimum
tire tread198
Trip, deleting129
Trip, storing128
Trip-distance counter, refer to
Trip odometer64
Triple turn signal activation60
Trip odometer64
Trips, changing129
Turning circle, refer to
Dimensions227
Turn signal indicators
– indicator/warning lamp12
– triple turn signal60
Turn signals59
Tying down loads, refer to
Cargo loading116
U
Uniform Tire Quality Grading/
UTQR197Units
– average consumption68
– temperature68
Universal garage door opener,
refer to Integrated universal
remote control100
Universal mobile phone
preparation package, refer
to separate Owner's Manual
Universal remote control100
Unlatching, refer to
Unlocking34
Unlocking
– from inside32
– from outside29
– luggage compartment lid35
– setting unlocking
characteristics29
– without remote control, refer
to Comfort Access34
Updating the navigation
data120
USB audio interface163
USB interface103
V
VCD153
Vehicle
– battery216
– breaking in112
– cargo loading115
– Identification Number, refer
to Engine compartment202
– measurements, refer to
Dimensions227
– parking52
– weight228
Vehicle jack215
Vehicle storage211
Ventilation98
– air conditioner95
– draft-free95,98
Ventilation, refer to Climate93
Vents, refer to Air vents93
Vents, refer to
Ventilation95,98
Video menu154
Video playback153
