2010 BMW MOTORRAD G 650 GS Rider's Manual (in English)

If plastic parts are cleanedusing unsuitable cleaningagents, the surfaces can be dam-aged.
Do not use cleaning agents thatcontain alcohol, solvents or ab-rasives to clean plastic parts.
Even fly-remover pads or clean-ing pads with hard surfaces canproduce scratches.
Soften stubborn dirt andinsects by covering the af-fected areas with a wet cloth.
Chrome
Use plenty of water and BMWshampoo to clean chrome, par-ticularly if it has been exposed toroad salt. Use chrome polish foradditional treatment.
Radiator
Clean the radiator regularly toprevent overheating of the en-gine due to inadequate cooling.
For example, use a garden hosewith low water pressure.
Cooling fins can be benteasily.
Take care not to bend the finswhen cleaning the radiator.
Rubber
Treat rubber components withwater or BMW rubber-careproducts.
Using silicone sprays forthe care of rubber seals cancause damage.
Do not use silicone sprays orother care products that containsilicon.
Paint care
Washing the motorcycle regularlywill help counteract the long-termeffects of substances that dam-age the paint, especially if yourmotorcycle is ridden in areaswith high air pollution or naturalsources of dirt, for example treeresin or pollen.
Remove particularly aggressivesubstances immediately, how-ever, as otherwise the paint canbe affected or become discol-oured. Substances of this natureinclude spilt fuel, oil, grease,brake fluid and bird droppings.We recommend BMW vehiclepolish or BMW paint cleaner forthis purpose.
Marks on the paintwork are par-ticularly easy to see after themotorcycle has been washed.Remove stains of this kind im-mediately, using cleaning-gradebenzene or petroleum spirit on aclean cloth or ball of cotton wool.
9
103
zCare

BMW Motorrad recommendsBMW tar remover for removingspecks of tar. Remember to waxthe parts treated in this way.
Protective wax coating
BMW Motorrad recommendsapplying only BMW car wax orproducts containing carnaubawax or synthetic wax.
It is time to rewax the paint-work when water "puddles" onthe surface, instead of formingbeads.
Laying up motorcycle
Clean the motorcycle.
Remove the battery.
Spray the brake and clutchlever pivots, the side standpivots and the centre standpivots (if the motorcycle is fit-ted with a centre stand) with asuitable lubricant.
Coat bright metal and chrome-plated parts with an acid-freegrease (e.g. Vaseline).
Stand the motorcycle in a dryroom in such a way that thereis no load on either wheel.
Before laying the vehicleup out of use, have the en-gine oil and the oil filter elementchanged by a specialist work-shop, preferably an authorisedBMW Motorrad dealer. Com-bine work for laying up/restoringto use with a BMW service orinspection.
Restoring motorcycle
to use
Remove outer preservation.
Clean the motorcycle.
Install operational battery.
Before starting: work throughthe checklist.
9
104
zCare

Technical data
Technical data
Troubleshooting chart . . . . . . . . . . . . . 106
Threaded fasteners . . . . . . . . . . . . . . . . 107
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Clutch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Transmission . . . . . . . . . . . . . . . . . . . . . . 111
Rear-wheel drive . . . . . . . . . . . . . . . . . . . 112
Running gear . . . . . . . . . . . . . . . . . . . . . . 112
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Wheels and tyres . . . . . . . . . . . . . . . . . . 113
Electrics . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . 117
Weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Riding specifications . . . . . . . . . . . . . . . 11810
105
zTechnical data

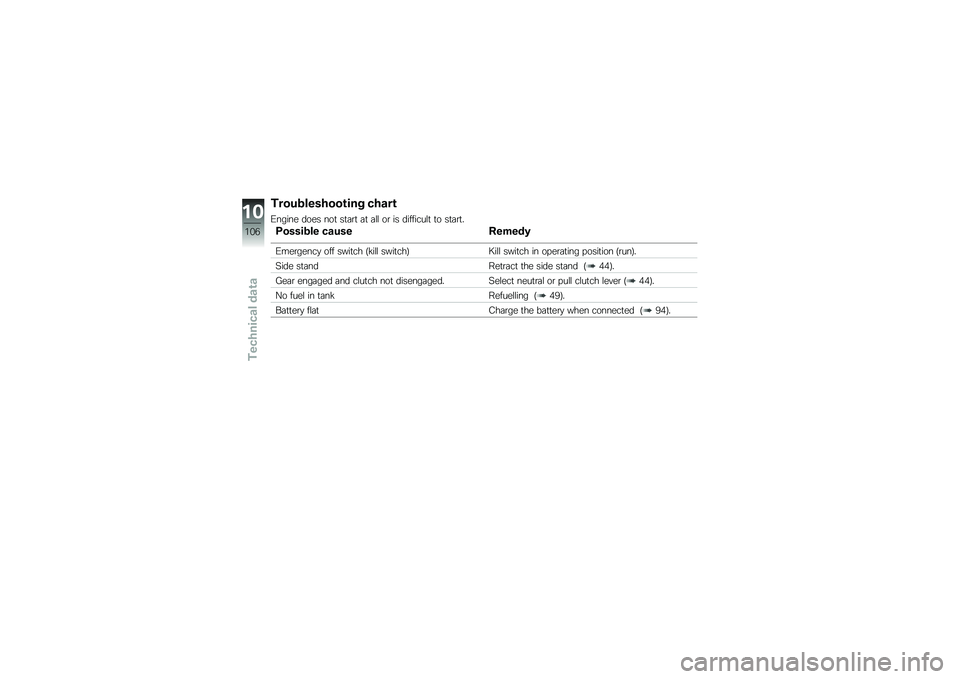

Troubleshooting chart
Engine does not start at all or is difficult to start.
Possible cause Remedy
Emergency off switch (kill switch) Kill switch in operating position (run).
Side standRetract the side stand (44).
Gear engaged and clutch not disengaged.Select neutral or pull clutch lever (44).
No fuel in tankRefuelling (49).
Battery flatCharge the battery when connected (94).
10
106
zTechnical data

Threaded fasteners
Front wheel Value Valid
Fastener, quick-release axle,front
M16 x 1.5 - 10.945 Nm
Clamp, front quick-release axle
M8 x 2023 Nm
Rear wheel Value Valid
Fastener, quick-release axle,rear
M16 x 1.5100 Nm
Tensioning screws for drivechain
M8 x 7010 Nm
Mirror arm Value Valid
Union nut, mirror
20 Nm
10
107
zTechnical data

Mirror arm Value Valid
Clamping screw, mirror tohandlebar fitting
21 Nm
10
108
zTechnical data

Engine
Engine designSingle-cylinder four-stroke, double overhead cam-shafts driven by roller chain, 4 valves operated bybucket tappets, balancing shaft, liquid-cooled cyl-inder and cylinder head, integral water pump, 5-speed gearbox and dry sump lubrication.
Displacement652 cm3
Cylinder bore100 mm
Piston stroke83 mm
Compression ratio11.5:1
Nominal output37 kW, - at engine speed: 6500 min-1
with power reductionOA25 kW, - at engine speed: 5500 min-1
Torque60 Nm, - at engine speed: 4800 min-1
with power reductionOA51 Nm, - at engine speed: 4000 min-1
Maximum engine speedmax 7500 min-1
Idle speed1480 min-1
10
109
zTechnical data

Fuel
Recommended fuel gradeRegular, unleaded
91 ROZ/RON
87 AKI
Usable fuel capacityapprox. 17.3 l
Reserve fuelapprox. 4 l
BMW recommends BP fuels
Engine oil
Engine oil, capacity2.3 l, Total capacity (with filter change)
1.7 l, Oil tank - prefilling
0.6 l, Oil tank - topping up
of products recommended by BMW Motorrad and generally admissible viscosity classes
Castrol GPS SAE 10W-40, API SG / JASO MA
-20 °C
SAE 10W-40, API SF / SG / SH
-20 °C, Operation in winter
SAE 15W-40, API SF / SG / SH
-10 °C
BMW recommends
10
110
zTechnical data
