At a glance
11Reference
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
7Shift paddles62
8Buttons on steering wheel
9Instrument cluster12
12Ignition lock57
13Horn, entire surface16Releasing hood210
Mobile phone
*176:
>Press: accepting and ending
call, starting dialing
* for
selected phone number and
redialing if no phone number is
selected
>Press and hold: redialing
Volume
Activating/deactivating voice com-
mand system
* 24
Changing radio station154
Selecting music track165
Scrolling in phone book and in lists
with stored phone numbers
MDrive, call up individual
settings52
Individually programmable51
10
Windshield wipers64
Rain sensor64
11Starting/stopping engine and
switching ignition on/off 57
14
Steering wheel heater
*51
Steering wheel adjustment51
15
Cruise control65
17Opening the luggage compartment
lid35
18
Head-Up Display
*90
19
Parking lamps93
Low beams93
Daytime running lamps
*94
Automatic headlamp control93

Daytime running lamps*94
Adaptive Head Light
*95
High-beam assistant
*95
20
Instrument lighting97

iDrive
18
Menu overview
Communication
>Telephone*
>BMW Assist* or BMW TeleServices*
Navigation or onboard information
>Navigation system*
>Onboard information, e.g. for displaying
the average fuel consumption
Entertainment
>Radio
>CD player and CD changer
*
>AUX-IN connection
>USB-audio interface
* for external audio
device
Climate
>Vent settings
>Automatic programs
>Seat heater distribution
*
>Parked car operation
menu
>Switching off Control Display
>Tone and display settings
>Settings for your vehicle, e.g. for MDrive, or
for the central locking system
>Display of maintenance intervals and dead-
lines for legally mandated inspections
>Settings for telephone
Operating principle
From radio readiness, refer to page57, the fol-
lowing message is shown on the Control Dis-
play:
To hide the message:
Press the controller.
This displays the start menu.
The message is hidden after approx. 10 sec-
onds.
Start menu
You can open all of the iDrive functions using
five menu items.
Opening start menu
Press the button.

Controls
49Reference
At a glance
Driving tips
Communications
Navigation
Entertainment
Mobility
the Control Display with buttons2 and3. The
maximum temperature is supplied when three
LEDs are lit.
The temperature is reduced and if need be, the
heating is switched off in order to reduce the
load on the battery. The LEDs remain lit.
To switch off: Press button longer.
Temperature distribution without
active seat ventilation
The heat output can be distributed variously in
the seat cushion and the backrest.
iDrive, for operating principle refer to page16.
1.Open the start menu.
2.Move the controller to the left to open "Cli-
mate".
3.Select "Seat heater distribution" and press
the controller.
4.Move the controller to the left or right to
select "Driver" or "Passenger".
5.Turn the controller to adjust the distribu-
tion.
The setting is applied.
Temperature distribution with active
seat ventilation
The heat output can be distributed variously in
the seat cushion and the backrest.
iDrive, for operating principle refer to page16.
1.Open the start menu.
2.Move the controller to the left to open "Cli-
mate".3.Select "Driver's seat climate" or "Passen-
ger's seat climate" and press the controller.
Turn the controller to adjust the distribution.
The setting is applied.
Rear
Operation similar to front seat heating; two tem-
perature levels, without temperature distribu-
tion.
Active seat ventilation*
The appearance and arrangement of the but-
tons may vary depending on the equipment.
1Active seat ventilation
2Active seat ventilation with seat heating

Controls
51Reference
At a glance
Driving tips
Communications
Navigation
Entertainment
Mobility
Interior rearview mirror
To reduce the dazzle effect of following vehi-
cles at night, turn the knob.
Interior and exterior mirrors,
automatic dimming feature*
This feature is controlled by two photocells in
the inside rearview mirror, one on the front and
one on the back.
For trouble-free operation, keep the photocells
clean and do not cover the area between the
interior rearview mirror and the windshield. Do
not attach stickers of any kind to the windshield
in front of the mirror, either.
Steering wheel
Adjusting
Do not adjust the steering wheel while the
vehicle is moving. There is a risk of acci-
dent as the result of unexpected movement. directions.
Storing steering wheel positions, refer to Seat,
mirror and steering wheel memory on page45.
Easy entry/exit*
To facilitate entry and exit, the steering wheel
temporarily moves into the uppermost position.
Steering wheel heating*
Press the button.
When the steering wheel heater is operating,
the LED in the button lights up.
Programmable button on steering
wheel
You can program the button individually.

Navigation
Entertainment
Driving tips
153Reference
At a glance
Controls
Communications
Mobility

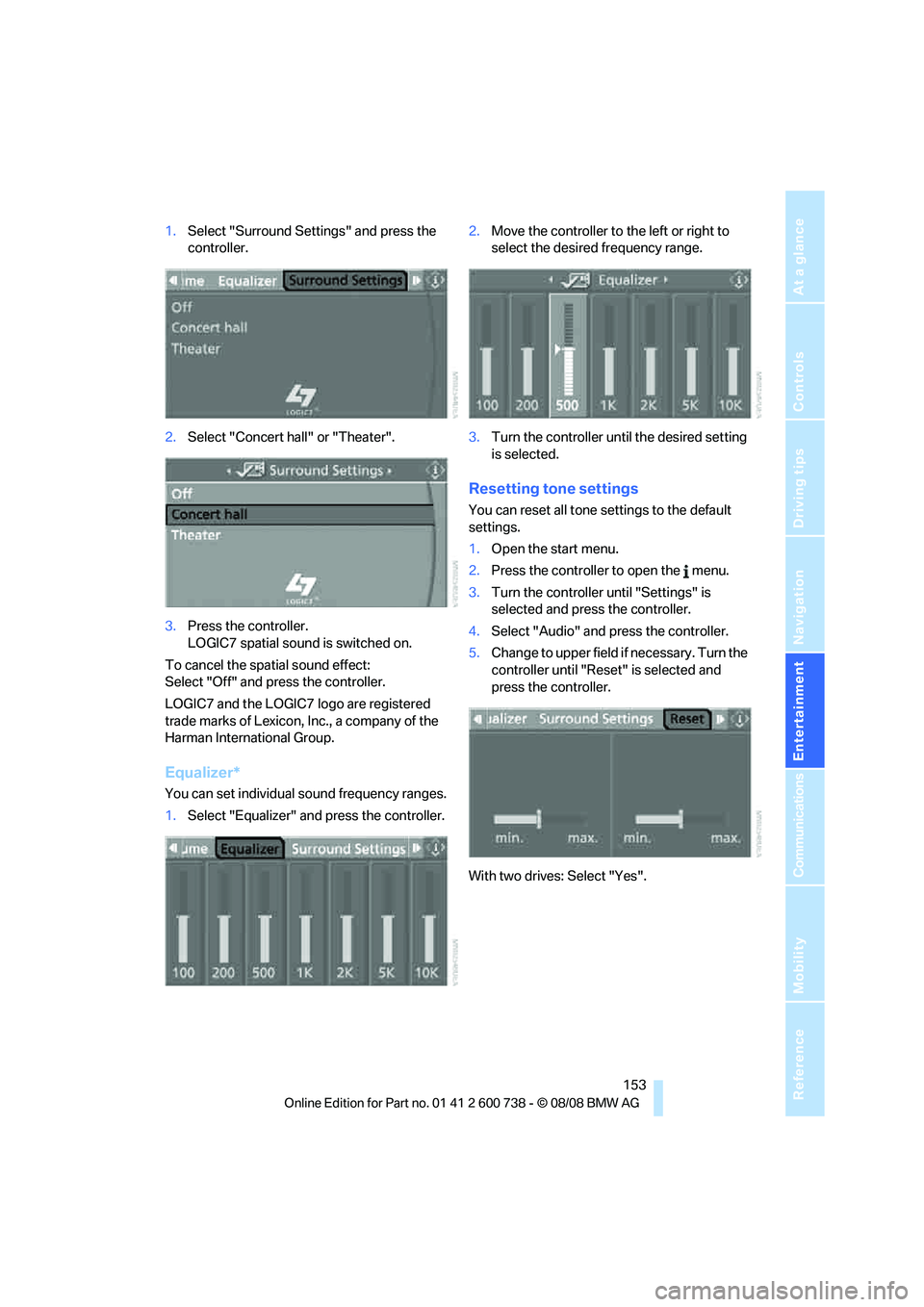

1.Select "Surround Settings" and press the
controller.
2.Select "Concert hall" or "Theater".
3.Press the controller.
LOGIC7 spatial sound is switched on.
To cancel the spatial sound effect:
Select "Off" and press the controller.
LOGIC7 and the LOGIC7 logo are registered
trade marks of Lexicon, Inc., a company of the
Harman International Group.
Equalizer*
You can set individual sound frequency ranges.
1.Select "Equalizer" and press the controller.2.Move the controller to the left or right to
select the desired frequency range.
3.Turn the controller until the desired setting
is selected.
Resetting tone settings
You can reset all tone settings to the default
settings.
1.Open the start menu.
2.Press the controller to open the menu.
3.Turn the controller until "Settings" is
selected and press the controller.
4.Select "Audio" and press the controller.
5.Change to upper field if necessary. Turn the
controller until "Reset" is selected and
press the controller.
With two drives: Select "Yes".

Short commands of voice command system
242
Climate
To open "All stations"154{FM all stations}
To select radio station154{Station ...}, e.g. {Station WNYC}, or
{Choose station}
To open "Presets"154{FM presets} or
{AM presets}
To select preset radio station154{Preset ...}, e.g. {Preset 1}
To open "Manual"155{FM manual},
{AM manual} or
{Choose frequency},
{Frequency ... Megahertz}
To open strongest radio stations156{AM Autostore}
To open "WB"158{Weatherband menu}
To switch on weatherband 158{Weatherband on}
To select a weatherband station158{Choose weatherband station}
To open "SAT"162{SAT radio menu}
To switch on satellite radio161{SAT radio}
To open "Presets" of the satellite radio162{SAT radio presets}
To open "All channels" of the satellite radio162{SAT radio all channels}
To open "Categories" of the satellite radio162{SAT radio categories}
To open CD player164{
CD menu}
To switch on CD player164{CD}
To open CD changer164{CD changer menu}
To switch on CD changer164{CD changer}
To select a CD in the CD changer164{CD 1...6}
To select music track165{CD track ...}
To select a CD and music track in the CD
changer165{CD 1...6 track ...}
To switch on audio playback with external audio
device170{Audio Aux}
FunctionCommand
FunctionCommand
To adjust temperature distribution for front seat
heating49{Seat heater distribution}
To open "Vent settings"100{Vent settings}
To open "Automatic programs"99{Automatic programs}

Reference 257
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
Safety belts47
– damage48
– sitting safely43
– warning lamp48
Safety belt tensioners
– refer to Airbags88
– refer to Safety belts47
Safety systems
– ABS Antilock Brake
System80
– airbags88
– driving stability control
systems80
– safety belts47
Satellite radio
– enabling channel161
– selecting channel162
– storing channel162
satellite radio161
"SAT" in radio mode150,161
"Save current
destination"136
"Scan"
– music tracks on CD166
– stations in radio mode155
Scan
– CD changer166
– CD player166
– radio155
"Scan all" in audio mode166
"Scan directory" in audio
mode166
Screen, refer to iDrive16
Screw thread for tow
fitting233
SDARS, refer to Satellite
radio161
"Seat heater distribution"49Seats43
– active backrest width
adjustment44
– adjusting backrest width44
– adjusting height44
– adjusting shoulder
support44
– adjusting the seats43
– adjusting thigh support44
– easy entry/exit45
– heating48
– lumbar support44
– memory, refer to Seat, mirror
and steering wheel
memory45
– shoulder support44
– sitting safely43
– storing the setting45
– ventilation, refer to Active
seat ventilation49
Securing load
– refer to Securing cargo119
– with ski bag, refer to
Securing cargo112
"Select as
destination"132,195
"Select current speed"75
Selecting audio sources, refer
to Operation via iDrive150
Selecting frequency
manually155
Selecting menu items20
Selecting route136
Selection options with
navigation system136Sequential Manual
Transmission with
Drivelogic60
– Drivelogic driving
programs62
– idle61
– initializing system, refer to
After changing wheels/
tires208
– reverse gear61
– Sequential mode61
– shift lights63
– shiftlock61
– towing234
– tow-starting235
Sequential mode61
Service, refer to Roadside
Assistance232
Service and Warranty
Information Booklet for
US models216
"Service Info"71,193,213
Service Interval Display
– refer to CBS Condition
Based Service216
– refer to Service
requirements70
"Service Request"186,193
"Service
requirements"71,193,213
Service requirements70
– refer to CBS Condition
Based Service216
"Set date"77
"Set" in audio mode150
"Set" on trip computer70
"Set service date"72
"Set time"76
Setting button, refer to
Controls, controller
16
"Settings"198

Reference 259
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
Station, refer to Radio154
"Status"71
Status information on Control
Display21
Status of this Owner's Manual
at time of printing5
Steam cleaners218,219
Steering wheel
– adjustment51
– automatic adjustment, refer
to Steering wheel
memory45
– buttons on steering
wheel11
– easy entry/exit51
– heating51
– lock, refer to Ignition lock57
– MDrive button52
– memory45
– programmable button51
– shift paddles62
"Steering wheel button"52
"Stop" for stopwatch75
Stopwatch75
Storage compartments108
"Store in address book" in
navigation134
"Store" in radio
mode157,163
Storing221
Storing current position134
Storing radio stations156
Storing sitting position, refer
to Seat, mirror and steering
wheel memory45
Storing tires208
Storing your vehicle221
"Street" in destination
entry128
Summer tires, refer to Wheels
and tires204
Sun blinds106
"Surround Settings", tone
control152,153
SW, waveband154
Switches, refer to Cockpit10Switching automatically
between high beams and
low beams, refer to High-
beam assistant95
Switching off engine58
Switching on
– audio150
– CD changer150
– CD player150
– radio150
Switching on hour signal76
Swiveling
– headlamps, refer to Adaptive
Head Light95
Symbols4
– indicator/warning lamps13
– navigation system144
– status information21
– traffic information with
navigation system142
T
Tachometer67
Tail lamps224
– replacing bulbs224
Tank contents, refer to
Capacities239
Target cursor for
navigation131
Technical alterations, refer to
For your own safety5
Technical data238
– capacities239
– dimensions238
Telematics, refer to
BMW Assist191
Telephone
– installation location, refer to
Center armrest107
– refer to Mobile phone176
"Telephone list"52Temperature
– adjusting in upper body
region99
– adjusting with automatic
climate control99
– changing units of
measure77
– refer to Coolant
temperature67
Temperature display
– changing units of
measure77
– outside temperature
warning68
Temperature gauge
– engine oil68
Tempomat, refer to Cruise
control65
"Text language"78
"Theater", tone control153
The individual vehicle5
Third brake lamp, refer to
Center brake lamp224
Through-loading system111
Tightening torque of the lug
bolts, refer to After
mounting229
Tilt alarm sensor37
– switching off38
Tilting down passenger-side
exterior mirror50
"Time"76
"Time format"76
Timer, refer to Preselecting
activation times103
"Timer 2" for parked-car
ventilation103
"Timer 1" for parked-car
ventilation103
Tire inflation pressures204
Tire pressure
– loss85,86
Tire Pressure Monitor
TPM
85
Tire Quality Grading206
Tire replacement
– new wheels and tires207
