Cockpit
12
Instrument cluster
1Speedometer
135i: with fuel gauge
2Indicator lamps for turn signals
3Indicator and warning lamps13
4Tachometer63
5Fuel gauge64
135i: engine oil temperature64
6Display for
>Clock63
>Outside temperature63
>Indicator and warning lamps71
7Display for
>Position of automatic transmission
*57
>Computer64
>Date of next scheduled service, and
remaining distance to be driven67
>Odometer and trip odometer63
>High-beam assistant
*88
>Checking the oil level199
>Settings and information66
8Resetting the trip odometer63

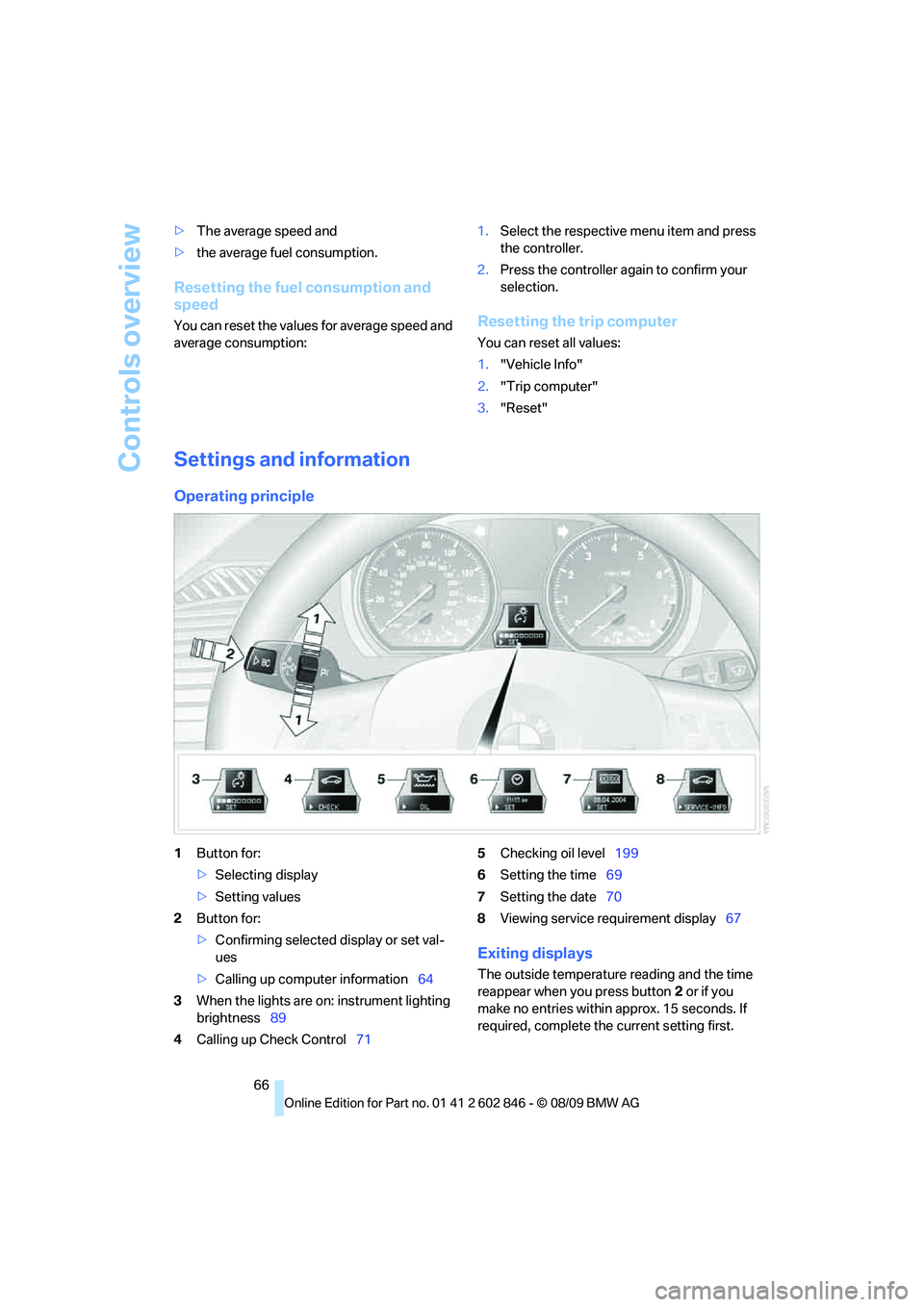

Controls overview
66 >The average speed and
>the average fuel consumption.
Resetting the fuel consumption and
speed
You can reset the values for average speed and
average consumption:1.Select the respective menu item and press
the controller.
2.Press the controller again to confirm your
selection.Resetting the trip computer
You can reset all values:
1."Vehicle Info"
2."Trip computer"
3."Reset"
Settings and information
Operating principle
1Button for:
>Selecting display
>Setting values
2Button for:
>Confirming selected display or set val-
ues
>Calling up computer information64
3When the lights are on: instrument lighting
brightness89
4Calling up Check Control715Checking oil level199
6Setting the time69
7Setting the date70
8Viewing service requirement display67
Exiting displays
The outside temperature reading and the time
reappear when you press button2 or if you
make no entries within approx. 15 seconds. If
required, complete the current setting first.

Controls
85Reference
At a glance
Driving tips
Communications
Navigation
Entertainment
Mobility
ical driving situation, an extreme tilt in the car's
longitudinal axis or upon loss of ground contact.
The protection bars behind the rear head
restraints deploy within fractions of a second.
As a supplementary system to the reinforced
windshield frame, the rollover protection sys-
tem ensures that the necessary headroom is
maintained for all vehicle occupants.
Always keep the area of movement of the
rollover protection system clear.
In minor accidents, you are protected by the
fastened safety belt and, depending on acci-
dent severity, by the safety belt tensioner and
multi-phase airbag retention system.<
Resetting
If the rollover protection system was not
impacted after being automatically activated, it
can be reset by lowering the protection bars to
their original positions. This does not require
tools.
1.Push the locking lever to one side and hold
it there.
2.Push the protection bar halfway down from
above.
3.Release the locking lever.4.Push the protection bar down until it snaps
into place.
5.Repeat the procedure for the other protec-
tion bar.
Have the rollover protection system checked
after an unexpected activation.
Never move the convertible top when the
rollover protection system is in the acti-
vated position.
Do not make any modifications to the individual
components of the rollover protection system
or its cabling.
Work on the rollover protection system should
only be performed by a BMW center.
Incorrectly performed work on the system may
lead to system failure or incorrect operation.
To check the system and ensure flawless long-
term operation, always observe the service
intervals, refer to page67.<

Wheels and tires
190
Wheels and tires
Tire inflation pressures
Information for your safety
It is not merely the tires' service life, but also
driving comfort and, to a great extent, driving
safety that depend on the condition of the tires
and the maintenance of the specified tire pres-
sure.
Check the tire inflation pressure regularly
and correct it, if necessary: at least twice a
month and before starting long trips. If you fail
to observe this precaution you may be driving
on tires with incorrect tire pressures, a condi-
tion that can not only compromise your vehi-
cle's driving stability, but also lead to tire dam-
age and the risk of an accident. Do not drive
with deflated, i.e. flat tires, except when using
run-flat tires. A flat tire will seriously impair your
vehicle's handling and braking response.
Attempts to drive on a flat tire can lead to loss of
control over the vehicle.<
Checking pressure
Only check tire inflation pressure when the
tires are cold. This means after a maximum of
1.25 miles/2 km driving or when the vehicle has
been parked for at least 2 hours. When tires are
warm, the tire inflation pressure is higher.
After correcting the tire inflation pressure,
reset the Tire Pressure Monitor, refer to
page79, or reinitialize the Flat Tire Monitor,
refer to page77.<
Inflation pressure specifications
The tables below provide all the correct inflation
pressures for the specified tire sizes at ambient
temperature.
The inflation pressures apply to the tire
sizes approved and tire brands recom-
mended by BMW; a list of these is available
from your BMW center.<
For correct identification of the right tire infla-
tion pressures, observe the following:>Tire sizes for your vehicle
>Load conditions
>Maximum allowable driving speed
Tire inflation pressures for driving up to
100 mph or 160 km/h
For normal driving up to 100 mph or 160 km/h
and to achieve optimum driving comfort, adjust
pressures to the respective tire inflation pres-
sures listed on the following pages in the col-
umns for traveling speeds up to a maximum of
100mph or 160km/h.
These tire inflation pressures can also be found
on the driver's side door post when the driver's
door is open.
The maximum permissible speed for
these tire pressures is 100 mph or
160 km/h. Do not exceed this speed; otherwise,
tire damage and accidents could occur.<
Tire inflation pressures for driving
above 100 mph or 160 km/h
In order to drive at maximum speeds in
excess of 100 mph or 160 km/h, adjust
pressures to the respective tire inflation pres-
sures listed on the following pages in the col-
umns for traveling speeds including those
exceeding 100 mph or 160 km/h. Otherwise,
tire damage and accidents could occur.<
Observe all national and local maximum speed
limits; otherwise, violations of the laws could
occur.

Reference 241
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
Remote control26
– battery renewal34
– Comfort Access33
– garage door opener96
– malfunctions29,34
– removing from the ignition
lock55
– service data203
– trunk lid28
Remote control key, refer to
Integrated key/remote
control26
Replacement fuses, refer to
Fuses213
Replacement remote
control26
Replacing bulbs, refer to
Lamps and bulbs209
Replacing tires, refer to New
wheels and tires196
Reporting safety defects7
Reserve warning, refer to Fuel
gauge64
Reservoir for washer
systems61
Reset, refer to Resetting tone
settings138
Restraint systems, refer to
Safety belts49
Restraint systems for
children52
Retreaded tires196
Reverse
– CD changer149
– CD player149
Reverse gear
– automatic transmission with
Steptronic58
– manual transmission57
Road map128
Roadside
Assistance181,215
Roadside parking lamps88
– replacing bulbs210
Roadworthiness test, refer to
Service requirements67
Rollover protection system,
Convertible84
– resetting85Roof load capacity225
Roof-mounted luggage
rack112
Rope, refer to Tow-starting,
towing away218
Rotary/pushbutton control,
refer to Controller16
Route126,127
– bypassing sections127
– changing
126,127
– changing criteria126
– displaying streets or towns/
cities127
– map view128
– selecting126
Route instructions, refer to
Destination guidance
through voice
instructions127
Route map, refer to Map
view128
Route section, changing127
Route selection126
RSC Runflat System
Component, refer to Run-
flat tires196
Runflat System Component
RSC, refer to Run-flat
tires196
Run-flat tires196
– continuing driving with a
damaged tire78
– flat tire78
– new tires196
– remaining driving distance,
refer to Indication of a flat
tire78
– tire inflation pressure190
– winter tires197
Runflat tyres, refer to Run-flat
tires196
S
Safety-belt height
adjustment49Safety belts49
– damage49
– indicator lamp49
– reminder49
– sitting safely43
Safety systems
– airbags83
– Antilock Brake System
ABS76
– Dynamic Stability Control
DSC76
– rollover protection system,
Convertible84
– safety belts49
Safety tires, refer to Run-flat
tires196
Satellite radio142
– enabling or unsubscribing
from a channel142
– favorites144
– selecting channel143
– storing channel143
– timeshift144
– Traffic Jump145
Saving fuel108
Screen, refer to iDrive16
Screw thread for tow
fitting217
SDARS, refer to Satellite
radio142
Seat and mirror memory48
Seat belt reminder, refer to
"Fasten safety belts"
reminder49
Seats43
– heating48
– sitting safely43
Securing cargo103,104
Selecting a detour132
Selecting new scale for
navigation129
Selector lever, automatic
transmission with
Steptronic58
Service, refer to Roadside
Assistance215
Service car, refer to Roadside
Assistance215

Reference 243
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
Switching on
– audio136
– CD changer136
– CD player136
– radio136
Switching the cooling function
on and off93
Switch-on times of parked car
ventilation, preselecting95
Symbols4
– status information19
T
Tachometer63
Tailgate, refer to Trunk lid30
Tail lamp, refer to Tail
lamps211
– replacing bulb212
Tail lamps211
– replacing bulb212
Tank contents, refer to
Capacities226
Technical changes5
Technical data222
Telephone166
– voice commands173
Telephone, installation
location, refer to Center
armrest100
Telephone, refer to separate
Owner's Manual
TeleService180
TeleService Diagnosis182
TeleService Help182
Temperature, setting for
automatic climate control92
Temperature display
– outside temperature63
– outside temperature
warning63
– setting the units67
Tempomat, refer to Cruise
control61
Thigh support44
Third brake lamp, refer to
Center brake lamp212
Three-point safety belt49
Through-loading system102Tilt alarm sensor32
Tilt function, passenger-side
mirror50
Timer, refer to Preselecting
switch-on times95
Tire inflation pressure190
– loss78,79
Tire pressure monitoring,
refer to Flat Tire Monitor77
Tire Pressure Monitor
TPM79
– resetting the system79
– system limitations79
– warning lamp80
Tire puncture, refer to Flat Tire
Monitor78
Tire Quality Grading194
Tires
– age194
– air loss80
– breaking in108
– changing, refer to Changing
wheels212
– condition195
– damage
195
– inflation pressure190
– labels194
– minimum tread depth195
– new tires196
– pressure monitoring, refer to
Flat Tire Monitor77
– pressure monitoring, refer to
Tire Pressure Monitor
TPM79
– puncture78
– retreaded196
– run-flat tires196
– size194
– wear indicators, refer to
Minimum tread depth195
– winter tires197
TMC station, refer to Traffic
bulletins129
Tone
– control136
– middle setting138
Tools, refer to Onboard
vehicle tool kit209Top 50 of music
collection156
Torque, refer to Engine
data222
Tow bar218
Tow fitting217
Tow fittings for tow-starting
and towing away217
Towing217
– car with automatic
transmission217
– methods218
Towing and tow-starting217
Town/city, for navigation117
Tow rope218
Tow-starting217
TPM, refer to Tire Pressure
Monitor79
Track
– selecting on CD147
Traction control, refer to
Dynamic Stability Control
DSC76
Traffic bulletins
– categories131
Traffic bulletins, filtering131
Traffic bulletins for
navigation129
– during destination
guidance131
– in map view131
Traffic jam
– displaying traffic
bulletins129
Transmission
– automatic transmission with
Steptronic57
– manual transmission57
Transporting children
safely52
Transport securing devices,
refer to Securing cargo112
Travel instructions, refer to
Voice instructions127
Tread depth, refer to Minimum
tire tread195
Trip, deleting125
Trip, storing124
