ffl..__S_ e _ a_t _s _ a_n_ d_ s_ t_o _r _a _,g:.- e ______________________________________________ _

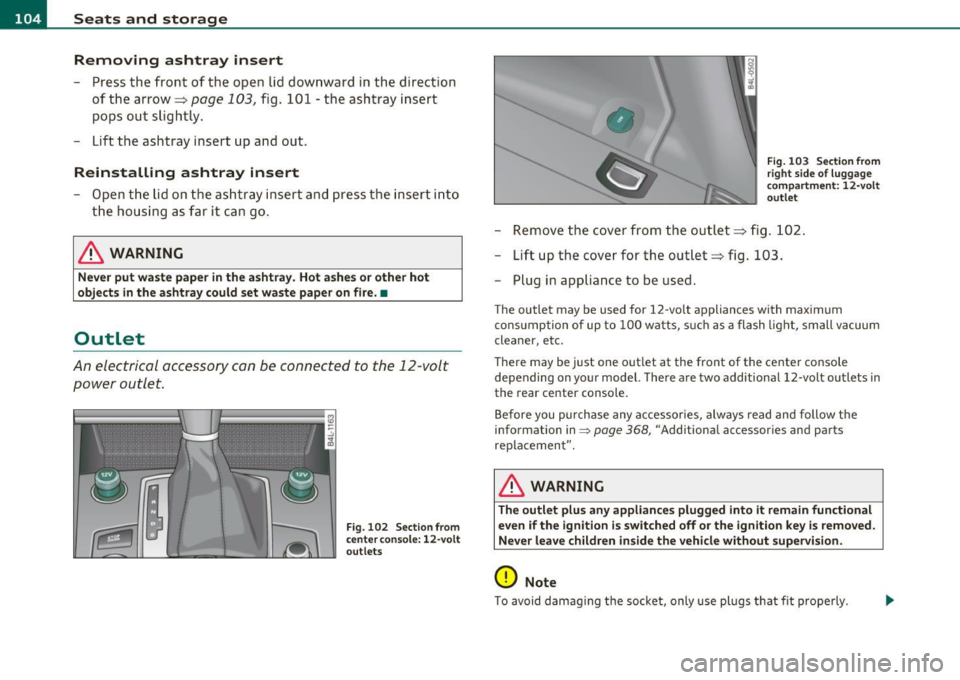

Removing ashtray insert
Press the fron t of the ope n lid downward in the direction
of the arrow=>
page 103, fig. 101 -the ashtray ins ert
pops out slight ly.
- Lift the ashtray insert up and out .
Reinstalling ashtray insert
-Open t he lid on t he ash tray insert a nd press the insert i nto
t h e housing as far it ca n go .
& WARNING
Never put wa ste paper in the ashtray . Hot ashe s or other hot
obje cts in the ashtray could set waste paper on fir e.•
Outlet
An elect rical accessory can be con nected to the 12-vol t
power outlet.
F ig. 102 Sec tion from
cente r conso le: 12-v o lt
o ut let s
•
Fig. 103 Secti on fr om
rig ht s ide of lu ggage
c omp artment: 12-v olt
o utle t
- Re move the cover from the outlet=> fig . 102 .
- Lift up the cover for the outle t => fig. 103.
- Plug in appliance to be used.
The outlet may be used for 12 -volt appliances with maximum
consumption of up to 10 0 wat ts, s uch as a flash light, small vacuum
cleaner, etc .
T here may be j ust one out let at the front of the ce nter console
depending on yo ur model. There are two additional 12-volt outlets in
the rear center console .
Before you purchase any accessor ies, always read and follow t he
information in=>
page 368, "Additional accessor ies and parts
replacement ".
& WARNING
The outlet plus any appliance s plugged into it rem ain functional
even if the ignition i s switched off or the ignition key is removed.
Never leave children in side the vehi cle w ithout supervision.
0 Note
T o avoid damag ing the socket, only use plugs that fit prope rly .

ffl..__S_e _ a_t _s _ a_n_ d_ s_t _o _r _a _,g:.- e ______________________________________________ _
& WARNING
To reduce the risk of personal injury in an accident or sudden stop,
always keep the glove compartment closed while driving.
(I] Tips
Should you not be able to open the glove compartment as described,
make sure the valet key function is not activated~
page 43. •
Cooling box in glove compartment
The cooling box works only when the air-conditioning is in
cooling mode.
Fig. 105 Glove box
with cooling box open
and switched on
- Open the glove compartment=> page 105, fig. 104.
- Turn the rotary switch © counter-clockwise to switch the
cooling on. The symbols on the rotary switch must be
displayed=> fig. 105 accordingly.
- Turn the rotary switch © clockwise to switch the cooling
off.
The cooling box works only in the cooling mode. If the climate control
is in the heating mode, we recommend switching the cooling box
off.•
Emergency unlocking of glove
compartment
The glove compartment can be unlocked in an emer­
gency.
Fig. 106 Instrument
panel right: pry off
security cover
- Remove the cover with the aid of a screwdriver => fig. 106.
- Now press the locking pin inward with the screwdriver .•

_______________________________________________ w __ a _r _m _ a_ n_d _ c_o _ l_ d __ _
Warm and cold
Climate control
Description
The air conditioner is fully automatic and is designed to
maintain a comfortable and uniform climate inside the
vehicle.
We recommend the following settings:
- Set the temperature to 72
°F (+22 °C).
- Press the
[AUTO] button.
With this setting, you attain maximum comfort in the least amount
of time. Change this setting , as desired , to meet your personal needs.
The climate controls are a combination of heating, ventilation and cooling systems, which automatically reduce humidity and cool the
air inside your vehicle .
The air temperature, air flow and air distribution are automatically regulated to achieve and maintain the desired passenger compart­
ment temperature as quickly as possible.
The system automatically compensates for changes in outside
temperature and for the intensity of the sunlight entering the
vehicle. We recommend you use the
Automatic mode ~ page 112
for year-round comfort .
Please note the following:
Turn on the air conditioner to reduce humidity in the vehicle. This also
prevents the windows from fogging up.
When the outside temperature is high and the air is very humid,
condensation from the evaporator may drip under the vehicle . This is
normal and does not indicate a leak.
Controls and equip ­
ment Safety first
If the outside temperature is
low, the fan normally only switches to a
higher speed once the engine coolant has warmed up sufficiently .
The air conditioner temporarily switches off when you drive off from
a standstill using full throttle to save engine power.
The compressor also switches off if the coolant temperature is too
high, so that the engine can be adequately cooled under extreme
loads.
Air pollutants filter
The air pollutants filter (a combined particle filter and activated char­
coal filter) reduces or prevents outside air pollution (dust, or pollen)
from entering the vehicle. The air is also filtered in air recirculation
mode.
The air pollutants filter must be changed at the intervals specified in
your Warranty
& Maintenance booklet, so that the air conditioner can
properly work.
If you drive your vehicle in an area with high air pollution, the filter
may need to be changed more frequently than specified in your Audi
Warranty
& Maintenance booklet. If in doubt, ask your authorized
Audi Service Advisor for advice .
Key coded settings
The air conditioner settings selected are automatically stored and
assigned to the key being used. When the vehicle is started, the air
conditioner automatically selects the settings assigned to that key.
This way every driver will maintain his/her own personal settings and
does not have to reset them manually.
If a different driver uses your key and changes the air conditioner
settings, the latest adjustments will erase and replace the settings
you have stored. _.,
Vehicle care Technical data

Warm and cold -_______________ __.
Applies to veh icles: w ith stee ring whee l hea ting
Steering wheel heat ing (j)
The steering wheel can be heated electrically .
Fig. 118 Multifunc­
tion steering wheel:
Button for steering
wheel heating
-Press the I~] button to turn the steering wheel heating on
and off =>fig. 118. The message
Steering wheel heating on ! or
Steering wheel heating off! appears in the instrument
cluster display .
When the steering wheel heating is switched on, the steering wheel
is heated to about 82 °F (+28 °C) and held there .
The last sett ing se lected for the steer ing wheel heating (on or off) is
automatically saved when the vehicle is shut off and is assigned to the
remote key. •
Contro ls a nd e quip ­
m en t Vehicle
OP-eration Vehicle care Do-it-yourselt service iTechnical data

1111..__0_ n_ t_h _e_ r_o _ a_ d _________________________________________________ _
Easy entry feature
The easy entry feature makes it easier to enter and e xit
the vehicle by automatically adjusting the steering
wheel.
Press the button®~ page 123, fig. 120 to turn the easy
entry feature on or off .
When the easy entry feature is turned on (button depressed), the
steering wheel moves up to the parked position when the ignition is
t urned off . After you enter the vehicle, the steer ing wheel moves to
the stored pos ition as soon as you t urn on the ig nition .
Easy entry feature on vehi cles with memory seat *
For the stored steering whee l position to be recalled, t he driver's seat
memory must be switched on ( ( ON/OFFI switch in depressed posi­
tion) .
If the easy e ntry feature i s sw itched off, the steer ing wheel mov es to
the stored pos ition as soon as you press the seat memory button. •
Ignition Lock and ignition switch
Ignition key positions
The engine can be st arted or turned off with the ign ition
key .
Position @
Fig. 121 I gn ition
sw itch position s
The ig nition key can be inserted into the ignition switch i n this posi ­
tion. This automatically unlo cks the steering co lumn lo ck. When the
ign ition key is removed, the steer ing colum n lock is automat ically
lo ck ed
~ & .
Switching the ignition on /preheating (D
Tu rn the ignit ion key to this position and re lease i t. On veh icles wi th
a diesel engine *, the system can preheat in this position.
Starting the engine@
The engine starts with the key in this position. Major e lectrical loads
are tempo rar ily tur ned off .
Ignition off@
Turn t he ign it ion key to this pos ition and re lease i t.

On the road Ill _______________ __.
& WARNING
• Never remove the key from the ignition lock while the vehicle
is moving. The steering wheel will lock , cau sing loss of control.
• If you ha ve to leave your vehicle, even for ju st a minute, alw ays
remove the ignition key and take it with you. This i s especially
important if you are going to leave children unattended in the
vehicle. The children could start the engine or use other vehicle c ontrols . Unsupervised us e of vehicle controls (for example, power
windows) can cause serious personal inju ries.
0 Note
• If the ~ symbol in the display blinks, there is a malfunction in the
electronic stee ring column lock. Follow the instr uctions in
~ page 31, "Steering malfu nction i" .
• If the ~ symbol in the display blinks, there is a malfunction in the
electronic ignition lock . Follow the instr uctions in~
page 31, "Igni­
t ion lock malfunct ion ~" .
(I] Tips
• If you release the ignit ion key i n pos it io n @ , the key automati cally
returns to pos ition
(D .
• If you open the driver 's doo r whe n the ignition is sw itched on, a
buzze r sounds and the message
Ignition is on appears in the instru­
ment cl uster d isplay. Please swi tch the ignition off. •
Ignition key safety lock
The ignition key con on ly be removed when the selector
lever is in the "P" (Pork) positi on.
After turning off the ignition, the ign ition key can only be removed
from the ignition lock when the se lector lever is in the "P " (Park) posi-
Con tro ls a nd e quip ­
m en t Vehicle
OP-eration
tion. After you have removed the key, the selector lever is locked and
canno t be move d.•
Starting and stopping the engine
Starting the engine
The engine can only be started with your original A udi
key.
Fig . 12 2 Ignitio n key
posit io ns
Vehicles with gasoline engine:
- Step on the brake .
- Move the se lec tor lever into P or N
~ &.
- T urn th e ig niti on key to posit io n @ ~ fig. 122 -do not
d epress th e gas pedal wh en sta rting th e engine .
Vehicles with diesel engine:
-Step on the brake .
- Move the se lec tor lever into P or N
~ &.
Vehicle care Do-it-yourselt service iTechnical data

-L~O~n~t:_!h~e=....!:r~o~a~d~ --------------------------------------------
- Turn the ig nition key to position (D -the glow plu g i nd i­
cator lig ht
~ ill um inates when t he g low plug system is
act ive.
- When the indica tor light
'1.., swi tches off, turn the ignition
k e y to position @ but do not p ress the acce lerator pe dal.
- Re lease the ignition key once the e ngi ne starts. The
s ta rter m ust not conti nue r unning .
A cold engine may sound loud after it has been started . This is due to
t he hydra ulic valves building up o il pressure . This is norma l an d is not
a need for concern .
If the engine does not start immediately, stop trying after 10 seconds
and then try to rest art the engi ne about 30 seco nds la ter.
Glow plug system*
Diesel engines are eq uipped with a glow p lug system whose
preheating t ime is controlled
by the coo lant and outs ide tempera­
ture. Sta rt the engi ne
immediat ely after the glow pl ug ind icator lig ht
switches off.
Th e g low pl ug indica tor light w ill on ly ill uminate fo r approximately 1
second when the engine is warm or the outside temperature is higher
t han 46 ° F (8 °C). That means you can sta rt the eng ine
immediately .
& WARNING
Never start or let the engine run in a confined or enclosed area.
Exhaust fumes from the engine contain carbon mono xide, a color­
le ss and odorless gas. Carbon monoxide can be fatal if inhaled .
• Never leave the engine idling unattended. An unattended
vehicle with a running engine poses a danger of person al injury or
theft.
0 Note
• Avoid high e ng ine speeds, fast a cce le ration or heavy eng ine loads
w hile the engine is still co ld. This co uld damage the engine .
• The eng ine ca nnot be sta rted by p ush ing or tow ing the veh icle.
'ii? For the sake of the environment
T o avoid unnecessa ry engine w ea r and to reduce exhaust em iss ions,
do not let your vehicle stand and warm up . Be ready to drive off imme ­
diately after sta rting yo ur vehicle . M aintain mode rate speed u ntil the
eng ine is complete ly warm . Remember, the engine performs best at
operat ing temper ature. •
Stopping the engine
- Tur n the ign it ion key to position @ ==> page 125, fig. 12 2.
& WARNING
• Never turn off the engine until the vehicle has come to a
complete stop .
• The brake booster and servotronic only work when the engine
i s running . With the ignition turned off, you have to apply more
force when steering or b raking. Since you cannot stee r and stop
normally, this can lead to accidents and serious injuries.
• The radi ator fan can continue to run for up to 10 minute s even
after you have turned off the engine and removed the ignition key.
The radiator fan can also turn on again if the engine coolant heats up because of intense sunlight or heat build-up in the engine
compartment. ..,,

_________________________________________________ O_ n_ t_ h_ e_ r _o_ a_d _ __.fflll
0 Note
Do not stop the engine immediately after hard or extended driving .
Keep the engine running for approximately two minutes to prevent
excessive heat build-up.•
Starting and stopping the engine
with Convenience key
Applies to veh icle s: with Con venie nce ke y
Starting the engine with the {START) button
This button switches on the ignition and starts the
engine.
Fig . 123 Convenience
key: ENGINE START
button
The [START] button is provided with two-stage operation
=:> fig. 123.
Switching the ignition on
- Press the [ START] button once to the first stage to switch
on only the ignition .
Gasoline engine: Starting the engine
-Step on the brake.
Contro ls a nd e quip ­
m en t Vehicle
OP-eration
-Move the selector lever to the P or N position =:>& .
- Press the
[START] button to the second stage to start the
engine.
Diesel engine: Starting the engine
- Step on the brake.
- Move the selector lever to the P or N position =:>& .
- Press the
[START] button down to the first level to begin
the preheating process. The glow plug indicator light
illuminates when the glow plug system is active.
- When the indicator light switches off, press the
[START] button down to the second level to start the
engine.
After a cold engine is started, there may be a brief period of increased
noise because oil pressure must first build up in the hydraulic valve
adjusters . This is normal and not a cause for concern .
If the engine does not start immediately, stop trying after 10 seconds
and then try to restart the engine about 30 seconds later.
Glow plug system*
Diesel engines are equipped with a glow plug system whose
preheating time is controlled by the coolant and outside tempera­
ture . Start the engine
immediately after the glow plug indicator light
switches off.
Th e glow plug indicator light will only illuminate for approximately 1
second when the engine is warm or the outs ide temperature is higher
than 46 °F (8 °C). That means you can start the engine
immediately.
& WARNING
Never allow the engine to run in confined spaces· danger of
asphyxiation.
Vehicle care Do-it-yourselt service iTechnical data
