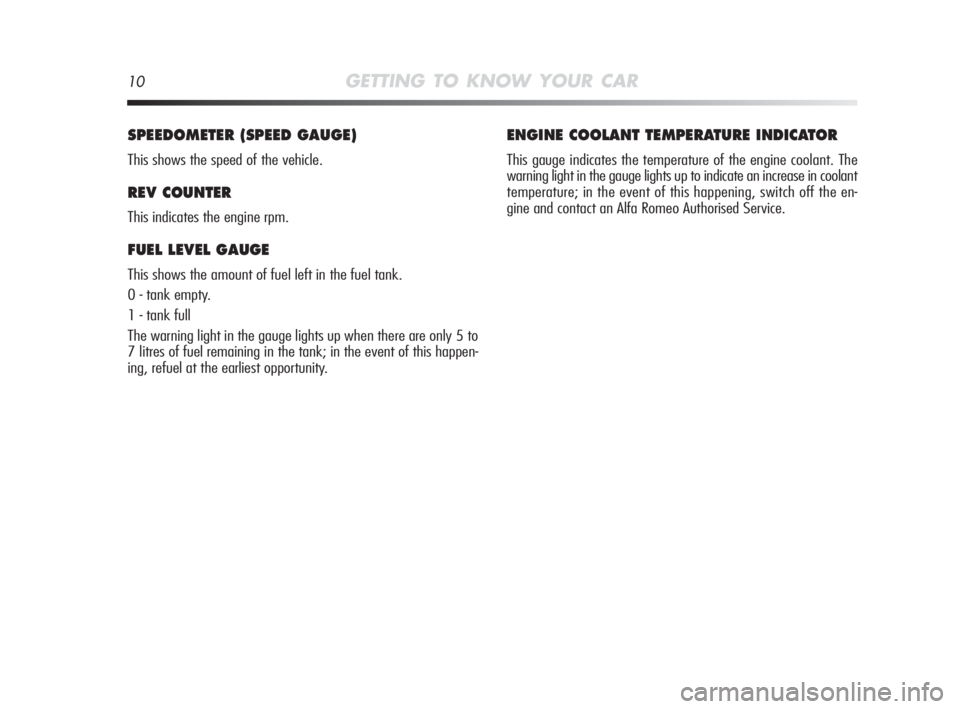

10GETTING TO KNOW YOUR CAR
SPEEDOMETER (SPEED GAUGE)
This shows the speed of the vehicle.
REV COUNTER
This indicates the engine rpm.
FUEL LEVEL GAUGE
This shows the amount of fuel left in the fuel tank.
0 - tank empty.
1 - tank full
The warning light in the gauge lights up when there are only 5 to
7 litres of fuel remaining in the tank; in the event of this happen-
ing, refuel at the earliest opportunity.
ENGINE COOLANT TEMPERATURE INDICATOR
This gauge indicates the temperature of the engine coolant. The
warning light in the gauge lights up to indicate an increase in coolant
temperature; in the event of this happening, switch off the en-
gine and contact an Alfa Romeo Authorised Service.
001-130 Alfa MiTo GB 2ed 23-12-2009 12:35 Pagina 10

GETTING TO KNOW YOUR CAR49
1
Door and luggage compartment lock release
Briefly press button Ë: door and luggage compartment lock release,
timed lighting of interior courtesy lights and double flashing of di-
rection indicators (for versions/markets, where provided).
Door locks are automatically released in the event of the inter-
vention of the fuel cut-off system.
Once the doors are locked, if one or more doors or the luggage
compartment are not closed correctly, the led and direction indi-
cators start flashing quickly.
Door and luggage compartment locking
Briefly press button Á: door and luggage compartment locking with
switching off of interior courtesy lights and single flashing of di-
rection indicators (for versions/markets, where provided).
If one or more doors are open, the doors will not be locked. This
situation is indicated by a rapid flashing of the direction indicators
(for versions/markets, where provided). If the luggage compart-
ment is open, the doors will, however, be locked.
When a speed of over 20 km/h is reached, the doors are auto-
matically locked if this specific function was set (only on versions
with multi-functional reconfigurable display).
When locking the doors, led A-fig. 16 switches on for several sec-
onds and than starts flashing (deterrence function).
Opening the luggage compartment
Press the Rbutton to open the luggage compartment from a
distance. Luggage compartment opening is indicated by double
flashing of direction indicators.
REQUESTING ADDITIONAL REMOTE CONTROLS
The system acknowledges up to 8 remote controls. If you ever
require a new remote control, contact an Alfa Romeo Authorised
Service and bring your CODE card (for versions/markets, where
provided), some ID and the vehicle ownership documents with you.
fig. 16A0J0027m
001-130 Alfa MiTo GB 2ed 23-12-2009 12:35 Pagina 49

GETTING TO KNOW YOUR CAR53
1ALARM(for versions/markets, where provided)
ALARM TRIPPING
The alarm trips in the following cases:
❍illegal opening of doors/bonnet/luggage compartment
(perimeter protection);
❍illegal operation of ignition system (ignition key rotated to
MAR);
❍when the battery cables are cut;
❍when someone is moving inside the passenger compartment
(volume-sensing protection);
❍anomalous lifting/tilting of the vehicle (for versions/markets,
where provided).
The tripping of the alarm is indicated by a sound and a visual dis-
play (flashing of the direction indicators for several seconds). The
alarm triggering methods may vary according to the market. There
is a maximum number of acoustic/visual cycles. When this is
reached the system returns to normal operation.
IMPORTANT The engine inhibitor function is guaranteed by the
Alfa Romeo CODE, which is automatically activated when the ig-
nition key is extracted from the ignition switch.
IMPORTANT the alarm is configured to comply with the regulations
existing in different countries.
ACTIVATING THE ALARM
With the doors and bonnet closed and the ignition key either turned
to STOP or removed, direct the key with the remote control to-
wards the vehicle and press button
Á. Except on some versions
for specific markets, the system produces a visual and acoustic
warning and enables door locking.
Before the alarm is enabled, a self-diagnosis test is run. in the event
of a fault, the system emits a further acoustic and/or visual warn-
ing via the LED on the dashboard.
If after the alarm is activated, a second acoustic warning is emit-
ted and/or the LED on the dashboard flashes, wait about 4 sec-
onds and then deactivate the alarm by pressing
Ë, check that
the doors, bonnet and luggage compartment are closed correctly
and then reactivate the system by pressing
Á.
If the alarm produces an acoustic signal even when the doors, bon-
net and boot are correctly closed, a failure has occurred in sys-
tem operation. Contact an Alfa Romeo Authorised Service.
001-130 Alfa MiTo GB 2ed 23-12-2009 12:35 Pagina 53

IN AN EMERGENCY181
4
DIPPED BEAM HEADLIGHTS
Withincandescentbulb
To change the bulb, proceed as follows:
❍remove cover B-fig. 22;
❍remove cover A-fig. 24 protecting the bulb;
❍remove the bulb and replace it;
❍refit the lamp holder making sure it is correctly secured;
❍refit cover B-fig. 22.
Withgasdischargebulbs(Bi-xenon)
(for versions/markets, where provided)
DIRECTIONINDICATORS
Frontindicators
To change the bulb take key A-fig. 25 (located in the document
holder case), insert in seat B and turn the bulb holder anticlock-
wise. Remove the bulb and replace it.
fig. 24A0J0040m
Contact an Alfa Romeo Authorised Service Provider
to replace these bulbs.
fig. 25A0J0018m
163-200 Alfa MiTo GB 2ed:163-200 Alfa MiTo GB 23-12-2009 12:39 Pagina 181

182IN AN EMERGENCY
Side indicators
To change the bulb, proceed as follows:
❍work on lens A-fig. 26 to compress clip B, then pull the unit
outwards;
❍turn bulb holder C anticlockwise, remove the bulb and replace
it;
❍refit the bulb holder C in the lens and turn it clockwise;
❍refit the unit, making sure that internal clip B clips into posi-
tion.
FRONT FOGLIGHTS(for versions/markets, where provided)
Contact an Alfa Romeo Authorised Services to replace these bulbs.
REAR LIGHTCLUSTERS
To access the light cluster, move the luggage compartment side
trim (see Fig. 27). These contain the bulbs for the side lights, di-
rection indicators and brake lights.
SIDELIGHTS/BRAKELIGHTS
These are LED lights. Contact an Alfa Romeo Authorised Services
to replace these lights.
DIRECTIONINDICATORS
To replace the bulb remove bulb holder A-fig. 27.
fig. 26A0J0042mfig. 27A0J0043m
163-200 Alfa MiTo GB 2ed:163-200 Alfa MiTo GB 23-12-2009 12:39 Pagina 182
