Halogen bulbs must be handled holding the metal-
lic part only. Touching the transparent part of the
bulb with your fingers may reduce the intensity
of the light emitted and even compromise the longevity
of the bulb itself. In the event of accidental contact, wipe
the bulb with an alcohol-soaked cloth and leave to dry.
Modifications or repairs to the electrical system
(electronic control units) that are not carried out
properly or do not take the technical specifications
of the system into account can cause malfunctions lead-
ing to the risk of fire.
Halogen bulbs contain pressurised gas which may
cause small fragments of glass to be projected out-
wards if the bulb is broken.
Due to the high power supply voltage, gas dis-
charge bulbs (Bi-Xenon) should only be replaced
by specialised personnel: danger of death! Contact
Alfa Romeo Authorized Services.
IMPORTANT When the weather is cold or damp or after heavy rain
or after washing, the surface of headlights or rear lights, may steam
up and/or form drops of condensation on the inside. This is a nat-
ural phenomenon due to the difference in temperature and humidity
between the inside and the outside of the glass which does not
indicate a fault and does not compromise the normal operation of
lighting devices. The mist disappears quickly turning the lights on,
starting from the centre of the diffuser, extending progressively
towards the edges.
CHANGING A BULB
GENERAL INSTRUCTIONS
❍Before changing a bulb check the contacts for oxidation;
❍blown bulbs must be replaced with others of the same type
and power:
❍after replacing a headlight bulb, always check its alignment;
❍when a light is not working, check that the corresponding fuse
is intact before changing the bulb. For the location of fuses, re-
fer to the “Changing a fuse” paragraph in this section.
161-198 Alfa Giulietta EN 4ed 5-05-2010 9:04 Pagina 174

–
–
55W
55W
D1S
24W
10W
–
–
–
5W
55W
21W
21W
10W
5W
5W
5WLED
LED
H7
H1
F
PY24W
R10W
LED
LED
LED
W5W
H3
H21W
P21W
C10W
W5W
C5W
W5W
176
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
–
–
D
E
–
B
B
–
–
–
A
E
B
B
C
A
C
A
Bulbs Type Power Ref. figure 130
Front side lights/Day lights (DRL)
Rear side lights
Dipped beams
Main beams
Main/Dipped beams
(versions with Bi-Xenon headlights)
(for versions/markets, where provided)
Front direction indicators
Rear direction indicators
Side direction indicators
Brake light
3rd brake light
Number plate light
Fog lights
Rear fog light
Reverse light
Front ceiling light
Boot courtesy light
Glove compartment courtesy light
Puddle light
161-198 Alfa Giulietta EN 4ed 5-05-2010 9:04 Pagina 176

177
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
CHANGING AN EXTERIOR BULB
FRONT LIGHT CLUSTERS fig. 131
These contain the bulbs for the side lights/day lights (DRL), dipped
beams, main beams and direction indicators. The bulbs are arranged
as follows:
A.Side lights/day lights and main beam headlights;
B.Dipped beam headlights;
C.Direction indicators.
SIDE LIGHTS/DAY LIGHTS (DRL)
These are LEDs. Contact Alfa Romeo Authorized Services to replace
these lights.
MAIN BEAM HEADLIGHTS
To change the bulb, proceed as follows:
❍remove cover A-fig. 131;
❍remove the connector A-fig. 132 and then open the tabs B to-
wards;
❍extract the bulb C and replace it;
❍refit the new lamp, making sure that it is locked correctly, and
secure the tabs B again and reconnect the connector A;
❍finally refit the cover A-fig. 131.
fig. 131A0K0201mfig. 132A0K0202m
161-198 Alfa Giulietta EN 4ed 5-05-2010 9:04 Pagina 177

178
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
DIPPED BEAM HEADLIGHTS
To change the bulb, proceed as follows:
❍remove cover B-fig. 131;
❍remove the connector A-fig. 133, press the tab B forward and
then release by pushing it towards the inside the car;
❍extract the bulb C and replace it;
❍refit the new lamp, making sure that it is locked correctly, and
secure the tab B again and reconnect the connector A;
❍finally refit cover B-fig. 131.
DIRECTION INDICATORS
Front
To replace the bulb, turn the cover C-fig. 131 anticlockwise by ¼
of a turn and replace the bulb + bulb holder assembly A-fig. 134.
Side
These are LEDs. Contact Alfa Romeo Authorized Services to replace
these lights.
FRONT FOG LIGHTS
(for versions/markets, where provided)
Contact Alfa Romeo Authorized Services to replace these bulbs.
fig. 133A0K0203mfig. 134A0K0204m
161-198 Alfa Giulietta EN 4ed 5-05-2010 9:04 Pagina 178

282
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
– courtesylights ................... 83
– front ceiling light................ 81
– glove compartment light ...... 84
– puddle lights ..................... 84
Changing awheel ................... 162
Changing bulbs
– exteriorlights .................... 177
– interiorlights ..................... 182
Checking liquid
levels ............. 208-209-210-211
Child safety lock ..................... 96
Child seat (compliance for use) .. 141
Child seat assembly
“Universal model”................ 139
Cigar lighter ............................ 90
Cleaning and maintenance
– bodywork ......................... 221
– engine compartment ........... 222
– interiors ............................ 223
– leather upholstery .............. 224
– plastic parts........................ 223– seats................................. 223
– windows............................ 222
Climate control system ............. 57
– air vents ..................... 57-58
Climatic comfort ..................... 59
Clutch .................................... 230
CO
2emissions ......................... 245
CODE card ............................. 41
Control buttons ....................... 23
Controls ................................. 85
Courtesy lights ........................ 76
Cruise Control ......................... 79
D.R.L. (Daytime Running Lights) 74
Dashboard ............................. 3
Dimensions of the car .............. 236
Dipped beam headlights
– bulb replacement ................ 178
– control............................... 74Dipped beam headlights
– bulb replacement ................ 178
– control............................... 74
Direction indicators
– bulb replacement........... 178-179
– control............................... 75
Direction indicators
– bulb replacement ................ 178
– control............................... 75
Display
– Multifunction display ........... 20
– Reconfigurable multifunction
display ............................. 21
Door locks ............................. 86
Doors..................................... 95
– child safety lock ................. 95
– emergency rear door
locking device .................... 97
– remote locking/unlocking ... 95
DPF (Diesel Particulate Filter) ... 129
DST system............................. 112
281-292 Alfa Giulietta EN 5ed 26-07-2010 16:37 Pagina 282

283
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
Electric sunroof ...................... 92
Electric windows ..................... 98
Electromechanical power
assisted steering ................... 121
Electronic Q2 (“E-Q2”) ............ 112
Engine
– identification codes .............. 227
– marking ............................ 226
– technical specifications .. 228-229
Engine codes .......................... 227
Engine compartment
– checking fluid levels ............ 207
– opening/closing the bonnet .. 107
– washing ........................... 222
Engine oil
– consumption ..................... 212
– level check ........................ 208
– specifications ..................... 242
Environment (protecting) ......... 129
EOBD system .......................... 121
External lights ........................ 74Fire extinguisher ..................... 91
Fix&Go Automatic device .......... 169
Fluids and lubricants
(specifications) ............... 242-243
Fog lights
– bulb replacement ................ 178
– control............................... 85
“Follow me home” device......... 76
Front ceiling lights ............. 81-82
– bulb replacement ................ 182
Fuel
– fuel cut-off system .............. 86
– how to save fuel ................ 155
Fuel cap ................................ 128
Fuel reserve ...................... 240-241
Fuel supply ............................. 230
Fuse replacement .................... 186
Fuseboxes (location).. 188-189-190
Fuses
– fuseboxes ........... 188-189-190– list of fuses ......... 191-192-193
– replacement ....................... 186
Gearbox use .......................... 154
Getting to know your car.. 3
Glove compartment light
– bulb replacement ................ 184
GSI (Gear Shift Indicator) ......... 22
Hazard warning lights ............. 85
Head restraint.................... 53-54
– “Anti Whiplash” device ....... 53
Headlight alignment corrector ... 108
Headlight washers
– checking liquid
level .......... 208-209-210-211
– control............................... 220
Headlights
– alignment corrector ............. 109
– bulb replacement ................ 177
281-292 Alfa Giulietta EN 5ed 26-07-2010 16:37 Pagina 283

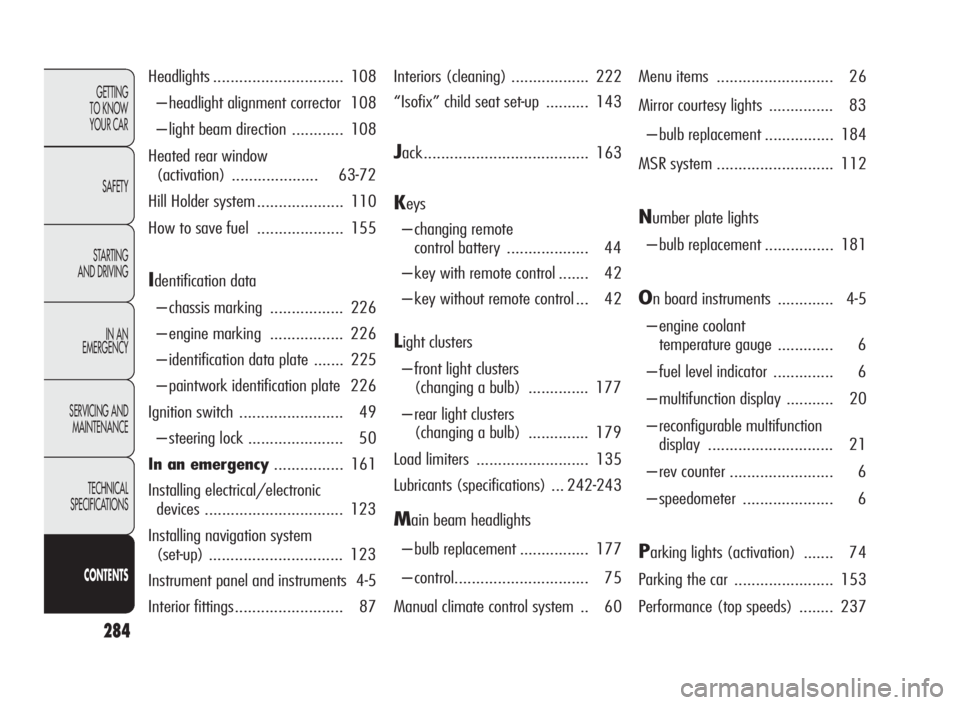

284
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
Headlights.............................. 108
– headlight alignment corrector 108
– light beamdirection ............ 108
Heated rear window
(activation).................... 63-72
Hill Holdersystem .................... 110
How to save fuel .................... 155
Identification data
– chassis marking ................. 226
– engine marking ................. 226
– identification data plate ....... 225
– paintwork identification plate 226
Ignition switch ........................ 49
– steeringlock ...................... 50
In an emergency................ 161
Installing electrical/electronic
devices ................................ 123
Installing navigation system
(set-up)............................... 123
Instrument panel and instruments 4-5
Interior fittings......................... 87Interiors (cleaning) .................. 222
“Isofix” child seat set-up .......... 143
Jack...................................... 163
Keys
– changing remote
control battery ................... 44
– key with remote control ....... 42
– key without remote control ... 42
Light clusters
– front light clusters
(changing a bulb) .............. 177
– rear light clusters
(changing a bulb) .............. 179
Load limiters .......................... 135
Lubricants (specifications) ... 242-243
Main beam headlights
– bulb replacement ................ 177
– control............................... 75
Manual climate control system .. 60Menu items ........................... 26
Mirror courtesy lights ............... 83
– bulb replacement ................ 184
MSR system ........................... 112
Number plate lights
– bulb replacement ................ 181
On board instruments ............. 4-5
– engine coolant
temperature gauge ............. 6
– fuel level indicator .............. 6
– multifunction display ........... 20
– reconfigurable multifunction
display ............................. 21
– rev counter ........................ 6
– speedometer ..................... 6
Parking lights (activation) ....... 74
Parking the car ....................... 153
Performance (top speeds) ........ 237
281-292 Alfa Giulietta EN 5ed 26-07-2010 16:37 Pagina 284

285
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
Pretensioners ......................... 135
Protecting the environment ....... 129
Puddle lights .......................... 84
– bulb replacement ................ 185
Quick tyre repair kit -
“Fix&Go Automatic” ............. 169
RAB system ........................... 112
Radio (wiring set-up) ............... 122
Radio transmitters and
mobile phones ...................... 124
Raising the car ....................... 196
Rear ceilinglight ..................... 83
– bulb replacement ................ 182
Rear fog lights
– bulb replacement ................ 180
– control............................... 85
Rear view mirrors .............. 55-56
Rear window washer
– checking liquid– seat belts .......................... 131
SBR system ........................... 133
Scheduled .............................. 200
Seat belts
– load limiters ...................... 135
– maintenance ..................... 137
– pretensioners ..................... 135
– SBR system........................ 133
– using the seat belts ............ 131
Seats ..................................... 50
– adjusting ..................... 51-52
– heating ....................... 51-52
Sensors
– automatic headlights
(dusk sensor) ..................... 74
– parking ............................. 124
– rain................................... 78
Servicing and maintenance199
– demanding use of the car .... 206
– regular checks ................... 206
– scheduled servicing ............. 199 level .......... 208-209-210-211
Rear window wiper
– blades .............................. 79
– checking liquid
level .......... 208-209-210-211
– control............................... 77
– nozzles ............................ 219
Rev counter ........................... 6
Reverse lights
– bulb replacement ................ 180
Right - hand drive versions288
Rim protector ......................... 233
Roof bars (set-up) ................... 108
Roof rack/ski rack .................. 107
Safe Lock device ..................... 45
Safety................................ 131
– carrying children safely ........ 138
– child safety lock ................. 96
– “Isofix” child seat
(assembly) ....................... 143
281-292 Alfa Giulietta EN 5ed 26-07-2010 16:37 Pagina 285
