Rain sensor fault
(for versions/markets where provided)
On some versions, a message + symbol will be shown
on the display if a dusk sensor fault is detected.1
Possible presence of ice on the road
On versions equipped with reconfigurable multifunc-
tion display, a message + symbol will appear when
the outdoor temperature falls to or below 3°C.
On versions with multifunctional display, only the message is shown.
IMPORTANT In the event of outdoor temperature sensor fault, dash-
es are shown on the display instead of the value.√
Fuel cut-off
On some versions the display will show a message +
symbol if the fuel cut-off trips. For the fuel cut-off sys-
tem reactivation procedure see paragraph “Fuel cut-off
system” in this chapter.s
Exterior lights fault
On some versions, a message + symbol will appear
on the display if a fault is detected in one of the fol-
lowing lights:
– daytime lights (DRL)
– sidelights/taillights
– direction indicators
– rear fog lights
– number plate lights.
The fault relating to these lights could be: one or more blown bulbs,
a blown protection fuse or a break in the electric connection.W
Brake lights fault
On some versions, a message + symbol will appear
on the display if a brake light fault is detected. The
fault may be caused by a blown bulb, a blown protec-
tion fuse or an interruption of the electric connection.T
Boot open
On some versions, a message + symbol on the dis-
play are shown when the boot is open.R
Bonnet open
On some versions, a message + symbol on the display
are shown when the bonnet is open.S
001-130 Alfa Giulietta EN 5ed 26-07-2010 16:33 Pagina 18

19
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
Parking sensor fault
(for versions/markets where provided)
On some versions, a message + symbol will be shown
on the display if a parking sensor fault is detected.
Drive mode display (“Alfa DNA” system)
(for versions/markets, where provided)
On versions equipped with a reconfigurable multifunction display,
a message + symbol associated with the selected driving mode -
“DYNAMIC”, “NORMAL” or “ALL WEATHER” - is shown. A warning
message is shown on the display if one of these driving modes is
not available.
On versions equipped with multifunction display, a letter (d or a)
associated with the selected driving mode is shown together with
a dedicated message.
Rain sensor fault
(for versions/markets where provided)
On some versions, a message + symbol will appear on
the display if a rain sensor fault is detected.u
t
Engine oil level display
(for versions/markets, where provided)
When the ignition key is turned to MAR the display shows, for a
few seconds, the engine oil level. A warning message appears on
the display if the engine oil level is insufficient.
IMPORTANT To determine the correct engine oil quantity, always
check using the marks on the dipstick (see paragraph "Checking
levels" in the "Servicing and maintenance" section).
IMPORTANT For a correct engine oil level indication, perform the
check with the car parked on a level surface.
IMPORTANT To perform the engine oil level reading correctly, af-
ter turning the key to MAR wait for about 2 seconds before start-
ing the engine.
IMPORTANT The engine oil level may increase after a long stop.
001-130 Alfa Giulietta EN 5ed 26-07-2010 16:33 Pagina 19

20
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
DISPLAY
The car may be equipped with a multifunction display/ multi-
function reconfigurable display which, in accordance with the set-
tings made, can display useful information when driving.
With the ignition key removed, the display lights up and shows the
time and total odometer reading (in km or miles) for a few sec-
onds when a door is opened/closed.
MULTIFUNCTION DISPLAY “STANDARD”

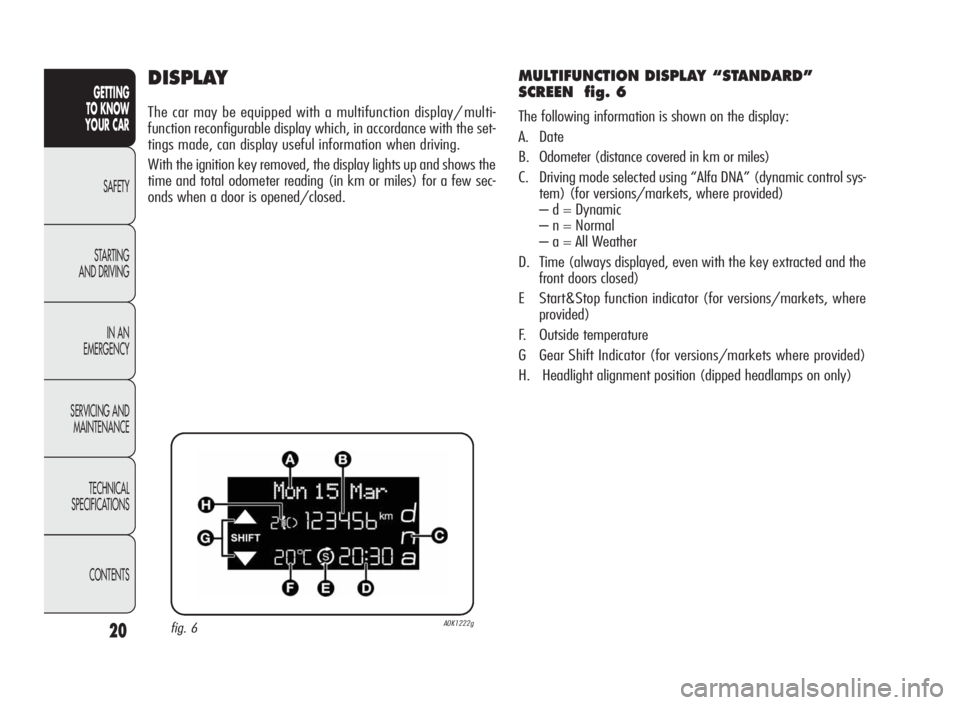

SCREEN fig. 6
The following information is shown on the display:
A. Date
B. Odometer (distance covered in km or miles)
C. Driving mode selected using “Alfa DNA” (dynamic control sys-
tem) (for versions/markets, where provided)
– d = Dynamic
– n = Normal
– a = All Weather
D. Time (always displayed, even with the key extracted and the
front doors closed)
E Start&Stop function indicator (for versions/markets, where
provided)
F. Outside temperature
G Gear Shift Indicator (for versions/markets where provided)
H. Headlight alignment position (dipped headlamps on only)
fig. 6A0K1222g
001-130 Alfa Giulietta EN 5ed 26-07-2010 16:33 Pagina 20

21
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
