2010 Alfa Romeo Brera/Spider fuel filter

112
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
DIESEL ENGINES
If the outside temperature is very low,
the diesel thickens due to the formation
of paraffin and could clog the diesel fu-
el filter.
In order to avoid these problems, dif-
ferent types of diesel are distributed ac-
cording to the season: summer type,
winter type arctic type (mountains/cold
areas).
If refuelling with diesel fuel not suitable
for the current temperature, mix diesel
fuel with TUTELA DIESEL ARTad-
ditive in the proportions stated on the
can, putting first the antifreeze in the
tank and then the diesel fuel.
If driving or parking the vehicle for a long
period in cold areas/mountains, refuel
with the diesel fuel available at local fill-
ing stations. In this situation you are al-
so recommended to have in the tank an
amount of fuel 50% higher than usable
capacity.

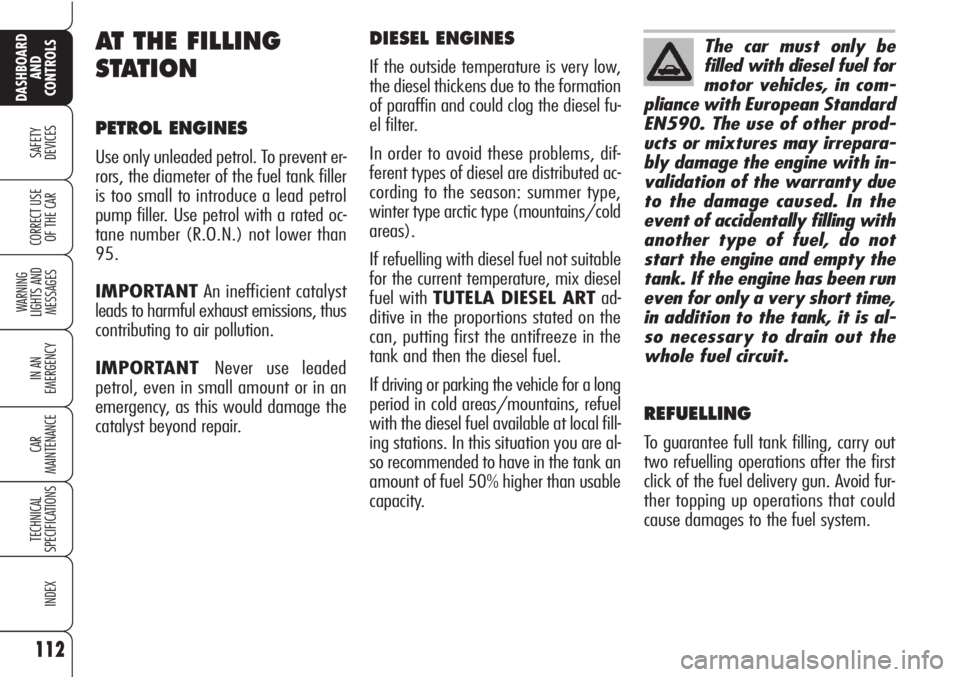

AT THE FILLING
STATION
PETROL ENGINES
Use only unleaded petrol. To prevent er-
rors, the diameter of the fuel tank filler
is too small to introduce a lead petrol
pump filler. Use petrol with a rated oc-
tane number (R.O.N.) not lower than
95.
IMPORTANTAn inefficient catalyst
leads to harmful exhaust emissions, thus
contributing to air pollution.
IMPORTANT Never use leaded
petrol, even in small amount or in an
emergency, as this would damage the
catalyst beyond repair.
The car must only be
filled with diesel fuel for
motor vehicles, in com-
pliance with European Standard
EN590. The use of other prod-
ucts or mixtures may irrepara-
bly damage the engine with in-
validation of the warranty due
to the damage caused. In the
event of accidentally filling with
another type of fuel, do not
start the engine and empty the
tank. If the engine has been run
even for only a very short time,
in addition to the tank, it is al-
so necessary to drain out the
whole fuel circuit.
REFUELLING
To guarantee full tank filling, carry out
two refuelling operations after the first
click of the fuel delivery gun. Avoid fur-
ther topping up operations that could
cause damages to the fuel system.

114
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
PROTECTING THE
ENVIRONMENT
The devices for curtailing petrol engine
emissions are the following:
❒three-way catalytic converter;
❒Lambda sensors;
❒fuel evaporation system.
In addition, do not let the engine run,
even for a test, with one or more spark
plugs disconnected.
The devices for curtailing diesel fuel en-
gine emissions are the following:
❒oxidising catalytic converter;
❒exhaust gas recirculation system
(E.G.R.);
❒diesel particulate filter (DPF).
During normal service
the diesel particulate
filter (DPF) reaches high tem-
peratures. Do not therefore
park the car over inflammable
materials (grass, dry leaves,
pine needles, etc.): fire hazard.
WARNING
DIESEL PARTICULATE FILTER
(DPF)
The Diesel Particulate Filter is a me-
chanical filter, integral with the exhaust
system, that physically traps particulate
present in the exhaust gases of Diesel
engines.
The diesel particular filter has been
adopted to eliminate almost totally par-
ticulates in compliance with current /
future law regulations.
During normal use of the car, the engine
control unit records a set of data (e.g.:
travel time, type of route, temperatures,
etc.) and it will then calculate how much
particulates has been trapped by the fil-
ter.Since this filter physically traps particu-
lates, it shall be cleaned (reclaimed) at
regular intervals by burning carbon par-
ticles. Reclaiming procedure is controlled
automatically by the engine control unit
according to the filter conditions and the
conditions of use of the car. During re-
claiming the following phenomena could
take place: idling slight increase, fan ac-
tivation, slight smoke increase, high ex-
haust temperatures. These situations
shall not be considered as faults and they
do not affect car performance and envi-
ronment.
Diesel particulate filter
clogged
When the Diesel particulate filter is
clogged, the display will show symbol
hand the dedicated message. In
this case keep the car running until sym-
bol
h+ and message turn off.

151
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
W W
A A
R R
N N
I I
N N
G G
L L
I I
G G
H H
T T
S S
A A
N N
D D
M M
E E
S S
S S
A A
G G
E E
S S

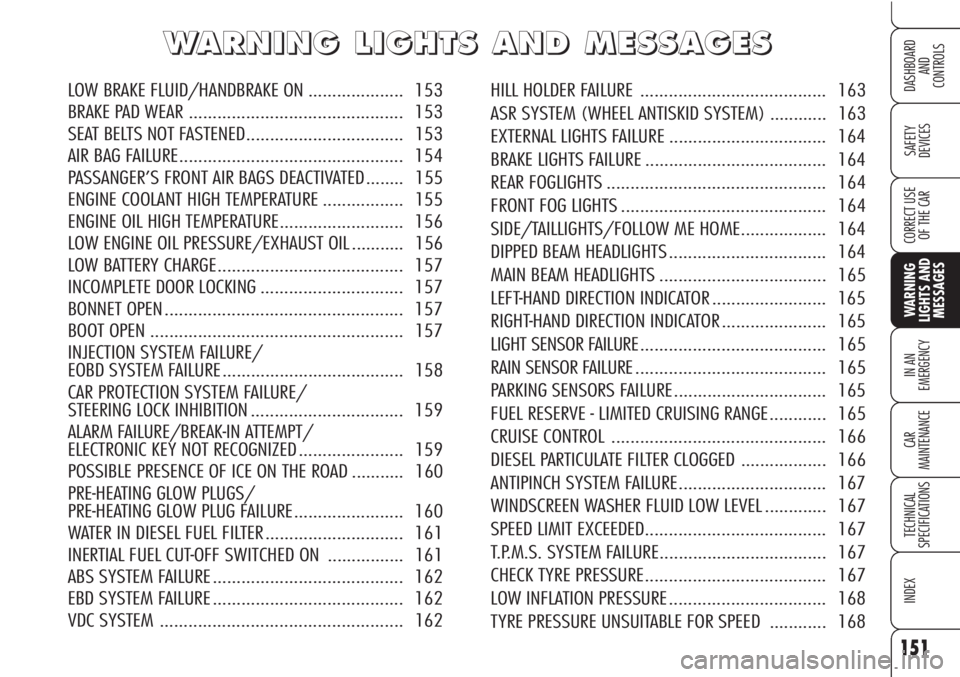

LOW BRAKE FLUID/HANDBRAKEON .................... 153
BRAKE PAD WEAR ............................................. 153
SEAT BELTS NOT FASTENED................................. 153
AIR BAG FAILURE............................................... 154
PASSANGER’S FRONT AIR BAGS DEACTIVATED ........ 155
ENGINE COOLANT HIGH TEMPERATURE ................. 155
ENGINE OIL HIGH TEMPERATURE.......................... 156
LOW ENGINE OIL PRESSURE/EXHAUST OIL ........... 156
LOW BATTERY CHARGE....................................... 157
INCOMPLETE DOOR LOCKING .............................. 157
BONNET OPEN.................................................. 157
BOOT OPEN..................................................... 157
INJECTION SYSTEM FAILURE/
EOBD SYSTEM FAILURE...................................... 158
CAR PROTECTION SYSTEM FAILURE/
STEERING LOCK INHIBITION ................................ 159
ALARM FAILURE/BREAK-IN ATTEMPT/
ELECTRONIC KEY NOT RECOGNIZED ...................... 159
POSSIBLE PRESENCE OF ICE ON THE ROAD ........... 160
PRE-HEATING GLOW PLUGS/
PRE-HEATING GLOW PLUG FAILURE....................... 160
WATER IN DIESEL FUEL FILTER ............................. 161
INERTIAL FUEL CUT-OFF SWITCHED ON ................ 161
ABS SYSTEM FAILURE ........................................ 162
EBD SYSTEM FAILURE ........................................ 162
VDC SYSTEM ................................................... 162HILL HOLDER FAILURE ....................................... 163
ASR SYSTEM (WHEEL ANTISKID SYSTEM) ............ 163
EXTERNAL LIGHTS FAILURE ................................. 164
BRAKE LIGHTS FAILURE ...................................... 164
REAR FOGLIGHTS.............................................. 164
FRONT FOG LIGHTS........................................... 164
SIDE/TAILLIGHTS/FOLLOW ME HOME.................. 164
DIPPED BEAM HEADLIGHTS ................................. 164
MAIN BEAM HEADLIGHTS ................................... 165
LEFT-HAND DIRECTION INDICATOR ........................ 165
RIGHT-HAND DIRECTION INDICATOR ...................... 165
LIGHT SENSOR FAILURE....................................... 165
RAIN SENSOR FAILURE........................................ 165
PARKING SENSORS FAILURE................................ 165
FUEL RESERVE - LIMITED CRUISING RANGE............ 165
CRUISE CONTROL............................................. 166
DIESEL PARTICULATE FILTER CLOGGED .................. 166
ANTIPINCH SYSTEM FAILURE............................... 167
WINDSCREEN WASHER FLUID LOW LEVEL ............. 167
SPEED LIMIT EXCEEDED...................................... 167
T.P.M.S. SYSTEM FAILURE................................... 167
CHECK TYRE PRESSURE...................................... 167
LOW INFLATION PRESSURE................................. 168
TYRE PRESSURE UNSUITABLE FOR SPEED ............ 168

161
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
Pre-heating glow plugs failure
The warning light (on certain versions
together with the message on the dis-
play) will flash to indicate a failure in the
pre-heating glow plugs system. Contact
Alfa Romeo Authorized Services as soon
as possible to have the failure eliminat-
ed.WATER IN DIESEL
FUEL FILTER
(diesel versions -
amber)
The warning light turns on glowing
steadily (together with the message on
the display), when travelling to indicate
that there is water in the diesel fuel fil-
ter.
c
The presence of water in
the fuel circuit may
cause serious damage to
the entire injection system and
cause irregular engine opera-
tion. If the warning light
con
the dial turns on (on certain ver-
sions together with the mes-
sage on the display) contact Al-
fa Romeo Authorized Services
as soon as possible to have the
system relieved. If the above
indications come on immediate-
ly after refuelling, water has
probably been poured into the
tank: turn the engine off imme-
diately and contact Alfa Romeo
Authorized Services.
INERTIAL
FUEL CUT-OFF
SWITCHED ON
The intervention of the inertial fuel cut-
off switch is indicated by a message +
symbol on the display.
If, after a crash, you
smell fuel or see leaks
from the fuel system, do not
reset the switch to avoid fire
risk.
WARNING
s

201
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
USERS FUSE AMPERE FIGURE
Water in diesel fuel filter sensor/flow meter F35 7.5 48
Brake light switch/central console control panel F35 7.5 48
Cruise Control F35 7.5 48
AQS sensor F35 7.5 48
Disponible F36 – 48
Instrument panel branch point F37 10 48
Front headlight control unit/Power to control unit
for gas-discharge headights (Bixenon) (where provided) F37 10 48
Boot locking/unlocking gearmotor F38 15 48
EOBD system diagnostic socket F39 10 48
T.P.M.S. control unit F39 10 48
Mobile phone presetting F39 10 48
Alarm system control unit (for versions/markets, where provided) F39 10 48
Climate control system F39 10 48
Heated rear window F40 30 48
Windscreen washer/rear window washer nozzle demister F41 7.5 48
Heated mirror demister F41 7.5 48
Brake branch point power (ABS/VDC) –
Steering angle branch point – Yawing sensor F42 7.5 48
Windscreen wiper/washer F43 30 48

212
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
35 70 105 140 175
●
●
●
●●
●
●●
●●
●
●●●●●
●●●●●
●●
●●●●●
Thousands of km
Replace accessory drive belt/s
Replace timing belt (1750 TURBO BENZINA versions) (*)
Replace timing belt (diesel versions) (*)
Change spark plugs (1750 TURBO BENZINA versions)
Change spark plugs (3.2 JTS and 2.2 JTS Selespeed versions)
Replace diesel fuel filter (diesel versions)
Change air cleaner cartridge
Change front transmission gear oil (3.2 JTS 4x4 versions)
Changing engine oil and oil filter (3.2 JTS and 2.2 JTS Selespeed versions)
(or every 24 months)
Changing engine oil and oil filter (1750 TURBO BENZINA versions) (**)
(or every 12 months)
Change engine oil and oil filter (diesel versions with DPF) (**)
(or every 24 months)
Change engine oil and oil filter (diesel versions without DPF)
(or every 24 months)
Change brake fluid (or every 24 months)
Change pollen filter (or every 24 months)
(*) Regardless of the km covered, the timing belt shall be replaced every 4 years for particularly demanding use (cold climates, driving in the city, idling
for a long time) or in any case every 5 years.
(**) The engine oil and the filter must be changed when the instrument panel warning light comes on (see “Warning lights and Messages” chapter) and in all cas-
es every 24 months.
If the car is used mainly in towns the engine oil and filter need to be changed every 12 months

213
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
USE OF THE CAR
UNDER HEAVY
CONDITIONS
Should prevailing use of the car be un-
der one of the following specially heavy
conditions:
❒trailer or caravan towing;
❒dusty roads;
❒short distances (less than 7-8 km)
and repeated with external temper-
atures below zero;
❒frequently idling engines or long dis-
tance low speed driving (e.g.: door-
to-door deliveries) or in case of a long
term inactivity;
❒urban routes;
carry out checks more frequently than
required on Service Schedule:
❒check front disk brake pad conditions
and wear;
❒check cleanness of bonnet and boot
locks and lever cleanness and lubri-
cation;
❒sight inspect the conditions of: en-
gine, gearbox, transmission, pipes
and hoses (exhaust - fuel - brakes),
rubber parts (boots, sleeves, bushes,
etc.);
❒check battery charge and fluid level
(electrolyte);
❒visual check on various drive belt con-
ditions;
❒change engine oil and oil filter, if re-
quired;
❒check and replace pollen filter, if re-
quired;
❒check and replace air cleaner, if re-
quired.
PERIODICAL CHECKS
Every 1,000 km or before long jour-
neys, check and top up if required:
❒engine coolant fluid level;
❒brake fluid level;
❒windscreen washer fluid level;
❒tyre pressure and conditions.
❒check light system operation (head-
lights, direction indicators, hazard
lights, etc.);
❒check windscreen wiper/washer op-
eration and windscreen/rear window
blade position/wear;
Every 3,000 km check and top up if re-
quired: engine oil level.
You are recommended to use
PETRONAS LUBRICANTSprod-
ucts, designed and produced specifical-
ly for Alfa Romeo cars (see table “Ca-
pacities” in section “Technical specifi-
cations”).

260
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
INDEX
Engine starting ........................ 138
Environment protection ............. 114
EOBD system .......................... 104
External lights ......................... 65
Fix&Go automatic (device) ....... 176
Flashing the headlights ............. 65
Fluid level checks..................... 214
Fluids and lubricants ................. 251
Follow me home (device) ......... 66
Front air bags.......................... 128
Front ceiling lights
– bulb replacement ................ 191
– control .............................. 75
Front fog lights
– bulb replacement ................ 188
– control .............................. 67
Front headlights (washed) ........ 232
Fuel
– consumption...................... 253
– fuel cut-off switch ............... 77
– fuel gauge ......................... 22Fuel cut-off and power
supply switches ..................... 77
Fuel feed ................................ 240
Fuel filler cap .......................... 113
Fuses (replacement) ................ 194
Gearbox (use) ........................ 144
Glove compartment.................. 81
Glove compartment light
– bulb replacement ................ 192
Handbrake ............................. 143
Hazard lights ........................... 67
Head restraints ........................ 44
Headlight washer
– control .............................. 71
– fluid level.......................... 219
Headlights
– adjusting headlight beam ..... 97
– headlight adjustment abroad .. 98
– headlight aiming device ....... 97
– front fog light adjustment ..... 98
Hill Holder system. ................... 102 DPF (Diesel Particulate Filter) .... 114
Dimensions ............................. 247
Dipped beam headlights
– bulb replacement ................ 186
– control .............................. 65
Direction indicators
– bulb replacement 186-187-188
– control .............................. 65
Doors ..................................... 86
Electronic key .......................... 11
Engine
– identification code ............... 238
– marking ............................ 237
– technical data .................... 239
Engine compartment (washed) .. 233
Entine coolant
temperature gauge................. 23
Engine oil
– consumption...................... 217
– level check ........................ 216
– specifications ..................... 251
Engine oil temperature gauge .... 24
