224
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

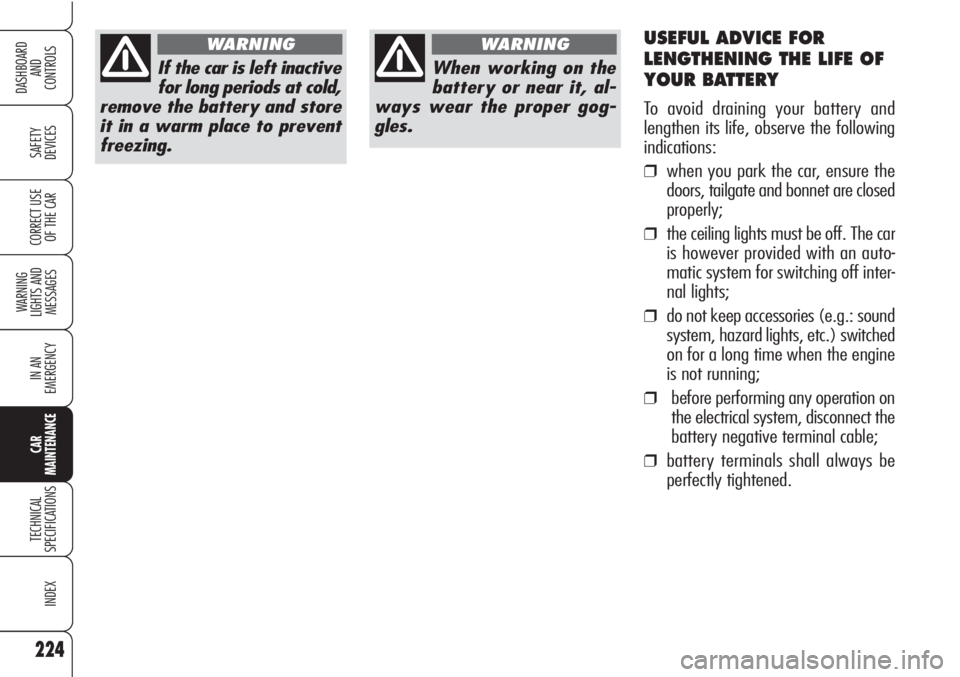

If the car is left inactive
for long periods at cold,
remove the battery and store
it in a warm place to prevent
freezing.
WARNING
When working on the
battery or near it, al-
ways wear the proper gog-
gles.
WARNINGUSEFUL ADVICE FOR
LENGTHENING THE LIFE OF
YOUR BATTERY
To avoid draining your battery and
lengthen its life, observe the following
indications:
❒when you park the car, ensure the
doors, tailgate and bonnet are closed
properly;
❒the ceiling lights must be off. The car
is however provided with an auto-
matic system for switching off inter-
nal lights;
❒do not keep accessories (e.g.: sound
system, hazard lights, etc.) switched
on for a long time when the engine
is not running;
❒before performing any operation on
the electrical system, disconnect the
battery negative terminal cable;
❒battery terminals shall always be
perfectly tightened.

BODYWORK PAINT
IDENTIFICATION LABEL
This is located in the inner side of the
tailgatefig. 4and it includes:
A.Paint manufacturer
B.Name of colour
C.Colour code.
D.Colour code for touching up and re-
spraying.
ENGINE MARKING
Engine marking is stamped on the gear-
box side, on the rear left side.
BODYWORK LABEL
This is located on the passenger com-
partment floor near the front passen-
ger’s seat.
It can be reached by raising cover A-
fig. 3and it includes:
❒type of vehicle (ZAR 939000);
❒Manufacturer’s serial number (chas-
sis number).
237
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
A0F0222mfig. 4A0F0175mfig. 3

249
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
WEIGHTS
2.4 JTDM
1575
1200
1050
2035
460
1500
60
80
1750 TURBO
BENZINA
1430
1100
1050
1890
460
1450
60
80
3.2 JTS 4x4
1605
1200
1050
2065
460
1500
60
80
3.2 JTS 4x2
1540
1200
1050
2000
460
1500
60
80
2.0 JTDM
1480
1200
1050
1940
460
1500
60
80
Weights (kg)
Weight empty
(including fluids, 90% fuel
in the tank and no optional)
Maximum admitted load (*)
– front axle
– rear axle
– total
Payload including
driver (**)
Towable loads
Max. load
on ball
Max. load
on tailgate (***)
(*) Loads not to be exceeded. The driver is responsible for arranging the loads in the boot an/or on the roof so
that they comply with these limits.
(**) If special equipment is fitted (sunroof, tow hitch etc.) the unladen weight increases, thus reducing the payload as specified in the
maximum weight allowed.
(***) Lineaccessori Alfa Romeo roof racks, max. capacity: 50 kg.
