2010 ACURA RDX navigation system

2. Insert a disc into the disc slotwhen the disc load indicator turns
green, and ‘‘LOAD ’’appears on the
upper display at the same time.
Insert the disc only about halfway;
the drive will pull it in the rest of
the way. You will see the disc
number blinking on the upper
display, and the disc load indicator
turns red again and blinks as the
CD is loaded.
Do not try to insert a disc until
‘‘ LOAD ’’appears. You could
damage the audio unit.
3. You will see ‘‘DISC READ ’’on the
upper display, then the system
begins to play the CD.
You can load a CD into an empty
position while a CD is playing. Press
the AUDIO button to view the audio
control display. Select the empty
position (‘‘ No Disc’’is shown on the
audio control display) by rotating the
interface dial. Then press ENTER on
the selector to enter your selection.
The current CD stops playing and
starts the loading sequence. The CD
just loaded will play. You can also select the empty
position by pressing the appropriate
preset button.
You can load a disc(s) in any mode
(AM, FM, XM, or AUX) if you do not
select an empty position.
You cannot select the empty position
if there is no disc in the changer.
EMPTY POSITION
CONTINUED
Playing Discs (Models with navigation system)
243
Features
09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX

To Play a DiscSelect the changer by pressing the
DISC/AUX button. You will see the
‘‘CD ’’on the upper display. The
system will begin playing the last
selected CD in the CD changer.
If you want to see the list of the discs
in the CD changer, press the AUDIO
button to view the audio control
display. You will see the current disc
position highlighted. When playing a CD (CD-DA), the
audio control display shows disc
number, album name, track number,
and elapsed time. When playing a
CD without this information, the
number of the disc and track playing
and the elapsed time are shown on
the audio control display.
When the system reaches the end of
the disc, it will advance to the
beginning of the first track/file (in
MP3/WMA mode) on the next disc,
then play that track/file.
To select a disc, press an appropriate
preset button (1
－6), or select an
appropriate preset icon by rotating
the interface dial, then press ENTER
on the interface selector. If you select
an empty position ( ‘‘No Disc’’ is
shown) in the CD changer, the
system will load a CD into the empty
slot (see page 243).
CURRENT DISC
EMPTY POSITION
Playing Discs (Models with navigation system)24409/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX

Playing an MP3/WMA Disc
The CD changer can also play CD-Rs
and CD-RWs compressed in MP3
and WMA format. When playing a
disc in MP3 or WMA, you will see
‘‘MP3 ’’or ‘‘WMA’’ on the upper
display. A disc can support more
than 99 folders, and each folder can
hold up to 255 playable files.
When there are more than 99 folders
on a disc, the upper display only
shows two digits.
NOTE : If a file on an MP3 or WMA
disc is protected by digital rights
management (DRM), the audio unit
displays FORMAT, and then skips to
the next file. When playing a CD compressed in
MP3/WMA format, the audio control
display shows disc number, folder
name, file number, and elapsed time.
When playing a CD without this
information, the disc number, track
number, and the elapsed time are
shown on the audio control display.
If the disc has a complex structure, it
will take a while to read the disc
before the system begins to play it.
The specifications for compatible
MP3 files are:
– Sampling frequency:
32/44.1/48 kHz (MPEG1)
24/22.05/16 kHz (MPEG2)
– Bitrate:
32/40/48/56/64/80/96/112/128/
160/192/224/256/320 kbps
(MPEG1)
8/16/24/32/40/48/56/64/80/96/
112/128/160 kbps (MPEG2)
– Compatible with variable bitrate
and multi-session
– Maximum layers
(including ROOT): 8 layers
CONTINUED
Playing Discs (Models with navigation system)
245
Features
09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX

The specifications for compatible
WMA files are:– Sampling frequency:
32/44.1/48 kHz
– Bitrate:
48/64/80/96/128/160/192 kbps
– Compatible with variable bitrate
and multi-session
– Maximum layers
(including ROOT): 8 layers
To Change or Select Tracks/FilesWhile a disc is playing you can use
the SEEK/SKIP bar to select
passages and change tracks (files in
MP3/WMA mode).
In MP3/WMA mode, use the
TUNE/FOLDER bar to select folders
on the disc, and use the SEEK/SKIP
bar to change files. SEEK/SKIP
－Each time you press
and release the
side of the
SEEK/SKIP bar, the system skips
forward to the beginning of the next
track (file in MP3/WMA mode).
Press and release the
side of the
bar to skip backward to the
beginning of the current track/file.
Press it again to skip to the
beginning of the previous track/file.
To move rapidly within a track/file,
press and hold the
or
side of
the SEEK/SKIP bar.
Playing Discs (Models with navigation system)24609/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX

You can also change tracks/files on
the audio control display. Press the
AUDIO button to view the display,
then push the selector on the
interface dial to the right to skip
forward to the beginning of the next
track/file. Push the selector left to
skip backward to the beginning of
the current track/file. Press it again
to skip to the beginning of the
previous track/file.
In MP3/WMA modeFOLDER SELECTION－To select
a different folder, press and release
the
side of the TUNE/FOLDER
bar to move to the beginning of the
next folder. Press and release the
side of the bar to move to the
beginning of the previous folder.
Using a Track ListYou can also select a track/file (in
MP3/WMA) directly from the track
list on the audio control display.
Press the AUDIO button to view the
display, then rotate the interface dial
to the current disc. Press ENTER on
the selector to view the track list on
the display. The current disc is
highlighted.
To select a track, rotate the interface
dial or push up and down the
selector on the interface dial. Then
press ENTER on the selector to
enter your selection.
SKIP ICON
CURRENT TRACK
CONTINUED
Playing Discs (Models with navigation system)
247
Features
09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX

In MP3/WMA modeYou will see a list of the folder(s) on
the current disc. To select a folder
(s), rotate the interface dial or push
up and down the selector on the
interface dial. Then press ENTER on
the selector to enter your selection. If
the disc has several folders, the list
advances to the next folder. When
the list of the files is displayed, select
it by rotating the knob, or pushing
the selector up and down.
REPEAT－This feature, when
activated, continuously replays the
current track (file in MP3/WMA
mode). To activate it, press the
AUDIO button to view the audio
control display, then push down the
selector on the interface dial. Rotate
the interface dial to select track
repeat. Press ENTER on the selector
to enter your selection. You will see
‘‘REPEAT ’’next to the
TRACK icon on the audio control
display. To turn off this feature,
select track repeat as previously
described, then press ENTER again.
CURRENT
FOLDER(S)
REPEAT INDICATOR
TRACK REPEAT ICON
Playing Discs (Models with navigation system)24809/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX

DISC REPEAT－This feature,
when activated, continuously replays
the current CD. Press the AUDIO
button to view the audio control
display, then push down the selector
on the interface dial. Rotate the
interface dial to select the DISC
REPEAT. Press ENTER on the
selector to enter your selection. You
will see ‘‘REPEAT ’’next to the DISC
icon on the audio control display. To
turn off this feature, select the DISC
REPEAT, then press ENTER again.
In MP3/WMA modeFOLDER REPEAT －This feature,
when activated, replays all the files in
the selected folder in the order they
are compressed in MP3/WMA. To
activate folder repeat, press the
AUDIO button to view the audio
control display, then push down the
selector on the interface dial. Rotate
the interface dial to select FOLDER
REPEAT. Press ENTER on the
selector to enter your selection. You will see
‘‘FOLDER REPEAT ’’on
the audio control display. To turn off
this feature, select FOLDER
REPEAT, then press ENTER again.
SCAN －The scan function samples
all tracks (files in a folder in MP3 or
WMA mode) on the disc in the order
they are recorded on the disc. To
activate scan, press and release the
SCAN button. You will also see
‘‘ SCAN ’’and the track/file number
blinking on the upper display. To
hear the rest of the track/file, press
and hold the SCAN button for more
than 2 seconds. If you don ’t, the
system advances to the next track/
file, plays about 10 seconds of it, and
continues through the rest of the
track/file the same way. When the
system finishes scanning all the
tracks/files on the current disc, the
system returns to the track/file it
first started scanning with, scan is
canceled, and the system begins to
play that track/file normally.
REPEAT INDICATOR
DISC REPEAT ICON
REPEAT INDICATOR
FOLDER REPEAT ICON
CONTINUED
Playing Discs (Models with navigation system)
249
Features
09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX

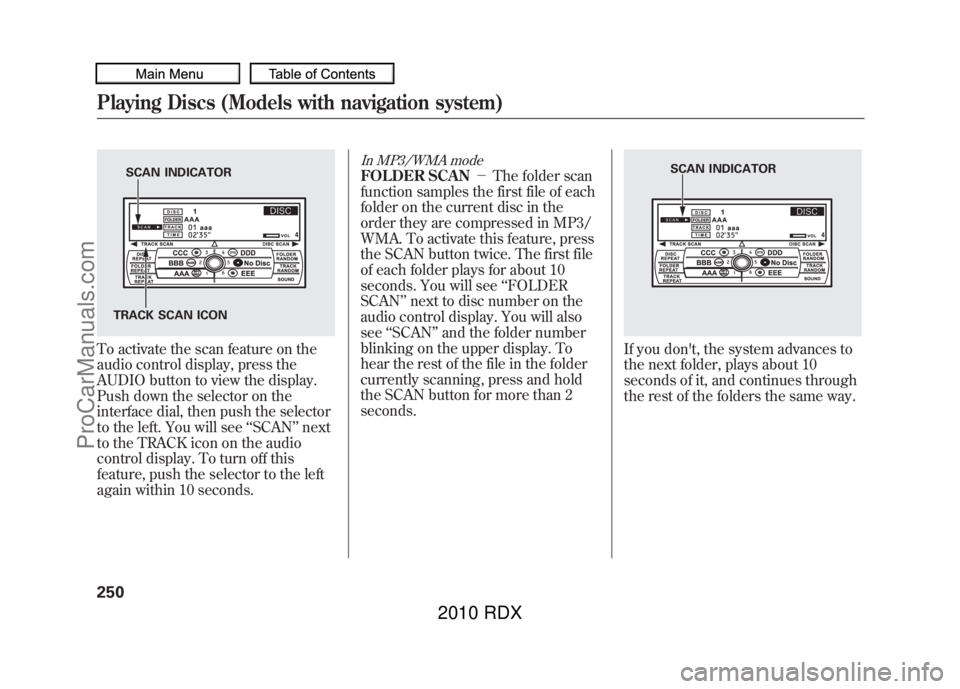

To activate the scan feature on the
audio control display, press the
AUDIO button to view the display.
Push down the selector on the
interface dial, then push the selector
to the left. You will see‘‘SCAN ’’next
to the TRACK icon on the audio
control display. To turn off this
feature, push the selector to the left
again within 10 seconds.
In MP3/WMA modeFOLDER SCAN －The folder scan
function samples the first file of each
folder on the current disc in the
order they are compressed in MP3/
WMA. To activate this feature, press
the SCAN button twice. The first file
of each folder plays for about 10
seconds. You will see ‘‘FOLDER
SCAN ’’next to disc number on the
audio control display. You will also
see ‘‘SCAN ’’and the folder number
blinking on the upper display. To
hear the rest of the file in the folder
currently scanning, press and hold
the SCAN button for more than 2
seconds.
If you don't, the system advances to
the next folder, plays about 10
seconds of it, and continues through
the rest of the folders the same way.
SCAN INDICATOR
TRACK SCAN ICON
SCAN INDICATOR
Playing Discs (Models with navigation system)25009/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
