EMERGENCY STARTING fig. 101
When jump starting, never connect the negative lead (-)
of the auxiliary battery to the negative pole A of the car
battery, but rather to an engine/gearbox earth point. Note In any case, it is possible to keep the engine
running by deactivating the Start&Stop system.
IRREGULAR OPERATION
In the case of malfunction the Start&Stop system is
disabled. The driver is informed of the problem by the
general failure warning light
A-fig. 99, where provided, coming on with an
information message and the system failure symbol
B-fig. 5 in the control panel. In this case, contact an
Abarth Dealership.
CAR INACTIVITY fig. 100
In the case of car inactivity, special attention must be paid
due to the disconnection of the battery power supply.
Proceed as follows: detach the connector A (by pressing
button B) from sensor C for monitoring the status of the
battery installed on the negative battery pole D. This
sensor should never be disconnected from the pole except
if the battery is replaced.
When replacing the battery, always
contact an Abarth Dealership. Replace
the battery using a new one of the same type
(HEAVY DUTY) and having the same
specifications.
WARNING
069-108 GPUNTO EVO Abarth GB 2ed 23-04-2010 13:36 Pagina 102

STARTINGTHEENGINE
EMERGENCY STARTING
If the instrument panel warning light
Ystays on
permanently, contact an Abarth Dealership immediately.
IN AN EMERGENCY
In an emergency we recommend that you call the free-phone number found on the Warranty Booklet. You can
also find the Abarth Dealership nearest to you on the web site www.fiat.com.
This procedure must be performed by
expert personnel because incorrect
actions could cause electrical discharge of
considerable intensity. Furthermore, battery
fluid is poisonous and corrosive: avoid contact
with skin and eyes. Keep naked flames away
from the battery. No smoking. Do not cause
sparks.
WARNING
IMPORTANT For the jump starting procedure, refer to
“Knowing your car” section, paragraph “Start&Stop
system”.
fig. 126F0U187Ab
151
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS

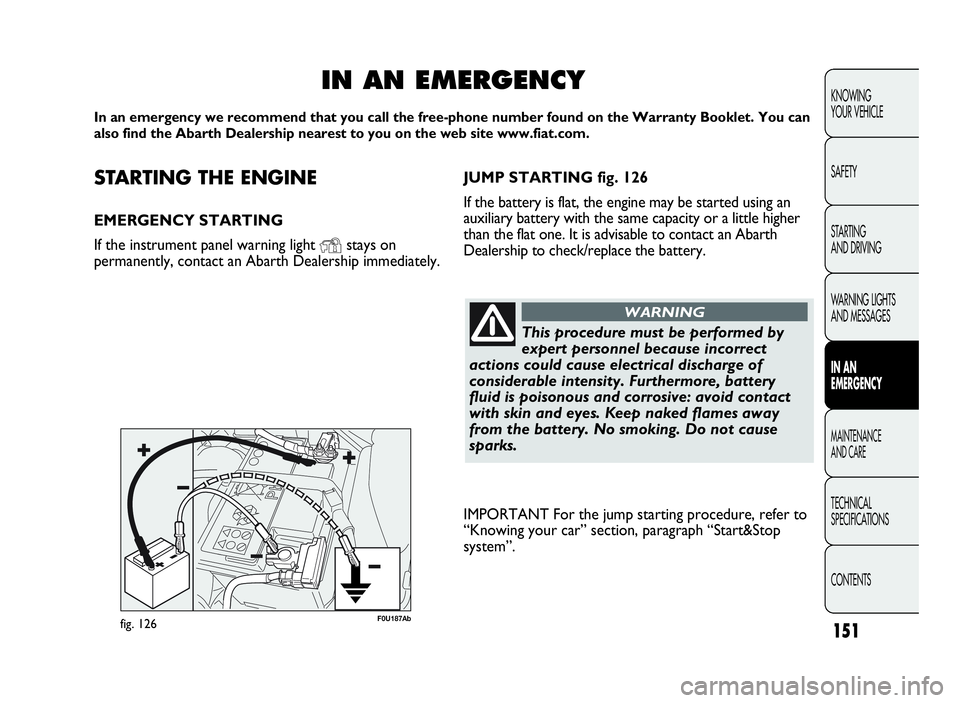

JUMP STARTING fig. 126
