The ¥or Îlights will blink on the instrument panel.
The indicators switch off automatically when the
steering wheel is straightened.
Lane change function
If you wish to signal a lane change, place the left lever in
the unstable position for less than half a second. The
direction indicator on the selected side flashes three
times and then switches off automatically.
“FOLLOW ME HOME” DEVICE
This allows the space surrounding the car to be lit up
for a certain period of time.
Activation
With the key turned to STOP or removed, pull the left-
hand stalk towards the steering wheel within 2 minutes
from when the engine is turned off.
At each single movement of the stalk, the lights will
remain on for an extra 30 seconds up to a maximum of
210 seconds; then the lights are switched off
automatically.
fig. 37F0U037Ab
MAIN BEAM HEADLIGHTS fig. 36
With twist switch in position
2, push the stalk forward
toward the dashboard (stable position). The warning
light
1on the instrument panel will come on. Pulling
the stalk towards the steering wheel, the main beams
are turned off and the dipped beams on.
FLASHING fig. 36
You can flash the beams pulling the stalk toward the
steering wheel (unstable position). The warning light
1
on the instrument panel will come on.
DIRECTION INDICATORS fig. 37
Place the lever in the (stable) position:
up (position
1): activates the right direction indicator;
down (position
2): activates the left direction indicator.
029-068 GPUNTO EVO Abarth GB 2ed 23-04-2010 13:33 Pagina 50

52
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
The wiper stops working three strokes after the stalk is
released. A further stroke 6 seconds later completes
the wiping operation.
RAIN SENSOR
(for versions/markets where provided)
The rain sensor is located behind the rear view mirror
in contact with the windscreen and has the purpose of
automatically adjusting the frequency of the windscreen
wiper strokes depending on the intensity of the rain
during intermittent operation.
IMPORTANT Keep the glass in the sensor area clean.
Activation
Move the twist switch on the right-hand stalk to
≤fig.
38. The activation of the sensor is signalled by a wiper
stroke. Through the setup menu it is possible to
increase the sensitivity of the rain sensor. The increasing
of the rain sensor sensitivity is signalled by a “stroke” to
show the command has been acquired. If the
windscreen washer is used with the rain sensor
activated, the normal washing cycle is performed, after
which the rain sensor resumes its normal automatic
operation.
Never use the windscreen wipers to
remove layers of snow or ice from the
windscreen. In such conditions, the
windscreen wipers may be subjected to excessive
stress and the motor protection which prevents
operation for a few seconds may intervene. If
operation is not restored, even after turning the
key and restarting the engine, go to an Abarth
Dealership.
When released, the stalk returns to its default position
and the wipers automatically switch off.
With the twist switch at
≤, the windscreen wiper will
automatically adapt to the speed of the car.
IMPORTANT Replace the wiper blades as specified in
the “Maintenance and care” section.
“Smart washing” function
Pull the stalk towards the steering wheel (unstable
position) to operate the windscreen washer.
Keeping the lever pulled for more than half a second,
with just one movement it is possible to operate the
washer jet and the wiper at the same time.
029-068 GPUNTO EVO Abarth GB 2ed 23-04-2010 13:33 Pagina 52

53
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Do not use the rear window wiper to
remove layers of snow or ice. In such
conditions, the rear window wiper may be
subjected to excessive stress, prompting
intervention from the motor protection which
prevents operation for a few seconds. If
operation is not restored, even after turning the
key and restarting the engine, go to an Abarth
Dealership.
Deactivation
Move the stalk twist switch away from the position
≤fig. 38 or turn the ignition key to STOP. When the
engine is next started (key at MAR), the sensor will not
be reactivated even if the twist switch is still at
≤fig.
38. To activate the rain sensor, you have to move the
twist switch from
≤to another position and then back
to
≤. Rain sensor activation will be indicated by at
least one wiper “stroke” even if the windscreen is dry.
REAR WINDOW WASHER/ WIPER
This operates only with the ignition key turned to MAR.
The function stops when the stalk is released. Turning
the twist switch from Oto
'will operate the rear
window wiper as follows:
❒in intermittent mode if the windscreen wiper is off;
❒synchronised operation (but with half-stroke
frequency) when the windscreen wiper is on;
❒continuous operation with reverse engaged and
function on.The rear window wiper will operate in continuous
mode when the windscreen wiper is on and reverse
gear is engaged.
Pushing the stalk towards the dashboard (unstable
position) the rear window washer jet will activate.
Keep the stalk pushed for more than half a second to
activate the rear window wiper as well.
Releasing the stalk will activate the smart washing
function, as described for the windscreen wiper.
029-068 GPUNTO EVO Abarth GB 2ed 23-04-2010 13:33 Pagina 53

58
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
F0U043Abfig. 43F0U044Abfig. 44
PARKING LIGHTS
These lights can be turned on only with the ignition key
at STOP or removed, by moving the left stalk twist
switch first to
Oand then to 6or 2.
The warning light 3on the instrument panel comes on.
FOG LIGHTS fig. 44
(for versions/markets where provided)
To turn the front fog lights on, press the button 5with
the side lights on.
The warning light 5in the instrument panel will come on.
Press the button again to turn the lights off.
The use of fog lights is governed by the highway code of
the country in which you are driving. Comply with legal
requirements.
CONTROLS
HAZARD WARNING LIGHTS fig. 43
They are turned on by pressing switch A, regardless of
the position of the ignition key.
With the device on, warning lights Îand ¥light up in
the instrument panel. Press the switch again to turn the
lights off. The use of hazard warning lights is governed
by the highway code of the country you are in. Comply
with legal requirements.
Emergency braking
During emergency braking, the hazard warning lights
come on automatically and warning lights Îand ¥in the
panel come on at the same time. The function switches
off automatically when the nature of the braking changes.
This function complies with the relevant legal regulations
currently in force.
029-068 GPUNTO EVO Abarth GB 2ed 23-04-2010 13:33 Pagina 58

60
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
FUEL CUT-OFF SYSTEM
This intervenes in the case of an impact causing:
❒cutting off fuel supply with resultant engine
switching-off;
❒automatically unlocking the doors;
❒switching on of all interior lights.
The intervention of the system is indicated by a message
shown on the display. Carefully check the car for fuel
leaks, for instance in the engine compartment, under the
car or near the tank area. After an impact, turn the
ignition key to STOP to avoid draining the battery.
If, after an impact, you smell fuel or
notice leaks from the fuel system, do not
reactivate the system to avoid the risk of fire.
WARNING
Door unlocking in the event of an accident
If the fuel cut-off system activates following an accident,
the doors will be automatically unlocked to allow access
to the passenger compartment from the outside and the
ceiling lights will be switched on at the same time. The
doors can always be opened from the inside of the car
by using the appropriate controls.
Restoring the fuel cut-off system
If no fuel leaks are detected after the collision and the
car is able to start again, restore the operation of the
cut-off system as described below.
The following procedure should be carried out to
restore the correct operation of the vehicle:
❒turn the ignition key to MAR;
❒activate the right indicator;
❒deactivate the right indicator;
❒activate the left indicator;
❒deactivate the left indicator;
❒activate the right indicator;
❒deactivate the right indicator;
❒activate the left indicator;
❒deactivate the left indicator;
❒turn the key to STOP.
029-068 GPUNTO EVO Abarth GB 2ed 23-04-2010 13:33 Pagina 60

68
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
F0U065Abfig. 65
SKY DOME SUNROOF
(for versions/markets where provided)
The large electric sunroof comprises two panes of glass,
one of which is mobile and the other fixed. These are
equipped with two shutters (front and rear) that can be
moved manually. The shutters can be used in “fully
closed” or “fully open” positions (they have no fixed
intermediate positions). To open the shutters: grip the
handle A-fig. 65, release it and pull it in the direction of
the arrows to the “fully open” position. To close them,
carry out the procedure in reverse. The sun roof can be
operated only with the ignition key turned to MAR.
The controls A-B fig. 65 on a dedicated control panel
near the front ceiling lights open and close the sunroof.Opening
Press and hold button B-fig. 65, and the front pane will
mode to the “spoiler” position; press button B-fig. 65
again for over half a second to make the sunroof slide
automatically to the fully open position; press the
button once more to stop the sunroof at an
intermediate position.
Closing
From the fully open position, press button A-fig. 65 for
over half a second to move the front pane to the
“spoiler” position; press the button again to stop the
sunroof at an intermediate position; press button A-fig.
65 once more and hold it down to close the sunroof
completely.
029-068 GPUNTO EVO Abarth GB 2ed 23-04-2010 13:33 Pagina 68

69
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS

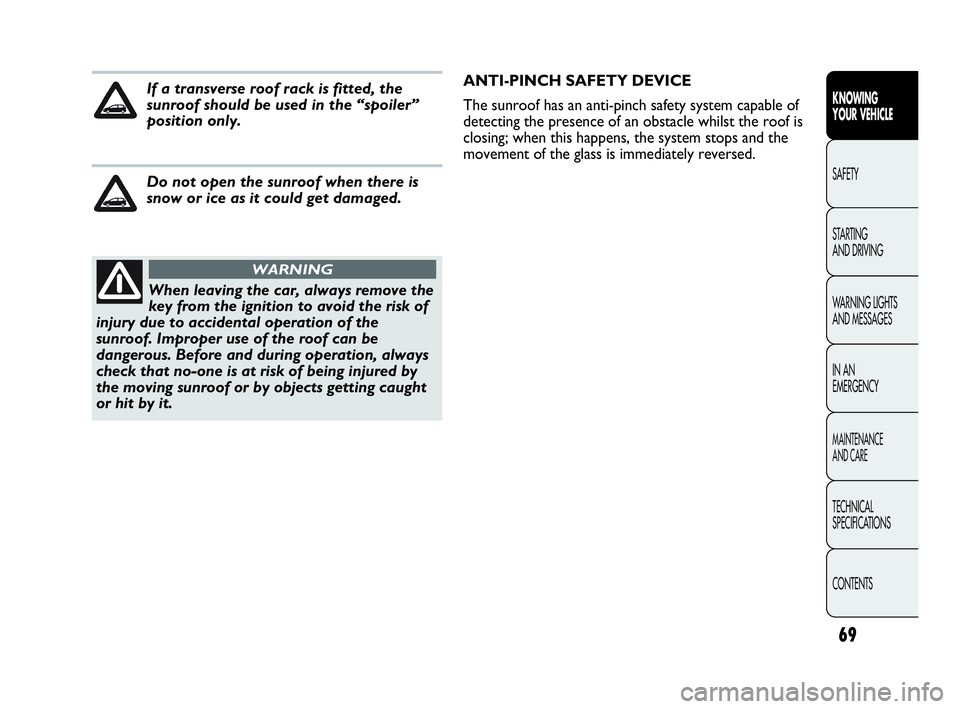

When leaving the car, always remove the
key from the ignition to avoid the risk of
injury due to accidental operation of the
sunroof. Improper use of the roof can be
dangerous. Before and during operation, always
check that no-one is at risk of being injured by
the moving sunroof or by objects getting caught
or hit by it.
WARNING
If a transverse roof rack is fitted, the
sunroof should be used in the “spoiler”
position only.
Do not open the sunroof when there is
snow or ice as it could get damaged.
ANTI-PINCH SAFETY DEVICE
The sunroof has an anti-pinch safety system capable of
detecting the presence of an obstacle whilst the roof is
closing; when this happens, the system stops and the
movement of the glass is immediately reversed.
069-108 GPUNTO EVO Abarth GB 2ed 23-04-2010 13:36 Pagina 69

INITIALISATION PROCEDURE
After the battery has been disconnected or a fuse has
blown, the operation of the sliding roof must be
initialised again.
Proceed as follows:
❒press button A-fig. 65 in closing position;
❒hold the button down so that the sunroof closes in
stages;
❒after complete closure, wait for sunroof’s electric
motor to stop.
When leaving the vehicle, always remove the key from
the ignition to avoid the risk of injury to those still
inside the car due to accidental operation of the
sunroof. Improper use of the roof can be dangerous.
Before and during operation, always check that no-one
is exposed to the risk of being injured by the moving
sunroof or by objects getting caught or hit by it.
F0U066Abfig. 66
EMERGENCY OPERATION
If the switch does not work, the sunroof can be
operated manually as follows:
❒remove the protective cap located between the two
shutters;
❒take the Allen key (provided as standard) from the
toolbox in the boot;
❒insert the key into hole A-fig. 66 and turn it:
– clockwise to open the roof;
– anticlockwise to close the roof.
70
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
069-108 GPUNTO EVO Abarth GB 2ed 23-04-2010 13:36 Pagina 70
