3
35

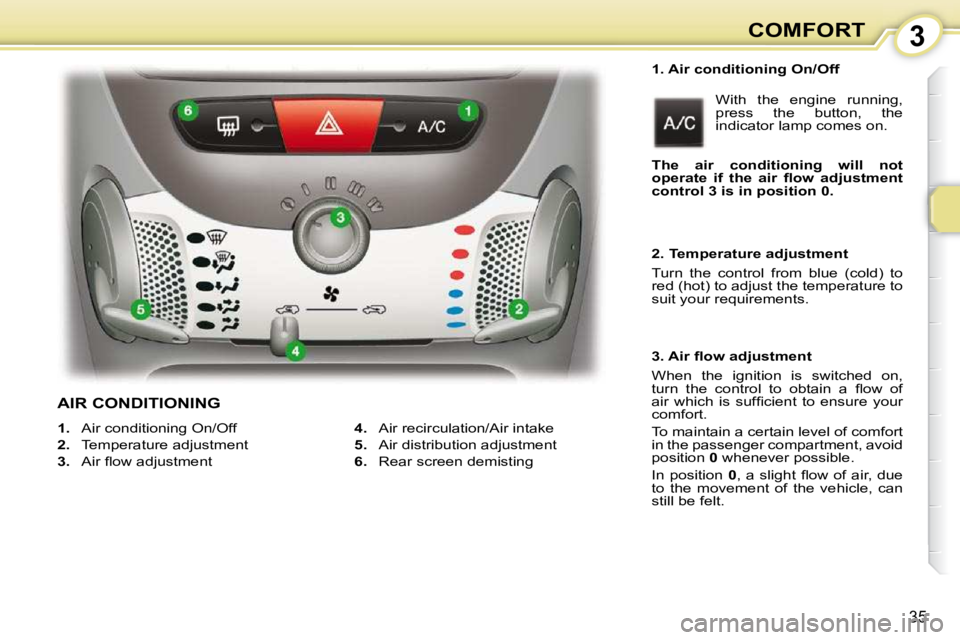

COMFORT
1. Air conditioning On/Off With the engine running,
press the button, the
indicator lamp comes on.
1. Air conditioning On/Off
2. Temperature adjustment
3. A i r fl o w a d j u s t m e n t
AIR CONDITIONING
2. Temperature adjustment
Turn the control from blue (cold) to
red (hot) to adjust the temperature to
suit your requirements.
4. Air recirculation/Air intake
5. Air distribution adjustment
6. Rear screen demisting 3 . A i r fl o w a d j u s t m e n t
When the ignition is switched on,
t u r n t h e c o n t r o l t o o b t a i n a fl o w o f
a i r w h i c h i s s u f fi c i e n t t o e n s u r e y o u r
comfort.
To maintain a certain level of comfort
in the passenger compartment, avoid
position
0 whenever possible.
In position 0 , a s l i g h t fl o w o f a i r , d u e
to the movement of the vehicle, can
still be felt.
T h e a i r c o n d i t i o n i n g w i l l n o t
o p e r a t e i f t h e a i r fl o w a d j u s t m e n t
c o n t r o l 3 i s i n p o s i t i o n 0 .
Page 47 of 97
3
47
COMFORT

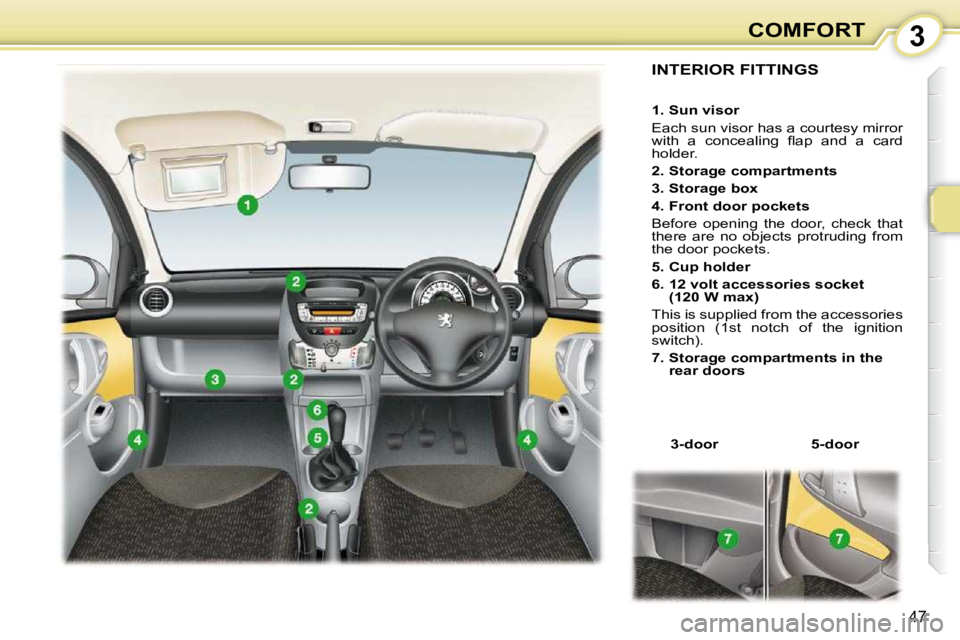

INTERIOR FITTINGS
3 - d o o r 5 - d o o r
1 . S u n v i s o r
Each sun visor has a courtesy mirror
w i t h a c o n c e a l i n g fl a p a n d a c a r d
holder.
2. Storage compartments
3. Storage box
4.
F r o n t d o o r p o c k e t s
Before opening the door, check that
there are no objects protruding from
the door pockets.
5 . C u p h o l d e r
6 . 1 2 v o l t a c c e s s o r i e s s o c k e t
(120 W max)
This is supplied from the accessories
position (1st notch of the ignition
switch).
7. Storage compartments in the
rear doors
Page 48 of 97
4
48
ACCESS
KEYS/REMOTE CONTROL
Remote control
This carries out the vehicle locking -
unlocking and locating functions at a
distance.
Keys
The keys allow you to switch on the
ignition and operate the locks on the
front doors, the boot, the fuel tank
cap, the steering lock and the pas-
senger's airbag deactivation switch. Locking
Press button
A to lock the vehicle from
a d i s t a n c e . T h i s i s c o n fi r m e d b y b r i e f
lighting of the direction indicators.
Central locking and unlocking
From the driver's door, the keys allow
you to lock and unlock the doors and
boot simultaneously. Unlocking
Press button
B to unlock the vehicle.
T h i s i s c o n fi r m e d b y t w o s u c c e s s i v e
fl a s h e s o f t h e d i r e c t i o n i n d i c a t o r s . Locating the vehicle
To locate your vehicle in a car park, if
you have locked it:
press button A , the direction
i n d i c a t o r s c o m e o n b r i e fl y .
After locking, if you notice
that a door is not closed
properly, close it then lock
the vehicle again.
The set of keys or remote
controls, supplied with your
vehicle, enable you to ob-
tain a maximum of three new
keys.
If all of the keys in your possession
are lost, a major operation will have
to be carried out on your vehicle.
Contact a PEUGEOT dealer or a
q u a l i fi e d w o r k s h o p .
Page 49 of 97
4
49
ACCESS
ELECTRONIC ENGINE IMMOBILISER
This locks the engine management
system as soon as the ignition has
been switched off and therefore pre-
vents starting of the vehicle by any-
one who does not have the key.
The ignition key has an electronic chip
which has a special code. When the ig-
nition is switched on, the code must be
recognised for starting to be possible.
In the event of a malfunction, your ve-
hicle will not start.
Contact a PEUGEOT dealer or a
q u a l i fi e d w o r k s h o p .
Changing the remote control
battery
To change the battery, remove the
screw then unclip the housing using
a coin inserted at the ring.
Battery CR2016/3 volts.
If the remote control does not work
after the battery has been changed,
reinitialise it.
Reinitialising the remote
control
Following replacement of the remote
control battery or in the event of a re-
mote control fault, it may be necessary
to reinitialise the system.
Switch off the ignition.
Switch the ignition on again.
Press one of the remote control
buttons immediately for a few
seconds.
Switch off the ignition and remove
the key from the ignition lock.
The remote control is now working
again.
If the fault persists, contact a PEUGEOT
d e a l e r o r a q u a l i fi e d w o r k s h o p .
Driving with the doors locked
may make access to the pas-
senger compartment by the
emergency services more
d i f fi c u l t i n a n e m e r g e n c y .
As a safety measure (with children
on board), remove the key from the
ignition when leaving the vehicle,
even for a short time.
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e
electronic immobiliser system.
Do not discard the remote
control batteries, they con-
tain metals which are harmful
to the environment.
Take them to a PEUGEOT dealership,
or to any other approved collection
point. The high frequency remote control is
a sensitive system; do not operate it
in your pockets as there is a risk that
it may unlock the vehicle without you
being aware of this.
Avoid pressing the buttons of your
remote control out of range of your
vehicle, you risk rendering it inopera-
tive. It would then have to be reini-
tialised.
Page 50 of 97
4
49
ACCESS
ELECTRONIC ENGINE IMMOBILISER
This locks the engine management
system as soon as the ignition has
been switched off and therefore pre-
vents starting of the vehicle by any-
one who does not have the key.
The ignition key has an electronic chip
which has a special code. When the ig-
nition is switched on, the code must be
recognised for starting to be possible.
In the event of a malfunction, your ve-
hicle will not start.
Contact a PEUGEOT dealer or a
q u a l i fi e d w o r k s h o p .
Changing the remote control
battery
To change the battery, remove the
screw then unclip the housing using
a coin inserted at the ring.
Battery CR2016/3 volts.
If the remote control does not work
after the battery has been changed,
reinitialise it.
Reinitialising the remote
control
Following replacement of the remote
control battery or in the event of a re-
mote control fault, it may be necessary
to reinitialise the system.
Switch off the ignition.
Switch the ignition on again.
Press one of the remote control
buttons immediately for a few
seconds.
Switch off the ignition and remove
the key from the ignition lock.
The remote control is now working
again.
If the fault persists, contact a PEUGEOT
d e a l e r o r a q u a l i fi e d w o r k s h o p .
Driving with the doors locked
may make access to the pas-
senger compartment by the
emergency services more
d i f fi c u l t i n a n e m e r g e n c y .
As a safety measure (with children
on board), remove the key from the
ignition when leaving the vehicle,
even for a short time.
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e
electronic immobiliser system.
Do not discard the remote
control batteries, they con-
tain metals which are harmful
to the environment.
Take them to a PEUGEOT dealership,
or to any other approved collection
point. The high frequency remote control is
a sensitive system; do not operate it
in your pockets as there is a risk that
it may unlock the vehicle without you
being aware of this.
Avoid pressing the buttons of your
remote control out of range of your
vehicle, you risk rendering it inopera-
tive. It would then have to be reini-
tialised.
Page 51 of 97
4
50
ACCESS Electric windows
The driver and front passenger each
have an electric window.
After the ignition has been switched
on, press or pull control 1 . The window
stops when you release the control.
Always remove the key from
the ignition when leaving
the vehicle, even for a short
time.
The driver must ensure that the front
passenger uses their electric window
correctly.
Be aware of children when operating
the windows.

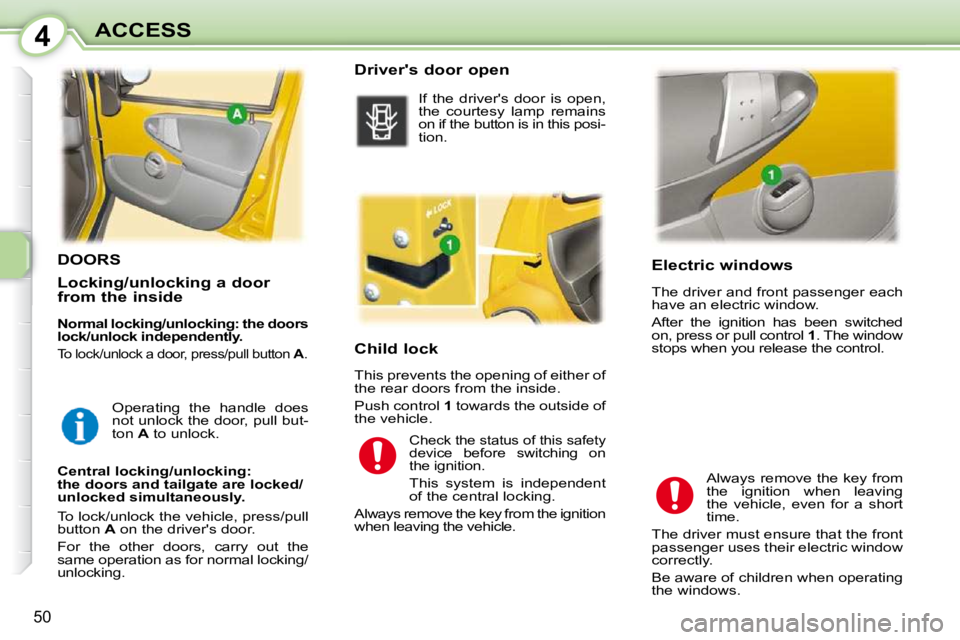

DOORS
Driver's door open
If the driver's door is open,
the courtesy lamp remains
on if the button is in this posi-
tion.
Locking/unlocking a door
from the inside
Normal locking/unlocking: the doors
lock/unlock independently.
To lock/unlock a door, press/pull button A .
Central locking/unlocking:
the doors and tailgate are locked/
unlocked simultaneously.
To lock/unlock the vehicle, press/pull
button A on the driver's door.
For the other doors, carry out the
same operation as for normal locking/
unlocking. Child lock
This prevents the opening of either of
the rear doors from the inside.
Push control
1 towards the outside of
the vehicle.
Check the status of this safety device before switching on
the ignition.
This system is independent
of the central locking.
Always remove the key from the ignition
when leaving the vehicle.
Operating the handle does
not unlock the door, pull but-
ton
A to unlock.
Page 57 of 97
5
55
VISIBILITY
LIGHTING STALK
1. Lamps off
2. Sidelamps
3. Dipped headlamps/
Main beam
headlamps Dipped/Main beam headlamps
Dipped beam headlamps: pull the
stalk.
Main beam headlamps: push the
stalk.
Lighting on audible warning
When the driver's door is opened with
the ignition off, a continuous audible
signal is heard if you have left your
lighting on. Rear foglamp
With the dipped head-
lamps on, selection is
by rotation of ring B for-
wards to switch on and
rearwards to switch off.
The status is displayed by the indicator
lamp in the instrument panel.
In clear weather or in rain,
both day and night, the rear
foglamp is dazzling and its
use is prohibited.
Direction indicators (flashers)
Left: stalk downwards.
Right: stalk upwards.
Headlamp flash
Pull the stalk fully towards you.
Front and rear lamps
Selection is by rotation of ring
A .
Switching to sidelamps does
not switch off the rear foglamp
if it is on.
Do not forget to switch them off when
they are no longer needed.
Page 58 of 97
5
56
VISIBILITY

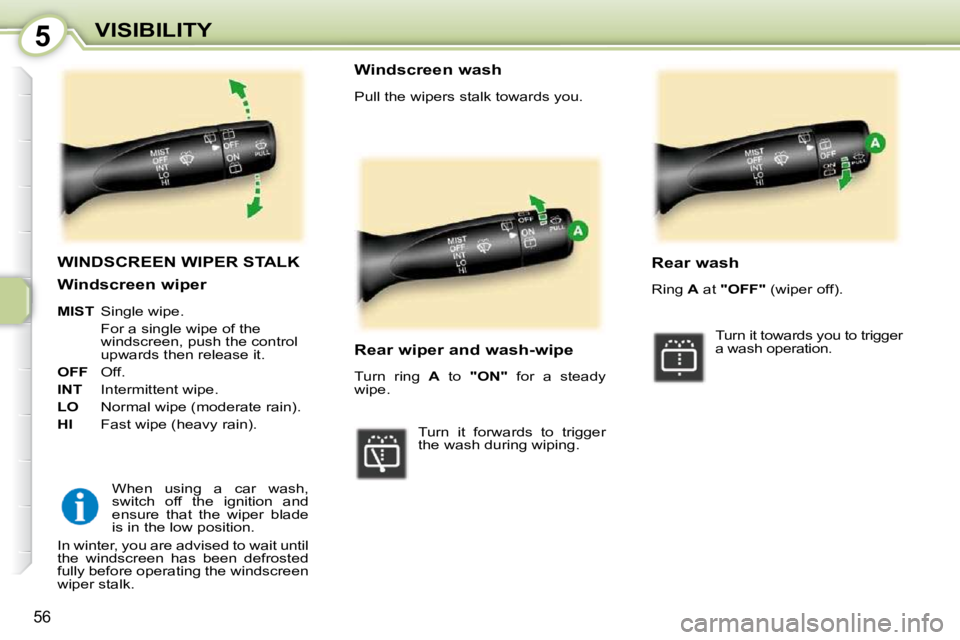

WINDSCREEN WIPER STALK
When using a car wash,
switch off the ignition and
ensure that the wiper blade
is in the low position. Windscreen wash
Pull the wipers stalk towards you.
Rear wiper and wash-wipe
Turn ring
A to "ON" for a steady
wipe.
Turn it forwards to trigger
the wash during wiping. Rear wash
Ring
A at "OFF" (wiper off).
Turn it towards you to trigger
a wash operation.
Windscreen wiper
MIST Single wipe.
For a single wipe of the windscreen, push the control
upwards then release it.
OFF Off.
INT Intermittent wipe.
LO Normal wipe (moderate rain).
HI Fast wipe (heavy rain).
In winter, you are advised to wait until
the windscreen has been defrosted
fully before operating the windscreen
wiper stalk.
