Page 4 of 166
7
FAMILIARISATION
Familiarisation
INSTRUMENTS AND CONTROLS
1. S t e e r i n g w h e e l a d j u s t m e n t c o n t r o l .
2. L i g h t i n g a n d d i r e c t i o n i n d i c a t o r c o n t r o l
stalk.
3. Instrument panel.
4. Steering mounted audio controls.
Bluetooth hands-free system.
5. Driver’s airbag.
Horn.
6. C r u i s e c o n t r o l s w i t c h e s .
7. Gear lever.
8. Parking brake.
9. Bonnet release.
10. Door mirror controls.
11. Fusebox.
12. M a n u a l h e a d l a m p h e i g h t a d j u s t m e n t .
13. S i d e a d j u s t a b l e a i r v e n t .
14. Front side window demisting vent.
15. Electric window controls.
16. Windscreen demisting vent.
17. Wiper/screenwash/trip computer control
stalk.
18. Steering lock and ignition.
19. C e n t r a l a d j u s t a b l e a i r v e n t s .
20. Passenger’s airbag.
21. MENU button.
22. Glove box.
23. 12 V accessory socket.
24. C i g a r l i g h t e r .
25. Ashtray.
26. Heating/air conditioning controls.
27. Audio system.
Page 148 of 166
132
Changing a fuse
CHANGING A FUSE
The two fuseboxes are placed on the
dashboard on the driver's side and under the
bonnet. Removing and fitting a fuse
Before changing a fuse, the cause of the
fault must be found and rectified. The fuse
numbers are indicated on the fusebox.
Always use the special tweezer to extract
the fuse from its housing and check the
condition of its filament.
Always replace a faulty fuse with a fuse
of the same rating.
If a fuse fails again soon after replacement,
have the electrical system of your vehicle
checked by a CITROËN dealer. Access to fuses in the dashboard
- To gain access to the dashboard fuses,
remove the 2 screws using the ignition
key and tilt the housing.
CITROËN will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying the malfunctions
resulting from the installation of accessories
not supplied and not recommended by
CITROËN dealers and not installed in
accordance with its instructions, in particular
when the combined consumption of all of the
additional equipment connected exceeds
10 milliamperes.
A. Good.
B. Failed.
C. Tweezer.
Access to fuses in the engine
compartment
- For access to the fuses in the engine compartment, remove the left hand front
headlamp connector, then unclip the
fusebox cover.
Page 149 of 166
132
Changing a fuse
CHANGING A FUSE
The two fuseboxes are placed on the
dashboard on the driver's side and under the
bonnet. Removing and fitting a fuse
Before changing a fuse, the cause of the
fault must be found and rectified. The fuse
numbers are indicated on the fusebox.
Always use the special tweezer to extract
the fuse from its housing and check the
condition of its filament.
Always replace a faulty fuse with a fuse
of the same rating.
If a fuse fails again soon after replacement,
have the electrical system of your vehicle
checked by a CITROËN dealer. Access to fuses in the dashboard
- To gain access to the dashboard fuses,
remove the 2 screws using the ignition
key and tilt the housing.
CITROËN will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying the malfunctions
resulting from the installation of accessories
not supplied and not recommended by
CITROËN dealers and not installed in
accordance with its instructions, in particular
when the combined consumption of all of the
additional equipment connected exceeds
10 milliamperes.
A. Good.
B. Failed.
C. Tweezer.
Access to fuses in the engine
compartment
- For access to the fuses in the engine compartment, remove the left hand front
headlamp connector, then unclip the
fusebox cover.
Page 152 of 166
132
Changing a fuse
CHANGING A FUSE
The two fuseboxes are placed on the
dashboard on the driver's side and under the
bonnet. Removing and fitting a fuse
Before changing a fuse, the cause of the
fault must be found and rectified. The fuse
numbers are indicated on the fusebox.
Always use the special tweezer to extract
the fuse from its housing and check the
condition of its filament.
Always replace a faulty fuse with a fuse
of the same rating.
If a fuse fails again soon after replacement,
have the electrical system of your vehicle
checked by a CITROËN dealer. Access to fuses in the dashboard
- To gain access to the dashboard fuses,
remove the 2 screws using the ignition
key and tilt the housing.
CITROËN will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying the malfunctions
resulting from the installation of accessories
not supplied and not recommended by
CITROËN dealers and not installed in
accordance with its instructions, in particular
when the combined consumption of all of the
additional equipment connected exceeds
10 milliamperes.
A. Good.
B. Failed.
C. Tweezer.
Access to fuses in the engine
compartment
- For access to the fuses in the engine compartment, remove the left hand front
headlamp connector, then unclip the
fusebox cover.
Page 154 of 166
136
Changing a fuse
Marking Rating
Functions
F16 7.5 A Engine management control unit - e lectronic gearbox control unit and gear lever - T20 relay coil
F17 15 A Supply for ignition coil - injector s - engine management control unit (1.3 HDi)
F18 7.5 A Engine management control unit (1. 3 HDi) - T09 relay coil
F19 7.5 A Air conditioning compressor
F20 30 A Supply for heated rear screen, elec tric door mirrors heater elements
F21 15 A Fuel pump (1.4 petrol and 1.3 HDi)
F22 20 A Engine management control unit (1.3 HDi)
F23 20 A ABS hydraulic block electrovalves s upply
F24 7.5 A ABS
F30 15 A Foglamps
F81 60 A Pre-heat unit (1.3 HDi)
F82 30 A Electronic gearbox pump - electroni c gearbox supply
F84 10 A Electronic gearbox control unit and electrovalves
F85 30 A Cigar lighter - 12 V accessory sock et
F87 7.5 A
Reversing lamps - water in Diesel sensor - airflow
sensor - T02, T05, T14, T17 and T19 relay coils
(except 1.3 HDi)
5 A Reversing lamps - water in Diesel sensor - airflow
sensor - T02, T05, T14, T17 and T19 relay coils - battery
state of charge sensor (except 1.3 HDi)
Page 161 of 166
143
7
QUICK HELP
Under the bonnet
Diesel engine
UNDER THE BONNET
1. Windscreen wash reservoir.
2. Fuse box.
3. Engine coolant reservoir.
4. Brake and clutch fluid reservoir.
5. Air filter.
6. Dipstick.
7. Engine oil filler cap.
8. Power steering fluid reservoir.
Page 162 of 166
144

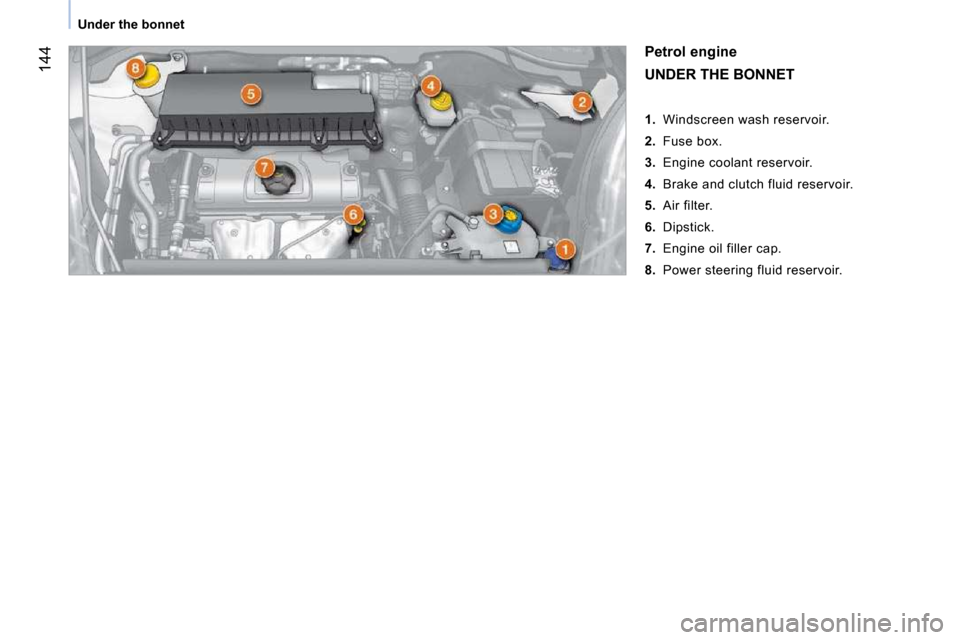

Under the bonnet Petrol engine
UNDER THE BONNET
1. Windscreen wash reservoir.
2. Fuse box.
3. Engine coolant reservoir.
4. Brake and clutch fluid reservoir.
5. Air filter.
6. Dipstick.
7. Engine oil filler cap.
8. Power steering fluid reservoir.
