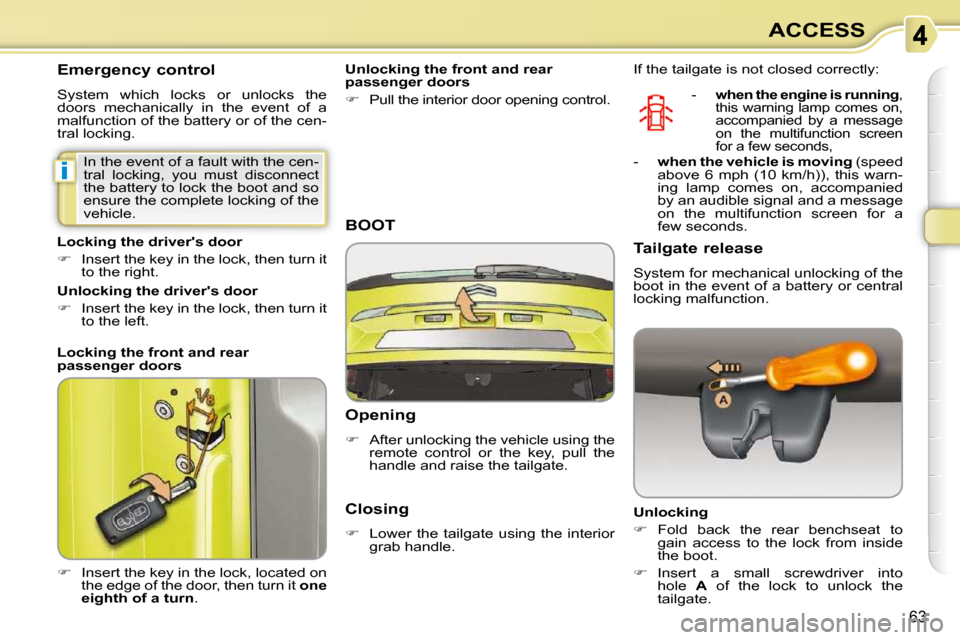

Page 66 of 224
i
63
ACCESS
Emergency control
System which locks or unlocks the
doors mechanically in the event of a
malfunction of the battery or of the cen-
tral locking.
Insert the key in the lock, located on
the edge of the door, then turn it one
eighth of a turn . Opening
After unlocking the vehicle using the
remote control or the key, pull the
handle and raise the tailgate.
BOOT
- when the engine is running ,
this warning lamp comes on,
accompanied by a message
on the multifunction screen
for a few seconds,
- when the vehicle is moving (speed
above 6 mph (10 km/h)), this warn-
ing lamp comes on, accompanied
by an audible signal and a message
on the multifunction screen for a
few seconds.
Tailgate release
System for mechanical unlocking of the
boot in the event of a battery or central
locking malfunction.
Unlocking
Fold back the rear benchseat to
gain access to the lock from inside
the boot.
Insert a small screwdriver into
hole A of the lock to unlock the
tailgate.
Locking the driver's door
Insert the key in the lock, then turn it
to the right.
Unlocking the driver's door
Insert the key in the lock, then turn it
to the left.
Locking the front and rear
passenger doors Unlocking the front and rear
passenger doors
Pull the interior door opening control.
Closing
Lower the tailgate using the interior
grab handle. If the tailgate is not closed correctly:
In the event of a fault with the cen-
tral locking, you must disconnect
the battery to lock the boot and so
ensure the complete locking of the
vehicle.
Page 67 of 224
i
63
ACCESS
Emergency control
System which locks or unlocks the
doors mechanically in the event of a
malfunction of the battery or of the cen-
tral locking.
Insert the key in the lock, located on
the edge of the door, then turn it one
eighth of a turn . Opening
After unlocking the vehicle using the
remote control or the key, pull the
handle and raise the tailgate.
BOOT
- when the engine is running ,
this warning lamp comes on,
accompanied by a message
on the multifunction screen
for a few seconds,
- when the vehicle is moving (speed
above 6 mph (10 km/h)), this warn-
ing lamp comes on, accompanied
by an audible signal and a message
on the multifunction screen for a
few seconds.
Tailgate release
System for mechanical unlocking of the
boot in the event of a battery or central
locking malfunction.
Unlocking
Fold back the rear benchseat to
gain access to the lock from inside
the boot.
Insert a small screwdriver into
hole A of the lock to unlock the
tailgate.
Locking the driver's door
Insert the key in the lock, then turn it
to the right.
Unlocking the driver's door
Insert the key in the lock, then turn it
to the left.
Locking the front and rear
passenger doors Unlocking the front and rear
passenger doors
Pull the interior door opening control.
Closing
Lower the tailgate using the interior
grab handle. If the tailgate is not closed correctly:
In the event of a fault with the cen-
tral locking, you must disconnect
the battery to lock the boot and so
ensure the complete locking of the
vehicle.
Page 80 of 224
!
72
VISIBILITY Windscreen wash
Pull the wiper stalk towards you. The
windscreen wash, then the windscreen
w i p e r s , o p e r a t e f o r a s p e c i fi e d t i m e .
B. Rear wiper selection ring:
park,
intermittent wipe,
w a s h - w i p e ( s e t d u r a t i o n ) .
Reverse gear
When reverse gear is engaged, the
rear wiper will operate if the windscreen
wipers are operating.
Programming
The function is activated or deactivated
v i a t h e m u l t i f u n c t i o n s c r e e n c o n fi g u r a -
tion menu.
This function is activated by default.
Rear wiper
I f a s i g n i fi c a n t a c c u m u l a t i o n o f s n o w
or ice is present, or when using a
tailgate bicycle carrier, deactivate
the automatic rear wiper via the
m u l t i f u n c t i o n s c r e e n c o n fi g u r a t i o n
menu. Wiping zone
The curved shape of the rear screen
results in a smaller wiping zone.
