MONITORING

Warning lamp is on Cause Action/Observations

Maximum
coolant
temperature fi xed red.
The temperature of the
cooling system is too high. Stop as soon as it is safe to do so.
Wait until the engine has cooled down before
topping up the level, if necessary.
If the problem persists, contact a CITROËN dealer.


Engine oil
pressure fi xed. There is a fault with the
engine lubrication system. Stop as soon it is safe to do so.
Park, switch off the ignition and contact a
CITROËN dealer.

Battery
charge fi xed. The battery charging circuit
has a fault (dirty or loose
terminals, slack or cut alter-
nator belt, ...). The warning lamp should go off when the engine
is started.
If it does not switch off, contact a CITROËN deale
r.

Door(s) open fi xed if the
speed is
below 6 mph (10 km/h).
A door or the boot is still open. Close the door or boot.
fi xed and
accompanied
by an audible signal if the speed is
above 6 mph (10 km/h).

56
ACCESS
Locating your vehicle

 Press the closed padlock to locate
your locked vehicle in a car park.
This is indicated by lighting of the cour-
tesy lamps and fl ashing of the direction
indicators for a few seconds. Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible.
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
Anti-theft protection
In the event of a malfunction,
you are informed by lighting
of this warning lamp, an au-
dible signal and a message
on the multifunction screen.
In this case, your vehicle does not start;
contact a CITROËN dealer as soon as
possible.
Folding the key

 First press this button to fold the
key. Ignition switch
- Position 1:
Stop
- Position 2: Ignition
- Position 3: Starting
Starting the vehicle

 Insert the key in the ignition switch.
The system recognises the starting code.

 Turn the key fully towards the dash-
board to position 3 (Starting) .

 When the engine starts, release the
key.

!
58
ACCESS
Lost keys
Visit a CITROËN dealer with the vehicle's V5 registration do cument and your
personal identifi cation documents.
The CITROËN dealer will be able to retrieve the key code a nd the transponder
code required to order a replacement key. Do not throw the remote control
batteries away, they contain metals
which are harmful to the environ-
ment.
Take them to an approved collec-
tion point.
Remote control
The high frequency remote control is a sensitive system; do not o perate it
while it is in your pocket as there is a possibility that it ma y unlock the vehicle,
without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle. You run the risk of stopping it from working and the
remote control would have to be reinitialised.
The remote control does not operate when the key is in the ignition, even
when the ignition is switched off, except for reinitialisat ion.
Locking the vehicle
Driving with the doors locked may make access to the passenger compart -
ment by the emergency services more diffi cult in an emergency.
As a safety precaution (with children on board), r emove the key from the ignition
when you leave the vehicle, even for a short time.
Anti-theft protection
Do not make any modifi cations to the electronic engine immobi liser system;
this could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a CITROËN dealer, to ensure tha t the keys
in your possession are the only ones which can start the vehicle.

56
ACCESS
Locating your vehicle

 Press the closed padlock to locate
your locked vehicle in a car park.
This is indicated by lighting of the cour-
tesy lamps and fl ashing of the direction
indicators for a few seconds. Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible.
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
Anti-theft protection
In the event of a malfunction,
you are informed by lighting
of this warning lamp, an au-
dible signal and a message
on the multifunction screen.
In this case, your vehicle does not start;
contact a CITROËN dealer as soon as
possible.
Folding the key

 First press this button to fold the
key. Ignition switch
- Position 1:
Stop
- Position 2: Ignition
- Position 3: Starting
Starting the vehicle

 Insert the key in the ignition switch.
The system recognises the starting code.

 Turn the key fully towards the dash-
board to position 3 (Starting) .

 When the engine starts, release the
key.

!
58
ACCESS
Lost keys
Visit a CITROËN dealer with the vehicle's V5 registration do cument and your
personal identifi cation documents.
The CITROËN dealer will be able to retrieve the key code a nd the transponder
code required to order a replacement key. Do not throw the remote control
batteries away, they contain metals
which are harmful to the environ-
ment.
Take them to an approved collec-
tion point.
Remote control
The high frequency remote control is a sensitive system; do not o perate it
while it is in your pocket as there is a possibility that it ma y unlock the vehicle,
without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle. You run the risk of stopping it from working and the
remote control would have to be reinitialised.
The remote control does not operate when the key is in the ignition, even
when the ignition is switched off, except for reinitialisat ion.
Locking the vehicle
Driving with the doors locked may make access to the passenger compart -
ment by the emergency services more diffi cult in an emergency.
As a safety precaution (with children on board), r emove the key from the ignition
when you leave the vehicle, even for a short time.
Anti-theft protection
Do not make any modifi cations to the electronic engine immobi liser system;
this could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a CITROËN dealer, to ensure tha t the keys
in your possession are the only ones which can start the vehicle.

56
ACCESS
Locating your vehicle

 Press the closed padlock to locate
your locked vehicle in a car park.
This is indicated by lighting of the cour-
tesy lamps and fl ashing of the direction
indicators for a few seconds. Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible.
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
Anti-theft protection
In the event of a malfunction,
you are informed by lighting
of this warning lamp, an au-
dible signal and a message
on the multifunction screen.
In this case, your vehicle does not start;
contact a CITROËN dealer as soon as
possible.
Folding the key

 First press this button to fold the
key. Ignition switch
- Position 1:
Stop
- Position 2: Ignition
- Position 3: Starting
Starting the vehicle

 Insert the key in the ignition switch.
The system recognises the starting code.

 Turn the key fully towards the dash-
board to position 3 (Starting) .

 When the engine starts, release the
key.

138
PRACTICAL INFORMATION
Engine compartment fuses
The fusebox is placed in the engine
compartment near the battery (left-hand
side).
Access to fuses

 Unclip the cover.

 Change the fuse (see corresponding
paragraph).

 When you have fi nished, close the
cover carefully to ensure the correct
sealing of the fusebox. Fuse table

Fuse N° Rating Functions

F1 20 A Engine control unit supply, cooling fan unit control,
multifunction engine control main relay.

F2 15 A Horn.

F3 10 A Front/rear wash-wipe.

F4 20 A Daytime running lamps.

F5 15 A Diesel heater (Diesel engine), fuel pump
(petrol engine).

F6 10 A ABS/ESP control unit, ABS/ESP cut-off relay,
secondary stop switch.

F7 10 A Electric power steering.

F8 25 A Starter motor control.

F9 10 A Switching and protection unit (Diesel).

F10 30 A Diesel engine injection pump valve, injectors and
ignition coils (petrol engine).

F11 40 A Air conditioning fan.

i
!
143
PRACTICAL INFORMATION
A fl at battery prevents the engine
from starting (refer to the corre-
sponding paragraph).
If the telephone is being used at
the same time on the MyWay audio
navigation system, it will be inter-
rupted after 10 minutes.

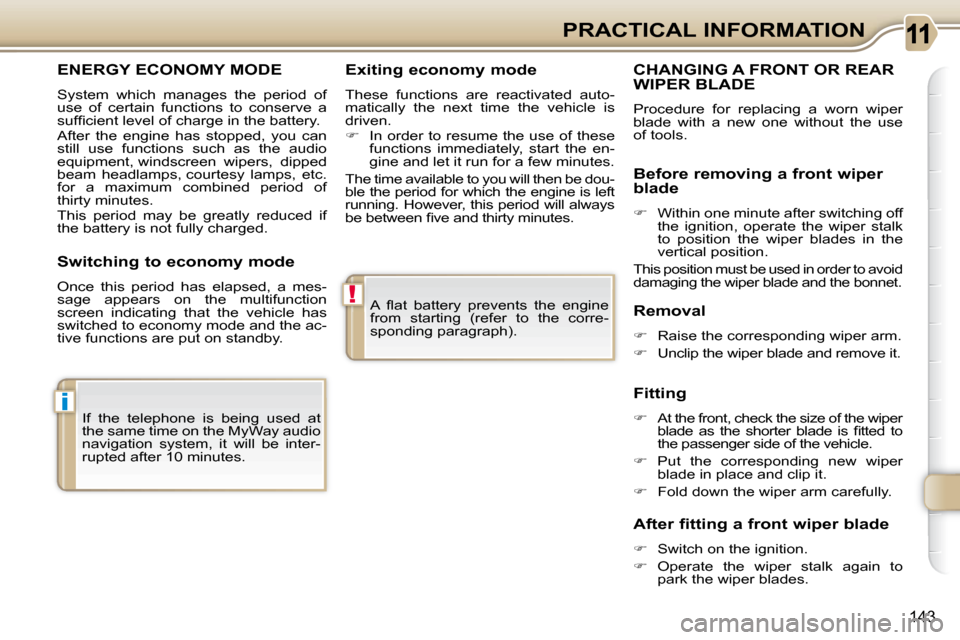

ENERGY ECONOMY MODE
System which manages the period of
use of certain functions to conserve a
suffi cient level of charge in the battery.
After the engine has stopped, you can
still use functions such as the audio
equipment, windscreen wipers, dipped
beam headlamps, courtesy lamps, etc.
for a maximum combined period of
thirty minutes.
This period may be greatly reduced if
the battery is not fully charged. Exiting economy mode
These functions are reactivated auto-
matically the next time the vehicle is
driven.

 In order to resume the use of these
functions immediately, start the en-
gine and let it run for a few minutes.
The time available to you will then be dou-
ble the period for which the engine is left
running. However, this period will always
be between fi ve and thirty minutes.
Switching to economy mode
Once this period has elapsed, a mes-
sage appears on the multifunction
screen indicating that the vehicle has
switched to economy mode and the ac-
tive functions are put on standby.
CHANGING A FRONT OR REAR WIPER BLADE
Procedure for replacing a worn wiper
blade with a new one without the use
of tools.
Removal

 Raise the corresponding wiper arm.

 Unclip the wiper blade and remove it.
Fitting

 At the front, check the size of the wiper
blade as the shorter blade is fi tted to
the passenger side of the vehicle.

 Put the corresponding new wiper
blade in place and clip it.

 Fold down the wiper arm carefully.
Before removing a front wiper
blade

 Within one minute after switching off
the ignition, operate the wiper stalk
to position the wiper blades in the
vertical position.
This position must be used in order to avoid
damaging the wiper blade and the bonnet.
After fitting a front wiper blade

 Switch on the ignition.

 Operate the wiper stalk again to
park the wiper blades.
