Page 88 of 240
5

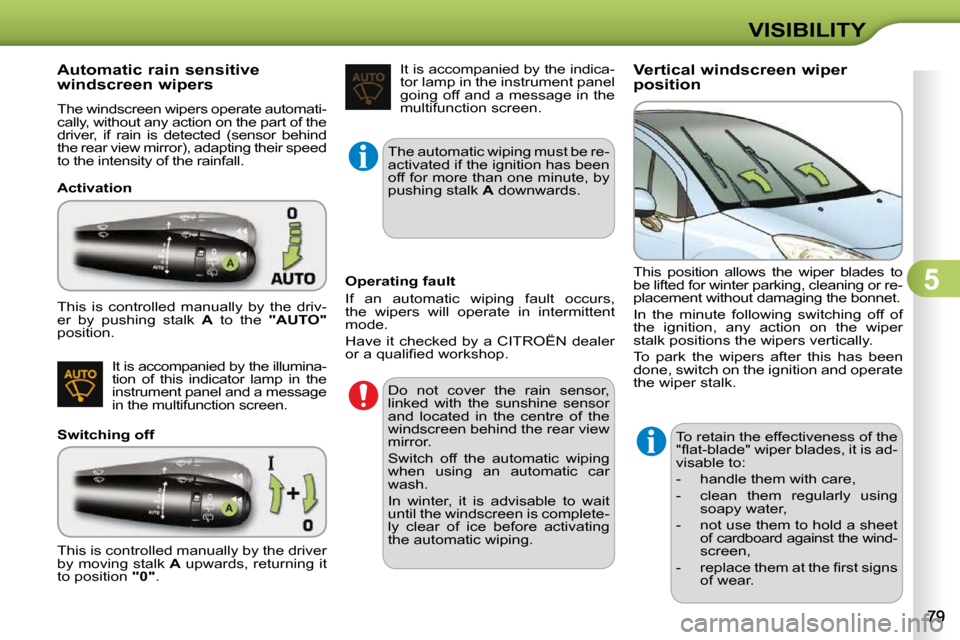

VISIBILITY
Automatic rain sensitive
windscreen wipers
The windscreen wipers operate automati-
cally, without any action on the part of the
driver, if rain is detected (sensor behind
t h e r e a r v i e w m i r r o r ) , a d a p t i n g t h e i r s p e e d
to the intensity of the rainfall.
Activation
Switching off Operating fault
If an automatic wiping fault occurs,
the wipers will operate in intermittent
mode.
Have it checked by a CITROËN dealer
o r a q u a l i fi e d w o r k s h o p . Vertical windscreen wiper
position
To retain the effectiveness of the
" fl a t - b l a d e " w i p e r b l a d e s , i t i s a d -
visable to:
- handle them with care,
- clean them regularly using soapy water,
- not use them to hold a sheet of cardboard against the wind-
screen,
- r e p l a c e t h e m a t t h e fi r s t s i g n s of wear.
Do not cover the rain sensor,
linked with the sunshine sensor
and located in the centre of the
windscreen behind the rear view
mirror.
Switch off the automatic wiping
when using an automatic car
wash.
In winter, it is advisable to wait
until the windscreen is complete-
ly clear of ice before activating
the automatic wiping.
The automatic wiping must be re-
activated if the ignition has been
off for more than one minute, by
pushing stalk
A downwards.
This position allows the wiper blades to
be lifted for winter parking, cleaning or re-
placement without damaging the bonnet.
In the minute following switching off of
the ignition, any action on the wiper
stalk positions the wipers vertically.
To park the wipers after this has been
done, switch on the ignition and operate
the wiper stalk.
This is controlled manually by the driv-
er by pushing stalk
A to the "AUTO"
position.
This is controlled manually by the driver
by moving stalk A upwards, returning it
to position "0" . It is accompanied by the indica-
tor lamp in the instrument panel
going off and a message in the
multifunction screen.
It is accompanied by the illumina-
tion of this indicator lamp in the
instrument panel and a message
in the multifunction screen.
Page 89 of 240
5
VISIBILITY
Automatic rain sensitive
windscreen wipers
The windscreen wipers operate automati-
cally, without any action on the part of the
driver, if rain is detected (sensor behind
t h e r e a r v i e w m i r r o r ) , a d a p t i n g t h e i r s p e e d
to the intensity of the rainfall.
Activation
Switching off Operating fault
If an automatic wiping fault occurs,
the wipers will operate in intermittent
mode.
Have it checked by a CITROËN dealer
o r a q u a l i fi e d w o r k s h o p . Vertical windscreen wiper
position
To retain the effectiveness of the
" fl a t - b l a d e " w i p e r b l a d e s , i t i s a d -
visable to:
- handle them with care,
- clean them regularly using soapy water,
- not use them to hold a sheet of cardboard against the wind-
screen,
- r e p l a c e t h e m a t t h e fi r s t s i g n s of wear.
Do not cover the rain sensor,
linked with the sunshine sensor
and located in the centre of the
windscreen behind the rear view
mirror.
Switch off the automatic wiping
when using an automatic car
wash.
In winter, it is advisable to wait
until the windscreen is complete-
ly clear of ice before activating
the automatic wiping.
The automatic wiping must be re-
activated if the ignition has been
off for more than one minute, by
pushing stalk
A downwards.
This position allows the wiper blades to
be lifted for winter parking, cleaning or re-
placement without damaging the bonnet.
In the minute following switching off of
the ignition, any action on the wiper
stalk positions the wipers vertically.
To park the wipers after this has been
done, switch on the ignition and operate
the wiper stalk.
This is controlled manually by the driv-
er by pushing stalk
A to the "AUTO"
position.
This is controlled manually by the driver
by moving stalk A upwards, returning it
to position "0" . It is accompanied by the indica-
tor lamp in the instrument panel
going off and a message in the
multifunction screen.
It is accompanied by the illumina-
tion of this indicator lamp in the
instrument panel and a message
in the multifunction screen.
Page 135 of 240
9
DRIVING
REAR PARKING SENSORS
S y s t e m c o n s i s t i n g o f f o u r p r o x i m i t y s e n -
sors, located in the rear bumper. Activation
This detects any obstacle (person, vehi-
cle, tree, gate, etc.) behind the vehicle,
e x c e p t o b s t a c l e s l o c a t e d j u s t b e l o w t h e
bumper. A n o b j e c t , s u c h a s a s t a k e , a
roadworks cone or any other
s i m i l a r o b j e c t m a y b e d e t e c t e d
at the beginning of the manoeu-
vre, but may no longer be de-
tected when the vehicle comes
close to it. The parking sensor system can-
not, in any circumstances, take
the place of the vigilance and
responsibility of the driver.
The system is activated as soon as re-
verse gear is engaged, accompanied
by an audible signal.
On completion of the manoeuvre, when
y o u e x i t r e v e r s e g e a r , t h e s y s t e m b e -
comes inactive.
T h e p r o x i m i t y i n f o r m a t i o n i s g i v e n b y :
- an audible signal, which becomes
more rapid as the vehicle approa-
ches the obstacle.
- a graphic (according to version) in the multifunction screen, with blocks
which become increasingly closer to
the vehicle.
When the distance between the rear of
the vehicle and the obstacle is less than
thirty centimetres, the audible signal
becomes continuous and the "Danger"
symbol appears in the multifunction
screen.
Page 136 of 240
9
DRIVING
The system will be deactivated
automatically when towing a
trailer or when a bicycle carrier is
fi t t e d ( v e h i c l e fi t t e d w i t h a t o w b a r
or bicycle carrier recommended
by CITROËN). In bad or wintry weather, ensure
that the sensors are not covered
with mud, frost or snow.
Programming
You can activate or deactivate the
system by means of the multifunction
s c r e e n c o n fi g u r a t i o n m e n u . T h e s y s t e m
state is memorised when switching off
the ignition.
For more information on access to
the parking sensors menu, refer to
" C o n fi g u r a t i o n / V e h i c l e p a r a m e t e r s " i n
the "Multifunction screens" section cor-
responding to your screen.
Operating faults
If there is an operating fault,
when reverse gear is engaged
this warning lamp comes on in
the instrument panel, accompanied by an
audible signal (short beep) and a message in the multifunction screen.
