1. Bonnet release
2. Headlamp adjustment
3. Passenger's airbag deactivation
4. Adjustable side air vent
5. Lighting and direction indicator
stalk
6. Driver's front airbag
Horn
7. Dashboard fusebox (under the
i n s t r u m e n t p a n e l t r i m , o n t h e
right and on the left)
8. Rev counter
9. Passenger's door mirror control
10. Passenger's electric window
control
11. Gear lever
12. Cup holder
13. Steering wheel height adjustment
INSTRUMENTS AND CONTROLS
Page 14 of 97
1
17
MONITORING

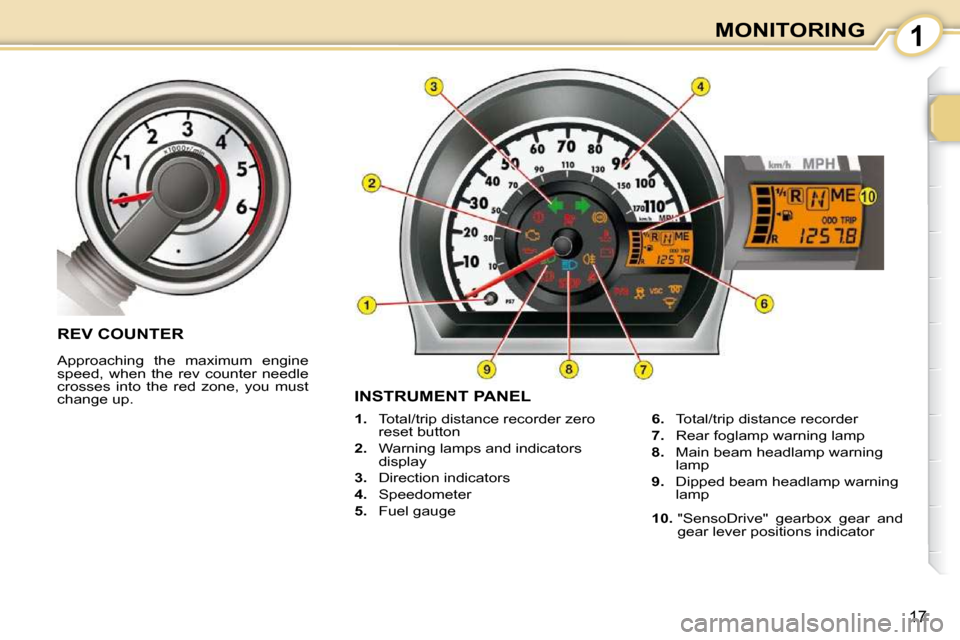

INSTRUMENT PANEL
1. Total/trip distance recorder zero
reset button
2. Warning lamps and indicators
display
3. Direction indicators
4. Speedometer
5. Fuel gauge
6. Total/trip distance recorder
7. Rear foglamp warning lamp
8. Main beam headlamp warning
lamp
9. Dipped beam headlamp warning
lamp
REV COUNTER
Approaching the maximum engine
speed, when the rev counter needle
crosses into the red zone, you must
change up.
10. "SensoDrive" gearbox gear and
gear lever positions indicator
Page 57 of 97
5
55
VISIBILITY
LIGHTING STALK
1. Lamps off
2. Sidelamps
3. Dipped headlamps/
Main beam
headlamps Dipped/Main beam headlamps
Dipped beam headlamps: pull the
stalk.
Main beam headlamps: push the
stalk.
Lighting on audible warning
When the driver's door is opened with the ignition off, a continuous audible
signal is heard if you have left your
lighting on. Rear foglamp
With the dipped head-
lamps on, selection is
by rotation of ring B for-
wards to switch on and
rearwards to switch off.
The status is displayed by the indicator
lamp in the instrument panel.
In clear weather or in rain,
both day and night, the rear
foglamp is dazzling and its
use is prohibited.
Direction indicators
(flashers)
Left: stalk downwards.
Right: stalk upwards.
Headlamp flash
Pull the stalk fully towards you.
Front and rear lamps
Selection is by rotation of ring
A . Switching to sidelamps does
not switch off the rear fo-
glamp if it is on.
Do not forget to switch them off when
they are no longer needed.
Page 59 of 97
5
57
VISIBILITY
HEADLAMP ADJUSTMENT
To avoid causing a nuisance to other
road users, the height of the head-
lamps should be adjusted in relation
to the load in the vehicle.
0. 1 or 2 people in the front seats.
-. 3 people.
1. 4 people.
2. 4 people + maximum authorised
load.
3. Driver + maximum authorised
load.
The initial setting is position "0" . In this position, it comes
on on opening the driver's
door.
The courtesy lamp is deacti-
vated and is permanently off.
COURTESY LAMP
Permanently on.
Page 78 of 97
9
74
PRACTICAL INFORMATION
CHANGING A BULB
1. Sidelamps (W5 W)
Turn the bulb holder A one quarter
of a turn and remove it.
Remove the bulb and change it.
2. Direction indicators (PY 21 W amber)
Turn the bulb holder B one quarter
of a turn and remove it.
Turn the bulb one quarter of a
turn.
Remove the bulb and change it.
I f y o u e n c o u n t e r a n y d i f fi c u l t i e s , c o n -
t a c t a C I T R O Ë N d e a l e r o r a q u a l i fi e d
workshop.
In certain climatic conditions
(low temperatures, humidity),
the presence of condensa-
tion on the internal face of
the headlamps is normal ; it disap-
pears a few minutes after the lighting
is switched on.
Never go underneath a vehi-
cle supported only by a jack
(use an axle stand).
4. Fold the jack 2 and detach it.
5. Tighten the wheel bolts using the
wheelbrace 1 .
6. R e fi t t h e t r i m .
7. Store the tools and the wheel in
the boot.
T h e j a c k a n d t h e t o o l k i t a r e s p e c i fi c
to your vehicle. Do not use them for
other purposes.
After changing a wheel:
- have the tighteness of the bolts and the pressure of the spare
wheel checked as soon as
possible,
- have the punctured wheel r e p a i r e d a n d r e fi t i t o n t h e v e h i c l e
as soon as possible.
Contact a CITROËN dealer or a
q u a l i fi e d w o r k s h o p . Front lamps
1. Sidelamps
2. Direction indicators
3. Dipped/Main beam headlamps
Page 79 of 97
9
74
PRACTICAL INFORMATION
CHANGING A BULB
1. Sidelamps (W5 W)
Turn the bulb holder A one quarter
of a turn and remove it.
Remove the bulb and change it.
2. Direction indicators (PY 21 W amber)
Turn the bulb holder B one quarter
of a turn and remove it.
Turn the bulb one quarter of a
turn.
Remove the bulb and change it.
I f y o u e n c o u n t e r a n y d i f fi c u l t i e s , c o n -
t a c t a C I T R O Ë N d e a l e r o r a q u a l i fi e d
workshop.
In certain climatic conditions
(low temperatures, humidity),
the presence of condensa-
tion on the internal face of
the headlamps is normal ; it disap-
pears a few minutes after the lighting
is switched on.
Never go underneath a vehi-
cle supported only by a jack
(use an axle stand).
4. Fold the jack 2 and detach it.
5. Tighten the wheel bolts using the
wheelbrace 1 .
6. R e fi t t h e t r i m .
7. Store the tools and the wheel in
the boot.
T h e j a c k a n d t h e t o o l k i t a r e s p e c i fi c
to your vehicle. Do not use them for
other purposes.
After changing a wheel:
- have the tighteness of the bolts and the pressure of the spare
wheel checked as soon as
possible,
- have the punctured wheel r e p a i r e d a n d r e fi t i t o n t h e v e h i c l e
as soon as possible.
Contact a CITROËN dealer or a
q u a l i fi e d w o r k s h o p . Front lamps
1. Sidelamps
2. Direction indicators
3. Dipped/Main beam headlamps
Page 80 of 97
9
75
PRACTICAL INFORMATION
3. Dipped/Main beam headlamps (H4 - 60/55W)
Disconnect the connector.
Remove the rubber cap C .
Push the side of the tongue D .
Remove the bulb holder and
change the bulb.
R e fi t t h e b u l b h o l d e r , t h e t o n g u e
then the rubber cap.
I f y o u e n c o u n t e r a n y d i f fi c u l t i e s , c o n -
t a c t a C I T R O Ë N d e a l e r o r a q u a l i fi e d
workshop.
Rear lamps
1. Brake/side lamps (P 21/5 W)
2. Direction indicators (P 21 W)
3. Reversing lamp (P 21 W),
left-hand side
Foglamp (P 21 W), right-hand
side These 3 bulbs are changed by re-
moving the lamp unit:
open the boot,
u n s c r e w t h e t w o l a m p u n i t fi x i n g
nuts A ,
remove the lamp unit by pulling
outwards,
unclip the harness,
Page 82 of 97
9
75
PRACTICAL INFORMATION
3. Dipped/Main beam headlamps (H4 - 60/55W)
Disconnect the connector.
Remove the rubber cap C .
Push the side of the tongue D .
Remove the bulb holder and
change the bulb.
R e fi t t h e b u l b h o l d e r , t h e t o n g u e
then the rubber cap.
I f y o u e n c o u n t e r a n y d i f fi c u l t i e s , c o n -
t a c t a C I T R O Ë N d e a l e r o r a q u a l i fi e d
workshop.
Rear lamps
1. Brake/side lamps (P 21/5 W)
2. Direction indicators (P 21 W)
3. Reversing lamp (P 21 W),
left-hand side
Foglamp (P 21 W), right-hand
side These 3 bulbs are changed by re-
moving the lamp unit:
open the boot,
u n s c r e w t h e t w o l a m p u n i t fi x i n g
nuts A ,
remove the lamp unit by pulling
outwards,
unclip the harness,
