Page 115 of 217
VII
D R I V I N G
120
AUDIBLE REAR PARKING
SENSORS
It detects obstacles (person, vehicle,
tree, gate, ...) located behind the vehicle,
but it cannot detect obstacles located
immediately below the bumper. Activation
The parking sensors are activated by
engaging reverse gear.
The proximity information is indicated
by an audible signal which becomes
more frequent as the vehicle approaches
the obstacle.
When a certain distance between the
rear of the vehicle and the obstacle is
reached, the audible signal becomes
continuous:
An object such as a stake, a road
works cone or any other similar ob-
ject may be detected at the begin-
ning of the manoeuvre but may no
longer be detected when the vehicle
moves closer to it.

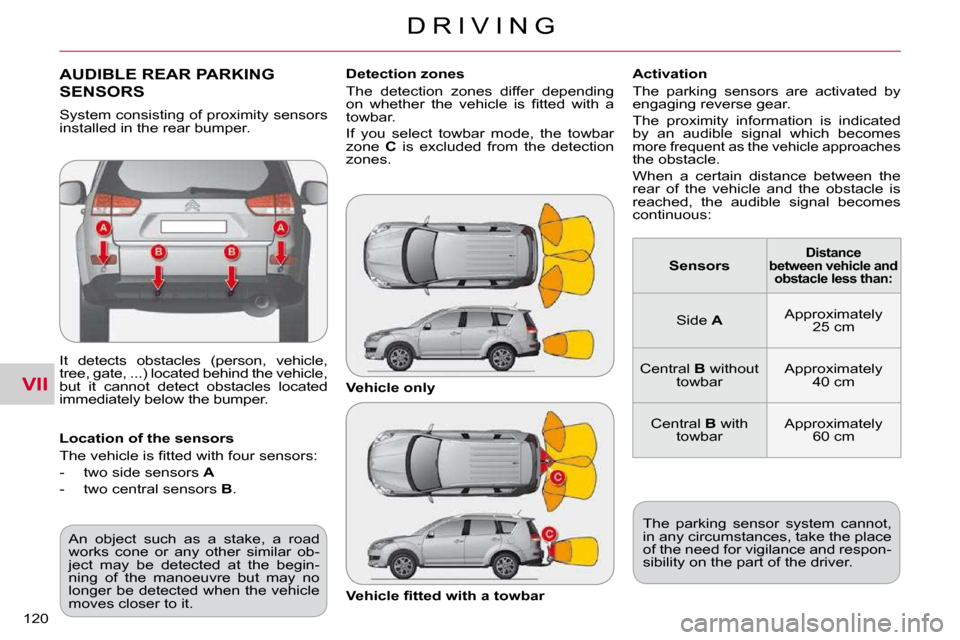

Location of the sensors
T h e v e h i c l e i s fi t t e d w i t h f o u r s e n s o r s :
- two side sensors
A
- two central sensors B . Vehicle only
V e h i c l e fi t t e d w i t h a t o w b a r
Detection zones
The detection zones differ depending
o n w h e t h e r t h e v e h i c l e i s fi t t e d w i t h a
towbar.
If you select towbar mode, the towbar
zone
C is excluded from the detection
zones.
The parking sensor system cannot,
in any circumstances, take the place
of the need for vigilance and respon-
sibility on the part of the driver.
Sensors
Distance
between vehicle and obstacle less than:
Side A Approximately
25 cm
Central B without
towbar Approximately
40 cm
Central B with
towbar Approximately
60 cm
System consisting of proximity sensors
installed in the rear bumper.
Page 116 of 217
VII
D R I V I N G
121
REVERSING CAMERA
Linked with the navigation option, a
reversing camera is activated automati-
cally when reverse gear is engaged.
The colour image is provided on the
navigation screen with indication of the
limit of the rear bumper and of the gen-
eral direction of the vehicle.
Operating fault
If an operating fault occurs, the indica-
tor lamp on button
A fl a s h e s w h e n r e -
verse gear is engaged.
Consult a CITROËN dealer.
In bad weather or in winter, check
that the sensors are not covered with
mud, ice or snow.
Deactivation
With reverse gear engaged, press
button A , the indicator lamp goes
off, the system is fully deactivated.
Reactivation
With reverse gear engaged, press
button A again, the indicator lamp
comes on, the system is reactivated.
M o d i fi c a t i o n o f t h e d e t e c t i o n z o n e s
Press button A to deactivate the
system.
Press button A again for a few seconds
and release it.
T h e d e t e c t i o n z o n e m o d i fi c a t i o n i n f o r -
mation is indicated by an audible signal:
- double s i g n a l o n v e h i c l e s fi t t e d w i t h
a towbar,
- single signal on vehicles which are
n o t fi t t e d w i t h a t o w b a r .
The red line indicates the distance re-
quired to open the lower tailgate.
Page 117 of 217
VII
D R I V I N G
121
REVERSING CAMERA
Linked with the navigation option, a
reversing camera is activated automati-
cally when reverse gear is engaged.
The colour image is provided on the
navigation screen with indication of the
limit of the rear bumper and of the gen-
eral direction of the vehicle.
Operating fault
If an operating fault occurs, the indica-
tor lamp on button
A fl a s h e s w h e n r e -
verse gear is engaged.
Consult a CITROËN dealer.
In bad weather or in winter, check
that the sensors are not covered with
mud, ice or snow.
Deactivation
With reverse gear engaged, press
button A , the indicator lamp goes
off, the system is fully deactivated.
Reactivation
With reverse gear engaged, press
button A again, the indicator lamp
comes on, the system is reactivated.
M o d i fi c a t i o n o f t h e d e t e c t i o n z o n e s
Press button A to deactivate the
system.
Press button A again for a few seconds
and release it.
T h e d e t e c t i o n z o n e m o d i fi c a t i o n i n f o r -
mation is indicated by an audible signal:
- double s i g n a l o n v e h i c l e s fi t t e d w i t h
a towbar,
- single signal on vehicles which are
n o t fi t t e d w i t h a t o w b a r .
The red line indicates the distance re-
quired to open the lower tailgate.
Page 147 of 217
IX
!
!
P R A C T I C A L I N F O R M A T I O N
151
TOWING

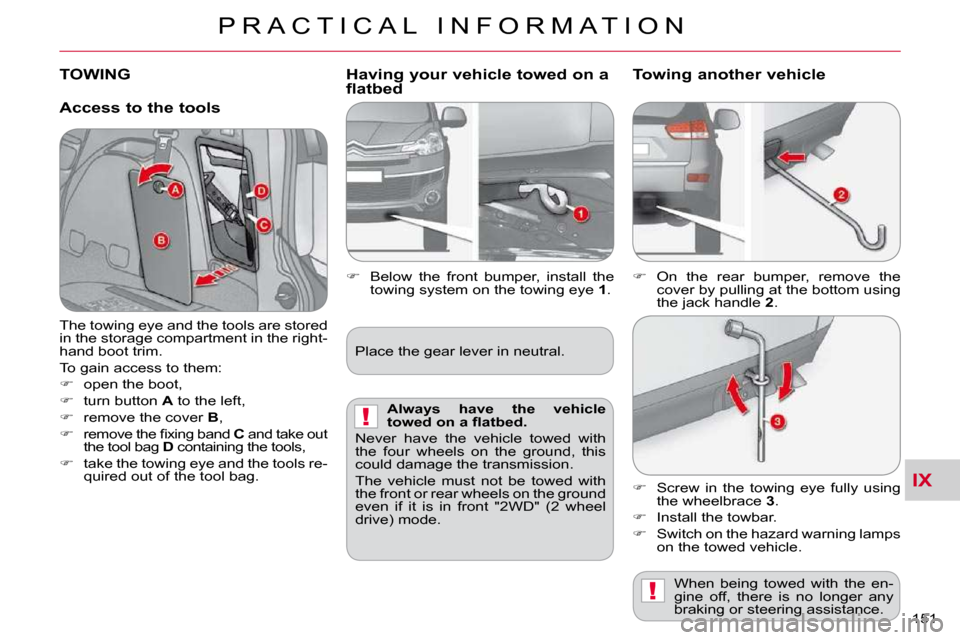

Access to the tools
Having your vehicle towed on a flatbed
B e l o w t h e f r o n t b u m p e r , i n s t a l l t h e
t o w i n g s y s t e m o n t h e t o w i n g e y e 1 .
T h e t o w i n g e y e a n d t h e t o o l s a r e s t o r e d
i n t h e s t o r a g e c o m p a r t m e n t i n t h e r i g h t -
hand boot trim.
T o g a i n a c c e s s t o t h e m :
o p e n t h e b o o t ,
t u r n b u t t o n A to the left,
remove the cover B ,
r e m o v e t h e fi x i n g b a n d C a n d t a k e o u t
t h e t o o l b a g D c o n t a i n i n g t h e t o o l s ,
t a k e t h e t o w i n g e y e a n d t h e t o o l s r e -
q u i r e d o u t o f t h e t o o l b a g . P l a c e t h e g e a r l e v e r i n n e u t r a l .
Always have the vehicle
t o w e d o n a fl a t b e d .
Never have the vehicle towed with
t h e f o u r w h e e l s o n t h e g r o u n d , t h i s
c o u l d d a m a g e t h e t r a n s m i s s i o n .
T h e v e h i c l e m u s t n o t b e t o w e d w i t h
t h e f r o n t o r r e a r w h e e l s o n t h e g r o u n d
even if it is in front "2WD" (2 wheel
drive) mode.
Towing another vehicle
O n t h e r e a r b u m p e r , r e m o v e t h e
c o v e r b y p u l l i n g a t t h e b o t t o m u s i n g
t h e j a c k h a n d l e 2 .
S c r e w i n t h e t o w i n g e y e f u l l y u s i n g
the wheelbrace 3 .
Install the towbar.
S w i t c h o n t h e h a z a r d w a r n i n g l a m p s
on the towed vehicle.
W h e n b e i n g t o w e d w i t h t h e e n -
g i n e o f f , t h e r e i s n o l o n g e r a n y
b r a k i n g o r s t e e r i n g a s s i s t a n c e .
