2010.5 Citroen C CROSSER DAG automatic transmission
[x] Cancel search: automatic transmissionPage 8 of 217
I
M O N I T O R I N G
26

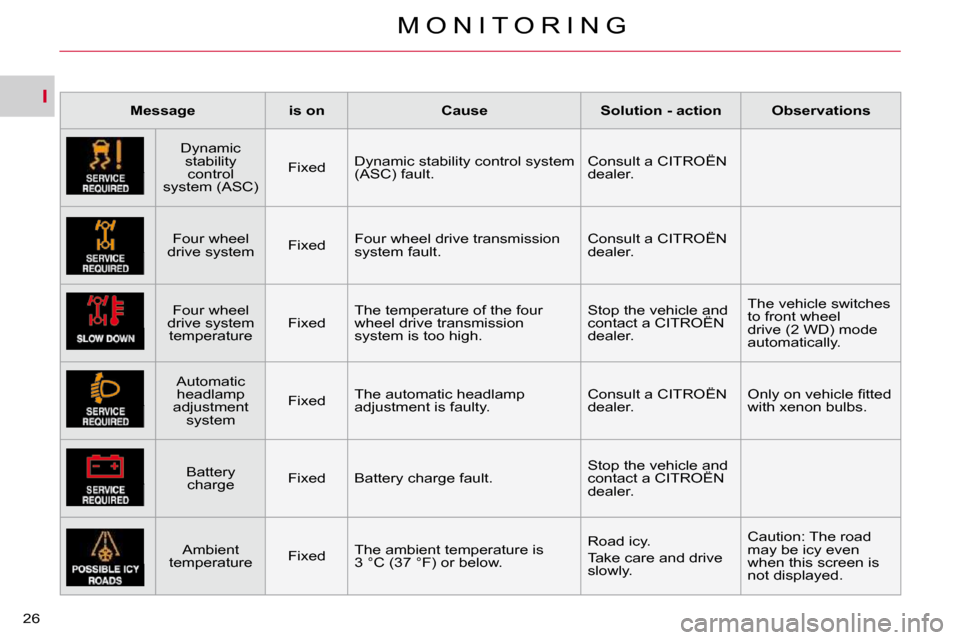

Message is on Cause Solution - action Observations
Dynamic stability control
system (ASC) Fixed
Dynamic stability control system
(ASC) fault. Consult a CITROËN
dealer.
Four wheel
drive system Fixed Four wheel drive transmission
system fault. Consult a CITROËN
dealer.
Four wheel
drive system temperature Fixed The temperature of the four
wheel drive transmission
system is too high. Stop the vehicle and
contact a CITROËN
dealer. The vehicle switches
to front wheel
drive (2 WD) mode
automatically.
Automatic headlamp
adjustment system Fixed
The automatic headlamp
adjustment is faulty. Consult a CITROËN
dealer. O n l y o n v e h i c l e fi t t e d
with xenon bulbs.
Battery charge Fixed Battery charge fault. Stop the vehicle and
contact a CITROËN
dealer.
Ambient
temperature Fixed The ambient temperature is
3 °C (37 °F) or below. Road icy.
Take care and drive
slowly. Caution: The road
may be icy even
when this screen is
not displayed.
Page 111 of 217
VII
D R I V I N G
116
FOUR WHEEL DRIVE SYSTEM
WITH ELECTRONIC CONTROL
4WD AUTO (position 1)
The vehicle operates with four wheel
drive and provides optimum traction re-
gardless of the level of grip.
This is the vehicle's normal and regular
operating mode, the distribution of the
torque between the front and rear axles
is controlled automatically.
The distribution favours the front wheels,
the transfer of torque to the rear wheels
is managed electronically by the control
unit in relation to the level of grip, so
guaranteeing optimum road holding.
Three transmission modes are avail-
able and can be selected manually
by the driver in accordance with his
requirements.
You can change transmission mode
when stationary or while driving at a
speed below 60 mph (100 km/h) .
The transmission mode can be selected
by turning the control A .
Display on the instrument panel
The transmission mode is displayed in
the form of an intermittent display on
the instrument panel screen when the
transmission mode is selected.
Selecting the transmission mode
The selection of this mode is recom-
mended when the level of grip permits.
2WD (position 3)
The vehicle operates with front two
wheel drive.
This mode corresponds to use on a tar-
macked road on which the driver con-
siders that there is no risk of loss of grip
(dry road).
4WD LOCK (position 2)
The vehicle operates with four wheel
drive in this mode also.
It is recommended when grip is particularly
p o o r o r d i f fi c u l t ( s a n d , m u d , s l o p e s , . . . ) .
System which permits the selection of
a transmission mode in relation to the
driving conditions.
Page 196 of 217
XI
A U D I O a n d T E L E M A T I C S
General notes on MP3/WMA CDs
Playing an MP3/WMA CD When the MP3/WMA CD is
inserted in the player, play-
ing of the tracks is automatic.
The tracks cannot be recorded
onto the music server.
You can play CDs with up to 8 levels,
2 5 5 f o l d e r s a n d 4 0 0 fi l e s m a x i m u m .
Copyright
Your Audio equipment may allow you
to listen to music which is usually pro-
tected by copyright in accordance with
current national and international stan-
dards. Please consult these standards
and comply with them.
A c c e p t a n c e o f t h e fi l e s
Some blank CDs may not be played
by your equipment (quality, recording
speed...).
When you burn a CD-R or CD-RW,
select the ISO 9660 level 1.2 or Joliet
burning standard.
To obtain the best acoustic quality pos-
sible, select the lowest burning speed.
The MPEG1 and MPEG2 standards
are accepted.
Transmission speeds between 32 and
320 kbits/s and scans between 16 kHz
and 48 kHz are accepted.
To display the title information (the
name of the artist, the title of the album,
etc...), the information contained in the
ID3 Tags or the WMA Tags must be in-
c l u d e d i n t h e M P 3 / W M A fi l e s b u r n e d
onto the disc.
W h a t i s t h e M P 3 / W M A fi l e f o r m a t ?
MP3 is the abbreviation of MPEG-1
Audio Layer 3 and MPG is the abbrevia-
tion of Motion Pictures Experts Group, a
digital video data compression standard
used on media such as video CDs.
The MP3 compression reduces the
number of bytes in a song by eliminating
the long sound waves in the range of fre-
quencies which are imperceptible to the
human ear, so producing high quality au-
d i o fi l e s w i t h a l o w v o l u m e o f d a t a .
This compression divides the size of
the content of a conventional audio CD
by approximately 10, which means that
the content of 10 audio CDs can be
recorded onto a single CD-R or CD-RW.
WMA is the abbreviation of Windows
Media Audio, another audio data com-
pression standard offered by Microsoft.
It can be used to create and save audio
fi l e s a t a c o m p r e s s i o n r a t e h i g h e r t h a n
that of the MP3 format.
Windows Media and Microsoft Corpo-
ration are trademarks registered in the
United States and/or other countries.
