IMPORTANT MANUAL INFORMATION
EBU17342
FAILURE TO FOLLOW THE WARNINGS CONTAINED IN THIS MANUAL CAN RESULT IN SERIOUS IN-
JURY OR DEATH.
Particularly important information is distinguished in this manual by the following notations:
* Product and specifications are subject to change without notice.
This is the safety alert symbol. It is used to alert you to potential per-
sonal injury hazards. Obey all safety messages that follow this sym-
bol to avoid possible injury or death.
A WARNING indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
A NOTICE indicates special precautions that must be taken to avoid
damage to the vehicle or other property.
A TIP provides key information to make procedures easier or clearer.
WARNING
NOTICETIP

4-1
1
2
34
5
6
7
8
9
10
11

EBU17732
INSTRUMENT AND CONTROL FUNCTIONS
EBU17740
Main switch
The positions of the main switch are as follows:
ON
All electrical systems are supplied with power, and
the engine can be started. The key cannot be re-
moved.
OFF
All electrical systems are off. The key can be re-
moved.

EBU17781
Indicator light
EBU17860
Neutral indicator light “”
This indicator light comes on when the transmis-
sion is in the neutral position.
1. Main switch
OFF ON
1

1. Neutral indicator light “N”
1

8-28
1
2
3
4
5
6
78
9
10
11

To install the battery
TIP

Be sure the battery is fully charged.
1. Install the battery.
2. Connect the positive lead first, and then con-
nect the negative lead.
3. Make sure that the breather hose is properly
routed, in good condition, and not obstructed.
NOTICE

ECB00610
If the breather hose is positioned in such a waythat the frame is exposed to electrolyte or gas
expelled from the battery, the frame could suf-
fer structural and external damages.
EBU25242
Replacing the fuse
The fuse holder is located under the seat. (See
page 4-11.)
If the fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off all electrical
circuits.
1. Battery
2. Battery breather hose
1
2

1. Fuse
2. Spare fuse
1
2

8-29
1
2
3
4
5
6
78
9
10
11
NOTICE

ECB00640
To prevent accidental short-circuiting, turn off
the main switch when checking or replacing a
fuse.
2. Remove the blown fuse, and then install a
new fuse of the specified amperage.
WARNING

EWB02171
Always use a fuse of the specified rating, and
never use a substitute object in place of the
proper fuse. An improper fuse or a substitute
object can cause damage to the electrical sys-
tem, which could lead to a fire.
3. Turn the key to “ON” and turn on the electrical
circuits to check if the devices operate.
4. If the fuse immediately blows again, have a
Yamaha dealer check the electrical system.
EBU25651
Removing a wheel
1. Place the ATV on a level surface.2. Loosen the wheel nuts.
Front
Specified fuse:
5.0 A
1. Wheel nut
1
1

11-1
1
2
3
4
5
6
7
8
9
1011

EBU26000

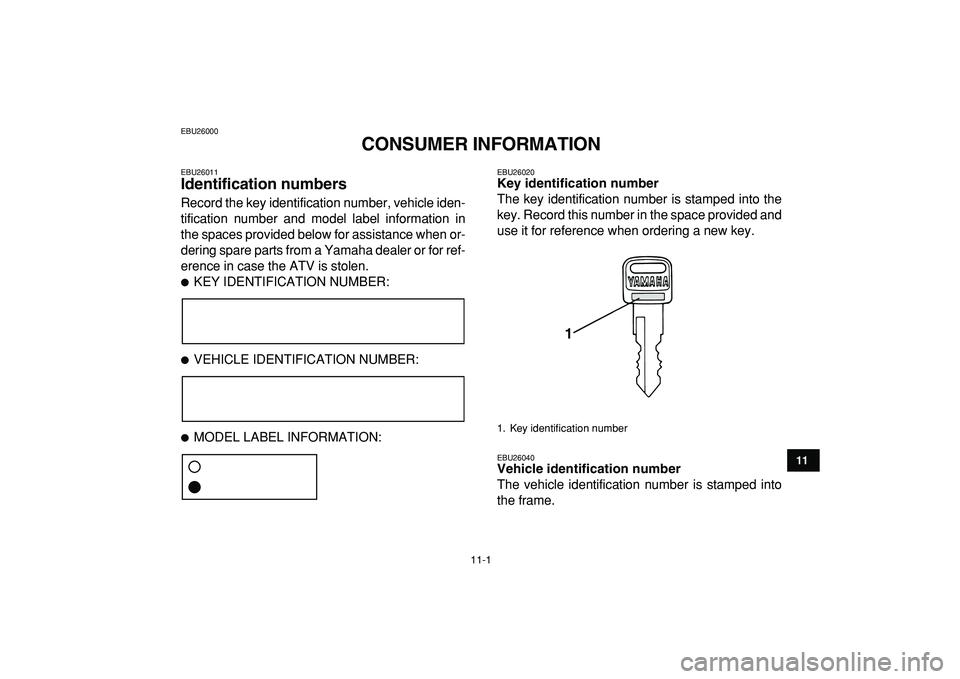

CONSUMER INFORMATION
EBU26011
Identification numbers
Record the key identification number, vehicle iden-
tification number and model label information in
the spaces provided below for assistance when or-
dering spare parts from a Yamaha dealer or for ref-
erence in case the ATV is stolen.

KEY IDENTIFICATION NUMBER:

VEHICLE IDENTIFICATION NUMBER:

MODEL LABEL INFORMATION:
EBU26020
Key identification number
The key identification number is stamped into the
key. Record this number in the space provided and
use it for reference when ordering a new key.
EBU26040
Vehicle identification number
The vehicle identification number is stamped into
the frame.
1. Key identification number
1

INDEX
A
Accessories and loading ................................................ 6-7
Air filter element, cleaning ............................................ 8-13
B
Battery .................................................................. 5-6
,
8-26
Brake lever free play, adjusting the front...................... 8-21
Brake lever free play (rear), adjusting .......................... 8-23
Brake lever, front ............................................................ 4-6
Brake lever, rear............................................................. 4-6
Brake levers, checking and lubricating......................... 8-25
Brakes, front and rear .................................................... 5-3
Brake shoes, checking the front and rear .................... 8-20
C
Cables, checking and lubricating ................................. 8-24
Carburetor, adjusting.................................................... 8-18
Chassis fasteners........................................................... 5-6
Choke ........................................................................... 4-10
Cleaning ......................................................................... 9-1
D
Drive select lever............................................................ 4-7
E
Engine break-in .............................................................. 6-5
Engine, cold start ........................................................... 6-1
Engine idling speed ...................................................... 8-18
Engine oil ............................................................... 5-3
,
8-9
Engine, starting a warm ................................................. 6-3Engine stop switch ......................................................... 4-2
Engine stop switch with lanyard ..................................... 4-2
F
Final gear oil......................................................... 5-3
,
8-12
Front knuckle pivots, lubricating ................................... 8-25
Fuel ........................................................................ 4-8
,
5-3
Fuel cock ........................................................................ 4-9
Fuel tank cap.................................................................. 4-7
Fuse, replacing............................................................. 8-28
H
Handlebar switches ........................................................ 4-2
I
Identification numbers .................................................. 11-1
Indicator light .................................................................. 4-1
Instruments, lights and switches .................................... 5-6
K
Key identification number ............................................. 11-1
L
Label locations ............................................................... 2-1
M
Main switch .................................................................... 4-1
Maintenance and lubrication chart ................................. 8-5
Maintenance chart, emission control system ................. 8-3
Model label ................................................................... 11-2
N
Neutral indicator light ..................................................... 4-1
