INSTRUMENT AND CONTROL FUNCTIONS
3-3
2
34
5
6
7
8
9
To unlock the steering
Push the key in, and then turn it to
“OFF” while still pushing it.

EAU34341
(Parking)
The steering is locked, and the taillight,
license plate light and auxiliary light are
on. The hazard lights and turn signal
lights can be turned on, but all other
electrical systems are off. The key can
be removed.
The steering must be locked before the
key can be turned to “ ”.
NOTICE

ECA11020
Do not use the parking position for
an extended length of time, other-
wise the battery may discharge.
EAU11003
Indicator and warning lights
EAU11020
Turn signal indicator light “”
This indicator light flashes when the
turn signal switch is pushed to the left or
right.
EAU11060
Neutral indicator light “”
This indicator light comes on when thetransmission is in the neutral position.
EAU11080
High beam indicator light “”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU11121
Oil level warning light “”
This warning light comes on if the en-
gine oil level is low.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”.
If the warning light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.
TIP

Even if the oil level is sufficient, the
warning light may flicker when riding on
a slope or during sudden acceleration
or deceleration, but this is not a mal-
function.
1. Neutral indicator light “ ”
2. Fuel level warning light “ ”
3. Engine trouble warning light “ ”
4. Oil level warning light “ ”
5. Immobilizer system indicator light
6. Turn signal indicator light “ ”
7. High beam indicator light “ ”
1
2
3 7
4
5
6

INSTRUMENT AND CONTROL FUNCTIONS
3-4
1
2
3
4
5
6
7
8
9

EAU11350
Fuel level warning light “”
This warning light comes on when the
fuel level drops below approximately
3.0 L (0.79 US gal, 0.66 Imp.gal). When
this occurs, refuel as soon as possible.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”.
If the warning light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.
EAU46440
Engine trouble warning light “”
This warning light comes on if a prob-
lem is detected in the electrical circuit
monitoring the engine. If this occurs,
have a Yamaha dealer check the
self-diagnosis system. (See page 3-6
for an explanation of the self-diagnosis
device.)
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. If the warning light does not come
on for a few seconds, then go off, have
a Yamaha dealer check the electrical
circuit.
TIP

This warning light will come on when
the key is turned to “ON” and the start
switch is pushed, but this does not indi-
cate a malfunction.
EAU38621
Immobilizer system indicator light
The electrical circuit of the indicator
light can be checked by turning the key
to “ON”.
If the indicator light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.
When the key is turned to “OFF” and 30
seconds have passed, the indicator
light will start flashing indicating the im-
mobilizer system is enabled. After 24
hours have passed, the indicator light
will stop flashing, however the immobi-
lizer system is still enabled.
This model is also equipped with a
self-diagnosis device for the immobiliz-
er system. (See page 3-6 for an expla-
nation of the self-diagnosis device.)
EAU47200
Multi-function meter unit
WARNING

EWA12422
Be sure to stop the vehicle before
making any setting changes to the
multi-function meter unit. Changing
settings while riding can distract the
operator and increase the risk of an
accident.
The multi-function meter unit is
equipped with the following:

a speedometer

an odometer

two tripmeters (which show the
1. Speedometer
2. Odometer/tripmeters/fuel reserve
tripmeter/clock
1
2

INSTRUMENT AND CONTROL FUNCTIONS
3-7
2
34
5
6
7
8
9
do not start the engine, take the
vehicle, the code re-registering
key and both standard keys to a
Yamaha dealer and have the stan-
dard keys re-registered.

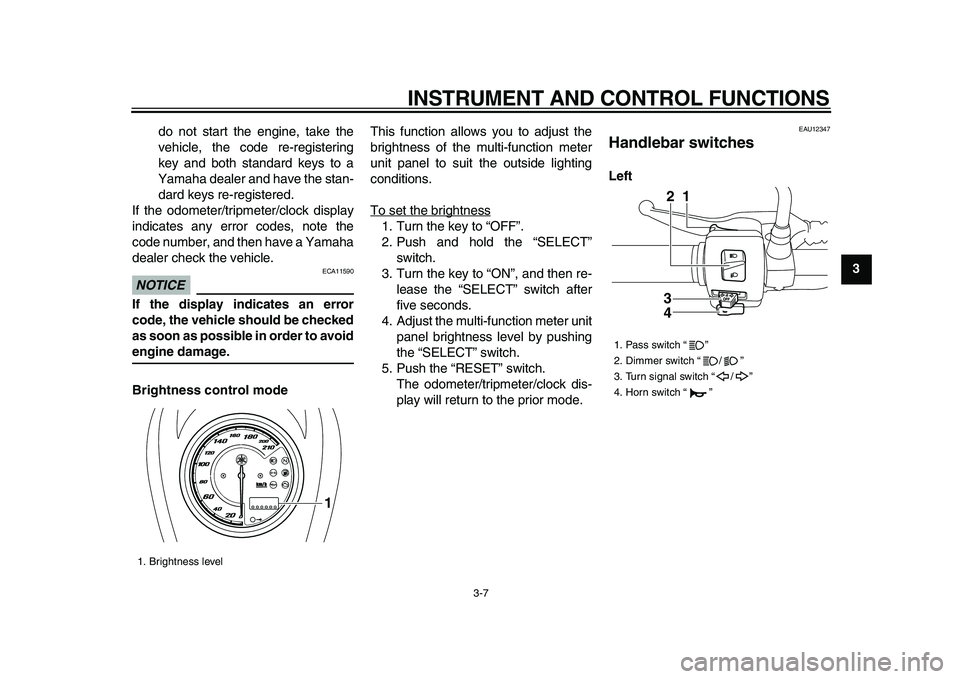

If the odometer/tripmeter/clock display
indicates any error codes, note the
code number, and then have a Yamaha
dealer check the vehicle.
NOTICE

ECA11590
If the display indicates an error
code, the vehicle should be checked
as soon as possible in order to avoid
engine damage.
Brightness control mode
This function allows you to adjust the
brightness of the multi-function meter
unit panel to suit the outside lighting
conditions.
To set the brightness
1. Turn the key to “OFF”.
2. Push and hold the “SELECT”
switch.
3. Turn the key to “ON”, and then re-
lease the “SELECT” switch after
five seconds.
4. Adjust the multi-function meter unit
panel brightness level by pushing
the “SELECT” switch.
5. Push the “RESET” switch.
The odometer/tripmeter/clock dis-
play will return to the prior mode.

EAU12347
Handlebar switches
Left
1. Brightness level
1

1. Pass switch “ ”
2. Dimmer switch “ / ”
3. Turn signal switch “ / ”
4. Horn switch “ ”
3
41 2

5-1
2
3
4
56
7
8
9

OPERATION AND IMPORTANT RIDING POINTS
EAU15951
Read the Owner’s Manual carefully to
become familiar with all controls. If
there is a control or function you do not
understand, ask your Yamaha dealer.
WARNING

EWA10271
Failure to familiarize yourself with
the controls can lead to loss of con-
trol, which could cause an accident
or injury.
EAU47150
TIP

This model is equipped with:

a lean angle sensor to stop the en-
gine in case of a turnover. In this
case, the multi-function meter unit
indicates error code 30, but this is
not a malfunction. Turn the key to
“OFF” and then to “ON” to clear the
error code. Failing to do so will pre-
vent the engine from starting even
though the engine will crank when
pushing the start switch.

an engine auto-stop system. The
engine stops automatically if left
idling for 20 minutes. In this case,
the multi-function meter unit indi-
cates error code 70, but this is not
a malfunction. Push the start
switch to clear the error code and
to restart the engine.
EAU47230
Starting the engine
In order for the ignition circuit cut-off
system to enable starting, one of the
following conditions must be met:

The transmission is in the neutral
position.

The transmission is in gear with
the clutch lever pulled and the sid-
estand up.
See page 3-16 for more information.
1. Turn the key to “ON” and make
sure that the engine stop switch is
set to “”.
The following warning lights and
indicator light should come on for a
few seconds, then go off.

Oil level warning light

Fuel level warning light

Engine trouble warning light

Immobilizer system indicator light
NOTICE

ECA11831
If a warning or indicator light does
not go off, see page 3-3 for the corre-
sponding warning and indicator
light circuit check.
2. Shift the transmission into the neu-

OPERATION AND IMPORTANT RIDING POINTS
5-2
1
2
3
4
5
6
7
8
9
tral position. (See page 5-2.) The
neutral indicator light should come
on. If not, ask a Yamaha dealer to
check the electrical circuit.
3. Start the engine by pushing the
start switch.
NOTICE:
For maxi-
mum engine life, never acceler-
ate hard when the engine is
cold!

[ECA11041]

If the engine fails to start, release
the start switch, wait a few sec-
onds, and then try again. Each
starting attempt should be as short
as possible to preserve the bat-
tery. Do not crank the engine more
than 10 seconds on any one at-
tempt.
EAU16671
Shifting
Shifting gears lets you control the
amount of engine power available for
starting off, accelerating, climbing hills,
etc.
The gear positions are shown in the il-
lustration.
TIP

To shift the transmission into the neu-
tral position, press the shift pedal down
repeatedly until it reaches the end of its
travel, and then slightly raise it.
NOTICE

ECA10260

Even with the transmission inthe neutral position, do not
coast for long periods of time
with the engine off, and do not
tow the motorcycle for long dis-
tances. The transmission is
properly lubricated only when
the engine is running. Inade-
quate lubrication may damage
the transmission.

Always use the clutch while
changing gears to avoid damag-
ing the engine, transmission,
and drive train, which are not
designed to withstand the
shock of forced shifting.
1. Shift pedal
2. Neutral position
1
2 3 4 5N12

OPERATION AND IMPORTANT RIDING POINTS
5-3
2
3
4
56
7
8
9

EAU16810
Tips for reducing fuel
consumption
Fuel consumption depends largely on
your riding style. Consider the following
tips to reduce fuel consumption:

Shift up swiftly, and avoid high en-
gine speeds during acceleration.

Do not rev the engine while shifting
down, and avoid high engine
speeds with no load on the engine.

Turn the engine off instead of let-
ting it idle for an extended length of
time (e.g., in traffic jams, at traffic
lights or at railroad crossings).
EAU16841
Engine break-in
There is never a more important period
in the life of your engine than the period
between 0 and 1600 km (1000 mi). For
this reason, you should read the follow-
ing material carefully.
Since the engine is brand new, do not
put an excessive load on it for the first
1600 km (1000 mi). The various parts in
the engine wear and polish themselves
to the correct operating clearances.
During this period, prolonged full-throt-
tle operation or any condition that might
result in engine overheating must be
avoided.
EAU17023
0–1000 km (0–600 mi)
Avoid prolonged operation above 1/3
throttle.
NOTICE:
After 1000 km (600
mi) of operation, the engine oil must
be changed, and the oil filter car-
tridge or element replaced.

[ECA11282]

1000–1600 km (600–1000 mi)
Avoid prolonged operation above 1/2
throttle.
1600 km (1000 mi) and beyond
The vehicle can now be operated nor-
mally.
NOTICE

ECA10270
If any engine trouble should occur
during the engine break-in period,
immediately have a Yamaha dealer
check the vehicle.

PERIODIC MAINTENANCE AND ADJUSTMENT
6-5
2
3
4
5
67
8
9

EAU18680
TIP


Air filter

This model’s air filter is equipped with a disposable oil-coated paper element, which must not be cleaned with com-
pressed air to avoid damaging it.

The air filter element needs to be replaced more frequently when riding in unusually wet or dusty areas.

Hydraulic brake service

Regularly check and, if necessary, correct the brake fluid level.

Every two years replace the internal components of the brake master cylinders and calipers, and change the brake
fluid.

Replace the brake hoses every four years and if cracked or damaged.
23

Engine oil filter
cartridge

Replace.
√√√
24

*
Front and rear brake
switches

Check operation.
√√√√√√
25

Moving parts and
cables

Lubricate.
√√√√√
26

*
Throttle grip hous-
ing and cable

Check operation and free play.

Adjust the throttle cable free play
if necessary.

Lubricate the throttle grip housing
and cable.
√√√√√
27

*
Lights, signals and
switches

Check operation.

Adjust headlight beam.
√√√√√√
NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)10000 km
(6000 mi)20000 km
(12000 mi)30000 km
(18000 mi)40000 km
(24000 mi)
