2009 YAMAHA XMAX 125 ESP

EAUS1172

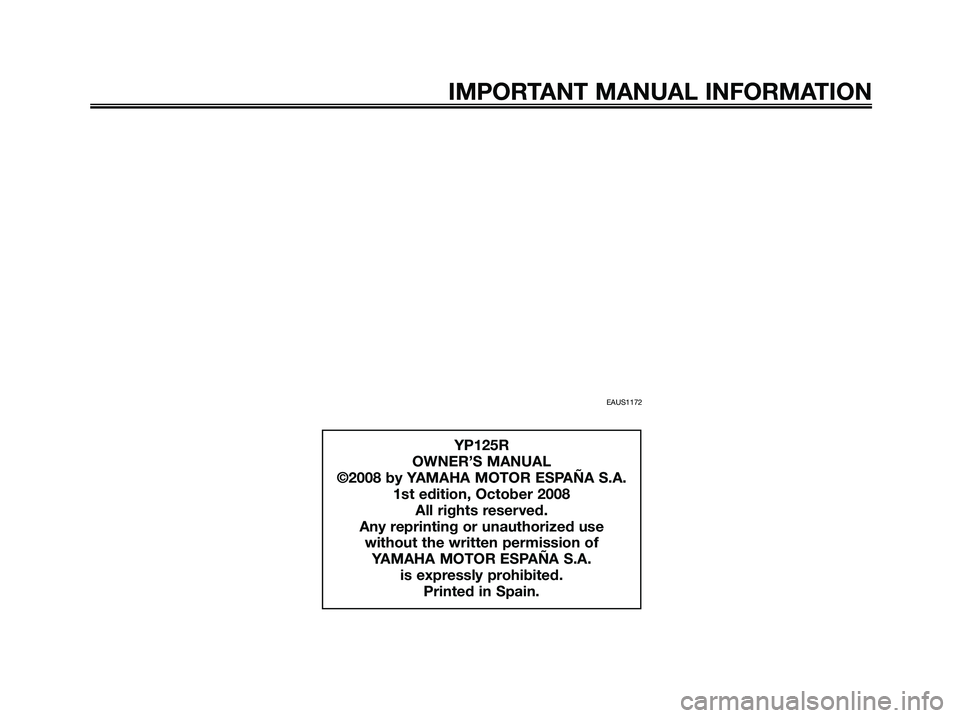

IMPORTANT MANUAL INFORMATION
YP125R
OWNER’S MANUAL
©2008 by YAMAHA MOTOR ESPAÑA S.A.
1st edition, October 2008
All rights reserved.
Any reprinting or unauthorized use
without the written permission of
YAMAHA MOTOR ESPAÑA S.A.
is expressly prohibited.
Printed in Spain.
1B9-F8199-E3.QXD 21/10/08 13:42 Página 5

EAU10263

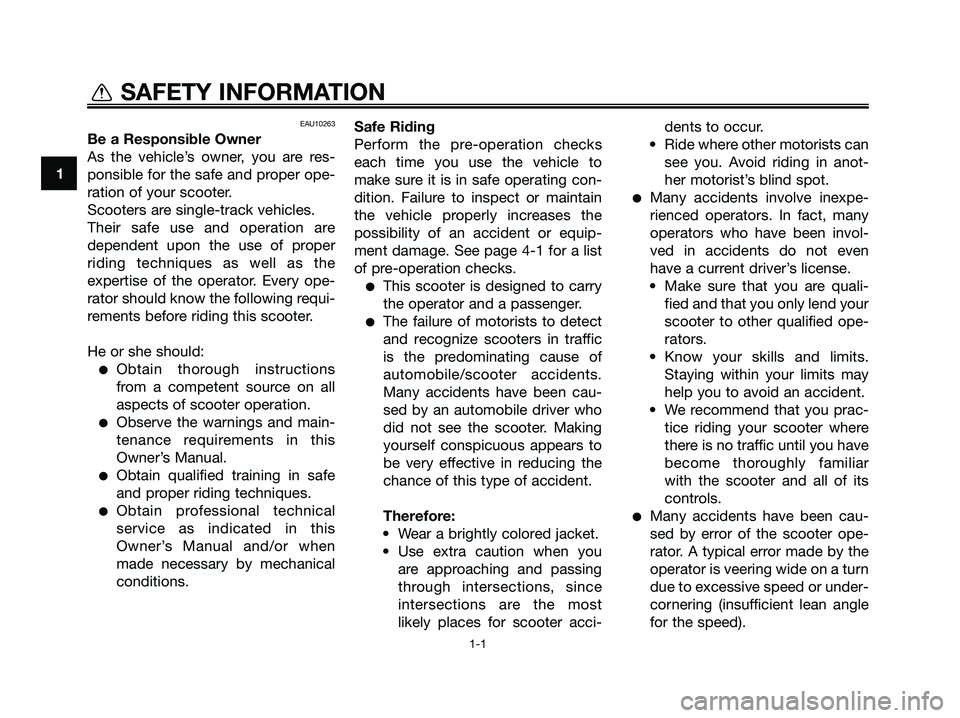

Be a Responsible Owner
As the vehicle’s owner, you are res-
ponsible for the safe and proper ope-
ration of your scooter.
Scooters are single-track vehicles.
Their safe use and operation are
dependent upon the use of proper
riding techniques as well as the
expertise of the operator. Every ope-
rator should know the following requi-
rements before riding this scooter.
He or she should:
●Obtain thorough instructions
from a competent source on all
aspects of scooter operation.
●Observe the warnings and main-
tenance requirements in this
Owner’s Manual.
●Obtain qualified training in safe
and proper riding techniques.
●Obtain professional technical
service as indicated in this
Owner’s Manual and/or when
made necessary by mechanical
conditions.Safe Riding
Perform the pre-operation checks
each time you use the vehicle to
make sure it is in safe operating con-
dition. Failure to inspect or maintain
the vehicle properly increases the
possibility of an accident or equip-
ment damage. See page 4-1 for a list
of pre-operation checks.
●This scooter is designed to carry
the operator and a passenger.
●The failure of motorists to detect
and recognize scooters in traffic
is the predominating cause of
automobile/scooter accidents.
Many accidents have been cau-
sed by an automobile driver who
did not see the scooter. Making
yourself conspicuous appears to
be very effective in reducing the
chance of this type of accident.
Therefore:
• Wear a brightly colored jacket.
• Use extra caution when you
are approaching and passing
through intersections, since
intersections are the most
likely places for scooter acci-dents to occur.
• Ride where other motorists can
see you. Avoid riding in anot-
her motorist’s blind spot.
●Many accidents involve inexpe-
rienced operators. In fact, many
operators who have been invol-
ved in accidents do not even
have a current driver’s license.
• Make sure that you are quali-
fied and that you only lend your
scooter to other qualified ope-
rators.
• Know your skills and limits.
Staying within your limits may
help you to avoid an accident.
• We recommend that you prac-
tice riding your scooter where
there is no traffic until you have
become thoroughly familiar
with the scooter and all of its
controls.
●Many accidents have been cau-
sed by error of the scooter ope-
rator. A typical error made by the
operator is veering wide on a turn
due to excessive speed or under-
cornering (insufficient lean angle
for the speed).
1
SAFETY INFORMATION
1-1
1B9-F8199-E3.QXD 21/10/08 13:42 Página 8

1
SAFETY INFORMATION
1-4
Aftermarket Parts, Accessories,
and Modifications
While you may find aftermarket pro-
ducts similar in design and quality to
genuine Yamaha accessories, recog-
nize that some aftermarket accesso-
ries or modifications are not suitable
because of potential safety hazards to
you or others. Installing aftermarket
products or having other modifica-
tions performed to your vehicle that
change any of the vehicle’s design or
operation characteristics can put you
and others at greater risk of serious
injury or death. You are responsible
for injuries related to changes in the
vehicle.
Keep the following guidelines in mind,
as well as those provided under “Loa-
ding” when mounting accessories.
●Never install accessories or carry
cargo that would impair the per-
formance of your scooter. Care-
fully inspect the accessory befo-
re using it to make sure that it
does not in any way reduce
ground clearance or cornering
clearance, limit suspension tra-
vel, steering travel or control ope-ration, or obscure lights or reflec-
tors.
• Accessories fitted to the hand-
lebar or the front fork area can
create instability due to impro-
per weight distribution or
aerodynamic changes. If
accessories are added to the
handlebar or front fork area,
they must be as lightweight as
possible and should be kept to
a minimum.
• Bulky or large accessories may
seriously affect the stability of
the scooter due to aerodyna-
mic effects. Wind may attempt
to lift the scooter, or the scoo-
ter may become unstable in
cross winds. These accesso-
ries may also cause instability
when passing or being passed
by large vehicles.
• Certain accessories can dis-
place the operator from his or
her normal riding position. This
improper position limits the fre-
edom of movement of the ope-
rator and may limit control abi-
lity, therefore, suchaccessories are not recom-
mended.
●Use caution when adding electri-
cal accessories. If electrical
accessories exceed the capacity
of the scooter’s electrical system,
an electric failure could result,
which could cause a dangerous
loss of lights or engine power.
Aftermarket Tires and Rims
The tires and rims that came with your
scooter were designed to match the
performance capabilities and to pro-
vide the best combination of hand-
ling, braking, and comfort. Other tires,
rims, sizes, and combinations may
not be appropriate. Refer to page
6-16 for tire specifications and more
information on replacing your tires.
1B9-F8199-E3.QXD 21/10/08 13:42 Página 11

EAU10681
LOCK
The steering is locked, and all electri-
cal systems are off. The key can be
removed.
T
o lock the steering
1. Push.
2. Turn.
1. Turn the handlebars all the way to
the left.
2. Push the key in from the “OFF”
position, and then turn it to
“LOCK” while still pushing it.
3. Remove the key.T
o unlock the steering
1. Push.
2. Turn.
Push the key in, and then turn it to
“OFF” while still pushing it.
EAU11003
Indicator and warning lights
1. Fuel level warning light “ ”
2. High beam indicator light “ ”
3. Left turn signal indicator light “ ”
4. Immobilizer system indicator light “ ”
5. Right turn signal indicator light “ ”
6. Engine trouble warning light “ ”
EAU11030
Turn signal indicator lights “ ”
and “ ”
The corresponding indicator light flas-
hes when the turn signal switch is
pushed to the left or right.
EAU11080
High beam indicator light “ ”
This indicator light comes on when
the high beam of the headlight is swit-
ched on.
20406080
100
120
140
160km/h
0
FFUEL
EH
C
TEMP
INSTRUMENT AND CONTROL FUNCTIONS
3-3
3
1B9-F8199-E3.QXD 21/10/08 13:42 Página 18

EWA10240
s s
WARNING
The vehicle must not be ridden with
the sidestand down, or if the sides-
tand cannot be properly moved up
(or does not stay up), otherwise the
sidestand could contact the ground
and distract the operator, resulting
in a possible loss of control. Yama-
ha’s ignition circuit cut-off system
has been designed to assist the
operator in fulfilling the responsibi-
lity of raising the sidestand before
starting off. Therefore, check this
system regularly as described
below and have a Yamaha dealer
repair it if it does not function pro-
perly.
EAU45051
Ignition circuit cut-off
system
The ignition circuit cut-off system
(comprising the sidestand switch and
brake light switches) has the following
functions.
●It prevents starting when the
sidestand is up, but neither brake
is applied.
●It prevents starting when either
brake is applied, but the sides-
tand is still down.
●It cuts the running engine when
the sidestand is moved down.
Periodically check the operation of
the ignition circuit cut-off system
according to the following procedure.
INSTRUMENT AND CONTROL FUNCTIONS
3-19
3
1B9-F8199-E3.QXD 21/10/08 13:42 Página 34

EAU15951
Read the Owner’s Manual carefully to
become familiar with all controls. If
there is a control or function you do
not understand, ask your Yamaha
dealer.
EWA10271
s s
WARNING
Failure to familiarize yourself with
the controls can lead to loss of
control, which could cause an acci-
dent or injury.
EAU45310
TIP
This model is equipped with a lean
angle sensor to stop the engine in
case of a turnover. To start the engine
after a turnover, be sure to turn the
main switch to “OFF” and then to
“ON”. Failing to do so will prevent the
engine from starting even though the
engine will crank when pushing the
start switch.
EAUM2231
Starting the engineECA10250
NOTICE
See page 5-4 for engine break-in
instructions prior to operating the
vehicle for the first time.
In order for the ignition circuit cut-off
system to enable starting, the sides-
tand must be up.
See page 3-19 for more information.
1. Turn the key to “ON”.
The following warning lights and
indicator light should come on for
a few seconds, then go off.
●Fuel level warning light
●Engine trouble warning light
●Immobilizer system indicator
light
ECA11831
NOTICE
If a warning or indicator light does
not go off, see page 3-3 for the
corresponding warning and indica-
tor light circuit check.
2. Close the throttle completely.
OPERATION AND IMPORTANT RIDING POINTS
5-1
5
1B9-F8199-E3.QXD 21/10/08 13:42 Página 38

EAU16780

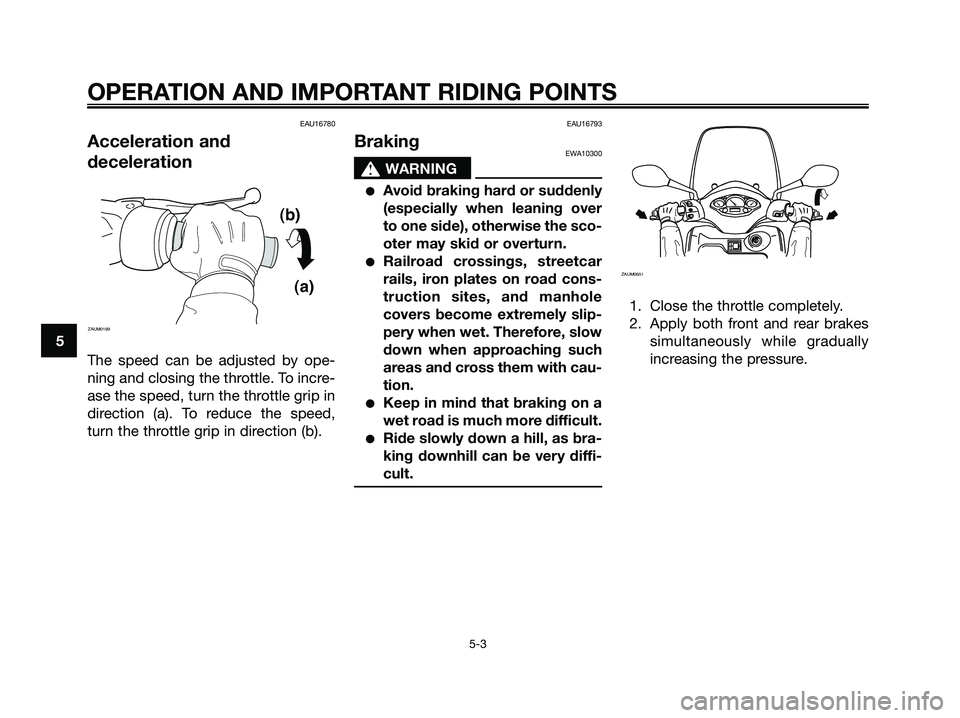

Acceleration and
deceleration
The speed can be adjusted by ope-
ning and closing the throttle. To incre-
ase the speed, turn the throttle grip in
direction (a). To reduce the speed,
turn the throttle grip in direction (b).
EAU16793
BrakingEWA10300
s s
WARNING
●Avoid braking hard or suddenly
(especially when leaning over
to one side), otherwise the sco-
oter may skid or overturn.
●Railroad crossings, streetcar
rails, iron plates on road cons-
truction sites, and manhole
covers become extremely slip-
pery when wet. Therefore, slow
down when approaching such
areas and cross them with cau-
tion.
●Keep in mind that braking on a
wet road is much more difficult.
●Ride slowly down a hill, as bra-
king downhill can be very diffi-
cult.
1. Close the throttle completely.
2. Apply both front and rear brakes
simultaneously while gradually
increasing the pressure.
PUSHOPEN
ZAUM0651
(b)
(a)
ZAUM0199
OPERATION AND IMPORTANT RIDING POINTS
5-3
5
1B9-F8199-E3.QXD 21/10/08 13:42 Página 40

EAU37833

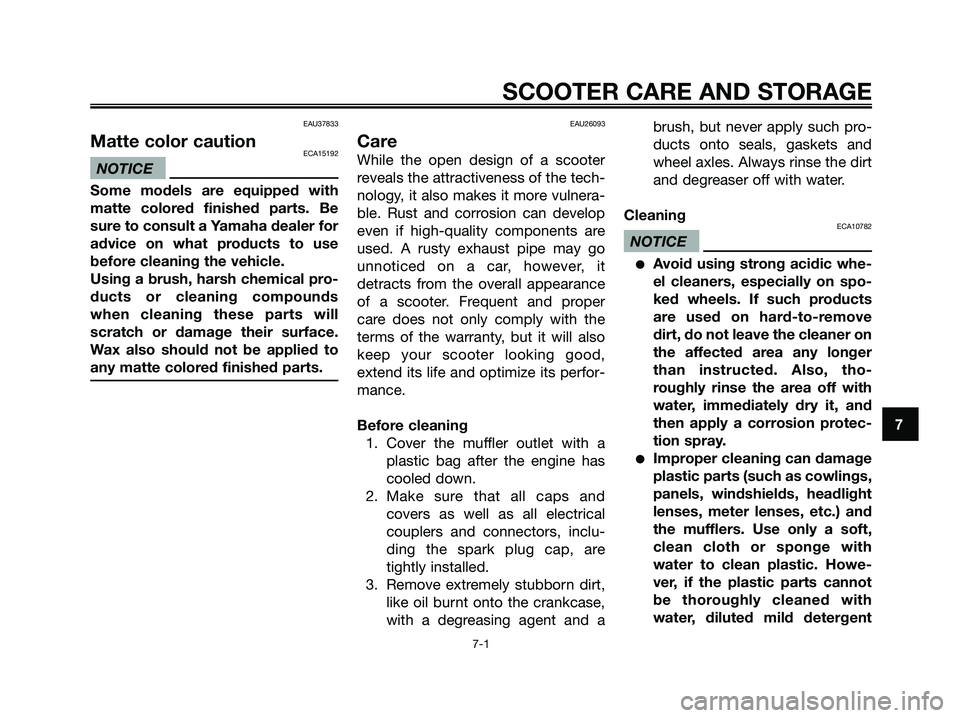

Matte color cautionECA15192
NOTICE
Some models are equipped with
matte colored finished parts. Be
sure to consult a Yamaha dealer for
advice on what products to use
before cleaning the vehicle.
Using a brush, harsh chemical pro-
ducts or cleaning compounds
when cleaning these parts will
scratch or damage their surface.
Wax also should not be applied to
any matte colored finished parts.
EAU26093
Care
While the open design of a scooter
reveals the attractiveness of the tech-
nology, it also makes it more vulnera-
ble. Rust and corrosion can develop
even if high-quality components are
used. A rusty exhaust pipe may go
unnoticed on a car, however, it
detracts from the overall appearance
of a scooter. Frequent and proper
care does not only comply with the
terms of the warranty, but it will also
keep your scooter looking good,
extend its life and optimize its perfor-
mance.
Before cleaning
1. Cover the muffler outlet with a
plastic bag after the engine has
cooled down.
2. Make sure that all caps and
covers as well as all electrical
couplers and connectors, inclu-
ding the spark plug cap, are
tightly installed.
3. Remove extremely stubborn dirt,
like oil burnt onto the crankcase,
with a degreasing agent and abrush, but never apply such pro-
ducts onto seals, gaskets and
wheel axles. Always rinse the dirt
and degreaser off with water.
Cleaning
ECA10782
NOTICE
●Avoid using strong acidic whe-
el cleaners, especially on spo-
ked wheels. If such products
are used on hard-to-remove
dirt, do not leave the cleaner on
the affected area any longer
than instructed. Also, tho-
roughly rinse the area off with
water, immediately dry it, and
then apply a corrosion protec-
tion spray.
●Improper cleaning can damage
plastic parts (such as cowlings,
panels, windshields, headlight
lenses, meter lenses, etc.) and
the mufflers. Use only a soft,
clean cloth or sponge with
water to clean plastic. Howe-
ver, if the plastic parts cannot
be thoroughly cleaned with
water, diluted mild detergent
SCOOTER CARE AND STORAGE
7-1
7
1B9-F8199-E3.QXD 21/10/08 13:43 Página 77
