INSTRUMENT AND CONTROL FUNCTIONS
3-14
1
2
3
4
5
6
7
8
9

EAU13970

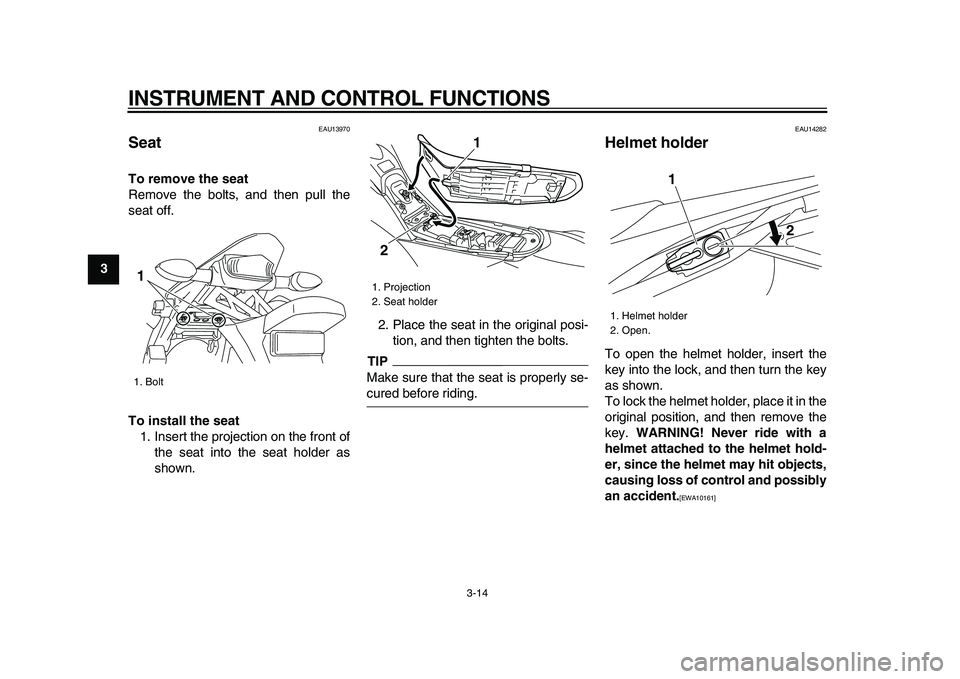

Seat

To remove the seat
Remove the bolts, and then pull the
seat off.
To install the seat
1. Insert the projection on the front of
the seat into the seat holder as
shown.2. Place the seat in the original posi-
tion, and then tighten the bolts.
TIP

Make sure that the seat is properly se-
cured before riding.
EAU14282
Helmet holder
To open the helmet holder, insert the
key into the lock, and then turn the key
as shown.
To lock the helmet holder, place it in the
original position, and then remove the
key.
WARNING! Never ride with a
helmet attached to the helmet hold-
er, since the helmet may hit objects,
causing loss of control and possibly
an accident.
[EWA10161]

1. Bolt
1

1. Projection
2. Seat holder
1
2

1. Helmet holder
2. Open.
1
2

INSTRUMENT AND CONTROL FUNCTIONS
3-21
2
34
5
6
7
8
9
With the engine turned off:
1. Move the sidestand down.
2. Make sure that the engine stop switch is set to “
3. Turn the key on.
4. Shift the transmission into the neutral position.
5. Push the start switch.
Does the engine start?
With the engine still running:
6. Move the sidestand up.
7. Keep the clutch lever pulled.
8. Shift the transmission into gear.
9. Move the sidestand down.
Does the engine stall?
After the engine has stalled:
10. Move the sidestand up.
11. Keep the clutch lever pulled.
12. Push the start switch.
Does the engine start?
The system is OK. The motorcycle can be ridden.The neutral switch may not be working correctly.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
The sidestand switch may not be working correctly.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
The clutch switch may not be working correctly.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
YES NO YES NO YES NO
If a malfunction is noted, have a Yamaha
dealer check the system before riding.
WARNING
”.

5-1
2
3
4
56
7
8
9

OPERATION AND IMPORTANT RIDING POINTS
EAU15951
Read the Owner’s Manual carefully to
become familiar with all controls. If
there is a control or function you do not
understand, ask your Yamaha dealer.
WARNING

EWA10271
Failure to familiarize yourself with
the controls can lead to loss of con-
trol, which could cause an accident
or injury.
EAU46632
TIP

This model is equipped with:

a lean angle sensor to stop the en-
gine in case of a turnover. In this
case, the multi-function display in-
dicates error code 30, but this is
not a malfunction. Turn the key to
“OFF” and then to “ON” to clear the
error code. Failing to do so will pre-
vent the engine from starting even
though the engine will crank when
pushing the start switch.

an engine auto-stop system. The
engine stops automatically if left
idling for 20 minutes. In this case,
the multi-function display indicates
error code 70, but this is not a mal-
function. Push the start switch to
clear the error code and to restart
the engine.
EAU45123
Starting the engine
In order for the ignition circuit cut-off
system to enable starting, one of the
following conditions must be met:

The transmission is in the neutral
position.

The transmission is in gear with
the clutch lever pulled and the sid-
estand up.
See page 3-20 for more informa-
tion.
1. Turn the key to “ON” and make
sure that the engine stop switch is
set to “”.
The following warning lights
should come on for a few seconds,
then go off.

Fuel level warning light

Coolant temperature warning light

Engine trouble warning light
NOTICE

ECA15482
If a warning light does not go off, see
page 3-2 for the corresponding
warning light circuit check.
2. Shift the transmission into the neu-
tral position. (See page 5-2.) The

OPERATION AND IMPORTANT RIDING POINTS
5-4
1
2
3
4
5
6
7
8
9

EAU17213

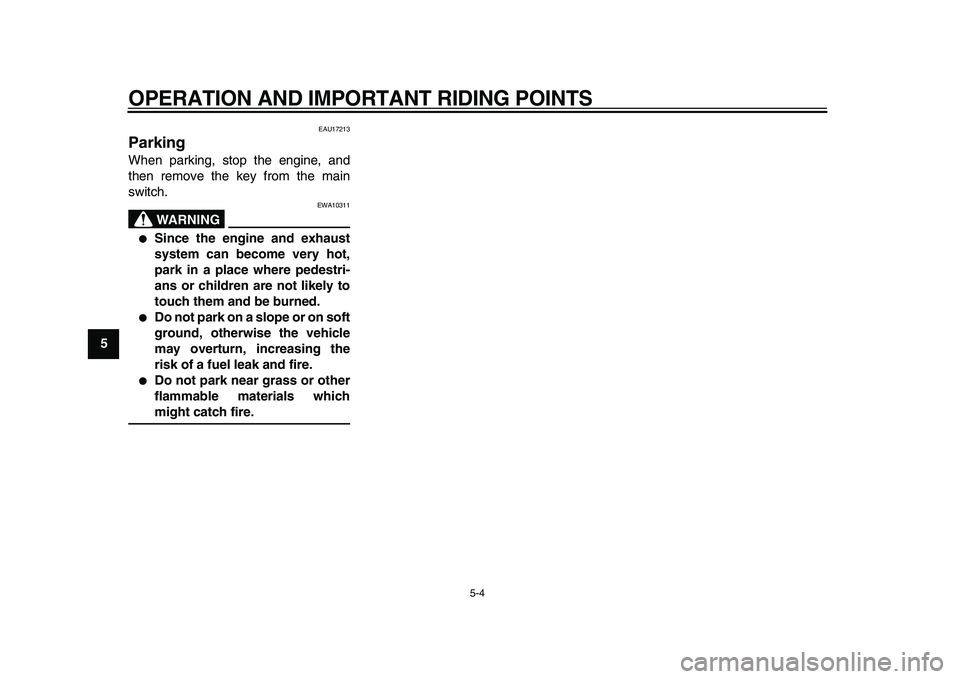

Parking
When parking, stop the engine, and
then remove the key from the main
switch.
WARNING

EWA10311

Since the engine and exhaust
system can become very hot,
park in a place where pedestri-
ans or children are not likely to
touch them and be burned.

Do not park on a slope or on soft
ground, otherwise the vehicle
may overturn, increasing the
risk of a fuel leak and fire.

Do not park near grass or other
flammable materials which
might catch fire.

PERIODIC MAINTENANCE AND ADJUSTMENT
6-32
1
2
3
4
5
6
7
8
9
have discharged. Keep in mind that the
battery tends to discharge more quickly
if the vehicle is equipped with optional
electrical accessories.
NOTICE

ECA16520
To charge a VRLA (Valve Regulated
Lead Acid) battery, a special (con-
stant-voltage) battery charger is re-
quired. Using a conventional battery
charger will damage the battery. If
you do not have access to a con-
stant-voltage battery charger, have a
Yamaha dealer charge your battery.
To store the battery
1. If the model will not be used for
more than one month, remove the
battery, fully charge it, and then
place it in a cool, dry place.
NOTICE:
When removing the
battery, be sure the key is
turned to “OFF”, then discon-
nect the negative lead before
disconnecting the positive
lead.

[ECA16302]

2. If the battery will be stored for more
than two months, check it at leastonce a month and fully charge it if
necessary.
3. Fully charge the battery before in-
stallation.
NOTICE

ECA16530
Always keep the battery charged.
Storing a discharged battery can
cause permanent battery damage.
EAU23542
Replacing the fuses
The main fuse is located behind panel
D. (See page 6-7.)
The fuse box, which contains the fuses
for the individual circuits, is located be-
hind panel C. (See page 6-7.)
1. Main fuse
2. Spare main fuse
21

PERIODIC MAINTENANCE AND ADJUSTMENT
6-33
2
3
4
5
67
8
9
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.
WARNING! Do not
use a fuse of a higher amperage
rating than recommended to
avoid causing extensive dam-
age to the electrical system and
possibly a fire.

[EWA15131]
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If a fuse immediately blows again,
have a Yamaha dealer check the
electrical system.

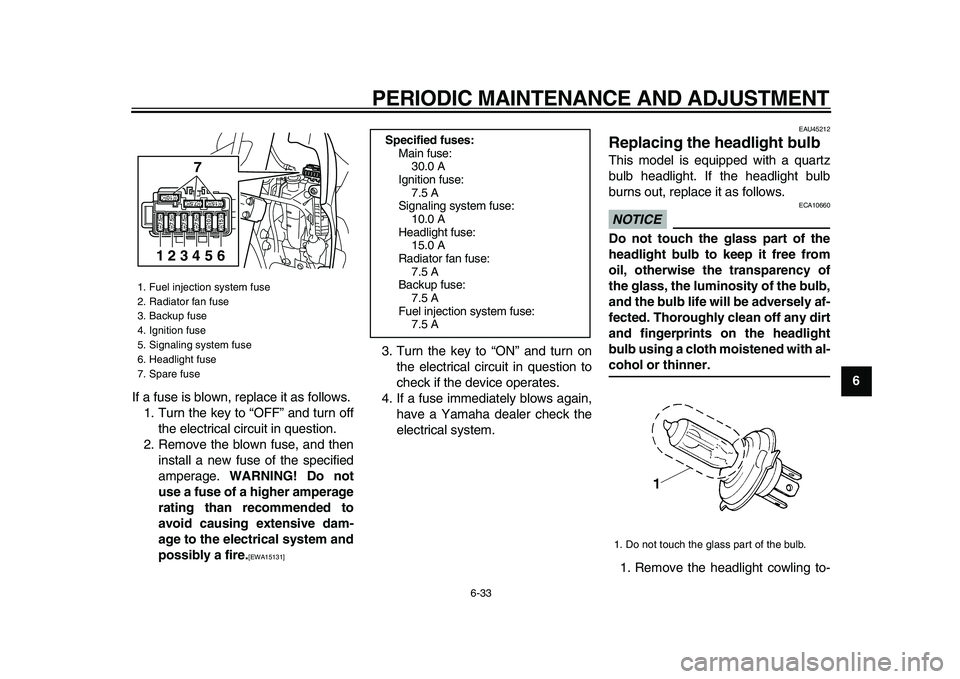

EAU45212
Replacing the headlight bulb
This model is equipped with a quartz
bulb headlight. If the headlight bulb
burns out, replace it as follows.
NOTICE

ECA10660
Do not touch the glass part of the
headlight bulb to keep it free from
oil, otherwise the transparency of
the glass, the luminosity of the bulb,
and the bulb life will be adversely af-
fected. Thoroughly clean off any dirt
and fingerprints on the headlight
bulb using a cloth moistened with al-
cohol or thinner.
1. Remove the headlight cowling to-
1. Fuel injection system fuse
2. Radiator fan fuse
3. Backup fuse
4. Ignition fuse
5. Signaling system fuse
6. Headlight fuse
7. Spare fuse
7
123456

Specified fuses:
Main fuse:
30.0 A
Ignition fuse:
7.5 A
Signaling system fuse:
10.0 A
Headlight fuse:
15.0 A
Radiator fan fuse:
7.5 A
Backup fuse:
7.5 A
Fuel injection system fuse:
7.5 A
1. Do not touch the glass part of the bulb.

9-1
1
2
3
4
5
6
7
8
9

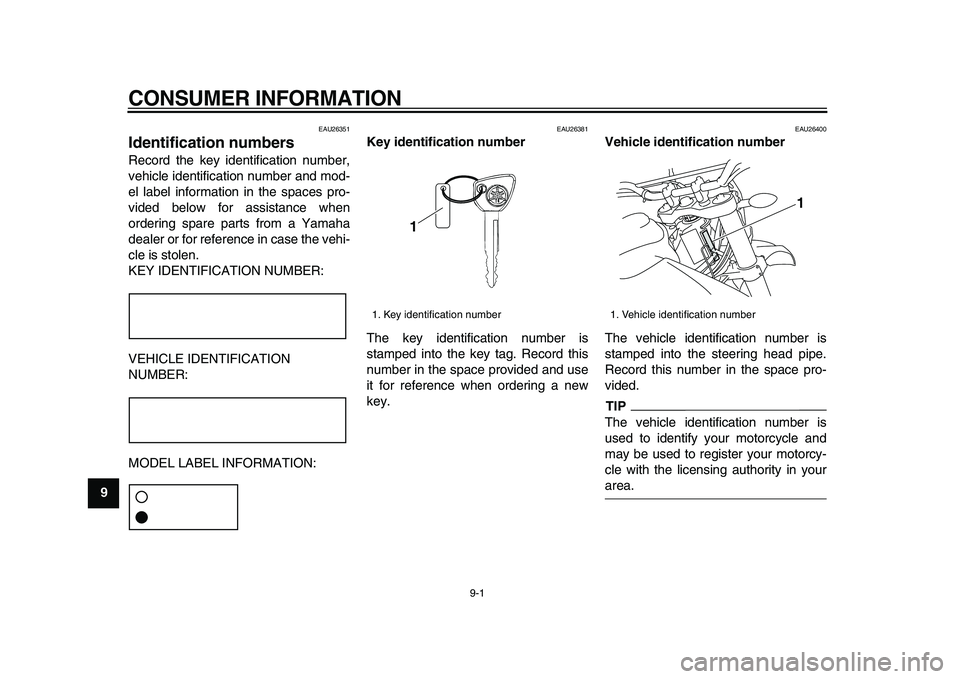

CONSUMER INFORMATION
EAU26351
Identification numbers
Record the key identification number,
vehicle identification number and mod-
el label information in the spaces pro-
vided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the vehi-
cle is stolen.
KEY IDENTIFICATION NUMBER:
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26381
Key identification number
The key identification number is
stamped into the key tag. Record this
number in the space provided and use
it for reference when ordering a new
key.
EAU26400
Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.
TIP

The vehicle identification number is
used to identify your motorcycle and
may be used to register your motorcy-
cle with the licensing authority in your
area.
1. Key identification number
1

1. Vehicle identification number
1

INDEX
A
Air filter element and check hose,
cleaning ................................................ 6-16
Auxiliary light bulb, replacing .................. 6-36
B
Battery..................................................... 6-31
Brake and clutch levers, checking and
lubricating ............................................. 6-28
Brake fluid, changing .............................. 6-25
Brake fluid level, checking ...................... 6-24
Brake lever .............................................. 3-10
Brake lever free play, adjusting............... 6-22
Brake pedal ............................................. 3-11
Brake pedal, checking and lubricating .... 6-28
C
Cables, checking and lubricating ............ 6-27
Care .......................................................... 7-1
Catalytic converter .................................. 3-13
Clutch lever ............................................. 3-10
Clutch lever free play, adjusting .............. 6-21
Coolant.................................................... 6-13
Coolant temperature warning light ............ 3-2
D
Dimmer switch .......................................... 3-9
Drive chain, cleaning and lubricating ...... 6-26
Drive chain slack ..................................... 6-25
E
Engine break-in ......................................... 5-3
Engine idling speed................................. 6-18
Engine oil and oil filter element ............... 6-10
Engine stop switch .................................... 3-9
Engine trouble warning light...................... 3-3
EXUP system .......................................... 3-19
F
Front and rear brake pads, checking ....... 6-23
Front fork, adjusting ................................. 3-15
Front fork, bleeding.................................. 3-16
Front fork, checking ................................. 6-29
Fuel.......................................................... 3-12
Fuel consumption, tips for reducing........... 5-3
Fuel level warning light .............................. 3-2
Fuel tank cap ........................................... 3-11
Fuses, replacing ...................................... 6-32
H
Handlebar switches ................................... 3-9
Headlight bulb, replacing ......................... 6-33
Helmet holder .......................................... 3-14
High beam indicator light ........................... 3-2
Horn switch ................................................ 3-9
I
Identification numbers ............................... 9-1
Ignition circuit cut-off system ................... 3-20
Indicator and warning lights ....................... 3-2
K
Key identification number .......................... 9-1
L
License plate light bulb, replacing ........... 6-35
M
Main switch/steering lock........................... 3-1
Maintenance and lubrication, periodic ....... 6-3
Maintenance, emission control system...... 6-2
Matte color, caution ................................... 7-1
Model label ................................................ 9-2
Multi-function display ................................. 3-3
N
Neutral indicator light ................................. 3-2
P
Panels, removing and installing ................ 6-7
Parking ...................................................... 5-4
Part locations ............................................ 2-1
R
Rear brake light switch, adjusting ........... 6-23
Rear suspension, lubricating ................... 6-29
S
Safety information ..................................... 1-1
Seat ......................................................... 3-14
Shifting ...................................................... 5-2
Shift pedal ............................................... 3-10
Shock absorber assembly, adjusting ...... 3-17
Sidestand ................................................ 3-19
Sidestand, checking and lubricating........ 6-29
Spark plug, checking ................................. 6-9
Specifications ............................................ 8-1
Starting the engine .................................... 5-1
Start switch ................................................ 3-9
Steering, checking................................... 6-30
Storage...................................................... 7-3
Supporting the motorcycle ...................... 6-36
T
Tail/brake light ......................................... 6-34
Throttle cable free play, checking ........... 6-18
Throttle grip and cable, checking and
lubricating.............................................. 6-27
Tires ........................................................ 6-19
Tool kit....................................................... 6-1
Troubleshooting ...................................... 6-39
Troubleshooting charts............................ 6-41
Turn signal indicator light .......................... 3-2
Turn signal light bulb, replacing .............. 6-35
Turn signal switch ..................................... 3-9
