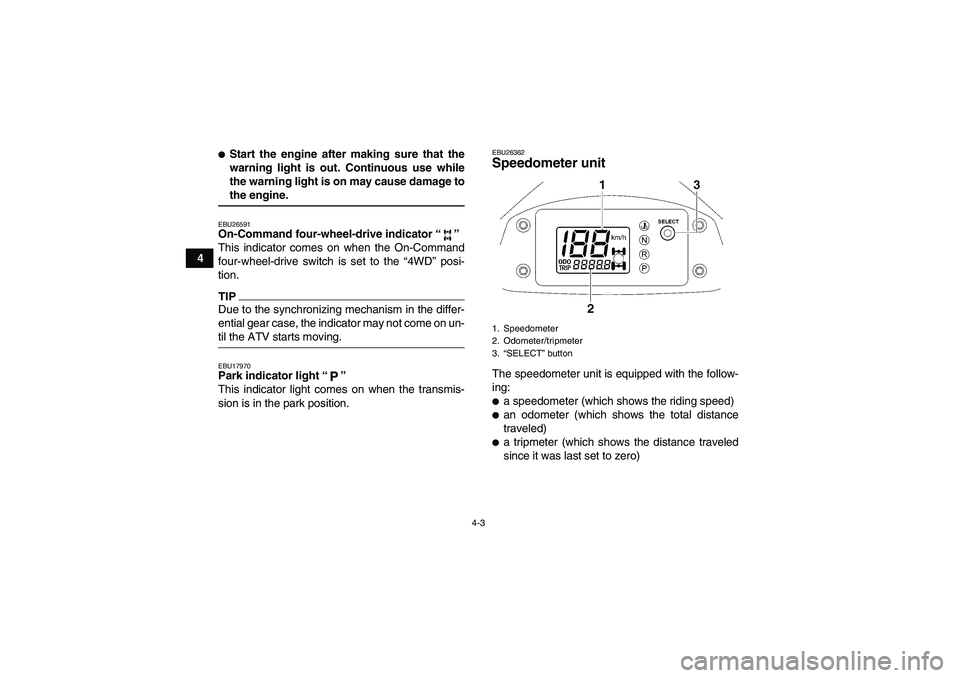

Start the engine after making sure that the
warning light is out. Continuous use while
the warning light is on may cause damage tothe engine.EBU26591On-Command four-wheel-drive indicator“”
This indicator comes on when the On-Command
four-wheel-drive switch is set to the “4WD” posi-
tion.TIPDue to the synchronizing mechanism in the differ-
ential gear case, the indicator may not come on un-til the ATV starts moving.EBU17970Park indicator light“”
This indicator light comes on when the transmis-
sion is in the park position.
EBU26362Speedometer unit The speedometer unit is equipped with the follow-
ing:
a speedometer (which shows the riding speed)
an odometer (which shows the total distance
traveled)
a tripmeter (which shows the distance traveled
since it was last set to zero)1. Speedometer
2. Odometer/tripmeter
3.“SELECT” button
U3C263E0.book Page 3 Thursday, May 15, 2008 10:44 AM

4-4
4 Odometer and tripmeter modes
Pushing the “SELECT” button switches the display
between the odometer mode “ODO” and the trip-
meter mode “TRIP” in the following order:
ODO → TRIP → ODO
To reset the tripmeter, select it by pushing the “SE-
LECT” button, and then push the “SELECT” button
for at least three seconds. The tripmeter can be
used to estimate the distance that can be traveled
with a full tank of fuel. This information will enable
you to plan future fuel stops.
TIPPushing in the “SELECT” button, then turning the
key to “ON”, and keeping them in this position for
at least two seconds switches the display between“mph” and “km/h”.
EBU18061Handlebar switches EBU18080Engine stop switch“/”
Set this switch to“” before starting the engine.
The engine stop switch controls the ignition and
stops the engine when it is running. Use this switch
to stop the engine in an emergency situation. The
engine will not start or run when this switch is set
to“”.1. Light switch“//OFF”
2. Engine stop switch“/”
3. Start switch“”
U3C263E0.book Page 4 Thursday, May 15, 2008 10:44 AM

6-5
6
EBU20682Engine break-in TIP
For ATVs equipped with an odometer or an hour
meter, follow the figures given in km (mi) or the
figures given in hours.
For ATVs not equipped with an odometer orhour meter, follow the figures given in hours.
There is never a more important period in the life of
your engine than the first 320 km (200 mi) or 20
hours of riding. For this reason, you should read
the following material carefully.
Since the engine is brand new, do not put an ex-
cessive load on it for the first 320 km (200 mi) or 20
hours. The various parts in the engine wear and
polish themselves to the correct operating clear-
ances. During this period, prolonged full-throttle
operation or any condition that might result in en-
gine overheating must be avoided.
0–160 km (0–100 mi) or 0–10 hours
Avoid prolonged operation above 1/2 throttle. Vary
the speed of the ATV regularly. Do not operate it at
one set throttle position.160–320 km (100–200 mi) or 10–20 hours
Avoid prolonged operation above 3/4 throttle. Rev
the engine freely, but do not use full throttle at any
time.
320 km (200 mi) or 20 hours and beyond
The ATV can now be operated normally.
NOTICEECB00220If any engine trouble should occur during the
engine break-in period, immediately have aYamaha dealer check the ATV.EBU20690Parking When parking the ATV, stop the engine, shift the
drive select lever into the park position, and then
turn the fuel cock to the “OFF” position.EBU20820Parking on a slope
WARNING
EWB00860Avoid parking on hills or other inclines. Park-
ing on a hill or other incline could cause the
ATV to roll out of control, increasing the
chance of an accident. If you must park on an
U3C263E0.book Page 5 Thursday, May 15, 2008 10:44 AM

8-3
8
EBU21742Periodic maintenance chart for the emission control system TIP
For ATVs not equipped with an odometer or an hour meter, follow the month maintenance intervals.
For ATVs equipped with an odometer or an hour meter, follow the km (mi) or hours maintenance inter-
vals. However, keep in mind that if the ATV isn’t used for a long period of time, the month maintenance
intervals should be followed.
Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools,data and technical skills.NO. ITEMCHECK OR MAINTENANCE
JOBINITIAL EVERY
Whichev-
er comes
firstmonth136612
km
(mi)320
(200)1300
(800)2500
(1600)2500
(1600)5000
(3200)
hours 20 80 160 160 320
1*Fuel lineCheck fuel hoses for cracks or other damage, and
replace if necessary.√√√
2 Spark plugCheck condition and clean, regap, or replace if
necessary.√√√√√
3*ValvesCheck valve clearance and adjust if necessary.√ √√√
4*CarburetorCheck starter (choke) operation and correct if nec-
essary.
Check engine idling speed and adjust if neces-
sary.√√√√
5*Crankcase breather
systemCheck breather hose for cracks or other damage,
and replace if necessary.√√√
U3C263E0.book Page 3 Thursday, May 15, 2008 10:44 AM

8-50
8 the battery. If you do not have access to a
constant-voltage battery charger, have a
Yamaha dealer charge your battery.EBU25324Replacing a fuse
The main fuse and the fuse box are located under
the seat. (See page 4-12.)
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off all electrical
circuits.
1. Main fuse
2. Spare main fuse
3. Fuse box
1. Headlight fuse
2. Ignition fuse
3. Auxiliary DC jack fuse (for optional auxiliary DC jack)
4. Four-wheel-drive motor fuse
5. Signaling system fuse
6. Backup fuse (for odometer and tripmeter)
7. Spare fuse
