2009 YAMAHA VMAX key

PERIODIC MAINTENANCE AND ADJUSTMENT
6-7
2
3
4
5
67
8
9

EAU46471
Panel A
To remove the panel
1. Insert the key into the lock, and
then turn it 1/4 turn clockwise.
2. Pull the panel outward.
To install the panel1. Place the panel in the original po-
sition.2. Turn the key counterclockwise to
the original position, and then re-
move it.
Panel B
To remove the panel
1. Remove the bolt.2. Pull the panel outward.
To install the panel
Place the panel in the original position,
and then install the bolt.

1. Unlock.
2. Panel A
2
1

1. Bolt
2. Panel B
1
2

PERIODIC MAINTENANCE AND ADJUSTMENT
6-30
1
2
3
4
5
6
7
8
9charger will damage the battery. If
you do not have access to a con-
stant-voltage battery charger, have a

Yamaha dealer charge your battery.
To store the battery
1. If the vehicle will not be used for
more than one month, remove
the battery, fully charge it, and
then place it in a cool, dry place.
NOTICE:
When removing the
battery, be sure the key is
turned to “OFF”, then discon-
nect the negative lead before
disconnecting the positive
lead.

[ECA16302]

2. If the battery will be stored for more
than two months, check it at least
once a month and fully charge it if
necessary.
To install the battery
TIP

Be sure the battery is fully charged.
1. Place the battery in its compart-
ment.
2. Fold the heat insulator back to itsoriginal position.
NOTICE:
Make
sure that the heat insulator is in
its original position and it is
properly folded.
[ECA16550]

3. Install the rubber damper.
4. Install the battery cover (together
with the ECU) by installing the
bolts.
5. Connect coupler A.
6. Install the main fuse (together with
the holding band) on its holder.
7. Connect the positive battery lead
first, then connect the negative
battery lead by installing their bolt.8. Install the cowling.
NOTICE

ECA16530
Always keep the battery charged.
Storing a discharged battery can
cause permanent battery damage.
1. Heat insulator
1

PERIODIC MAINTENANCE AND ADJUSTMENT
6-31
2
3
4
5
67
8
9

EAU46451

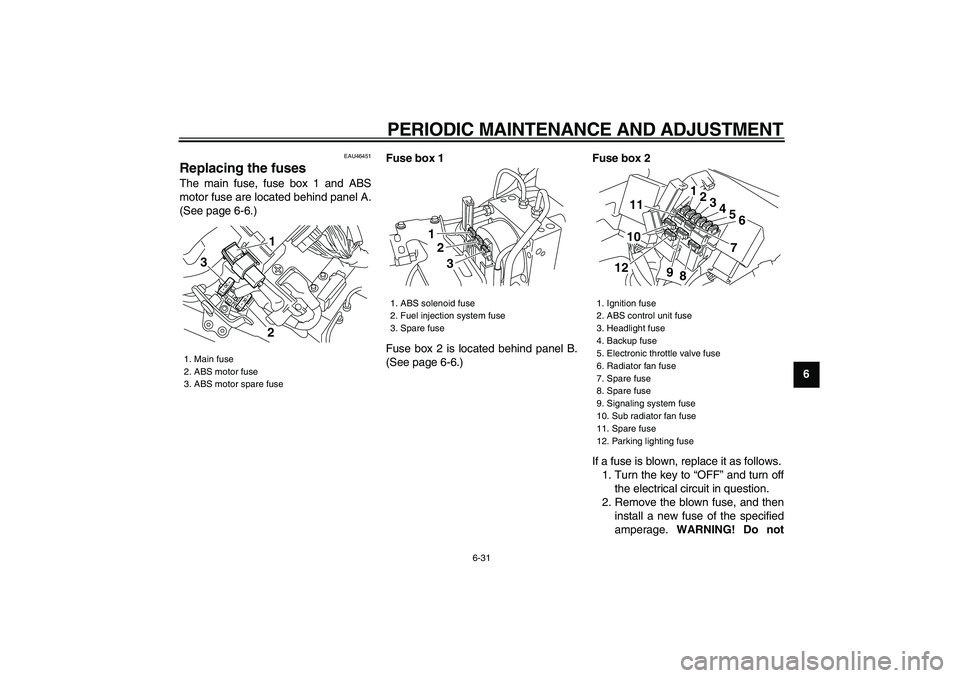

Replacing the fuses
The main fuse, fuse box 1 and ABS
motor fuse are located behind panel A.
(See page 6-6.)
Fuse box 1
Fuse box 2 is located behind panel B.
(See page 6-6.)
Fuse box 2
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.
WARNING! Do not

1. Main fuse
2. ABS motor fuse
3. ABS motor spare fuse
1
3
2

1. ABS solenoid fuse
2. Fuel injection system fuse
3. Spare fuse
123

1. Ignition fuse
2. ABS control unit fuse
3. Headlight fuse
4. Backup fuse
5. Electronic throttle valve fuse
6. Radiator fan fuse
7. Spare fuse
8. Spare fuse
9. Signaling system fuse
10. Sub radiator fan fuse
11. Spare fuse
12. Parking lighting fuse
1
2
3
4
5
6
78 9 1011
12

PERIODIC MAINTENANCE AND ADJUSTMENT
6-32
1
2
3
4
5
6
7
8
9use a fuse of a higher amperage
rating than recommended to
avoid causing extensive dam-
age to the electrical system and
possibly a fire.

[EWA15131]
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
EAU46461
Replacing the headlight bulb
This model is equipped with a quartz
bulb headlight. If the headlight bulb
burns out, replace it as follows.
NOTICE

ECA10650
Take care not to damage the follow-
ing parts:

Headlight bulb
Do not touch the glass part of
the headlight bulb to keep it free
from oil, otherwise the transpar-
ency of the glass, the luminosity
of the bulb, and the bulb life will
be adversely affected. Thor-
oughly clean off any dirt and fin-
gerprints on the headlight bulb
using a cloth moistened with al-
cohol or thinner.

Headlight lens
Do not affix any type of tinted
film or stickers to the headlight
lens.
Do not use a headlight bulb of a
wattage higher than specified.
Specified fuses:
Main fuse:
50.0 A
Ignition fuse:
20.0 A
Parking lighting fuse:
7.5 A
Signaling system fuse:
7.5 A
Headlight fuse:
15.0 A
Radiator fan fuse:
20.0 A
Sub radiator fan fuse:
7.5 A
Fuel injection system fuse:
15.0 A
ABS control unit fuse:
7.5 A
ABS motor fuse:
30.0 A
ABS solenoid fuse:
15.0 A
Backup fuse:
7.5 A
Electronic throttle valve fuse:
7.5 A

9-1
2
3
4
5
6
7
8
9

CONSUMER INFORMATION
EAU26351
Identification numbers
Record the key identification number,
vehicle identification number and mod-
el label information in the spaces pro-
vided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the vehi-
cle is stolen.
KEY IDENTIFICATION NUMBER:
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26381
Key identification number
The key identification number is
stamped into the key tag. Record this
number in the space provided and use
it for reference when ordering a new
key.
EAU26400
Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.
TIP

The vehicle identification number is
used to identify your motorcycle and
may be used to register your motorcy-
cle with the licensing authority in your
area.
1. Key identification number
2. Code re-registering key (red bow)
3. Standard keys (black bow)
31 2 3

1. Vehicle identification number
1

INDEX
A
ABS ......................................................... 3-18
ABS warning light ...................................... 3-5
Air filter element....................................... 6-17
Anti-theft alarm (optional) ........................ 3-14
Auxiliary light bulb, replacing ................... 6-36
B
Battery ..................................................... 6-28
Brake and clutch fluids, changing ............ 6-24
Brake and clutch levers, checking and
lubricating .............................................. 6-25
Brake fluid level, checking ....................... 6-23
Brake lever .............................................. 3-17
Brake pedal ............................................. 3-18
Brake pedal, checking and lubricating ..... 6-25
C
Cables, checking and lubricating ............. 6-24
Care ........................................................... 7-1
Catalytic converters ................................. 3-22
Clutch lever.................................... 3-16
,
6-21
Coolant .................................................... 6-14
Coolant temperature warning light............. 3-4
Cowling and panels, removing and
installing .................................................. 6-6
D
Dimmer switch ......................................... 3-15
E
Engine break-in ......................................... 5-3
Engine idling speed, checking ................. 6-17
Engine oil and oil filter cartridge ................ 6-9
Engine stop switch................................... 3-15
Engine trouble warning light ...................... 3-4
EXUP system .......................................... 3-28
F
Final gear oil ............................................ 6-12
Front and rear brake pads, checking....... 6-22
Front brake lever free play, checking ...... 6-21
Front fork, adjusting................................. 3-24
Front fork, checking ................................. 6-26
Fuel ......................................................... 3-20
Fuel level warning light .............................. 3-4
Fuel tank cap ........................................... 3-19
Fuses, replacing ...................................... 6-31
H
Handlebar switches ................................. 3-15
Hazard switch .......................................... 3-16
Headlight bulb, replacing ......................... 6-32
High beam indicator light ........................... 3-3
Horn switch.............................................. 3-15
I
Identification numbers ............................... 9-1
Ignition circuit cut-off system ................... 3-29
Immobilizer system.................................... 3-1
Immobilizer system indicator light ............. 3-5
Indicator and warning lights....................... 3-3
K
Key identification number .......................... 9-1
L
License plate light bulb, replacing ........... 6-35
Luggage strap holders............................. 3-28
M
Main switch/steering lock .......................... 3-2
Matte color, caution ................................... 7-1
Model label ................................................ 9-2
Multi-function display ................................. 3-6
N
Neutral indicator light................................. 3-3
O
Oil level warning light ................................ 3-3
P
Parking ...................................................... 5-3
Part locations ............................................ 2-1
Pass switch ............................................. 3-15
Periodic maintenance and lubrication
chart ........................................................ 6-2
R
Rear brake light switch, adjusting ........... 6-22
S
Safety information ..................................... 1-1
Seats ....................................................... 3-22
Shifting ...................................................... 5-2
Shift pedal ............................................... 3-17
Shift pedal, checking and lubricating ...... 6-26
Shock absorber assembly, adjusting ...... 3-26
Sidestand ................................................ 3-29
Sidestand, checking and lubricating ....... 6-26
Spark plugs, checking ............................... 6-8
Specifications ............................................ 8-1
Speedometer unit...................................... 3-5
Starting the engine .................................... 5-1
Start switch ............................................. 3-15
Steering, checking .................................. 6-27
Storage ..................................................... 7-4
Supporting the motorcycle ...................... 6-36
T
Tail/brake light......................................... 6-34
Throttle cable free play, checking ........... 6-17
Throttle grip and cable, checking and
lubricating ............................................. 6-24
Tires ........................................................ 6-18
Tool kit ...................................................... 6-1
