PERIODIC MAINTENANCE AND ADJUSTMENT
6-2
6
EAU39943
Periodic maintenance chart for the emission control system TIP

From 7000 km (4200 mi) or 18 months, repeat the maintenance intervals starting from 3000 km (1800 mi) or 6 months.


Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and technicalskills.
No. ITEM CHECKS AND MAINTENANCE JOBSINITIAL ODOMETER READINGS
1000 km
(600 mi) or
1 month or
30 hours3000 km
(1800 mi) or
6 months or
90 hours5000 km
(3000 mi) or
12 months or
150 hours
1*Fuel lineCheck fuel hoses for cracks or damage.
Replace if necessary.√√
2 Spark plugCheck condition.
Adjust gap and clean.√√
3*Valve clearanceCheck and adjust valve clearance when engine is cold.√
4*Air filter elementClean with solvent.
Replace if necessary.√√
5*Crankcase breather sys-
temCheck ventilation hose for cracks or damage and drain
any deposits.
Replace if necessary.√√√
6*CarburetorCheck engine idling speed and starter operation.
Adjust if necessary.√√√
7 Exhaust systemCheck for leakage.
Tighten if necessary.
Replace gasket(s) if necessary.√√
8 Engine oilChange (warm engine before draining).√√√
U1P683E0.book Page 2 Tuesday, April 29, 2008 2:05 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-4
6
EAU40000
TIPThe air filter needs more frequent service if you are riding in unusually wet or dusty areas.10*Chassis fastenersCheck all chassis fitting and fasteners.
Correct if necessary.√√√
11 Brake lever pivot shaftApply lithium-soap-based grease lightly.√√
12 Brake pedal pivot shaftApply lithium-soap-based grease lightly.√√
13 Sidestand pivotCheck operation.
Apply lithium-soap-based grease lightly.√√
14*Spark arresterClean.√
15*Front forkCheck operation and for grease leakage.
Replace if necessary.√√
16*Shock absorber assem-
blyCheck operation and for oil leakage.
Replace if necessary.√
17*Control cablesApply Yamaha chain and cable lube or engine oil thor-
oughly.√√√
18*Throttle grip housing and
cableCheck operation and free play.
Adjust the throttle cable free play if necessary.
Lubricate the throttle grip housing and cable.√√√ No. ITEM CHECKS AND MAINTENANCE JOBSINITIAL ODOMETER READINGS
1000 km
(600 mi) or
1 month or
30 hours3000 km
(1800 mi) or
6 months or
90 hours5000 km
(3000 mi) or
12 months or
150 hours
U1P683E0.book Page 4 Tuesday, April 29, 2008 2:05 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-5
6
EAU19612
Checking the spark plug The spark plug is an important engine
component, which is easy to check.
Since heat and deposits will cause any
spark plug to slowly erode, the spark
plug should be removed and checked
in accordance with the periodic mainte-
nance and lubrication chart. In addition,
the condition of the spark plug can re-
veal the condition of the engine.
To remove the spark plug
1. Remove the spark plug cap.
2. Remove the spark plug as shown,
with a spark plug wrench available
at a Yamaha dealer.To check the spark plug
1. Check that the porcelain insulator
around the center electrode of the
spark plug is a medium-to-light tan
(the ideal color when the vehicle is
ridden normally).
TIPIf the spark plug shows a distinctly dif-
ferent color, the engine could be oper-
ating improperly. Do not attempt to
diagnose such problems yourself. In-
stead, have a Yamaha dealer checkthe vehicle.2. Check the spark plug for electrode
erosion and excessive carbon or
other deposits, and replace it if
necessary.
To install the spark plug
1. Measure the spark plug gap with a
wire thickness gauge and, if nec-
essary, adjust the gap to specifica-
tion.
1. Spark plug cap
1. Spark plug wrench
Specified spark plug:
NGK/CR7HSA1. Spark plug gapSpark plug gap:
0.6–0.7 mm (0.024–0.028 in)
U1P683E0.book Page 5 Tuesday, April 29, 2008 2:05 PM

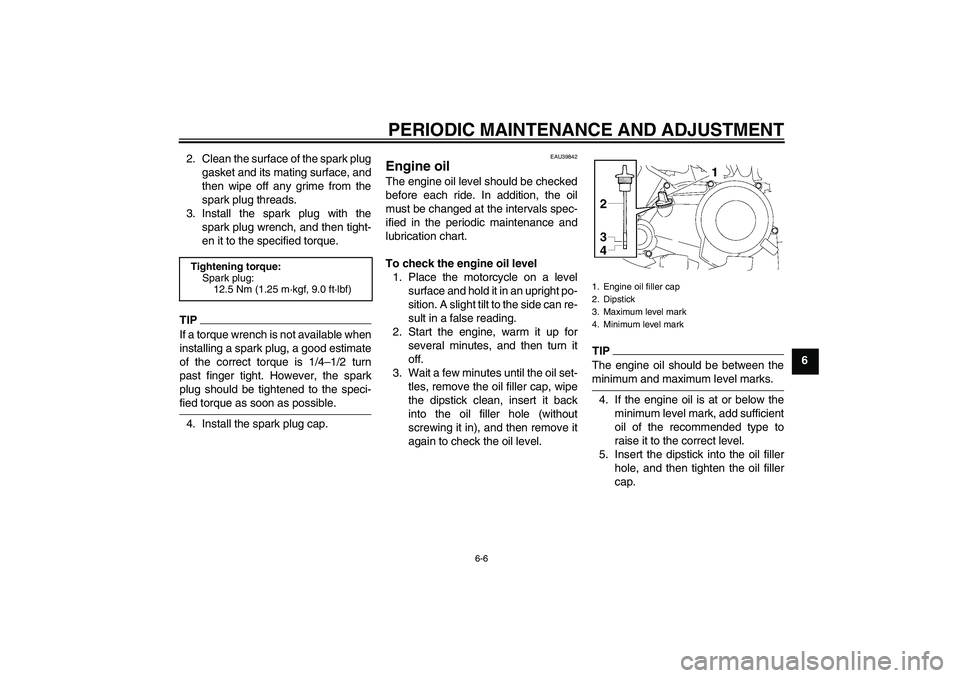

PERIODIC MAINTENANCE AND ADJUSTMENT
6-6
6 2. Clean the surface of the spark plug
gasket and its mating surface, and
then wipe off any grime from the
spark plug threads.
3. Install the spark plug with the
spark plug wrench, and then tight-
en it to the specified torque.
TIPIf a torque wrench is not available when
installing a spark plug, a good estimate
of the correct torque is 1/4–1/2 turn
past finger tight. However, the spark
plug should be tightened to the speci-fied torque as soon as possible.
4. Install the spark plug cap.
EAU39842
Engine oil The engine oil level should be checked
before each ride. In addition, the oil
must be changed at the intervals spec-
ified in the periodic maintenance and
lubrication chart.
To check the engine oil level
1. Place the motorcycle on a level
surface and hold it in an upright po-
sition. A slight tilt to the side can re-
sult in a false reading.
2. Start the engine, warm it up for
several minutes, and then turn it
off.
3. Wait a few minutes until the oil set-
tles, remove the oil filler cap, wipe
the dipstick clean, insert it back
into the oil filler hole (without
screwing it in), and then remove it
again to check the oil level.
TIPThe engine oil should be between theminimum and maximum level marks.
4. If the engine oil is at or below the
minimum level mark, add sufficient
oil of the recommended type to
raise it to the correct level.
5. Insert the dipstick into the oil filler
hole, and then tighten the oil filler
cap.
Tightening torque:
Spark plug:
12.5 Nm (1.25 m·kgf, 9.0 ft·lbf)
1. Engine oil filler cap
2. Dipstick
3. Maximum level mark
4. Minimum level mark
U1P683E0.book Page 6 Tuesday, April 29, 2008 2:05 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-7
6To change the engine oil
1. Start the engine, warm it up for
several minutes, and then turn it
off.
2. Place an oil pan under the engine
to collect the used oil.
3. Remove the engine oil filler cap
and drain bolt to drain the oil from
the crankcase.
4. Install the engine oil drain bolt, and
then tighten it to the specified
torque.5. Refill with the specified amount of
the recommended engine oil, and
then install and tighten the engine
oil filler cap.
NOTICE
ECA11620


In order to prevent clutch slip-
page (since the engine oil also
lubricates the clutch), do not
mix any chemical additives. Do
not use oils with a diesel speci-
fication of “CD” or oils of a high-
er quality than specified. In
addition, do not use oils labeled
“ENERGY CONSERVING II” or
higher.


Make sure that no foreign mate-rial enters the crankcase.6. Start the engine, and then let it idle
for several minutes while checking
it for oil leakage. If oil is leaking, im-
mediately turn the engine off and
check for the cause.
7. Turn the engine off, and then
check the oil level and correct it if
necessary.
1. Engine oil drain boltTightening torque:
Engine oil drain bolt:
20 Nm (2.0 m·kgf, 14 ft·lbf)
1
Recommended engine oil:
See page 8-1.
Oil change quantity:
0.80 L (0.85 US qt, 0.70 Imp.qt)
1.“CD” specification
2.“ENERGY CONSERVING II”
1
2
U1P683E0.book Page 7 Tuesday, April 29, 2008 2:05 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-9
66. Insert the mesh and the sponge
material into the air filter case.
NOTICE: Make sure that the
mesh and the sponge material
are properly seated in the air fil-
ter case. The engine should
never be operated without the
mesh and the sponge material
installed, otherwise the pis-
ton(s) and/or cylinder(s) may
become excessively worn.
[ECA15572]
7. Install the air filter case cover by in-
stalling the screws.
To clean the air filter check hose
1. Check the hose at the bottom of
the air filter case for accumulated
dirt or water.2. If dirt or water is visible, remove
the hose, clean it, and then install
it.
EAU40421
Cleaning the spark arrester The spark arrester should be cleaned
at the intervals specified in the periodic
maintenance and lubrication chart.
WARNING
EWA10980


Always let the exhaust system
cool prior to touching exhaust
components.


Do not start the engine whencleaning the exhaust system.
TIPMake sure to select a well-ventilated
area free of combustible materials toclean the spark arrester.
1. Remove the tailpipe by removing
the bolts, and then pulling it out of
the muffler.
1. Air filter check hose
U1P683E0.book Page 9 Tuesday, April 29, 2008 2:05 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-11
6
EAU21362
Adjusting the engine idling
speed The engine idling speed must be
checked and, if necessary, adjusted as
follows at the intervals specified in the
periodic maintenance and lubrication
chart.TIPA diagnostic tachometer is needed tomake this adjustment.
1. Attach the tachometer to the spark
plug lead.
2. Start the engine and warm it up for
several minutes at 1000–2000
r/min while occasionally revving it
to 4000–5000 r/min.TIPThe engine is warm when it quickly re-sponds to the throttle.
3. Check the engine idling speed
and, if necessary, adjust it to spec-
ification by turning the throttle stop
screw. To increase the engine
idling speed, turn the screw in di-rection (a). To decrease the en-
gine idling speed, turn the screw in
direction (b).
TIPIf the specified idling speed cannot be
obtained as described above, have aYamaha dealer make the adjustment.
EAU21370
Adjusting the throttle cable
free play The throttle cable free play should mea-
sure 3.0–5.0 mm (0.12–0.20 in) at the
throttle grip. Periodically check the
throttle cable free play and, if neces-
sary, adjust it as follows.TIPThe engine idling speed must be cor-
rectly adjusted before checking and ad-justing the throttle cable free play.
1. Loosen the locknut.
1. Throttle stop screwEngine idling speed:
1600–1800 r/min
1
(a) (b)
1. Throttle cable free play
U1P683E0.book Page 11 Tuesday, April 29, 2008 2:05 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-12
6 2. To increase the throttle cable free
play, turn the adjusting nut in direc-
tion (a). To decrease the throttle
cable free play, turn the adjusting
nut in direction (b).
3. Tighten the locknut.
EAU21401
Valve clearance The valve clearance changes with use,
resulting in improper air-fuel mixture
and/or engine noise. To prevent this
from occurring, the valve clearance
must be adjusted by a Yamaha dealer
at the intervals specified in the periodic
maintenance and lubrication chart.
EAU39821
Tires To maximize the performance, durabil-
ity, and safe operation of your motor-
cycle, note the following points
regarding the specified tires.
Tire air pressure
The tire air pressure should be checked
and, if necessary, adjusted before each
ride.
WARNING
EWA14381
Operation of this vehicle with im-
proper tire pressure may cause se-
vere injury or death from loss of
control.

The tire air pressure must be
checked and adjusted on cold
tires (i.e., when the temperature
of the tires equals the ambient
temperature).


The tire air pressure must be ad-
justed in accordance with the
weight of the rider, the riding
speed, and the riding condi-tions.
1. Locknut
2. Throttle cable free play adjusting nut
2 (a)
(b) 1
