Page 86 of 94
8-1
1
2
3
4
5
6
7
8
9
SPECIFICATIONS
EAU2633P
Dimensions:
Overall length:
2195 mm (86.4 in)
Overall width:
775 mm (30.5 in)
Overall height:
1445 mm (56.9 in)
Seat height:
800 mm (31.5 in)
Wheelbase:
1580 mm (62.2 in)
Ground clearance:
125 mm (4.92 in)
Minimum turning radius:
2800 mm (110.2 in)
Weight:
With oil and fuel:
XP500 221.0 kg (487 lb)
XP500A 225.0 kg (496 lb)
Engine:
Engine type:
Liquid cooled 4-stroke, DOHC
Cylinder arrangement:
Forward-inclined parallel 2-cylinder
Displacement:
499.0 cm
3
Bore
×
stroke:
66.0
×
73.0 mm (2.60
×
2.87 in)
Compression ratio:
11.00 :1Starting system:
Electric starter
Lubrication system:
Dry sump
Engine oil:
Type:
SAE 10W-30 or SAE 10W-40
Recommended engine oil grade:
API service SG type or higher, JASO stan-
dard MA
Engine oil quantity:
Without oil filter cartridge replacement:
2.80 L (2.96 US qt, 2.46 Imp.qt)
With oil filter cartridge replacement:
2.90 L (3.07 US qt, 2.55 Imp.qt)
Chain drive oil:
Type:
SAE 80 API GL-4 Hypoid gear oil
Quantity:
0.70 L (0.74 US qt, 0.62 Imp.qt)
Cooling system:
Coolant reservoir capacity (up to the maxi-
mum level mark):
0.25 L (0.26 US qt, 0.22 Imp.qt)
Radiator capacity (including all routes):
1.48 L (1.56 US qt, 1.30 Imp.qt)
Air filter:
Air filter element:
Oil-coated paper element
Fuel:
Recommended fuel:
Regular unleaded gasoline onlyFuel tank capacity:
15.0 L (3.96 US gal, 3.30 Imp.gal)
Fuel reserve amount:
3.0 L (0.79 US gal, 0.66 Imp.gal)
Fuel injection:
Throttle body:
Manufacturer:
MIKUNI
Type/quantity:
ACW31-10/1
Spark plug (s):
Manufacturer/model:
NGK/CR7E
Spark plug gap:
0.7–0.8 mm (0.028–0.031 in)
Clutch:
Clutch type:
Wet, multiple-disc automatic
Transmission:
Primary reduction system:
Spur gear/helical gear
Primary reduction ratio:
52/32
×
36/22 (2.659)
Secondary reduction system:
Chain drive
Secondary reduction ratio:
41/25
×
40/29 (2.262)
Transmission type:
V-belt automatic
Operation:
Centrifugal automatic type
Page 87 of 94
SPECIFICATIONS
8-2
2
3
4
5
6
7
89 Chassis:
Frame type:
Diamond
Caster angle:
25.00 °
Trail:
92.0 mm (3.62 in)
Front tire:
Type:
Tubeless
Size:
120/70R15 M/C 56H
Manufacturer/model:
DUNLOP/GPR-100F
Manufacturer/model:
BRIDGESTONE/BT011F
Rear tire:
Type:
Tubeless
Size:
160/60R15 M/C 67H
Manufacturer/model:
DUNLOP/GPR-100L
Manufacturer/model:
BRIDGESTONE/BT012R
Loading:
Maximum load:
XP500 194 kg (428 lb)
XP500A 190 kg (419 lb)
* (Total weight of rider, passenger, cargo
and accessories)
Tire air pressure (measured on cold
tires):
Loading condition:
0–90 kg (0–198 lb)
Front:
225 kPa (2.25 kgf/cm
2
, 33 psi)
Rear:
250 kPa (2.50 kgf/cm
2
, 36 psi)
Loading condition:
XP500 90–194 kg (198–428 lb)
XP500A 90–190 kg (198–419 lb)
Front:
225 kPa (2.25 kgf/cm
2
, 33 psi)
Rear:
280 kPa (2.80 kgf/cm
2
, 41 psi)
Front wheel:
Wheel type:
Cast wheel
Rim size:
15M/C x MT3.50
Rear wheel:
Wheel type:
Cast wheel
Rim size:
15M/C x MT5.00
Front brake:
Type:
Dual disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 4
Rear brake:
Type:
Single disc brake
Operation:
Left hand operation
Recommended fluid:
DOT 4
Front suspension:
Type:
Telescopic fork
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
120.0 mm (4.72 in)
Rear suspension:
Type:
Swingarm
Spring/shock absorber type:
Coil spring/gas-oil damper
Wheel travel:
116.0 mm (4.57 in)
Electrical system:
Ignition system:
TCI (digital)
Charging system:
AC magneto
Battery:
Model:
YTZ10S
Voltage, capacity:
12 V, 8.6 Ah
Page 89 of 94
9-1
2
3
4
5
6
7
8
9
CONSUMER INFORMATION
EAU26351
Identification numbers
Record the key identification number,
vehicle identification number and mod-
el label information in the spaces pro-
vided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the vehi-
cle is stolen.
KEY IDENTIFICATION NUMBER:
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26381
Key identification number
The key identification number is
stamped into the key tag. Record this
number in the space provided and use
it for reference when ordering a new
key.
EAU26410
Vehicle identification number
The vehicle identification number is
stamped into the frame.
TIP
The vehicle identification number is
used to identify your vehicle and may
be used to register it with the licensing
authority in your area.
1. Key identification number
2. Code re-registering key (red bow)
3. Standard keys (black bow)
1. Vehicle identification number
1
Page 90 of 94
CONSUMER INFORMATION
9-2
1
2
3
4
5
6
7
8
9
EAU26500

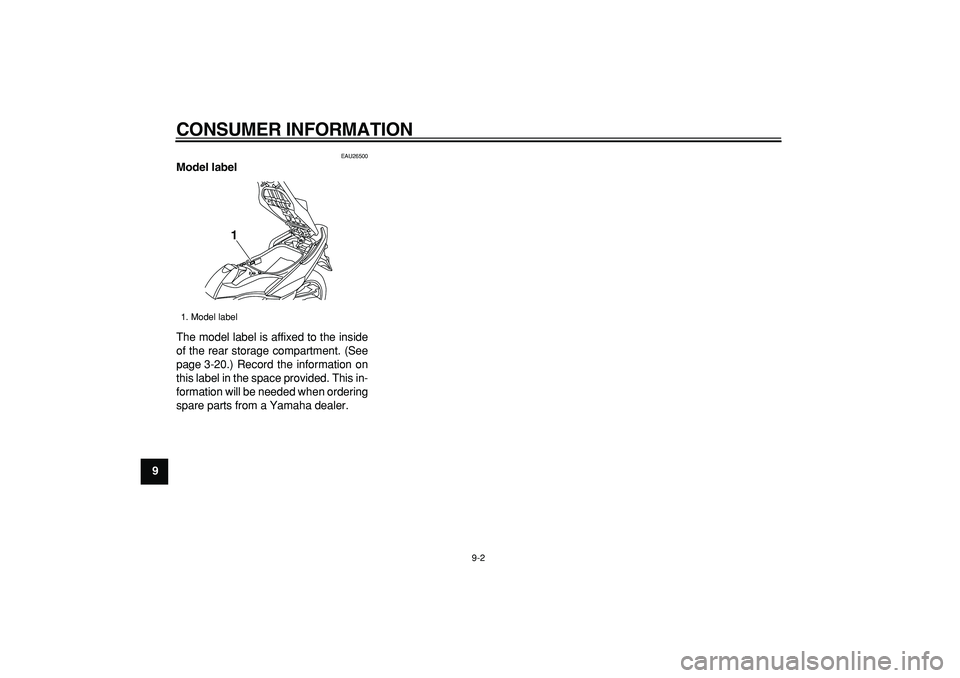

Model label
The model label is affixed to the inside
of the rear storage compartment. (See
page 3-20.) Record the information on
this label in the space provided. This in-
formation will be needed when ordering
spare parts from a Yamaha dealer.
1. Model label
1
