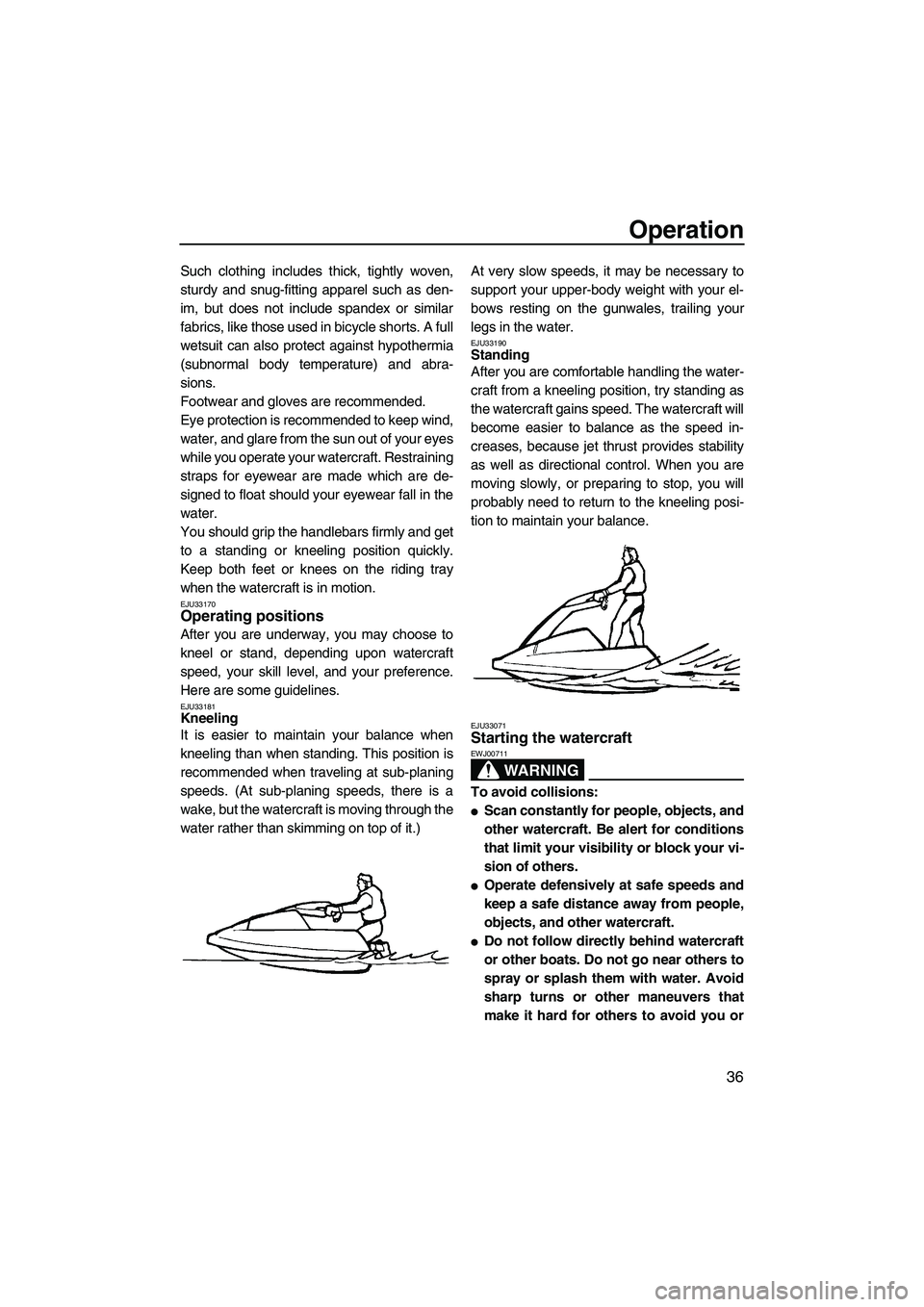

Operation
36
Such clothing includes thick, tightly woven,
sturdy and snug-fitting apparel such as den-
im, but does not include spandex or similar
fabrics, like those used in bicycle shorts. A full
wetsuit can also protect against hypothermia
(subnormal body temperature) and abra-
sions.
Footwear and gloves are recommended.
Eye protection is recommended to keep wind,
water, and glare from the sun out of your eyes
while you operate your watercraft. Restraining
straps for eyewear are made which are de-
signed to float should your eyewear fall in the
water.
You should grip the handlebars firmly and get
to a standing or kneeling position quickly.
Keep both feet or knees on the riding tray
when the watercraft is in motion.
EJU33170Operating positions
After you are underway, you may choose to
kneel or stand, depending upon watercraft
speed, your skill level, and your preference.
Here are some guidelines.
EJU33181Kneeling
It is easier to maintain your balance when
kneeling than when standing. This position is
recommended when traveling at sub-planing
speeds. (At sub-planing speeds, there is a
wake, but the watercraft is moving through the
water rather than skimming on top of it.)At very slow speeds, it may be necessary to
support your upper-body weight with your el-
bows resting on the gunwales, trailing your
legs in the water.
EJU33190Standing
After you are comfortable handling the water-
craft from a kneeling position, try standing as
the watercraft gains speed. The watercraft will
become easier to balance as the speed in-
creases, because jet thrust provides stability
as well as directional control. When you are
moving slowly, or preparing to stop, you will
probably need to return to the kneeling posi-
tion to maintain your balance.
EJU33071Starting the watercraft
WARNING
EWJ00711
To avoid collisions:

Scan constantly for people, objects, and
other watercraft. Be alert for conditions
that limit your visibility or block your vi-
sion of others.

Operate defensively at safe speeds and
keep a safe distance away from people,
objects, and other watercraft.

Do not follow directly behind watercraft
or other boats. Do not go near others to
spray or splash them with water. Avoid
sharp turns or other maneuvers that
make it hard for others to avoid you or
UF2F71E0.book Page 36 Thursday, April 10, 2008 11:47 AM

Maintenance and care
45
EJU33480
Storage
WARNING
EWJ00320
Always turn the fuel cock knob to “OFF”
when storing the watercraft, otherwise
fuel could leak out into the engine or en-
gine compartment, which would create a
fire hazard.
Storage for long periods of time, such as win-
ter storage, requires preventive maintenance
to ensure against deterioration. It is advisable
to have the watercraft serviced by a Yamaha
dealer prior to storage. However, the following
procedures can be performed by the owner.
EJU33513Flushing the cooling system
Flushing the cooling system is essential to
prevent it from clogging with salt, sand, or dirt.
(1) Place the watercraft in a horizontal posi-
tion.
(2) Remove the hood. (See page 17 for hood
removal and installation procedures.)
(3) Remove the flushing hose connector
cap, and then insert the garden hoseadapter into the flushing hose connector
and turn it until it is securely connected.
(4) Connect the garden hose adapter to a
water tap using a garden hose.
TIP:
A garden hose is not included.
(5) Start the engine, and then immediately
turn the water supply on until water flows
out continually from the cooling water pi-
lot outlet. NOTICE: Do not run the en-
gine for more than 15 seconds without
supplying water, otherwise the engine
could overheat.
[ECJ01010]
TIP:
If you will be storing the watercraft for a pro-
longed period, such as winter storage, top off
the fuel tank with fresh gasoline and add fuel
stabilizer and conditioner to the fuel tank ac-
cording to the manufacturer’s instruction be-
fore starting the engine.
(6) Run the engine at idling speed for about
3 minutes watching the engine condition.
If the engine stops while flushing, turn the
water supply off immediately and repeat
the above steps. NOTICE: Do not sup-
ply water to the cooling water passag-
es when the engine is not running. The
water could flow back through the
1Garden hose adapter
2Flushing hose connector
3Flushing hose connector cap
UF2F71E0.book Page 45 Thursday, April 10, 2008 11:47 AM

Maintenance and care
46
muffler into the engine, causing se-
vere engine damage.
[ECJ00122]
(7) Turn the water supply off, and then force
the remaining water out of the cooling
water passages by alternately squeezing
and releasing the throttle lever for 10 to
15 seconds.
(8) Stop the engine.
(9) Remove the garden hose adapter and in-
stall the flushing hose connector cap.
(10) Install the hood.
EJU33562Lubrication
(1) Remove the hood. (See page 17 for hood
removal and installation procedures.)
(2) Remove the silencer cap.
(3) Start the engine with the watercraft in a
well-ventilated area. NOTICE: Do not
run the engine for more than 15 sec-
onds without supplying water, other-
wise the engine could overheat.
[ECJ00562]
(4) With the engine running at a fast idle,
quickly spray as much rust inhibitor as
possible through the hole in the silencer
cover. Keep spraying until the engine
stalls (or a maximum of 15 seconds).
WARNING! Do not pour or spray gas-
oline, or any substance other than a
rust inhibitor through the hole in the
silencer cover. Do not spray flamma-
ble rust inhibitor products on enginesurfaces while the engine is hot. Oth-
erwise, a fire or explosion could oc-
cur.
[EWJ00301]
(5) Install the silencer cap securely.
NOTICE: Be sure to install the silencer
cap securely after fogging the engine,
otherwise water could enter the en-
gine and cause damage.
[ECJ00152]
(6) Lubricate all cables such as the throttle,
choke, and steering cables. Use a suit-
able marine grease applicator to pres-
sure-lubricate the cables and purge out
any moisture between the inner and outer
cables.
(7) Lubricate the areas of the watercraft
specified in “Lubrication points” on page
56.
(8) Install the hood.
EJU33681Battery
If the watercraft will not be used for more than
a month, remove the battery from the water-
craft and store it in a cool, dry place.
(1) Disconnect the negative (–) battery lead
first, then the positive (+) battery lead and
breather hose, and then remove the bat-
tery from the watercraft.
(2) Clean the battery casing using fresh wa-
ter.
(3) If the battery terminals are dirty or corrod-
ed, clean them with a wire brush.
(4) Fully charge the battery.
(5) Apply Yamaha Marine Grease or
Yamaha Grease A to the battery termi-
nals, and then store the battery in a cool,
dry place.
(6) Check the battery at least once every 2
months and fully charge it if necessary.
NOTICE: Always keep the battery
charged. Storing a discharged battery
can cause permanent battery damage.
[ECJ00101]
1Silencer cap
UF2F71E0.book Page 46 Thursday, April 10, 2008 11:47 AM

Index
2-stroke engine oil .................................... 24
B
Battery ................................................ 28, 46
Battery, checking...................................... 57
Battery, jumping ....................................... 64
Beaching the watercraft ........................... 42
Bilge ......................................................... 28
Boarding and starting in deep water ........ 38
Boarding and starting in shallow water .... 37
Bow rope hole .......................................... 22
C
Capsized watercraft ................................. 39
Carburetor, adjusting................................ 58
Choke cable, adjusting ............................. 57
Choke knob .............................................. 20
Cleaning the watercraft ............................ 47
Cooling water pilot outlet .................... 20, 31
Craft Identification Number (CIN) ............... 1
Cruising limitations ..................................... 8
E
Emergency procedures ............................ 63
Engine break-in ........................................ 32
Engine compartment ................................ 27
Engine overheat warning system ............. 22
Engine serial number ................................. 1
Engine shut-off cord (lanyard) .................. 30
Engine shut-off switch .............................. 19
Engine stop switch ................................... 19
Enjoy your watercraft responsibly ............ 14
F
Fire extinguisher....................................... 28
Flushing the cooling system ..................... 45
Fuel and oil............................................... 24
Fuel cock knob ......................................... 18
Fuel filter .................................................. 51
Fuel system .............................................. 27
Fuel system, checking.............................. 51
Fuel tank .................................................. 51
Fuel tank filler cap .................................... 18
Fuel tank, filling ........................................ 25
Fuse, replacing......................................... 64
G
Gasohol .................................................... 24
Gasoline ................................................... 24Getting to know your watercraft ............... 35
H
Hazard information ................................... 12
Hood ......................................................... 17
Hull and deck ........................................... 27
I
Identification numbers ................................ 1
J
Jet intake .................................................. 30
Jet intake and impeller, cleaning .............. 63
Jet thrust nozzle angle, adjusting ............. 53
Jet thrust nozzle angle, checking ............. 51
Jumper cables, connecting ...................... 64
K
Kneeling ................................................... 36
L
Labels, important ........................................ 2
Labels, other .............................................. 6
Labels, warning .......................................... 3
Launching the watercraft .......................... 32
Learning to operate your watercraft ......... 35
Leaving the watercraft .............................. 34
Limitations on who may operate the
watercraft ................................................ 7
Lubrication................................................ 46
Lubrication points ..................................... 56
M
Main components, location of .................. 15
Maintenance and adjustments ................. 47
Mixing fuel and oil .................................... 24
O
Operating in weeded areas ...................... 42
Operating positions .................................. 36
Operating your watercraft ......................... 35
Operation ................................................. 32
Operation of controls and other
functions ............................................... 17
Operation requirements ............................. 9
Owner’s/operator’s manual and tool kit .... 47
P
Periodic maintenance chart ...................... 49
Post-operation care .................................. 42
Pre-operation check list ............................ 26
Pre-operation check points ...................... 27
Pre-operation checks ............................... 26
UF2F71E0.book Page 1 Thursday, April 10, 2008 11:47 AM

Index
Primary Identification (PRI-ID) number ...... 1
R
Recommended equipment ....................... 11
S
Safe boating rules .................................... 13
Spark plugs, cleaning and adjusting ........ 55
Standing ................................................... 36
Start switch............................................... 20
Starting the engine ................................... 32
Starting the watercraft .............................. 36
Steering friction, adjusting ........................ 52
Steering pole ...................................... 22, 30
Steering system ................................. 21, 29
Stern rope hole......................................... 22
Stopping the engine ................................. 34
Stopping the watercraft ............................ 41
Storage..................................................... 45
Storage pouch .......................................... 23
Submerged watercraft .............................. 65
Switches ................................................... 30
T
Throttle cable, checking and adjusting ..... 54
Throttle lever ...................................... 20, 29
Towing the watercraft ............................... 65
Transporting ............................................. 43
Trolling speed, adjusting .......................... 58
Troubleshooting ....................................... 61
Troubleshooting chart .............................. 61
Turning the watercraft .............................. 40
W
Water separator ....................................... 27
Watercraft characteristics......................... 12
UF2F71E0.book Page 2 Thursday, April 10, 2008 11:47 AM
