INSTRUMENT AND CONTROL FUNCTIONS
3-4
2
34
5
6
7
8
9
curs, use a gasoline of a different brand
or premium unleaded fuel. Use of un-
leaded fuel will extend spark plug life
and reduce maintenance costs.

EAU13412
Fuel tank breather hose
Before operating the motorcycle:

Check the fuel tank breather hose
connection.

Check the fuel tank breather hose
for cracks or damage, and replace
it if damaged.

Make sure that the fuel tank
breather hose is not blocked, and
clean it if necessary.
EAU41201
2-stroke engine oil
Make sure that there is sufficient oil in
the 2-stroke engine oil tank. If the
2-stroke engine oil is at or below the
minimum level as shown in the illustra-
tion, add a sufficient amount of the rec-
ommended 2-stroke engine oil as
follows.
TIP

Make sure that the motorcycle is posi-
tioned straight up when checking the
2-stroke engine oil level. A slight tilt to
the side can result in a false reading.
1. Remove the seat. (See page 3-7.)
2. Remove the 2-stroke engine oil
1. Fuel tank breather hose
1

1. Minimum level
1

PERIODIC MAINTENANCE AND ADJUSTMENT
6-3
1
2
3
4
5
6
7
8
9
8*Tires
Check tread depth and for damage.Replace if necessary.Check air pressure.Correct if necessary.
9*Wheel bearingsCheck bearings for smooth operation.Replace if necessary.
10 *Steering bearingsCheck bearing assemblies for looseness.Moderately repack with lithium-soap-based
grease.
11Drive chainCheck chain slack/alignment and condi-
tion.Adjust and lubricate chain with Yamaha
chain and cable lube thoroughly.Every rideRemove and clean.
12 *Chassis fastenersCheck all chassis fitting and fasteners.Correct if necessary.
13Sidestand pivotCheck operation.Apply lithium-soap-based grease lightly.
14 *Front forkCheck operation and for oil leakage.Replace if necessary.
15 *Shock absorber
assemblyCheck operation and for oil leakage.Replace if necessary.
16 *CarburetorCheck engine idling speed and starter
operation.Clean.Replace if necessary. NO. ITEM CHECK OR MAINTENANCE JOBINITIAL THEREAFTER EVERY
10
hours20
hours40
hours80
hours40
hours80
hours160
hours

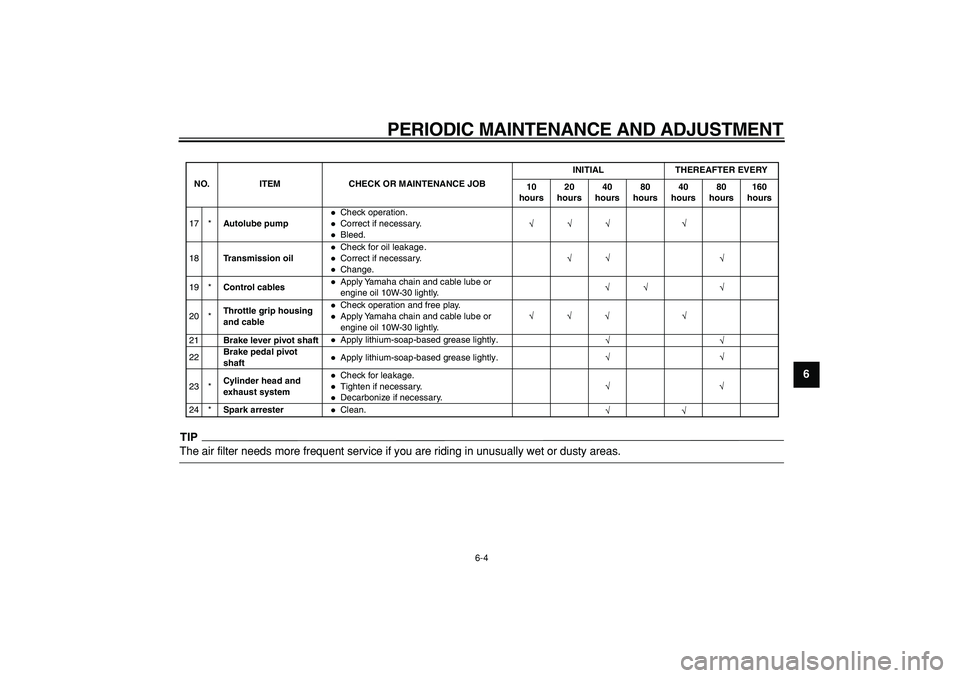

PERIODIC MAINTENANCE AND ADJUSTMENT
6-4
2
3
4
5
67
8
9
TIP

The air filter needs more frequent service if you are riding in unusually wet or dusty areas.
17 *Autolube pump
Check operation.Correct if necessary.Bleed.
18Transmission oilCheck for oil leakage .Correct if necessary.Change.
19 *Control cablesApply Yamaha chain and cable lube or
engine oil 10W-30 lightly.
20 *Throttle grip housing
and cableCheck operation and free play.Apply Yamaha chain and cable lube or
engine oil 10W-30 lightly.
21Brake lever pivot shaftApply lithium-soap-based grease lightly.
22Brake pedal pivot
shaftApply lithium-soap-based grease lightly.
23 *Cylinder head and
exhaust systemCheck for leakage.Tighten if necessary.Decarbonize if necessary.
24 *Spark arresterClean. NO. ITEM CHECK OR MAINTENANCE JOBINITIAL THEREAFTER EVERY
10
hours20
hours40
hours80
hours40
hours80
hours160
hours

PERIODIC MAINTENANCE AND ADJUSTMENT
6-5
1
2
3
4
5
6
7
8
9

EAU19603
Checking the spark plug
The spark plug is an important engine
component, which is easy to check.
Since heat and deposits will cause any
spark plug to slowly erode, the spark
plug should be removed and checked
in accordance with the periodic mainte-
nance and lubrication chart. In addition,
the condition of the spark plug can re-
veal the condition of the engine.
To remove the spark plug
1. Remove the spark plug cap.
2. Remove the spark plug as shown,
with the spark plug wrench includ-
ed in the owner’s tool kit.
To check the spark plug
1. Check that the porcelain insulator
around the center electrode of the
spark plug is a medium-to-light tan
(the ideal color when the vehicle is
ridden normally).
TIP

If the spark plug shows a distinctly dif-
ferent color, the engine could be oper-
ating improperly. Do not attempt to
diagnose such problems yourself. In-
stead, have a Yamaha dealer check
the vehicle.
2. Check the spark plug for electrode
erosion and excessive carbon orother deposits, and replace it if
necessary.
To install the spark plug
1. Measure the spark plug gap with a
wire thickness gauge and, if nec-
essary, adjust the gap to specifica-
tion.
1. Spark plug cap
1

1. Spark plug wrench
1

Specified spark plug:
NGK/BP6HS (AUS)(NZL)
NGK/BPR6HS
(AUT)(BEL)(CHE)(DEU)(DNK)
(ESP)(FIN)(FRA)(GBR)(GRC)(IRL)
(NLD)(NOR)(PRT)(SWE)(ZAF)
DENSO/W20FP (AUS)(NZL)
1. Spark plug gap
1
