EAU26945
Read this manual carefully before operating this vehicle. This manual should stay with this vehicle if it is sold.

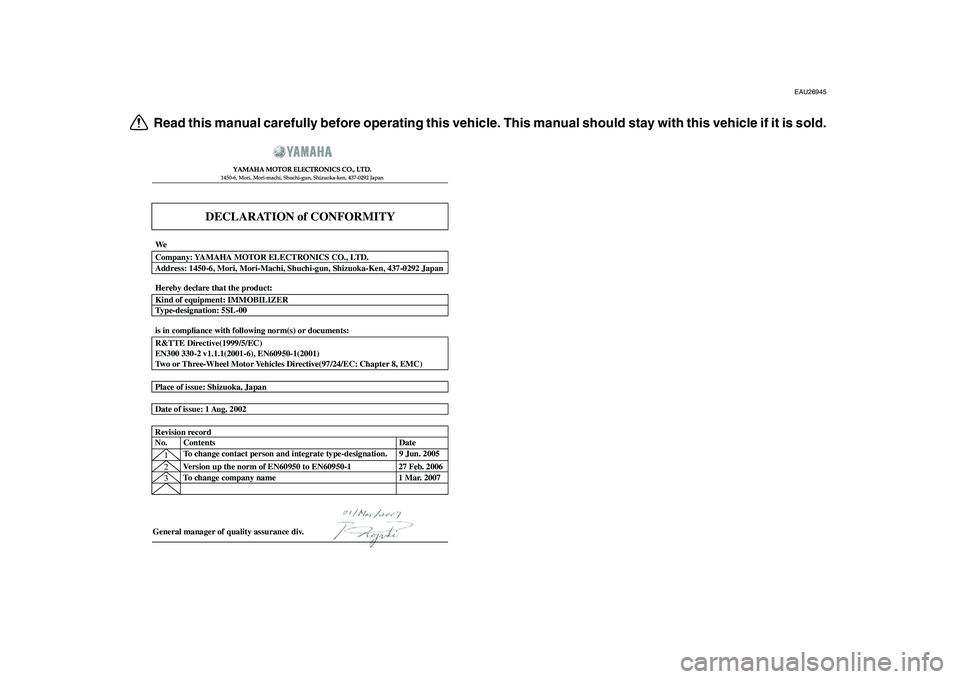

DECLARATION of CONFORMITY
YAMAHA MOTOR ELECTRONICS CO., LTD.1450-6, Mori, Mori-machi, Shuchi-gun, Shizuoka-ken, 437-0292 Japan
General manager of quality assurance div.1
Version up the norm of EN60950 to EN60950-1
To change company name27 Feb. 2006
1 Mar. 2007
2
3Revision record
No. Contents Date
To change contact person and integrate type-designation. 9 Jun. 2005Date of issue: 1 Aug. 2002Place of issue: Shizuoka, JapanR&TTE Directive(1999/5/EC)
EN300 330-2 v1.1.1(2001-6), EN60950-1(2001)
Two or Three-Wheel Motor Vehicles Directive(97/24/EC: Chapter 8, EMC) is in compliance with following norm(s) or documents:Kind of equipment: IMMOBILIZER
Type-designation: 5SL-00 Hereby declare that the product:Company: YAMAHA MOTOR ELECTRONICS CO., LTD.
Address: 1450-6, Mori, Mori-Machi, Shuchi-gun, Shizuoka-Ken, 437-0292 JapanWe
TABLE OF CONTENTS
SAFETY INFORMATION
.................. 1-1
Further safe-riding points ................ 1-5
DESCRIPTION
.................................. 2-1
Left view .......................................... 2-1
Right view ........................................ 2-2
Controls and instruments................. 2-3
INSTRUMENT AND CONTROL
FUNCTIONS
....................................... 3-1
Immobilizer system ......................... 3-1
Main switch/steering lock ................ 3-2
Indicator and warning lights ............ 3-3
Speedometer .................................. 3-5
Tachometer .................................... 3-5
Multi-function display ...................... 3-5
Anti-theft alarm (optional) ............... 3-9
Handlebar switches ...................... 3-10
Front brake lever .......................... 3-11
Rear brake lever ........................... 3-12
Rear brake lock lever .................... 3-12
ABS .............................................. 3-13
Fuel tank cap ................................ 3-14
Fuel ............................................... 3-15
Catalytic converters ...................... 3-16
Seats ............................................ 3-17
Adjusting the rider seat ................. 3-18
Storage compartments ................. 3-19
Adjusting the shock absorber
assemblies ................................ 3-21
Sidestand ...................................... 3-21Ignition circuit cut-off system ........ 3-22
FOR YOUR SAFETY –
PRE-OPERATION CHECKS
............. 4-1
OPERATION AND IMPORTANT
RIDING POINTS
................................. 5-1
Starting the engine ......................... 5-1
Starting off ...................................... 5-2
Acceleration and deceleration ........ 5-2
Braking ........................................... 5-3
Tips for reducing fuel
consumption ............................... 5-3
Engine break-in .............................. 5-4
Parking ........................................... 5-4
PERIODIC MAINTENANCE AND
ADJUSTMENT
................................... 6-1
Owner’s tool kit ............................... 6-1
Periodic maintenance chart for
the emission control system ....... 6-3
General maintenance and
lubrication chart .......................... 6-4
Removing and installing
cowlings and panels ................... 6-7
Checking the spark plug ............... 6-10
Engine oil and oil filter
element ..................................... 6-12
Final transmission oil .................... 6-15
Coolant ......................................... 6-16Air filter elements and check
hoses and V-belt case air
filter element ............................. 6-18
Checking the throttle cable free
play ........................................... 6-20
Valve clearance ........................... 6-21
Tires ............................................. 6-21
Cast wheels ................................. 6-23
Front and rear brake lever free
play ........................................... 6-23
Adjusting the rear brake lock
lever cable ................................ 6-24
Checking the front and rear
brake pads ................................ 6-25
Checking the brake fluid level ...... 6-25
Changing the brake fluid .............. 6-26
Checking and lubricating the
cables ....................................... 6-27
Checking and lubricating the
throttle grip and cable ............... 6-27
Lubricating the front and rear
brake levers .............................. 6-27
Checking and lubricating the
centerstand and sidestand ....... 6-28
Checking the front fork ................. 6-29
Checking the steering .................. 6-29
Checking the wheel bearings ....... 6-30
Battery .......................................... 6-30
Replacing the fuses ..................... 6-31
Replacing a headlight bulb .......... 6-33
Tail/brake light .............................. 6-33
TABLE OF CONTENTS
Front turn signal light .................... 6-33
Replacing a rear turn signal
light bulb .................................... 6-34
Replacing the license plate light
bulb ........................................... 6-34
Auxiliary light bulb ........................ 6-35
Troubleshooting ............................ 6-35
Troubleshooting charts ................. 6-37
SCOOTER CARE AND
STORAGE
.......................................... 7-1
Matte color caution ......................... 7-1
Care ................................................ 7-1
Storage ........................................... 7-3
SPECIFICATIONS
............................. 8-1
CONSUMER INFORMATION
............. 9-1
Identification numbers .................... 9-1
PERIODIC MAINTENANCE AND ADJUSTMENT
6-17
2
3
4
5
67
8
9
3. Remove the coolant reservoir cov-
er by removing the screw.
4. Check the coolant level in the cool-
ant reservoir.
TIP
The coolant should be between the
minimum and maximum level marks.
5. If the coolant is at or below the
minimum level mark, open the
coolant reservoir cap, add coolant
to the maximum level mark, and
then close the coolant reservoir
cap.
WARNING! Remove only
the coolant reservoir cap. Never
attempt to remove the radiator
cap when the engine is
hot.
[EWA15161]
NOTICE:
If coolant is
not available, use distilled water
or soft tap water instead. Do not
use hard water or salt water
since it is harmful to the engine.
If water has been used instead
of coolant, replace it with cool-
ant as soon as possible, other-
wise the cooling system will not
be protected against frost and
corrosion. If water has been
added to the coolant, have a
Yamaha dealer check the anti-
freeze content of the coolant as
soon as possible, otherwise the
effectiveness of the coolant willbe reduced.
[ECA10472]
6. Install the coolant reservoir cover
by installing the screw.
7. Place the right floorboard mat in
the original position.
1. Right floorboard mat
1. Screw
2. Coolant reservoir cover
1
1
2
1. Minimum level mark
2. Maximum level mark
3. Coolant reservoir cap
Coolant reservoir capacity (up to the
maximum level mark):
0.32 L (0.34 US qt, 0.28 Imp.qt)
1
2
3
