2009 YAMAHA MAJESTY 125 key battery

To unlock the steering
1. Push.
2. Turn.
1. Push the key in, and then turn it
to “ ” while still pushing it.
EAU11003
Indicator and warning lights
1. Alarm indicator light
2. Left turn signal indicator light “ ”
3. High beam indicator light “ ”
4. Coolant temperature warning
light “ ”
5. Right turn signal indicator light “ ”
EAU11030
Turn signal indicator lights “ ”
and “ ”
The corresponding indicator light flas-
hes when the turn signal switch is
pushed to the left or right.
EAU11080
High beam indicator light “ ”
This indicator light comes on
when the high beam of the headlight
is switched on.
EAUS1450
Oil change indicator
At the initial 1000 km (600mi) and
every 3000 km (1800 mi) thereafter,
“CHnGE OIL” appears in the odome-
ter/clock display to indicate that the
engine oil should be changed. (See
page 6-9).
EAUM1082
Coolant temperature warning light
“”
This warning light comes on if the
engine overheats. If this occurs, stop
the engine immediately and allow the
engine to cool.
The electrical circuit of the warning
light can be checked according to the
following procedure.
1. Turn the key to “ ”.
2. If the warning light does not
come on, have a Yamaha dealer
check the electrical circuit.
ECA10021
NOTICE
Do not continue to operate the
engine if it is overheating.
Fuel
Battery
TOTALTRIP
123 45
1
2
INSTRUMENT AND CONTROL FUNCTIONS
3-2
3
5D8-F8199-E1.QXD 10/7/08 07:39 Página 17

4. Press the reset button to switch
the mode.
5. Press the reset button for two
seconds to confirm the setting.
TIP
●The odometer/tripmeter reading
mode can be changed any num-
ber of times while the odometer
reading is below 10 (kilometers or
miles), but it cannot be changed
anymore after the reading has
reached 10 (kilometers or miles).
●Switching between the kilometer
mode and the mile mode does
not change or convert the current
odometer/tripmeter reading.
EAUS1460
Fuel and battery voltage
gauge
1. Fuel gauge
2. Battery voltage
When the key is turned to “ ”, the
battery voltage is indicated
for two seconds, and then the amount
of fuel in the fuel tank is indicated.
NOTICE: If the needle drops to the
“10V” (low) mark, have a Yamaha
dealer check the battery.
[ECAS0030]
TIP
●The needle moves towards “E”
(empty) as the fuel level decrea-
ses.
●When the needle reaches “E”,
refuel as soon as possible.Fuel
Battery
1
2
INSTRUMENT AND CONTROL FUNCTIONS
3-4
3
5D8-F8199-E1.QXD 10/7/08 07:39 Página 19

EAU12347
Handlebar switches
Left
1. Dimmer switch “ / ”
2. Turn signal switch “ / ”
3. Horn switch “ ”
Right
1. Hazard switch “ ”
2. Start switch “ ”
EAUS1020
Dimmer switch “ / ”
Set this switch to “ ” for the high
beam and to “ ” for the low beam.
With the headlight on low beam,
press this switch downwards to flash
the headlight.
EAU12460
Turn signal switch “ / ”
To signal a right-hand turn, push this
switch to “ ”. To signal a left-hand
turn, push this switch to “ ”. When
released, the switch returns to the
center position. To cancel the turn
signal lights, push the switch in after it
has returned to the center position.
EAU12500
Horn switch “ ”
Press this switch to sound the horn.
EAU12721
Start switch “ ”
With the sidestand up, push this
switch while applying the front or rear
brake to crank the engine with the
starter. See page 5-1 for starting ins-
tructions prior to starting the engine.
EAU12765
Hazard switch “ ”
With the key in the “ ” position, use
this switch to turn on the hazard lights
(simultaneous flashing of all turn sig-
nal lights).
The hazard lights are used in case of
an emergency or to warn other drivers
when your vehicle is stopped where it
might be a traffic hazard.
ECA10061
NOTICE
Do not use the hazard lights for an
extended length of time with the
engine not running, otherwise the
battery may discharge.
11
22
11
22
33
INSTRUMENT AND CONTROL FUNCTIONS
3-6
3
5D8-F8199-E1.QXD 10/7/08 07:39 Página 21

EAU15951
Read the Owner’s Manual carefully to
become familiar with all controls. If
there is a control or function you do
not understand, ask your Yamaha
dealer.
EWA10271
s s
WARNING
Failure to familiarize yourself with
the controls can lead to loss of
control, which could cause an acci-
dent or injury.
EAUM2171

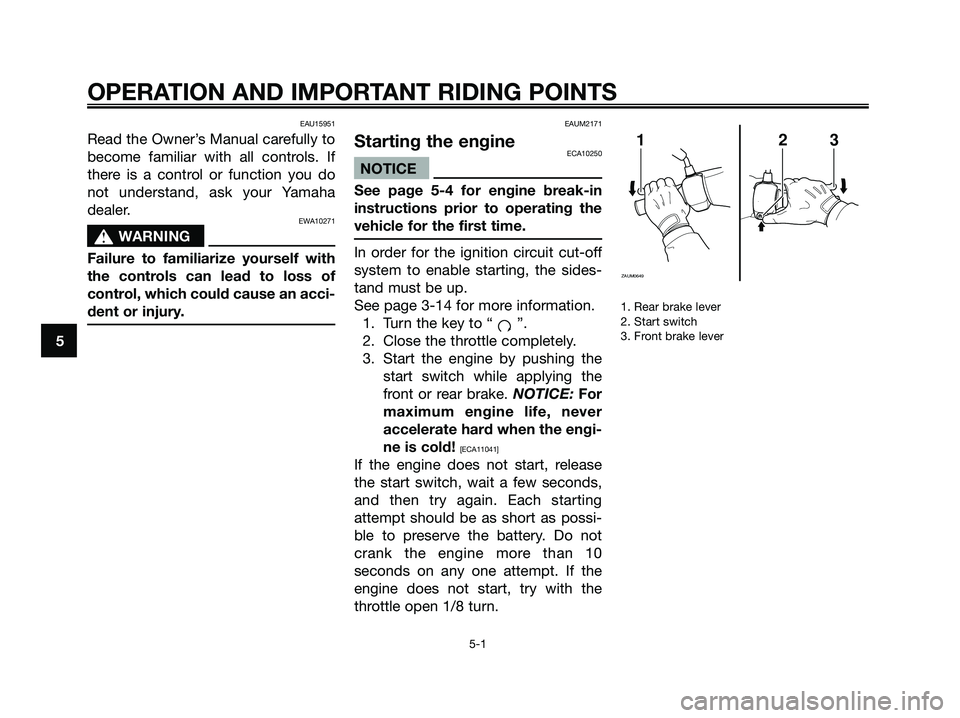

Starting the engineECA10250
NOTICE
See page 5-4 for engine break-in
instructions prior to operating the
vehicle for the first time.
In order for the ignition circuit cut-off
system to enable starting, the sides-
tand must be up.
See page 3-14 for more information.
1. Turn the key to “ ”.
2. Close the throttle completely.
3. Start the engine by pushing the
start switch while applying the
front or rear brake. NOTICE: For
maximum engine life, never
accelerate hard when the engi-
ne is cold!
[ECA11041]
If the engine does not start, release
the start switch, wait a few seconds,
and then try again. Each starting
attempt should be as short as possi-
ble to preserve the battery. Do not
crank the engine more than 10
seconds on any one attempt. If the
engine does not start, try with the
throttle open 1/8 turn.
1. Rear brake lever
2. Start switch
3. Front brake lever
123
ZAUM0649
OPERATION AND IMPORTANT RIDING POINTS
5-1
5
5D8-F8199-E1.QXD 10/7/08 07:39 Página 34

contains minerals that are
harmful to the battery.
[ECA10611]
EWA10760
s s
WARNING
●Electrolyte is poisonous and
dangerous since it contains
sulfuric acid, which causes
severe burns. Avoid any con-
tact with skin, eyes or clothing
and always shield your eyes
when working near batteries.
In case of contact, administer
the following FIRST AID.
• EXTERNAL: Flush with plenty
of water.
• INTERNAL: Drink large quan-
tities of water or milk and
immediately call a physician.
• EYES: Flush with water for 15
minutes and seek prompt
medical attention.
●Batteries produce explosive
hydrogen gas. Therefore, keep
sparks, flames, cigarettes, etc.,
away from the battery and pro-
vide sufficient ventilation when
charging it in an enclosed spa-
ce.
●KEEP THIS AND ALL BATTE-
RIES OUT OF THE REACH OF
CHILDREN.
5. Check and, if necessary, tighten
the battery lead connections and
correct the breather hose routing.
To store the battery
1. If the scooter will not be used for
more than one month, remove
the battery, fully charge it, and
then place it in a cool, dry place.
NOTICE: When removing the
battery, be sure the key is tur-
ned to “ ”, then disconnect
the negative lead before dis-
connecting the positive lead.
[ECA16302]
2. If the battery will be stored for
more than two months, check the
specific gravity of the electrolyte
at least once a month and fully
charge the battery whenever
necessary.
3. Fully charge the battery before
installation.4. After installation, make sure that
the battery leads are properly
connected to the battery termi-
nals and that the breather hose is
properly routed, in good condi-
tion, and not obstructed. NOTI-
CE: If the breather hose is posi-
tioned in such a way that the
frame is exposed to electrolyte
or gas expelled from the bat-
tery, the frame could suffer
structural and external dama-
ges.
[ECA10601]
PERIODIC MAINTENANCE AND ADJUSTMENT
6-25
6
5D8-F8199-E1.QXD 10/7/08 07:39 Página 62

AAcceleration and deceleration ...................5-2
Air filter and V-belt case air filter
elements ................................................6-14
Anti-theft alarm (optional) ..........................3-5
Auxiliary light bulb, replacing ...................6-30
BBattery......................................................6-24
Brake fluid level, checking .......................6-20
Brake fluid, changing ...............................6-21
Brake lever, front ........................................3-7
Brake lever, rear .........................................3-7
Brake levers, lubricating ..........................6-21
Braking .......................................................5-3
CCables, checking and lubricating ............6-21
Carburetor,adjusting.................................6-15
Care............................................................7-1
Catalytic converter ...................................3-10
Centerstand and sidestand, checking
and lubricating .......................................6-22
Clock ..........................................................3-5
Coolant.....................................................6-12
Coolant temperature warning light ............3-2
DDimmer switch ...........................................3-6
EEngine break-in ..........................................5-4
Engine oil ...................................................6-9
FFinal transmission oil ...............................6-11
Front and rear brake lever free play.........6-18
Front and rear brake pads, checking ......6-19
Front fork, checking .................................6-23Fuel ............................................................3-8
Fuel and battery voltage gauge .................3-4
Fuel consumption, tips for reducing ..........5-3
Fuel tank breather/overflow hose ..............3-9
Fuel tank cap .............................................3-7
Fuses, replacing .......................................6-26
HHandlebar switches ...................................3-6
Hazard switch ............................................3-6
Headlight bulb, replacing .........................6-26
High beam indicator light...........................3-2
Horn switch ................................................3-6
IIdentification numbers ...............................9-1
Ignition circuit cut-off system ..................3-14
Indicator and warning lights ......................3-2
KKey identification number ..........................9-1
LLicense plate light bulb, replacing ...........6-30
MMain switch/steering lock ..........................3-1
Matte color, caution ...................................7-1
Model label ................................................9-2
OOil change indicator ...................................3-2
PPanels, removing and installing .................6-7
Parking .......................................................5-4
Part locations .............................................2-1
Periodic maintenance and lubrication
chart .........................................................6-3
Pre-operation check list .............................4-2
SSafe-riding points.......................................1-5
Safety information ......................................1-1
Seat ..........................................................3-10
Shock absorber assemblies, adjusting....3-13
Sidestand .................................................3-13
Spark plug, checking .................................6-8
Specifications.............................................8-1
Speedometer unit ......................................3-3
Start switch ................................................3-6
Starting off .................................................5-2
Starting the engine.....................................5-1
Steering, checking ...................................6-23
Storage.......................................................7-3
Storage compartment ..............................3-11
Storage compartment ..............................3-12
TTail/brake light bulb or rear turn signal light
bulb, replacing .......................................6-29
Throttle cable free play, adjusting ............6-15
Tires .........................................................6-16
Tool kit ........................................................6-1
Troubleshooting .......................................6-31
Troubleshooting charts ............................6-32
Turn signal indicator lights .........................3-2
Turn signal light bulb (front), replacing ....6-28
Turn signal switch ......................................3-6
VValve clearance ........................................6-16
Vehicle identification number .....................9-1
WWheel bearings, checking........................6-24
Wheels .....................................................6-18
INDEX
5D8-F8199-E1.QXD 10/7/08 07:39 Página 80
