SAFETY INFORMATION.....................1-1
Further safe-riding points .................1-5
DESCRIPTION.....................................2-1
Left view ...........................................2-1
Right view .........................................2-2
Controls and instruments .................2-3
INSTRUMENT AND CONTROL
FUNCTIONS........................................3-1
Main switch/steering lock .................3-1
Indicator and warning lights .............3-2
Turn signal indicator lights ...............3-2
High beam indicator light ................3-2
Oil change indicator..........................3-2
Coolant temperature warning light ..3-2
Speedometer unit .............................3-3
Fuel and battery voltage
gauge.............................................3-4
Clock .................................................3-5
Anti-theft alarm (optional) .................3-5
Handlebar switches ..........................3-6
Dimmer switch ..................................3-6
Turn signal switch ............................3-6
Horn switch .....................................3-6
Start switch ......................................3-6
Hazard switch ..................................3-6
Front brake lever...............................3-7
Rear brake lever................................3-7
Fuel tank cap ....................................3-7
Fuel ...................................................3-8Fuel tank breather/overflow hose .....3-9
Catalytic converter..........................3-10
Seat.................................................3-10
Storage compartment.....................3-11
Storage compartment.....................3-12
Adjusting the shock absorber
assemblies...................................3-13
Sidestand ........................................3-13
Ignition circuit cut-off system .........3-14
FOR YOUR SAFETY – PRE-
OPERATION CHECKS........................4-1
Pre-operation check list....................4-2
OPERATION AND IMPORTANT
RIDING POINTS..................................5-1
Starting the engine ...........................5-1
Starting off ........................................5-2
Acceleration and deceleration ..........5-2
Braking..............................................5-3
Tips for reducing fuel
consumption..................................5-3
Engine break-in.................................5-4
Parking ..............................................5-4
PERIODIC MAINTENANCE AND
ADJUSTMENT.....................................6-1
Owner’s tool kit .................................6-1
Periodic maintenance and lubrication
chart ..............................................6-3
Removing and installing panels........6-7Checking the spark plug ..................6-8
Engine oil ..........................................6-9
Final transmission oil ......................6-11
Coolant ...........................................6-12
Air filter and V-belt case
air filter elements .........................6-14
Adjusting the carburetor .................6-15
Adjusting the throttle cable
free play .......................................6-15
Valve clearance ...............................6-16
Tires ................................................6-16
Cast wheels ....................................6-18
Front and rear brake lever
free play .......................................6-18
Checking the front and rear
brake pads ..................................6-19
Checking the brake fluid
level .............................................6-20
Changing the brake fluid ................6-21
Checking and lubricating the
cables ..........................................6-21
Lubricating the front and
rear brake levers..........................6-21
Checking and lubricating the
centerstand and sidestand .........6-22
Checking the front fork ...................6-23
Checking the steering.....................6-23
Checking the wheel bearings .........6-24
Battery ............................................6-24
Replacing the fuses ........................6-26
Replacing a headlight bulb .............6-26
TABLE OF CONTENTS
5D8-F8199-E1.QXD 10/7/08 07:39 Página 6

Replacing a front turn signal
light bulb......................................6-28
Replacing the tail/brake light bulb or a
rear turn signal light bulb ............6-29
Replacing the license plate
light bulb......................................6-30
Replacing an auxiliary light
bulb .............................................6-30
Troubleshooting ..............................6-31
Troubleshooting charts ...................6-32
SCOOTER CARE AND STORAGE.....7-1
Matte color caution...........................7-1
Care ..................................................7-1
Storage .............................................7-3
SPECIFICATIONS...............................8-1
CONSUMER INFORMATION.............9-1
Identification numbers ......................9-1
Key identification number .................9-1
Vehicle identification number............9-1
Model label .......................................9-2
TABLE OF CONTENTS
5D8-F8199-E1.QXD 10/7/08 07:39 Página 7

EAU10372

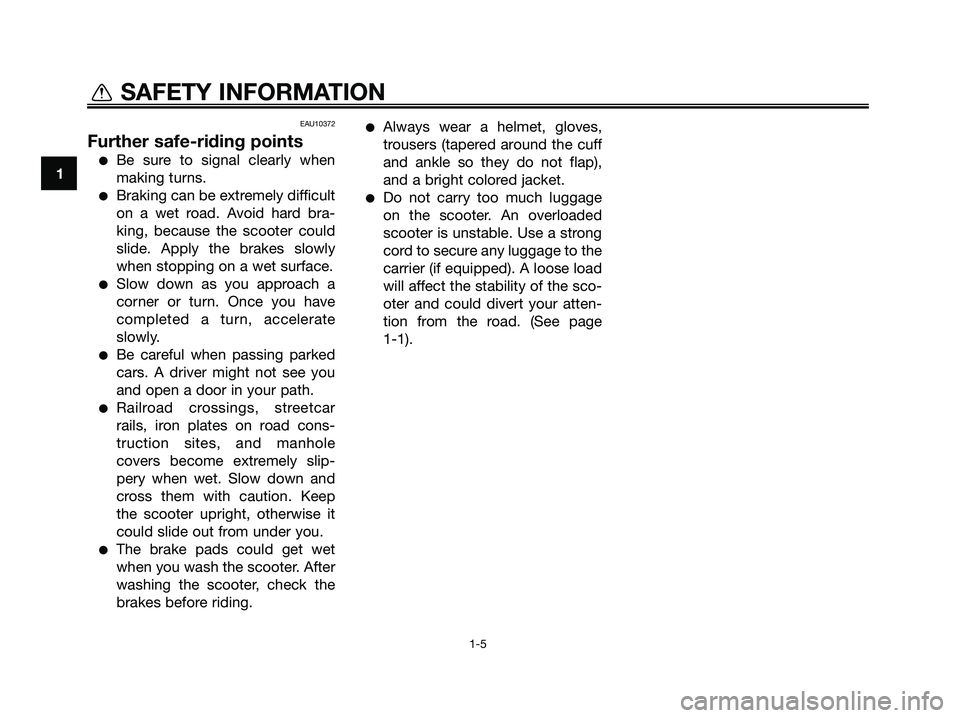

Further safe-riding points
●Be sure to signal clearly when
making turns.
●Braking can be extremely difficult
on a wet road. Avoid hard bra-
king, because the scooter could
slide. Apply the brakes slowly
when stopping on a wet surface.
●Slow down as you approach a
corner or turn. Once you have
completed a turn, accelerate
slowly.
●Be careful when passing parked
cars. A driver might not see you
and open a door in your path.
●Railroad crossings, streetcar
rails, iron plates on road cons-
truction sites, and manhole
covers become extremely slip-
pery when wet. Slow down and
cross them with caution. Keep
the scooter upright, otherwise it
could slide out from under you.
●The brake pads could get wet
when you wash the scooter. After
washing the scooter, check the
brakes before riding.
●Always wear a helmet, gloves,
trousers (tapered around the cuff
and ankle so they do not flap),
and a bright colored jacket.
●Do not carry too much luggage
on the scooter. An overloaded
scooter is unstable. Use a strong
cord to secure any luggage to the
carrier (if equipped). A loose load
will affect the stability of the sco-
oter and could divert your atten-
tion from the road. (See page
1-1).
1
SAFETY INFORMATION
1-5
5D8-F8199-E1.QXD 10/7/08 07:39 Página 12

EAU10410
Left view
DESCRIPTION
2-1
2
21
3
45 6789
1. Storage compartment (page 3-12)
2. Fuel tank cap (page 3-7)
3. Shock absorber assembly spring preload adjusting ring (page 3-13)
4. Final transmission oil filler cap (page 6-11)
5. Air filter element (page 6-14)6. V-belt case air filter element (page 6-14)
7. Engine oil drain bolt (page 6-9)
8. Sidestand (page 3-13, 6-22)
9. Front brake pads (page 6-19)
5D8-F8199-E1.QXD 10/7/08 07:39 Página 13

EAU10420
Right view
DESCRIPTION
2-2
2
12345
678
1. Grab bar (page 5-2)
2. Owner’s tool kit (page 6-1)
3. Battery (page 6-24)
4. Fuse (page 6-26)5. Coolant reservoir cap (page 6-12)
6. Centerstand (page 6-22)
7. Engine oil filler cap (page 6-9)
8. Rear brake pads (page 6-19)
5D8-F8199-E1.QXD 10/7/08 07:39 Página 14

EAU10430
Controls and instruments
DESCRIPTION
2-3
2123546798
1. Rear brake lever (page 3-7)
2. Left handlebar switches (page 3-6)
3. Front storage compartment (page 3-11)
4. Coolant level check window (page 6-12)
5. Speedometer/Multi-function display (page 3-3)6. Main switch/steering lock (page 3-1)
7. Right handlebar switches (page 3-6)
8. Throttle grip (page 6-15)
9. Front brake lever (page 3-7)
5D8-F8199-E1.QXD 10/7/08 07:39 Página 15

EAU12347
Handlebar switches
Left
1. Dimmer switch “ / ”
2. Turn signal switch “ / ”
3. Horn switch “ ”
Right
1. Hazard switch “ ”
2. Start switch “ ”
EAUS1020
Dimmer switch “ / ”
Set this switch to “ ” for the high
beam and to “ ” for the low beam.
With the headlight on low beam,
press this switch downwards to flash
the headlight.
EAU12460
Turn signal switch “ / ”
To signal a right-hand turn, push this
switch to “ ”. To signal a left-hand
turn, push this switch to “ ”. When
released, the switch returns to the
center position. To cancel the turn
signal lights, push the switch in after it
has returned to the center position.
EAU12500
Horn switch “ ”
Press this switch to sound the horn.
EAU12721
Start switch “ ”
With the sidestand up, push this
switch while applying the front or rear
brake to crank the engine with the
starter. See page 5-1 for starting ins-
tructions prior to starting the engine.
EAU12765
Hazard switch “ ”
With the key in the “ ” position, use
this switch to turn on the hazard lights
(simultaneous flashing of all turn sig-
nal lights).
The hazard lights are used in case of
an emergency or to warn other drivers
when your vehicle is stopped where it
might be a traffic hazard.
ECA10061
NOTICE
Do not use the hazard lights for an
extended length of time with the
engine not running, otherwise the
battery may discharge.
11
22
11
22
33
INSTRUMENT AND CONTROL FUNCTIONS
3-6
3
5D8-F8199-E1.QXD 10/7/08 07:39 Página 21

EAU12900

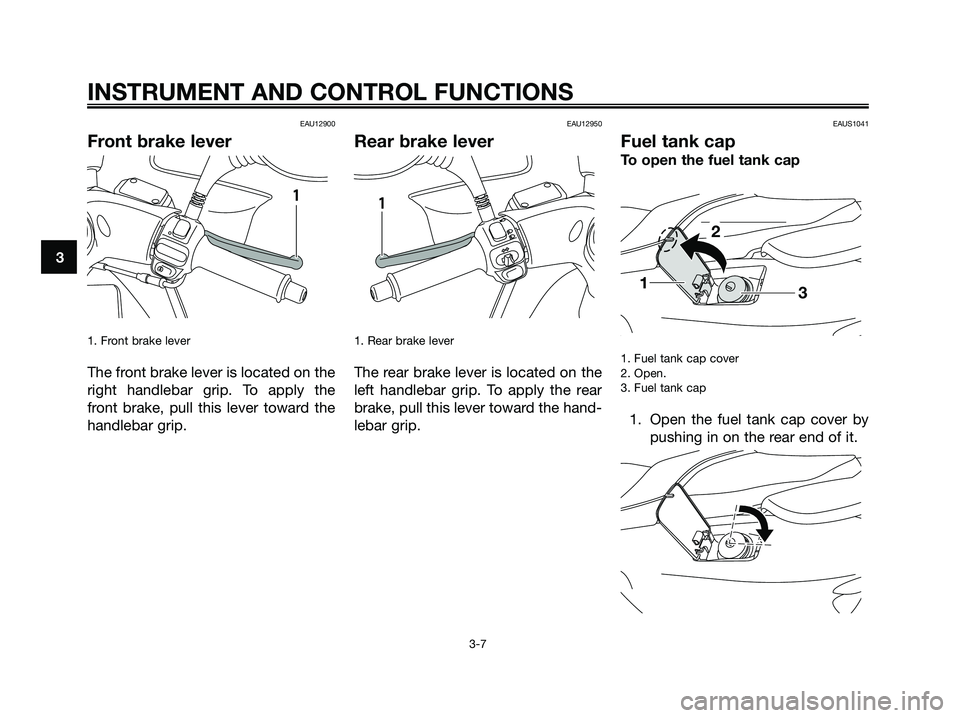

Front brake lever
1. Front brake lever
The front brake lever is located on the
right handlebar grip. To apply the
front brake, pull this lever toward the
handlebar grip.
EAU12950
Rear brake lever
1. Rear brake lever
The rear brake lever is located on the
left handlebar grip. To apply the rear
brake, pull this lever toward the hand-
lebar grip.
EAUS1041
Fuel tank cap
To open the fuel tank cap
1. Fuel tank cap cover
2. Open.
3. Fuel tank cap
1. Open the fuel tank cap cover by
pushing in on the rear end of it.
13
2
1111
INSTRUMENT AND CONTROL FUNCTIONS
3-7
3
5D8-F8199-E1.QXD 10/7/08 07:39 Página 22
