2009 YAMAHA GRIZZLY 700 check engine

8-52
8
EBU24900Checking and lubricating the cables The operation and the condition of all control ca-
bles should be checked before each ride, and the
cables and cable ends should be lubricated if nec-
essary. If a cable is damaged or does not move
smoothly, have a Yamaha dealer check or replace
it.
WARNING
EWB02130Inspect cables frequently and replace if dam-
aged. Corrosion can result when the cable
sheaths become damaged, and cables can
also become frayed or kinked, which could re-
strict the operation of controls and lead to anaccident or injury.EBU24912Checking and lubricating the front and
rear brake levers The operation of the front and rear brake levers
should be checked before each ride, and the lever
pivots should be lubricated if necessary.Front brake lever
Recommended lubricant:
Engine oil
Recommended lubricant:
Silicone grease
U43P60E0.book Page 52 Tuesday, May 20, 2008 5:33 PM

8-66
8
EBU27691Troubleshooting charts Starting problems or poor engine performance
Check the fuel level in
the fuel tank.1. Fuel
There is enough fuel.
There is no fuel.
Check the compression.
Supply fuel.
The engine does not start.
Check the compression.
Operate the electric starter.2. Compression
There is compression.
There is no compression.
Check the ignition.
Have a Yamaha dealer
check the ATV.
Remove the spark plug
and check the electrodes.3. Ignition
Wipe off with a dry cloth and correct the
spark plug gap, or replace the spark plug.
Have a Yamaha dealer check the ATV.
The engine does not start.
Have a Yamaha dealer
check the ATV.
The engine does not start.
Check the battery.
Operate the electric starter.4. Battery
The engine turns over
quickly.
The engine turns over
slowly.
The battery is good.Check the battery lead connections,
and charge the battery if necessary.
DryWet
Operate the electric starter.
U43P60E0.book Page 66 Tuesday, May 20, 2008 5:33 PM

8-67

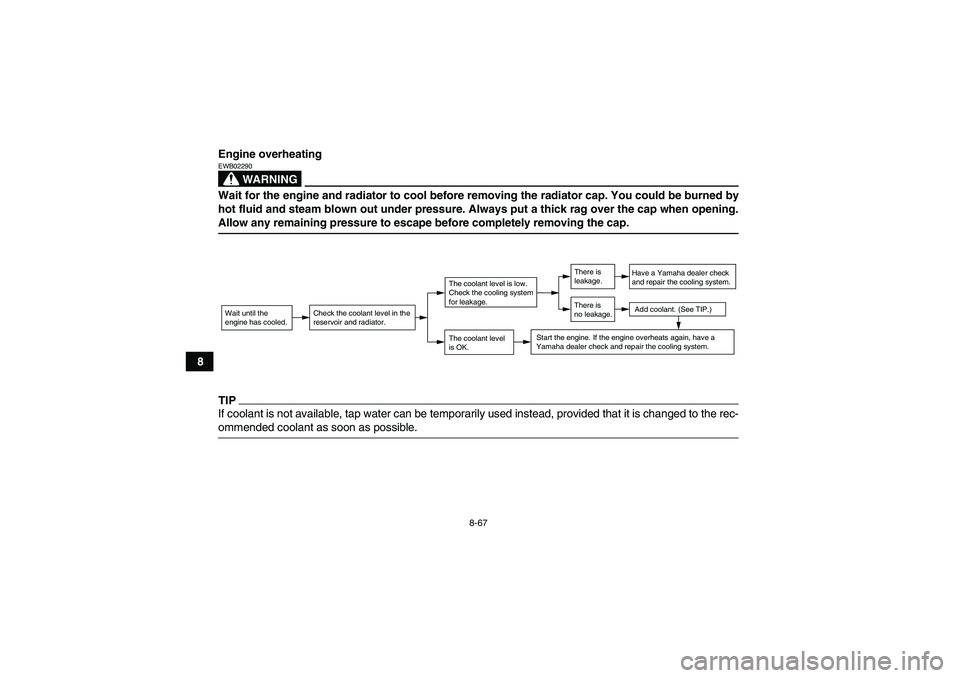

8Engine overheating
WARNING
EWB02290Wait for the engine and radiator to cool before removing the radiator cap. You could be burned by
hot fluid and steam blown out under pressure. Always put a thick rag over the cap when opening.Allow any remaining pressure to escape before completely removing the cap.TIPIf coolant is not available, tap water can be temporarily used instead, provided that it is changed to the rec-ommended coolant as soon as possible.Wait until the
engine has cooled.
Check the coolant level in the
reservoir and radiator.
The coolant level
is OK.The coolant level is low.
Check the cooling system
for leakage.
Have a Yamaha dealer check
and repair the cooling system.Add coolant. (See TIP.)
Start the engine. If the engine overheats again, have a
Yamaha dealer check and repair the cooling system.
There is
leakage.
There is
no leakage.
U43P60E0.book Page 67 Tuesday, May 20, 2008 5:33 PM

INDEX
AAccessories and loading ................................................ 6-5
Accessories, auxiliary jack ........................................... 4-22
Air filter element, cleaning ............................................ 8-37
Axle boots .................................................................... 8-51BBattery .......................................................................... 8-54
Brake fluid, changing .................................................... 8-47
Brake fluid level, checking ............................................ 8-46
Brake hose protectors, checking the rear .................... 8-45
Brake lever, front .......................................................... 4-14
Brake levers, checking and lubricating ......................... 8-52
Brake pads, checking the front and rear ...................... 8-44
Brake pedal and rear brake lever ................................. 4-14
Brake pedal, checking and lubricating ......................... 8-53
Brake pedal free play, adjusting ................................... 8-49
Brakes, front and rear .................................................... 5-4CCables, checking and lubricating ................................. 8-52
Carrier, front ................................................................. 4-21
Carrier, rear .................................................................. 4-21
Chassis fasteners ........................................................... 5-7
Cleaning ......................................................................... 9-1
Coolant .................................................................. 5-3, 8-31
Coolant temperature warning light ................................. 4-2DDifferential gear lock indicator light ................................ 4-4
Differential gear oil ................................................ 5-3, 8-29Drive select lever .......................................................... 4-15
Drive select lever and driving in reverse ........................ 6-2
Drive select lever safety system cable, adjusting ......... 8-44
EEngine break-in .............................................................. 6-4
Engine oil ....................................................................... 5-3
Engine oil and oil filter cartridge ................................... 8-22
Engine stop switch ......................................................... 4-7
Engine trouble warning light ........................................... 4-3
EPS warning light ........................................................... 4-3FFinal gear oil .......................................................... 5-3, 8-26
Four-wheel-drive/differential gear lock indicator ............ 4-3
Front and rear brake lever free play, checking ............. 8-48
Fuel ....................................................................... 4-16, 5-3
Fuel tank cap ................................................................ 4-15
Fuses, replacing ........................................................... 8-57HHandlebar switches ........................................................ 4-7
Headlight beam, adjusting ............................................ 8-62
Headlight bulb, replacing .............................................. 8-59
High-range indicator light ............................................... 4-4
Horn switch .................................................................... 4-8IIdentification numbers .................................................. 11-1
Indicator lights and warning lights .................................. 4-2
Instruments, lights and switches .................................... 5-7
U43P60E0.book Page 1 Tuesday, May 20, 2008 5:33 PM

KKey identification number ............................................. 11-1LLabel locations ............................................................... 2-1
Light switch .................................................................... 4-8
Low-range indicator light ................................................ 4-4MMain switch .................................................................... 4-1
Maintenance and lubrication chart ................................. 8-4
Maintenance chart, emission control system ................. 8-3
Model label ................................................................... 11-2
Multifunction display ....................................................... 4-5NNeutral indicator light ..................................................... 4-2OOn-Command differential gear lock switch .................. 4-10
On-Command four-wheel-drive switch ........................... 4-9
Override switch .............................................................. 4-8
Owner’s manual and tool kit ........................................... 8-1PPanels, removing and installing ..................................... 8-8
Park indicator light ......................................................... 4-4
Parking ........................................................................... 6-5
Parking on a slope ......................................................... 6-5
Part locations ................................................................. 3-1
Pre-operation check list ................................................. 5-1RRadiator grills, removing .............................................. 8-19
Rear knuckle pivots, lubricating ................................... 8-54
Reverse indicator light ................................................... 4-2
Riding your ATV ............................................................. 7-1
SSafety information .......................................................... 1-1
Seat ............................................................................. 4-17
Shock absorber assemblies, adjusting the front and
rear ............................................................................ 4-21
Spark arrester, cleaning ............................................... 8-41
Spark plug, checking ................................................... 8-20
Specifications ............................................................... 10-1
Speed limiter ................................................................ 4-13
Stabilizer bushes, checking ......................................... 8-53
Starting the engine ......................................................... 6-1
Start switch .................................................................... 4-8
Steering shaft, lubricating ............................................ 8-54
Storage .......................................................................... 9-2
Storage compartments ................................................ 4-18TTail/brake light bulb, replacing ..................................... 8-62
Throttle cable free play, adjusting ................................ 8-43
Throttle lever ......................................................... 4-12, 5-4
Tire pressure, measuring ............................................... 5-6
Tires ............................................................................... 5-5
Tire wear limit ................................................................ 5-7
Troubleshooting ........................................................... 8-65
Troubleshooting charts ................................................ 8-66VValve clearance ........................................................... 8-44
V-belt case drain plug .................................................. 8-43
Vehicle identification number ....................................... 11-1WWheel hub bearings, checking ..................................... 8-53
Wheel, installing ........................................................... 8-64
Wheel, removing .......................................................... 8-63
