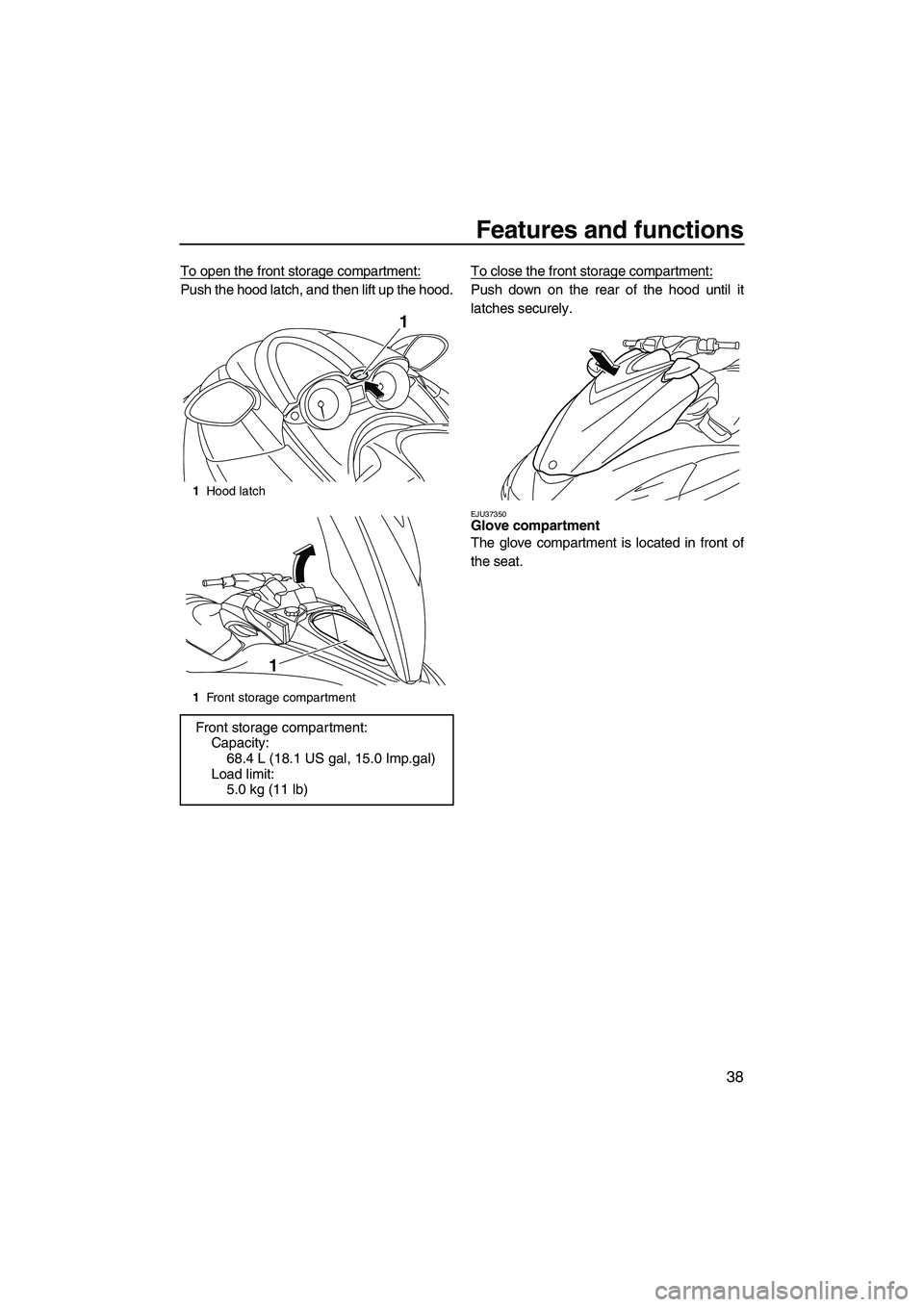

Features and functions
38
To open the front storage compartment:
Push the hood latch, and then lift up the hood.To close the front storage compartment:Push down on the rear of the hood until it
latches securely.
EJU37350Glove compartment
The glove compartment is located in front of
the seat.
1Hood latch
1Front storage compartment
Front storage compartment:
Capacity:
68.4 L (18.1 US gal, 15.0 Imp.gal)
Load limit:
5.0 kg (11 lb)
1
1
UF2R70E0.book Page 38 Thursday, November 6, 2008 10:05 AM

Features and functions
39
To open the glove compartment:
Slide the glove compartment latch toward
you, and then lift up the lid.
To close the glove compartment:
Push the lid down until it latches securely.
Beverage holder
A removable beverage holder, which includes
a transmitter holder, is provided in the glove
compartment.
Do not place beverages in the beverage hold-
er when operating the watercraft.Keep the remote control transmitter in the
transmitter holder when operating the water-
craft.
EJU37230Watertight compartment
The watertight compartment is located under
the rear seat.
To open the watertight compartment:
(1) Remove the rear seat. (See page 23 for
rear seat removal and installation proce-
dures.)
1Glove compartment latch
1Glove compartment
Glove compartment:
Capacity:
3.5 L (0.9 US gal, 0.8 Imp.gal)
Load limit:
1.0 kg (2 lb)
1
1
1Beverage holder
2Transmitter holder
1
2
UF2R70E0.book Page 39 Thursday, November 6, 2008 10:05 AM

Features and functions
40
(2) Turn the cap counterclockwise.
To close the watertight compartment:
(1) Turn the cap clockwise until it stops.
(2) Install the rear seat.
1Cap
1Watertight compartment
Watertight compartment:
Capacity:
8.7 L (2.3 US gal, 1.9 Imp. gal)
Load limit:
3.0 kg (7 lb)
1
1
UF2R70E0.book Page 40 Thursday, November 6, 2008 10:05 AM

Specifications
79
EJU34542
Specifications
Watercraft capacity:
Maximum people on board:
2 person
Maximum load capacity:
160 kg (353 lb)
Dimensions:
Length:
3350 mm (131.9 in)
Width:
1230 mm (48.4 in)
Height:
1160 mm (45.7 in)
Dry weight:
366 kg (807 lb)
Performance:
Maximum output (according to ISO 8665/SAE
J1228):
154.50 kW@7500 r/min
Maximum fuel consumption:
67.3 L/h (17.8 US gal/h, 14.8 Imp.gal/h)
Cruising range at full throttle:
1.04 hour
Trolling speed:
1250 ±100 r/min
Engine:
Engine type:
Liquid cooled 4-stroke, DOHC
Number of cylinders:
4
Engine displacement:
1812 cm³
Bore & stroke:
86.0 × 78.0 mm (3.39 × 3.07 in)
Compression ratio:
8.6 : 1
Valve clearance-intake (cold):
0.14–0.23 mm (0.0055–0.0091 in)
Valve clearance-exhaust (cold):
0.28–0.37 mm (0.0110–0.0146 in)
Lubrication system:
Wet sump
Cooling system:
Water
Starting system:
Electric
Ignition system:
T.C.I.Spark plug:
LFR6A
Spark plug gap:
0.8–0.9 mm (0.031–0.035 in)
Battery capacity:
12 V, 19.0 Ah
Charging system:
Flywheel magneto
Drive unit:
Propulsion system:
Jet pump
Jet pump type:
Axial flow, single stage
Impeller rotation:
Counterclockwise
Jet thrust nozzle angle:
24.0+24.0 °
Jet thrust nozzle trim angle:
-10, -5, 0, 5, 10 °
Fuel and oil:
Recommended fuel:
Regular unleaded gasoline
Minimum octane rating (PON):
86
Minimum octane rating (RON):
90
Recommended engine oil type SAE:
SAE 10W-30, 10W-40, 20W-40, 20W-50
Recommended engine oil grade API:
API SE,SF,SG,SH,SJ,SL
Fuel tank total capacity:
70 L (18.5 US gal, 15.4 Imp.gal)
Engine oil quantity with oil filter replacement:
3.1 L (3.28 US qt, 2.73 Imp.qt)
Engine oil quantity without oil filter replacement:
3.0 L (3.17 US qt, 2.64 Imp.qt)
Engine oil total quantity:
4.3 L (4.55 US qt, 3.78 Imp.qt)
