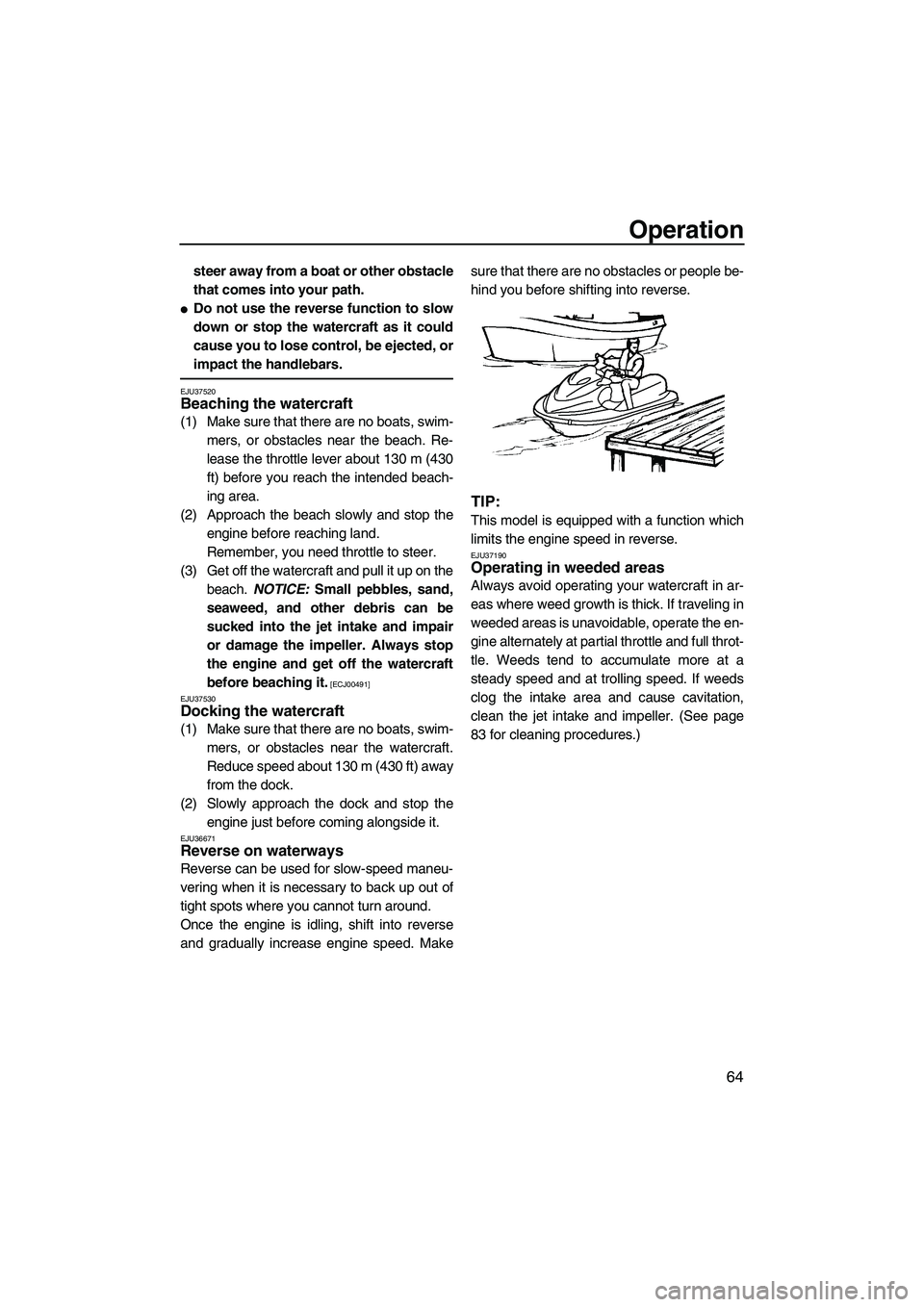

Operation
64
steer away from a boat or other obstacle
that comes into your path.

Do not use the reverse function to slow
down or stop the watercraft as it could
cause you to lose control, be ejected, or
impact the handlebars.
EJU37520Beaching the watercraft
(1) Make sure that there are no boats, swim-
mers, or obstacles near the beach. Re-
lease the throttle lever about 130 m (430
ft) before you reach the intended beach-
ing area.
(2) Approach the beach slowly and stop the
engine before reaching land.
Remember, you need throttle to steer.
(3) Get off the watercraft and pull it up on the
beach. NOTICE: Small pebbles, sand,
seaweed, and other debris can be
sucked into the jet intake and impair
or damage the impeller. Always stop
the engine and get off the watercraft
before beaching it.
[ECJ00491]
EJU37530
Docking the watercraft
(1) Make sure that there are no boats, swim-
mers, or obstacles near the watercraft.
Reduce speed about 130 m (430 ft) away
from the dock.
(2) Slowly approach the dock and stop the
engine just before coming alongside it.
EJU36671Reverse on waterways
Reverse can be used for slow-speed maneu-
vering when it is necessary to back up out of
tight spots where you cannot turn around.
Once the engine is idling, shift into reverse
and gradually increase engine speed. Makesure that there are no obstacles or people be-
hind you before shifting into reverse.
TIP:
This model is equipped with a function which
limits the engine speed in reverse.
EJU37190Operating in weeded areas
Always avoid operating your watercraft in ar-
eas where weed growth is thick. If traveling in
weeded areas is unavoidable, operate the en-
gine alternately at partial throttle and full throt-
tle. Weeds tend to accumulate more at a
steady speed and at trolling speed. If weeds
clog the intake area and cause cavitation,
clean the jet intake and impeller. (See page
83 for cleaning procedures.)
UF2R70E0.book Page 64 Thursday, November 6, 2008 10:05 AM

Operation
65
EJU37091
Post-operation care
To keep your watercraft in top shape, always
take it out of the water after using it and per-
form the following procedures. Leaving the
watercraft in the water for extended periods
will accelerate the rate of normal deterioration
of the jet unit components and hull finish. Ma-
rine organisms and corrosion are some of the
conditions that can adversely affect the life of
many watercraft components.
(1) Remove the watercraft from the water.
(2) Wash down the hull, handlebars, and jet
unit with fresh water.
(3) Remove the seats and check the engine
compartment for water. To drain excess
water, remove the stern drain plugs, and
then raise the bow of the watercraft
enough to allow the water in the bilge to
drain out.
TIP:
This watercraft is equipped with a jet vacuum
bilge draining system and an electric bilge
draining system that remove water from the
engine compartment while you are underway.
However, some residual water will remain,
therefore remove the stern drain plugs to
drain the water. (See page 47 for bilge drain-
ing procedures.)
(4) Place the watercraft in a horizontal posi-
tion.(5) Flush the cooling system to prevent it
from clogging with salt, sand, or dirt. (See
page 67 for flushing procedures.)
(6) Rinse the engine and engine compart-
ment with a small amount of water.
NOTICE: Do not use high-pressure
water when rinsing the engine or en-
gine compartment as severe engine
damage could result.
[ECJ00571]
(7) Wipe the engine and engine compart-
ment dry with a clean cloth (repeat step 3,
if necessary).
(8) Wipe the hull, handlebars, and jet unit dry
with a clean cloth.
(9) Spray a rust inhibitor on metallic parts to
minimize corrosion.
(10) Allow the engine compartment to air dry
completely before installing the seats.
UF2R70E0.book Page 65 Thursday, November 6, 2008 10:05 AM

Maintenance and care
67
EJU33490
Storage
WARNING
EWJ00330
Always place the watercraft upright in a
horizontal position when storing it, other-
wise fuel could leak out into the engine or
engine compartment, which could create a
fire hazard.
Storage for long periods of time, such as win-
ter storage, requires preventive maintenance
to ensure against deterioration. It is advisable
to have the watercraft serviced by a Yamaha
dealer prior to storage. However, the following
procedures can be performed by the owner.
EJU37570Flushing the cooling system
Flushing the cooling system is essential to
prevent it from clogging with salt, sand, or dirt.
(1) Place the watercraft in a horizontal posi-
tion.
(2) Remove the rear seat and watertight
compartment. (See page 23 for seat re-
moval and installation procedures.)
(3) Remove the flushing hose connector
cap, and then insert the garden hose
adapter into the flushing hose connector
and turn it until it is securely connected.(4) Connect the garden hose adapter to a
water tap using a garden hose.
TIP:
A garden hose is not included.
(5) Start the engine, and then immediately
turn the water supply on until water flows
out continually from the jet thrust nozzle.
NOTICE: Do not run the engine for
more than 15 seconds without supply-
ing water or over 4000 r/min on land,
otherwise the engine could overheat.
[ECJ01050]
TIP:
If you will be storing the watercraft for a pro-
longed period, such as winter storage, top off
the fuel tank with fresh gasoline and add fuel
stabilizer and conditioner to the fuel tank ac-
cording to the manufacturer’s instruction be-
fore starting the engine.
(6) Run the engine at idling speed for about
3 minutes watching the engine condition.
If the engine stops while flushing, turn the
water supply off immediately and repeat
the above steps. NOTICE: Do not sup-
ply water to the cooling water passag-
es when the engine is not running. The
water could flow back through the
muffler into the engine, causing se-
vere engine damage.
[ECJ00122]
(7) Turn the water supply off, and then force
the remaining water out of the cooling
1Flushing hose connector cap
2Garden hose adapter
3Flushing hose connector
1
3 2
UF2R70E0.book Page 67 Thursday, November 6, 2008 10:05 AM

Maintenance and care
68
water passages by alternately squeezing
and releasing the throttle lever for 10 to
15 seconds.
(8) Stop the engine.
(9) Remove the garden hose adapter and in-
stall the flushing hose connector cap.
(10) Install the watertight compartment and
the rear seat.
EJU36911Lubrication
(1) Lubricate all cables such as the throttle
and steering cables.
Use a suitable marine grease applicator
to pressure-lubricate the cables and
purge out any moisture between the inner
and outer cables.
(2) Lubricate the areas of the watercraft
specified in “Lubrication points” on page
75.
EJU33681Battery
If the watercraft will not be used for more than
a month, remove the battery from the water-
craft and store it in a cool, dry place.
(1) Disconnect the negative (–) battery lead
first, then the positive (+) battery lead and
breather hose, and then remove the bat-
tery from the watercraft.
(2) Clean the battery casing using fresh wa-
ter.
(3) If the battery terminals are dirty or corrod-
ed, clean them with a wire brush.
(4) Fully charge the battery.
(5) Apply Yamaha Marine Grease or
Yamaha Grease A to the battery termi-
nals, and then store the battery in a cool,
dry place.
(6) Check the battery at least once every 2
months and fully charge it if necessary.
NOTICE: Always keep the battery
charged. Storing a discharged batterycan cause permanent battery damage.
[ECJ00101]
To check the condition of the battery, check
the specific gravity of the electrolyte or mea-
sure the voltage at both battery terminals.
Charge the battery if the voltage is less than
12 volts.
It is recommended to have a Yamaha dealer
check the specific gravity and charge the bat-
tery. If you maintain the battery yourself, be
sure to read and follow the instructions provid-
ed with the battery tester and charger you
use.
EJU33731Cleaning the watercraft
Clean the watercraft before storing it for a long
period.
(1) Wash down the hull, handlebars, and jet
unit with fresh water.
(2) Rinse the engine and engine compart-
ment with fresh water. Drain all of the wa-
ter and wipe up any remaining moisture
with clean, dry rags. NOTICE: Do not
use high-pressure water when rinsing
the engine and engine compartment
as severe engine damage could result.
[ECJ00111]
(3) Spray the engine’s exterior with a rust in-
hibitor and lubricant.
(4) Wax the hull with a non-abrasive wax.
(5) Wipe all vinyl and rubber components,
such as the seat and engine compart-
ment seals, with a vinyl protectant. Specific gravity (for reference):
1.28 at 20 °C (68 °F)
UF2R70E0.book Page 68 Thursday, November 6, 2008 10:05 AM

Maintenance and care
69
EJU33762
Maintenance and adjustments
Periodic inspection, adjustment, and lubrica-
tion will keep your watercraft in the safest and
most efficient condition possible. Safety is an
obligation of the watercraft owner. Proper
maintenance must be carried out to keep the
exhaust emission and sound levels within the
regulated limits. The most important points of
watercraft inspection, adjustment, and lubri-
cation are explained on the following pages.
See a Yamaha dealer for genuine Yamaha re-
placement parts and optional accessories de-
signed for your watercraft.
Remember, failures that are the result of the
installation of parts or accessories which are
not qualitatively equivalent to genuine
Yamaha parts are not covered by the limited
warranty.
Maintenance, replacement, or repair of the
emission control devices and system may
be performed by any marine SI engine re-
pair establishment or individual. Warranty
repair, however, must be performed at an
authorized Yamaha marine dealership.
WARNING
EWJ00311
Be sure to turn off the engine when you
perform maintenance unless otherwise
specified. If you are not familiar with ma-
chine servicing, this work should be done
by a Yamaha dealer or other qualified me-
chanic.
EJU33811Owner’s/operator’s manual and tool
kit
It is advisable to always carry the owner’s/op-
erator’s manual and tool kit with you whenev-
er you use the watercraft. For your
convenience, a storage compartment is pro-
vided on the watercraft for the manual and
tool kit.To protect these materials from water dam-
age, it would be a good idea to put them in a
waterproof bag.
The service information included in this man-
ual is intended to provide you, the owner, with
the necessary information for completing your
own preventive maintenance and minor re-
pairs. The tools provided in the tool kit are suf-
ficient for this purpose, except that a torque
wrench may also be necessary to tighten nuts
and bolts.
1Tool bag
2Screwdriver
316 mm box wrench
410/12 mm box wrench
5Pliers
6Open-end wrench
7Garden hose adapter
UF2R70E0.book Page 69 Thursday, November 6, 2008 10:05 AM

Maintenance and care
70
EJU37060Periodic maintenance chart
The following chart gives general guidelines for periodic maintenance. However, maintenance
may need to be performed more frequently depending on your operating conditions.
This“” mark indicates maintenance that you may do yourself.
This“” mark indicates work to be done by a Yamaha dealer.
Item OperationInitial Thereafter every
Page 10
hours50
hours100
hours100
hours200
hours
6
months12
months12
months24
months
Spark plugsCheck, clean, adjust 74
Lubrication pointsLubricate 75
Internal engine
componentsLubricate*2
50 hours or 12 months—
QSTS cablesLubricate—
Intermediate hous-
ingLubricate 75
Fuel systemCheck 72
Fuel tankCheck, clean 72
Trolling speedCheck, adjust 78
Throttle shaftCheck—
Cooling water pas-
sagesFlush
*167
Water inlet strain-
erCheck, clean—
Bilge strainerClean—
Electric bilge
pump strainerCheck, clean—
ImpellerCheck—
Jet thrust nozzle
angleCheck, adjust 72
Steering masterCheck—
QSTS mechanismCheck, adjust—
Shift cable and re-
verse gateCheck, adjust 73
Throttle cableCheck, adjust 73
Stern drain plugsCheck, replace 47
UF2R70E0.book Page 70 Thursday, November 6, 2008 10:05 AM

Maintenance and care
71
*1 This operation should be performed after every use.
*2 This operation should be performed before long-term storage.
BatteryCheck, charge 76
Rubber couplingCheck—
Engine mountCheck—
Nuts and boltsCheck—
Air filter elementCheck 72
Engine oilReplace
50 hours or 12 months72
Oil filterReplace 72
Valve clearanceCheck, adjust— Item OperationInitial Thereafter every
Page 10
hours50
hours100
hours100
hours200
hours
6
months12
months12
months24
months
UF2R70E0.book Page 71 Thursday, November 6, 2008 10:05 AM

Maintenance and care
72
EJU34212Checking the fuel system
WARNING
EWJ00381
Leaking fuel can result in fire or explosion.

Check for fuel leakage regularly.

If any fuel leakage is found, the fuel sys-
tem must be repaired by a qualified me-
chanic. Improper repairs can make the
watercraft unsafe to operate.
Check the fuel system for leaks, cracks, and
malfunctions. If any problem is found, consult
a Yamaha dealer.
Check:

Fuel tank filler cap and seal for damage

Fuel in fuel tank for water and dirt

Fuel tank for damage, cracks, and leakage

Fuel hoses and joints for damage, cracks,
and leakage

Air bleeding passages for leakageEJU34230Fuel tank
Check the fuel tank for leakage and for water
in the tank. If water is found in the fuel system,
or if the fuel tank needs to be cleaned, have a
Yamaha dealer service the watercraft.
EJU36951Engine oil and oil filter
WARNING
EWJ00340
Engine oil is extremely hot immediately af-
ter the engine is turned off. Coming in con-
tact with or getting any engine oil on your
clothes could result in burns.
NOTICE
ECJ00991
Do not run the engine with too much or not
enough oil in the engine, otherwise the en-
gine could be damaged.
It is recommended to have a Yamaha dealer
change the engine oil. However, if you choose
to change the oil on your own, consult a
Yamaha dealer.
EJU34311Air filter element
Have a Yamaha dealer check the air filter ele-
ment at the intervals specified in the periodic
maintenance chart.
EJU34321Checking the jet thrust nozzle angle
Check the handlebars and jet thrust nozzle for
smooth operation.
Turn the handlebars as far as possible to the
right and left and check that the difference of
distances A and B between the jet thrust noz-
zle and the nozzle is within specification.1Fuel tank
1
Recommended engine oil:
SAE 10W-30, 10W-40, 20W-40, 20W-
50
Oil grade:
API SE,SF,SG,SH,SJ,SL
Oil quantity:
With oil filter replacement:
3.1 L (3.28 US qt, 2.73 Imp.qt)
Without oil filter replacement:
3.0 L (3.17 US qt, 2.64 Imp.qt)
Total amount:
4.3 L (4.55 US qt, 3.78 Imp.qt)
UF2R70E0.book Page 72 Thursday, November 6, 2008 10:05 AM
