DESCRIPTION
2-3
2
EAU10430
Controls and instruments1. Rear view mirror (page 3-27)
2. Clutch lever (page 3-15)
3. Left handlebar switches (page 3-13)
4. Clutch fluid reservoir (page 6-21)
5. Tachometer (page 3-6)
6. Speedometer (page 3-5)
7. Multi-function display (page 3-6)
8. Front brake fluid reservoir (page 6-21)9. Right handlebar switches (page 3-13)
10.Brake lever (page 3-16)
11.Throttle grip (page 6-17)
12.Main switch/steering lock (page 3-2)
13.Headlight beam adjusting knob (page 3-26)
14.Grip warmer adjusting knob (page 3-31)U3P6E3E0.book Page 3 Monday, August 25, 2008 9:22 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-5
3 cy braking. If the warning light
comes on or flashes while riding,
have a Yamaha dealer check the
brake system as soon as possible.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”.
If the warning light does not come on or
remains on, have a Yamaha dealer
check the electrical circuit.
EAU38621
Immobilizer system indicator light
The electrical circuit of the indicator
light can be checked by turning the key
to “ON”.
If the indicator light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.
When the key is turned to “OFF” and 30
seconds have passed, the indicator
light will start flashing indicating the im-
mobilizer system is enabled. After 24
hours have passed, the indicator light
will stop flashing, however the immobi-
lizer system is still enabled.This model is also equipped with a self-
diagnosis device for the immobilizer
system. (See page 3-12 for an explana-
tion of the self-diagnosis device.)
EAU11601

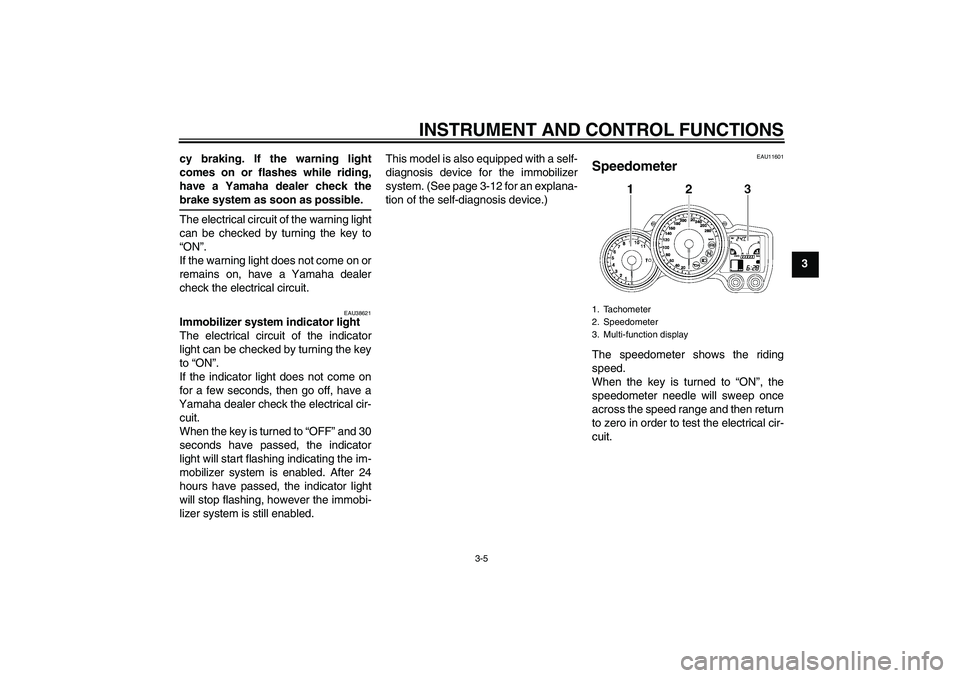

Speedometer The speedometer shows the riding
speed.
When the key is turned to “ON”, the
speedometer needle will sweep once
across the speed range and then return
to zero in order to test the electrical cir-
cuit.1. Tachometer
2. Speedometer
3. Multi-function display
U3P6E3E0.book Page 5 Monday, August 25, 2008 9:22 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-6
3
EAU11872
Tachometer The electric tachometer allows the rider
to monitor the engine speed and keep it
within the ideal power range.
When the key is turned to “ON”, the ta-
chometer needle will sweep once
across the r/min range and then return
to zero r/min in order to test the electri-
cal circuit.NOTICE
ECA10031
Do not operate the engine in the ta-
chometer red zone.Red zone: 9000 r/min and above
EAU2686D
Multi-function display
WARNING
EWA14431
Be sure to stop the vehicle before
making any setting changes to the
multi-function display. Changing
settings while riding can distract the
operator and increase the risk of anaccident.
The multi-function display is equipped
with the following:

an odometer (which shows the to-
tal distance traveled)


two tripmeters (which show the
distance traveled since they were
last set to zero)


a fuel reserve tripmeter (which
shows the distance traveled on the
fuel reserve)


a clock


a fuel meter


a coolant temperature meter


a transmission gear display


an ambient temperature display


a fuel consumption display (instan-
taneous and average consumption
functions)


a self-diagnosis device
TIPBe sure to turn the key to “ON” beforeusing the select and reset buttons.
1. Tachometer
2. Tachometer red zone
1. Multi-function display
2. Select button
3. Reset button
U3P6E3E0.book Page 6 Monday, August 25, 2008 9:22 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-7
3 Odometer and tripmeter modes
Pushing the select button switches the
display between the odometer mode
“ODO” and the tripmeter modes “Trip 1”
and “Trip 2” in the following order:
ODO → Trip 1 → Trip 2 → ODO
TIPWhen selecting “Trip 1” or “Trip 2”, thedisplay flashes for five seconds.
When approximately 5.5 L (1.45 US
gal, 1.21 Imp.gal) of fuel remains in the
fuel tank, the display will automatically
change to the fuel reserve tripmeter
mode “Trip F” and start counting the
distance traveled from that point. In thatcase, pushing the select button switch-
es the display between the various trip-
meter and odometer modes in the
following order:
Trip F → ODO → Trip 1 → Trip 2 → Trip
F
TIPWhen selecting “Trip 1”, “Trip 2” or “TripF”, the display flashes for five seconds.
To reset a tripmeter, select it by push-
ing the select button, and then push the
select button for at least one second
while the display is flashing. If you do
not reset the fuel reserve tripmeter
manually, it will reset itself automatical-
ly and the display will return to the prior
mode after refueling and traveling 5 km
(3 mi).Clock
To set the clock:
1. Push the select button and reset
button together for at least two
seconds.
2. When the hour digits start flashing,
push the reset button to set the
hours.
3. Push the select button, and the
minute digits will start flashing.
4. Push the reset button to set the
minutes.
5. Push the select button and then re-
lease it to start the clock.
1. Odometer/tripmeter/fuel reserve tripmeter
2. Select button
3. Reset button
1. Clock
2. Select button
3. Reset button
U3P6E3E0.book Page 7 Monday, August 25, 2008 9:22 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-8
3Fuel meter
The fuel meter indicates the amount of
fuel in the fuel tank. The display seg-
ments of the fuel meter disappear to-
wards “E” (Empty) as the fuel level
decreases. When the last segment
starts flashing, refuel as soon as possi-
ble. When the key is turned to “ON”, all
of the display segments of the fuel
meter will appear one after the other
and then disappear in order to test the
electrical circuit.
TIPThis fuel meter is equipped with a self-
diagnosis system. If a problem is de-
tected in the electrical circuit, all the dis-play segments will start flashing. If this
occurs, have a Yamaha dealer check
the electrical circuit.
Coolant temperature meter
With the key in the “ON” position, the
coolant temperature meter indicates
the temperature of the coolant. When
the key is turned to “ON”, all of the dis-
play segments of the coolant tempera-
ture meter will appear one after the
other and then disappear in order to
test the electrical circuit. The coolant
temperature varies with changes in the
weather and engine load. If the top seg-
ment flashes, stop the vehicle and let
the engine cool. (See page 6-34.)
NOTICE
ECA10021
Do not continue to operate the en-gine if it is overheating.
Transmission gear display
This display shows the selected gear.
The neutral position, however, is not
displayed, it is indicated by the neutral
indicator light.
1. Fuel meter
1. Coolant temperature meter
1. Transmission gear display
2. Neutral indicator light“”
U3P6E3E0.book Page 8 Monday, August 25, 2008 9:22 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-9
3 Ambient temperature, instanta-
neous fuel consumption and aver-
age fuel consumption modes
(except for the UK)
Push the reset button to switch the dis-
play between the ambient temperature
mode “Air”, the instantaneous fuel con-
sumption mode “km/L” or “L/100 km”
and the average fuel consumption
mode “AV_ _._ km/L” or “AV_ _._ L/100
km” in the following order:
Air → km/L or L/100 km → AV_ _._
km/L or AV_ _._ L/100 km → AirAmbient temperature mode
This display shows the ambient tem-
perature from –9 °C to 50 °C in 1 °C in-
crements. The temperature displayed
may vary from the ambient tempera-
ture.TIP

If the ambient temperature falls be-
low –9 °C, a lower temperature
than –9 °C will not be displayed.


If the ambient temperature climbs
above 50 °C, a higher temperature
than 50 °C will not be displayed.


The accuracy of the temperature
reading may be affected when
riding slowly (approximately under
20 km/h) or when stopped at trafficsignals, railroad crossings, etc.
Instantaneous fuel consumption mode
The instantaneous fuel consumption
display can be set to either “km/L” or
“L/100 km”.

When the display is set to “km/L”,
the distance that can be traveled
on 1.0 L of fuel under the current
riding conditions is shown.
1. Ambient temperature/instantaneous fuel
consumption/average fuel consumption
2. Select button
3. Reset button
1. Ambient temperature
1. Instantaneous fuel consumption
U3P6E3E0.book Page 9 Monday, August 25, 2008 9:22 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-10
3


When the display is set to “L/100
km”, the amount of fuel necessary
to travel 100 km under the current
riding conditions is shown.
TIP

To switch between the two instan-
taneous fuel consumption dis-
plays, push the reset button for 1
second when either display is
shown.


If traveling at speeds under 10km/h, “_ _._” will be displayed.
Average fuel consumption mode
This display shows the average fuel
consumption since it was last reset.The average fuel consumption display
can be set to either “AV_ _._ km/L” or
“AV_ _._ L/100 km”.
When the average fuel consumption
mode is selected, the display flashes
for five seconds, and then, depending
on the unit set, “AV_ _._ km/L” (aver-
age distance that can be traveled using
1.0 L of fuel) or “AV_ _._ L/100 km” (av-
erage amount of fuel necessary to trav-
el 100 km) is displayed.
To reset the average fuel consumption
display, push the reset button to select
the mode again, and then push the re-
set button for 1 second while the dis-
play is flashing.
TIP

To switch between the two aver-
age fuel consumption displays,
push the reset button for 1 second
when either display is shown.


After resetting an average fuel
consumption display, “_ _._” will
be shown for that display until thevehicle has traveled 1 km.
NOTICE
ECA15472
If there is a malfunction, “– –.–” will
be displayed. Have a Yamaha dealercheck the vehicle.
Ambient temperature, instanta-
neous fuel consumption and aver-
age fuel consumption modes (for
the UK only)
Push the reset button to switch the dis-
play between the ambient temperature
mode “Air”, the instantaneous fuel con-
1. Average fuel consumption
1. Ambient temperature/instantaneous fuel
consumption/average fuel consumption
2. Select button
3. Reset button
U3P6E3E0.book Page 10 Monday, August 25, 2008 9:22 AM
