5-6
1
2
3
45
6
7
8
9
10
11
Higher pressures and fast inflation may
cause a tire to burst. Inflate the tires very
slowly and carefully.
EBU19821

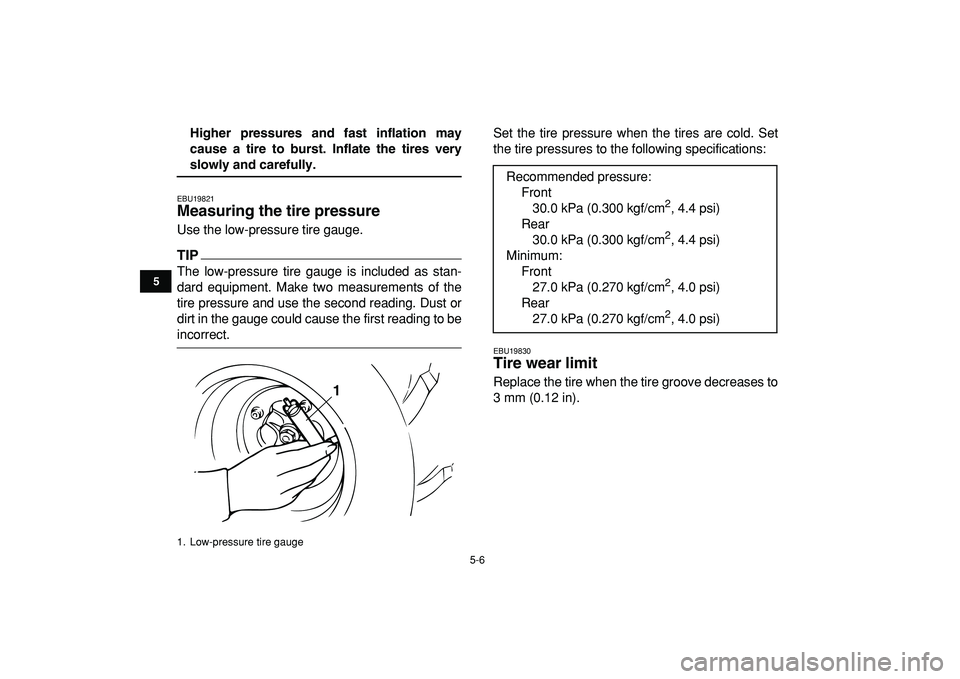

Measuring the tire pressure
Use the low-pressure tire gauge.
TIP
The low-pressure tire gauge is included as stan-
dard equipment. Make two measurements of the
tire pressure and use the second reading. Dust or
dirt in the gauge could cause the first reading to be
incorrect.Set the tire pressure when the tires are cold. Set
the tire pressures to the following specifications:
EBU19830
Tire wear limit
Replace the tire when the tire groove decreases to
3 mm (0.12 in).
1. Low-pressure tire gauge
1
Recommended pressure:
Front
30.0 kPa (0.300 kgf/cm
2
, 4.4 psi)
Rear
30.0 kPa (0.300 kgf/cm
2
, 4.4 psi)
Minimum:
Front
27.0 kPa (0.270 kgf/cm
2
, 4.0 psi)
Rear
27.0 kPa (0.270 kgf/cm
2
, 4.0 psi)
