2009 YAMAHA BANSHEE 350 bulb

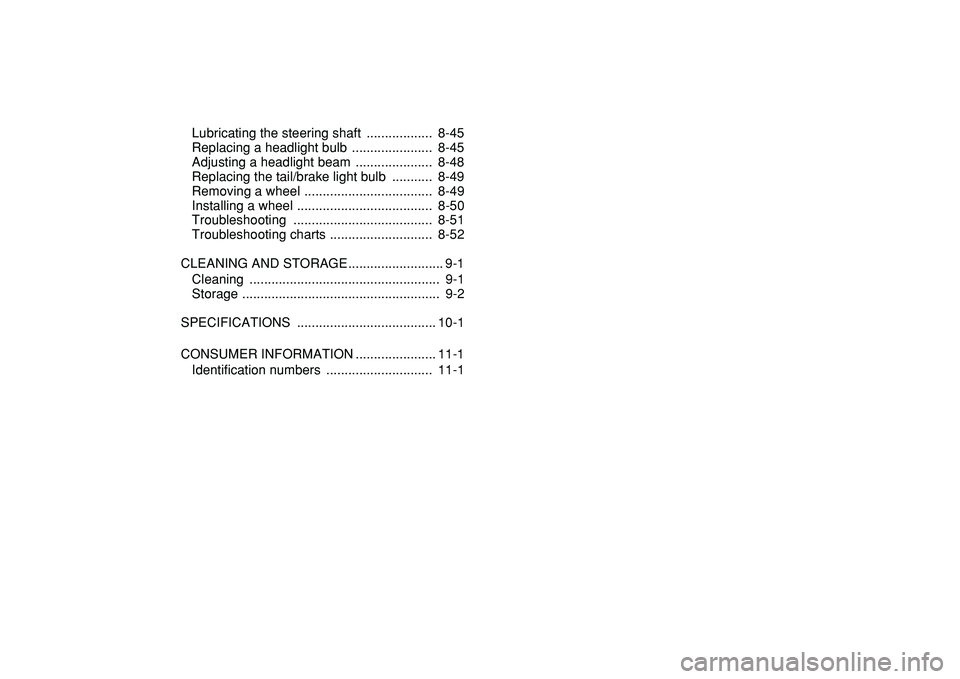

Lubricating the steering shaft .................. 8-45
Replacing a headlight bulb ...................... 8-45
Adjusting a headlight beam ..................... 8-48
Replacing the tail/brake light bulb ........... 8-49
Removing a wheel ................................... 8-49
Installing a wheel ..................................... 8-50
Troubleshooting ...................................... 8-51
Troubleshooting charts ............................ 8-52
CLEANING AND STORAGE .......................... 9-1
Cleaning .................................................... 9-1
Storage ...................................................... 9-2
SPECIFICATIONS ...................................... 10-1
CONSUMER INFORMATION ...................... 11-1
Identification numbers ............................. 11-1

8-45
1
2
3
4
5
6
78
9
10
11

EBU25032
Lubricating the upper and lower arm
pivots
The upper and lower arm pivots must be lubricated
at the intervals specified in the periodic mainte-
nance and lubrication chart.
Lubricate the pivoting points using a grease gun.
Left sideRight side
EBU25102
Lubricating the steering shaft
The steering shaft must be lubricated at the inter-
vals specified in the periodic maintenance and lu-
brication chart.
EBU26881
Replacing a headlight bulb
If a headlight bulb burns out, replace it as follows.
1. Remove the headlight unit by removing the Recommended lubricant:
Lithium-soap-based grease
1. Grease nipple
1

1. Grease nipple
Recommended lubricant:
Lithium-soap-based grease
1

8-46
1
2
3
4
5
6
78
9
10
11

screw.
2. Remove the headlight bulb holder cover.3. Remove the bulb holder by turning it counter-
clockwise.
1. Screw
1

1. Headlight bulb holder cover
1

8-47
1
2
3
4
5
6
78
9
10
11

4. Remove the defective bulb.
WARNING

EWB02200
A headlight bulb is hot when it is on and imme-
diately after it is turned off. Wait for the bulb to
cool before touching or removing it. You can
be burned, or a fire could start if the bulb
touches something flammable.
5. Place a new bulb into position, and then install
the bulb holder by turning it clockwise.
NOTICE

ECB00650
Do not touch the glass part of the headlight
bulb to keep it free from oil, otherwise the
transparency of the glass, the luminosity of the
bulb, and the bulb life will be adversely affect-
ed. Thoroughly clean off any dirt and finger-
prints on the headlight bulb using a cloth
moistened with alcohol or thinner.
6. Install the bulb holder cover.
1. Headlight bulb holder
1

1. Do not touch the glass part of the bulb.
1

8-48
1
2
3
4
5
6
78
9
10
11
NOTICE

ECB00680
Make sure the bulb holder cover is securely fit-
ted over the bulb holder and seated against the
reflector.
7. Place the headlight unit in the original posi-
tion, and then install the screw.
8. Adjust the headlight beam if necessary.
EBU25551
Adjusting a headlight beam
NOTICE

ECB00690
It is advisable to have a Yamaha dealer make
this adjustment.
To raise a headlight beam, turn the headlight beam
adjusting screw in direction (a).
To lower a headlight beam, turn the adjusting
screw in direction (b).
1. Headlight bulb holder cover
2. Headlight bulb holder
3. Headlight unit
1
2
3

1. Headlight beam adjusting screw
1
(a) (b)

8-49
1
2
3
4
5
6
78
9
10
11

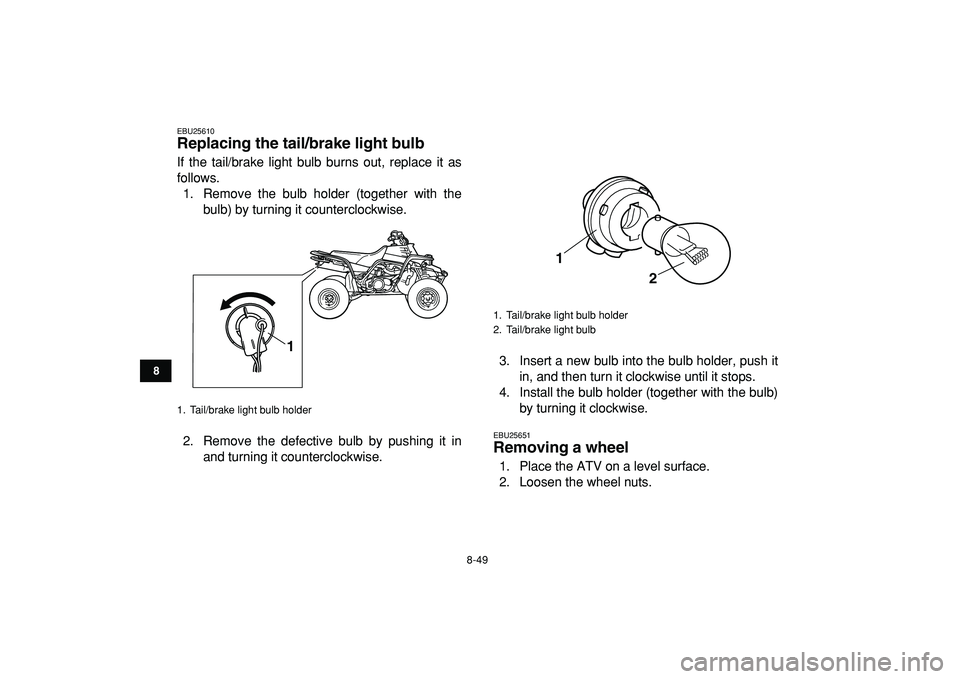

EBU25610
Replacing the tail/brake light bulb
If the tail/brake light bulb burns out, replace it as
follows.
1. Remove the bulb holder (together with the
bulb) by turning it counterclockwise.
2. Remove the defective bulb by pushing it in
and turning it counterclockwise.3. Insert a new bulb into the bulb holder, push it
in, and then turn it clockwise until it stops.
4. Install the bulb holder (together with the bulb)
by turning it clockwise.
EBU25651
Removing a wheel
1. Place the ATV on a level surface.
2. Loosen the wheel nuts.
1. Tail/brake light bulb holder
1

1. Tail/brake light bulb holder
2. Tail/brake light bulb
1
2

10-4
1
2
3
4
5
6
7
8
910
11

Wheel travel:
220 mm (8.7 in)
Electrical system:
Ignition system:
CDI
Charging system:
AC magneto
Headlight:
Bulb type:
Krypton bulb
Bulb voltage, wattage
×
quantity:
Headlight:
12 V, 30.0/30.0 W
×
2
Tail/brake light:
12 V, 5.0/21.0 W
×
1

INDEX
A
Accessories and loading ................................................ 6-6
Air filter element, cleaning ............................................ 8-17
B
Brake and clutch levers, checking and lubricating ....... 8-43
Brake fluid, changing.................................................... 8-35
Brake fluid level, checking............................................ 8-33
Brake lever ..................................................................... 4-5
Brake lever free play, checking the front ...................... 8-35
Brake light switches ..................................................... 8-38
Brake pads, checking the front and rear ...................... 8-32
Brake pedal .................................................................... 4-5
Brake pedal, checking and lubricating ......................... 8-43
Brake pedal position, checking .................................... 8-36
Brakes, front and rear .................................................... 5-3
C
Cables, checking and lubricating ................................. 8-43
Carburetor settings, changing ...................................... 8-22
Chassis fasteners........................................................... 5-7
Cleaning ......................................................................... 9-1
Clutch lever .................................................................... 4-4
Clutch lever free play, adjusting ................................... 8-39
Coolant ................................................................. 5-3
,
8-12
D
Drive chain ..................................................................... 5-4
Drive chain, lubricating ................................................. 8-42Drive chain slack .......................................................... 8-40
E
Engine break-in .............................................................. 6-4
Engine, cold start ........................................................... 6-1
Engine idling speed ...................................................... 8-30
Engine, starting a warm ................................................. 6-2
Engine stop switch ......................................................... 4-2
F
Fuel ................................................................................ 4-8
Fuel and 2-stroke engine oil mixing ratio ....................... 5-3
Fuel cock ........................................................................ 4-9
Fuel tank cap.................................................................. 4-7
H
Handlebar switches ........................................................ 4-2
Headlight beam, adjusting............................................ 8-48
Headlight bulb, replacing.............................................. 8-45
I
Identification numbers .................................................. 11-1
Instruments, lights and switches .................................... 5-7
K
Key identification number ............................................. 11-1
Kickstarter ...................................................................... 4-7
L
Label locations ............................................................... 2-1
Light switch .................................................................... 4-2
