2009 VOLVO XC90 key

04 InteriorInterior lighting
04106
Reading lights and courtesy light
G026960
Driver's side front reading lampCourtesy lightsPassenger's side front reading lamp The
reading lights can be switched on or off by
pressing buttons 1 or 3. The courtesy light-
ing (including footwell lighting) can be
turned on or off by pressing button 2. This
also activates the automatic function.
G027153
Rear reading lights
Driver's side rear reading lightPassenger's side rear reading light The
rear reading lights can be switched on and
off by pressing buttons (4) or (5).
Automatic functionThe reading lights and courtesy lights will
switch off automatically approximately
10 minutes after the engine has been turned
off. The lights can be turned off sooner by
pressing the respective buttons.The courtesy lights come on automatically
1
and remain on for approximately 30 seconds
when:•
The vehicle has been unlocked from the
outside with the remote control or key
•
If the engine has been switched off and the
ignition key has been turned to position 0
The courtesy lights will come on and remain on
for approximately 10 minutes when:
•
One of the doors is opened (assuming the
courtesy lighting has not previously been
switched off)
The courtesy lighting will go off when:
•
The engine is started
•
The vehicle is locked from the outside with
the remote control or key
The automatic function can be disconnected
by pressing button (2) for more than 3 seconds.
Briefly pressing the button again automatically
reconnects the function.
The courtesy light timer periods can be
changed. Contact a trained and qualified Volvo
service technician.
1This function is light dependent and is only activated in dark conditions.

04 InteriorStorage compartments
04110
G027018
Storage compartment in rear side of the
center consoleGrasp the upper edge of cover and pull to open
this compartment.Ashtray (accessory)An ashtray insert is available from your Volvo
retailer.
G027063
Cup holders for the rear seats•
Grasp the lower edge of the panel to pull
out the cup holders in the rear side of the
center console.
•
The cup holder insert can be removed to
provide space for a large plastic bottle. Pull
the insert straight up to remove it. Press
down to reinsert it.
ATTENTIONPakjdskdl ioiuip kjöpp opoodidåuswi
CSOUNDMENU80ENTERLSEEEXITMY KEYRTO
AIRBAG
G027025
Glove compartmentThe glove compartment can be used to store
things such as the owner's manual, maps,
pens, etc.

116
Keys and remote controls..................................................................... 118
Locking and unlocking.......................................................................... 122
Child safety locks.................................................................................. 124
Alarm..................................................................................................... 125

05 Locks and alarmKeys and remote controls
05118
Keys
G030177
Your vehicle is equipped with two coded
remote control transmitters with integrated
ignition key blades called Key Integrated
Remote (KIR).
To unlock/lock the vehicle using the key blade:•
Insert the key blade in the driver's door lock
and turn it once to unlock the driver's door
only.
•
Turn the key blade again (within 10 sec-
onds) to unlock all doors and the tailgate.
•
Turn the key blade once in the opposite
direction to lock all doors and the tailgate.Use the switch on the driver's door armrest to
lock/unlock the vehicle from the inside.
WARNING
If the doors are locked while driving, this
may hinder rapid access to the occupants
of the vehicle in the event of an accident.
(Also see information on "Child safety locks"
NOTE
To help prevent accidentally locking the
keys in the vehicle, the central locking sys-
tem is designed to unlock the doors imme-
diately if the key is left in the ignition switch,
the vehicle is locked using the lock button
on the door and the door is then closed. A
sound from the lock will be audible at this
time.
Please note that this function will not unlock
the doors if the engine is running.Immobilizer (start inhibitor)Each of the keys supplied with your vehicle
contains a coded transmitter. The code in the
key is transmitted to an antenna in the ignition
switch where it is compared to the code stored
in the start inhibitor module. The vehicle will
start only with a properly coded key.
Each key has a unique code, which your Volvo
retailer uses if new keys are required. A maxi-mum of six remote controls/keys can be pro-
grammed and used for one vehicle.
If you misplace a key, take the other keys to an
authorized Volvo retailer for reprogramming as
an antitheft measure.
If two of the keys to your vehicle are close
together, e.g., on the same key ring, when you
try to start the vehicle, this could cause inter-
ference in the immobilizer system and result in
the vehicle not starting. If this should occur,
remove one of the keys from the key ring before
trying to start the vehicle again.
NOTE
This device complies with part 15 of the
FCC rules. Operation is subject to the fol-
lowing condition: (1) This device may not
cause harmful interference, and (2) this
device must accept any interference
received, including interference that may
cause undesired operation.

05 Locks and alarmKeys and remote controls
05``119 Remote controls
G026963
Your vehicle is equipped with two coded
remote control transmitters with integrated
ignition keys called Key Integrated Remote
(KIR).
The remote control transmitters will also acti-
vate or allow "keyless" entry into the passenger
compartment or the tailgate. These transmit-
ters use a radio frequency that will enable you
to lock/unlock all doors and the tailgate from a
distance of 10 – 15 feet (3 – 5 meters). They will
also activate or deactivate your vehicle's alarm
system(s). The vehicle can also be locked/
unlocked with the key.If one of the transmitters is misplaced, a
replacement can be purchased from your near-
est authorized Volvo retailer for replacement.
G027013
UnlockUnlock tailgate"Panic" functionApproach lightingLockFold key blade in/out
Using the remote control UnlockPress this button once to unlock the driver's
door only. Wait for at least 1 second and press
the button again (within 10 seconds) to unlock
all doors, and the tailgate.
Tailgate unlock
Press this button to unlock the tailgate (without
unlocking the other doors). This function will
not open the tailgate. Panic function
For more information on this function, see
page 125. Approach lighting
Press this button when approaching the vehi-
cle at night to light up the interior courtesy light,
parking lights, license plate lights and the lights
in the door mirrors. Lock
Press once to lock all doors, and the tailgate. Fold key blade in/out
Press to extend the key blade. This button
must also be pressed when the key blade is
folded back into the slot in the side of the
remote control unit.

05 Locks and alarmKeys and remote controls
05120
NOTE
•
If an airbag deploys, your vehicle's SRS
control module will attempt to automat-
ically unlock all doors.
•
The key blade may also be used to lock
and unlock the doors, and to activate
and deactivate the alarm system.
•
To avoid leaving your keys in the vehi-
cle, make a habit of always locking the
vehicle with the remote control.
•
If the key blade section of the remote is
not fully folded out when starting the
vehicle, the immobilizer function may
make it impossible to start the engine.
•
The vehicle can be locked even if a door
is open. When the door(s) are closed,
they will be locked. Please be aware
that the keys could be locked in the car
when this is done.
Automatic re-lockingIf the doors are unlocked, the locks will auto-
matically reengage (re-lock) and the alarm will
rearm after 2 minutes unless a door or the tail-
gate has been opened. This helps prevent the
car from inadvertently being left unlocked.
FCC ID: LQNP2T-APU
This device complies with part 15 of the FCC
rules. Operation is subject to the following con-ditions: (1) This device may not cause harmful
interference, and (2) this device must accept
any interference received, including interfer-
ence that may cause undesired operation.
Canadian 2306104388
Model 504 2927 by Donnelly
Operation is subject to the following condi-
tions: (1) this device may not cause interfer-
ence, and (2) this device must accept any
interference, including interference that may
cause undesired operation of the device.
Canadian 2306104388A
Model 509 977 by Connaught Electronics
Operation is subject to the following condi-
tions: (1) this device may not cause interfer-
ence, and (2) this device must accept any
interference, including interference that may
cause undesired operation of the device.
WARNING
Never use the transmitter to lock the doors
from inside the vehicle.•
Doing so would ACTIVATE:
•
the break-in alarm, which would sound
if one of the doors were opened
•
the optional interior motion and inclina-
tion alarm sensors.
•
Doing so would DEACTIVATE:
•
the moonroof and interior courtesy light
controls.
•
the central locking buttons on the front
door armrests, although the interior
door handles would still function to
allow occupants to leave the vehicle.
•
Disabled features would remain disa-
bled until the remote is used again to
unlock the vehicle.
•
In addition, locking an occupied vehicle
would hinder rapid access to the occu-
pants in an accident or emergency.

05 Locks and alarmKeys and remote controls
05
121
G027011

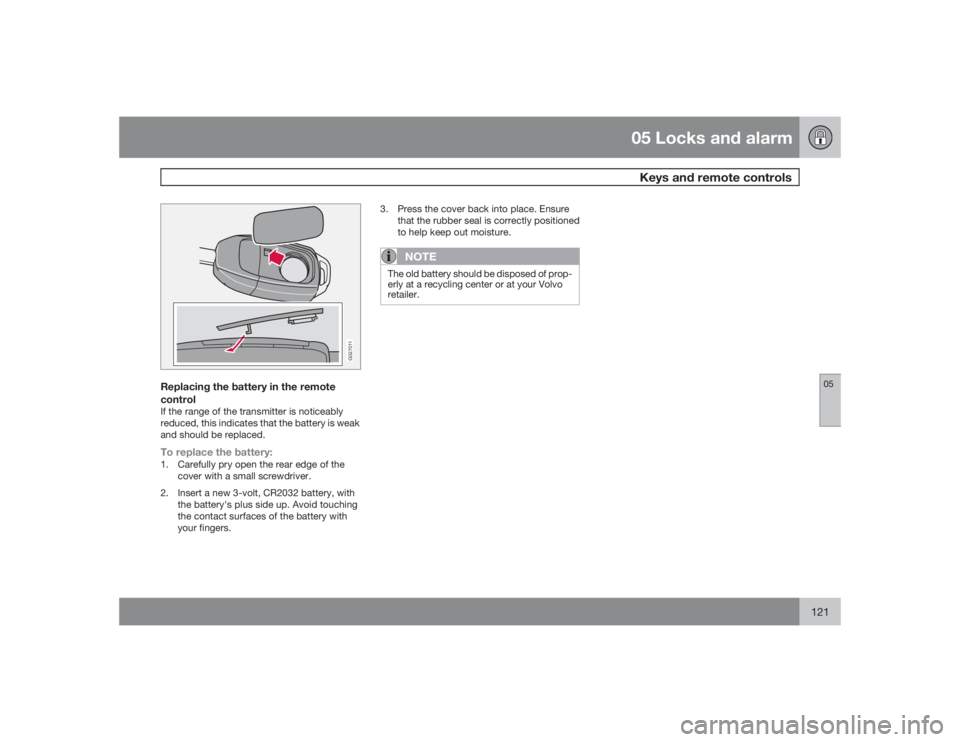

Replacing the battery in the remote
controlIf the range of the transmitter is noticeably
reduced, this indicates that the battery is weak
and should be replaced.To replace the battery:1. Carefully pry open the rear edge of the
cover with a small screwdriver.
2. Insert a new 3-volt, CR2032 battery, with
the battery's plus side up. Avoid touching
the contact surfaces of the battery with
your fingers.3. Press the cover back into place. Ensure
that the rubber seal is correctly positioned
to help keep out moisture.
NOTE
The old battery should be disposed of prop-
erly at a recycling center or at your Volvo
retailer.

05 Locks and alarmLocking and unlocking
05122
G029646
Locking and unlocking the vehicle from
the insideThe switch on the driver's door armrest can be
used to lock or unlock all doors and the tail-
gate, and to set the alarm.
Each door can also be locked with the lock
button on the respective door and opened by
pulling the door handle on the door.Automatic lockingThe function locks the doors automatically
when the vehicle's speed exceeds approxi-
mately 5 mph (7 km/h). The doors will then
remain locked until a door in opened from the
inside or if all of the doors are unlocked from
the control panel in the driver's door.This function can be activated/deactivated
from the control panel in the driver's door.
Activating/deactivating automatic
locking1.
Turn the ignition key to position I or II.
2.
Press the READ button on the left-side
steering wheel lever to erase any mes-
sages that may be displayed in the infor-
mation display.
3. Depress the central locking button on the
control panel until a new message about
the locking status is displayed.
The message
AUTOLOCK ON
(the doors will
be locked when the vehicle begins to move) or
AUTOLOCK OFF
will be displayed.
ATTENTIONPakjdskdl ioiuip kjöpp opoodidåuswi
CSOUNDMENU80ENTERLSEEEXITMY KEYRTO
AIRBAG
G027025
Locking the glove compartmentThe glove compartment can be locked with the
master key.
G028485
Unlocking the tailgateThe tailgate lock is incorporated in the central
locking system and is locked or unlocked when
all doors are locked/unlocked.
The tailgate can be unlocked by:•
PressingUNLOCK on the remote control
twice.
•
Using the central locking button on the
driver's door.
