04 Comfort and driving pleasureAdaptive Cruise Control (ACC)* 04
174
* Option/accessory, for more information, see Introduction.
Operation
Controls and display
Activate and resume settings, increase
speed
Standby mode, on/off
Set time interval
Activate and set a speed
Set speed (parentheses indicate standby
mode)
Time interval while it is being set
Time interval after it has been set
Engaging the cruise control functionBefore ACC can be used, it must first be put in
standby mode. To do so, press
. The symbol illuminates in the display and (---) indicate
that ACC is in standby mode.
Setting a speed
Use the or buttons to store (set) the
vehicle\fs current speed. The set speed, for
example 55 mph, is shown in the display.
NOTE Adaptive cruise control cannot be engaged
at speeds below 20 mph (30 km/h).
The “car” symbol illuminates
on the left side of the display
when the radar sensor
detects another vehicle
ahead. The distance to a vehi-
cle ahead is only regulated
when this symbol is illumi-
nated.
Adjusting the set speedAfter a speed has been set, it can be increased
or decreased by using the or buttons.
When the system is in active mode, the but-
ton has the same function as , but results in
a smaller increase in speed.
NOTE \b
If one of the adaptive cruise control but-
tons is pressed for more than approxi-
mately one minute, ACC will be deacti-
vated. The engine must then be
switched off and restarted to reset ACC.
\b In some situations cruise control cannot
be activated. Cruise Control
Unavailable is shown in the display,
see page 177.
Setting a time intervalThe set time interval to vehicles ahead is
increased with and decreased with .
The current time interval is shown briefly in the
display following adjustment.
Five different time intervals
can be selected and are
shown in the display as 1–5
horizontal bars. The greater
the number of bars, the longer
the time interval. At low
speeds, when the distance to
the vehicle ahead is short, ACC increases the
time interval slightly. In order to follow the vehi-
cle ahead as smoothly as possible, ACC allows
the time interval to vary considerably in certain
situations. G027123
04 Comfort and driving pleasure
Distance alert04
}}
179
Introduction
Distance Alert is part of Adaptive Cruise Con-
trol and is a function that provides information
about the time interval to the vehicle ahead.
Time interval information is only given for a
vehicle that is driving ahead of your vehicle, in
the same lane, and in the same direction. No
information is provided for vehicles driving
toward you, moving very slowly, or at a stand-
still.
A smaller section of the red warning light in the
windshield glows steadily if your vehicle is
closer to the vehicle ahead than the set time
interval.
NOTE Distance Alert is in active mode while Adap-
tive Cruise Control is active.
Distance Alert is active at speeds above
approximately 20 mph (30 km/h).
WARNING
Distance Alert only indicates the distance to
the vehicle ahead. It does not affect the
speed of your vehicle.
Operation
–
Press the button in the center instrument
panel to switch this function on or off. > The indicator light in the button illumi-
nates when the function is on.
Setting a time intervalThe buttons for setting a time interval are
located on the left side of the steering wheel.
– Press to increase the interval or to
decrease it.
Five different time intervals
can be selected and are
shown in the display as 1–5
horizontal bars. The greater
the number of bars, the longer
the time interval. No. of bars Approx. time interval
(in seconds) 1 1.0
2 1.4
3 1.8
4 2.2
5 2.6
The number of bars indicating the selected
time interval are shown while the setting is
being made and for several seconds afterward. G031394 G031396
05 During your tripCargo area 05
216

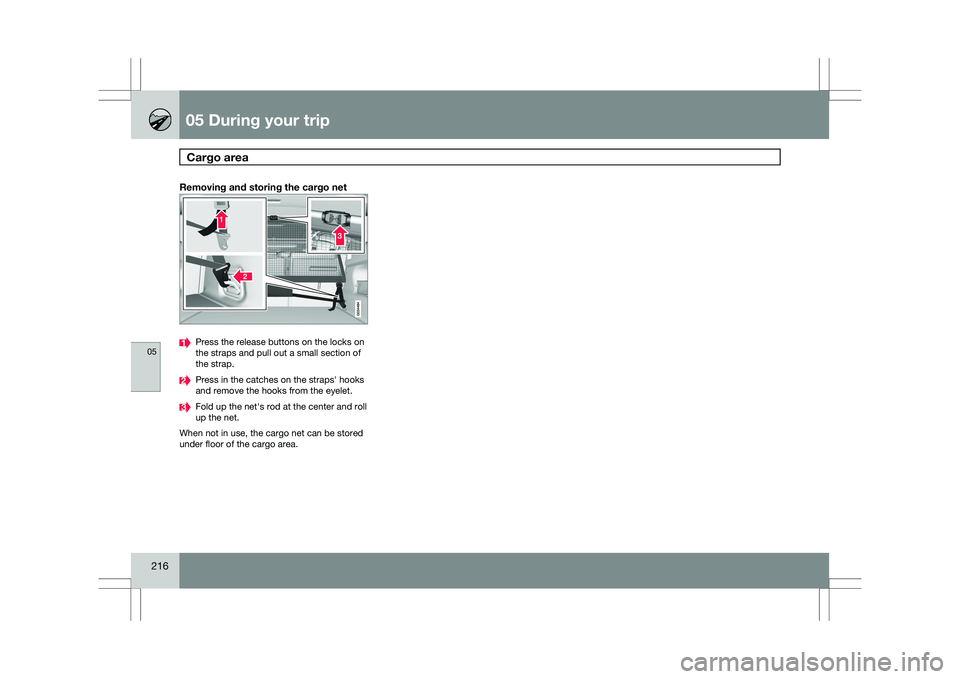

Removing and storing the cargo net Press the release buttons on the locks on
the straps and pull out a small section of
the strap.
Press in the catches on the straps\f hooks
and remove the hooks from the eyelet.
Fold up the net\fs rod at the center and roll
up the net.
When not in use, the cargo net can be stored
under floor of the cargo area.
