02 Instruments and controlsLeft-side steering wheel lever
0264
Lever positions
G026954
Turn signals, lane change positionTurn signals, position for normal turnsHigh beam flashToggle between high and low beams,
Home Safe lighting
Turn signalsWhen turning±
Move the lever as far up or down as pos-
sible (to position 2) to start the turn signals.
The turn signals will be cancelled automatically
by the movement of the steering wheel, or the
lever can be returned to its initial position by
hand.When changing lanesThe driver can automatically flash the turn sig-
nals 3 times by:•
Moving the turn signal lever up or down to
position 1 and releasing it.
•
Moving the lever up or down to position 2
and immediately back to its original posi-
tion.NOTE
•
This automatic flashing sequence can
be interrupted by immediately moving
the lever in the opposite direction.
•
If the turn signal indicator flashes faster
than normal, check for a burned-out
turn signal bulb.
High/low beam headlightsContinuous high beams1.
Turn the ignition key to position II.
2.
With the light switch (1) in position
,
see page 61, pull the turn signal lever
toward the steering wheel (position 4) to
toggle between high and low beams.
High beam flash1.
Turn the ignition key to position II.
2. Pull the turn signal lever to position 3. The
high beams will remain on until the lever is
released.Home safe lightingWhen you leave your car at night, you can
make use of the home safe lighting function to
illuminate the area in front of the car.
1. Remove the key from the ignition switch.
2. Pull the direction indicator lever as far as
possible towards the steering wheel (to
position 4) and release it.
3. Exit the car and lock the doors.
The headlights and parking lights will illuminate
and remain on for 30
1, 60 or 90 seconds. The
time interval can be changed according to your
1Factory setting

09 Maintenance and servicing
Replacing bulbs
09``223 Introduction
Before replacing bulbs in your vehicle, please
keep the following points in mind:
NOTE
Never touch the glass of bulbs with your fin-
gers. Grease and oils from your fingers
vaporize in the heat and will leave a deposit
on the reflector, which will damage it.
The optional Bi-Xenon
Ÿ headlight bulbs
contain trace amounts of mercury. These
bulbs should always be disposed of by a
trained and qualified Volvo service techni-
cian.
Certain bulbs should only be replaced by a
trained and qualified Volvo service techni-
cian:
•
Courtesylighting
•
Reading lights
•
Glove compartment lights
•
Turn signals and courtesy lights in the
side door mirrors
•
Brake lights
•
Bi-Xenon
Ÿ headlights, Brake lights
Removing the headlight housing
WARNING
•
The engine should not be running when
changing bulbs.
•
When changing in the headlight hous-
ing, if the engine has been running just
prior to replacing bulbs, please be
aware that components in the engine
compartment will be hot.
G019599
The entire headlight housing must be lifted out
when replacing the high/low beam, parkinglight, turn signal, and side marker bulbs. To lift
out the housing:
1. Remove the key from the ignition and turn
the headlight switch to position 0.
2. Open the hood.
3. Pull up the headlight housing's retaining
pin.
4. Pull out the headlight housing.
G019600
5. Disconnect the wiring connector by press-
ing down the clip with your thumb while at
the same time pulling the connector with
your other hand.

09 Maintenance and servicingReplacing bulbs
09224
6. Lift out the headlight housing and place it
on a soft surface to avoid scratching the
lens.
CAUTION
When disconnecting the connector, pull on
the connector itself and not on the wiring.After the defective bulb has been replaced,
reinsert the housing in the reverse order. Check
that the retaining pin is correctly inserted.
WARNING
Bi-Xenon headlights (option) – due to the
high voltage used by these headlights,
these bulbs should only be replaced by a
trained and qualified Volvo service techni-
cian.
Low beam bulb
G019131
Cover with retaining clamps1. Open the hood and remove the headlight
housing (see page 223 for instructions).
2. Release the retaining clamps on the cover.
3. Release the bulb's retaining spring holding
the bulb in place by pressing it inward and
downward.
4. Pull out the bulb.
G019133
Low beam bulbInstalling a new bulb1. Insert the new bulb. It can only be installed
in one position.
2. Press the retaining spring inward and
upward and slightly to the right until it
snaps into place.
3. Press the wiring connector onto the bulb.
4. Put the plastic cover in place.
5. Press the retaining clamps back into place.
6. Reinstall the headlight housing (see
page 223).

09 Maintenance and servicing
Replacing bulbs

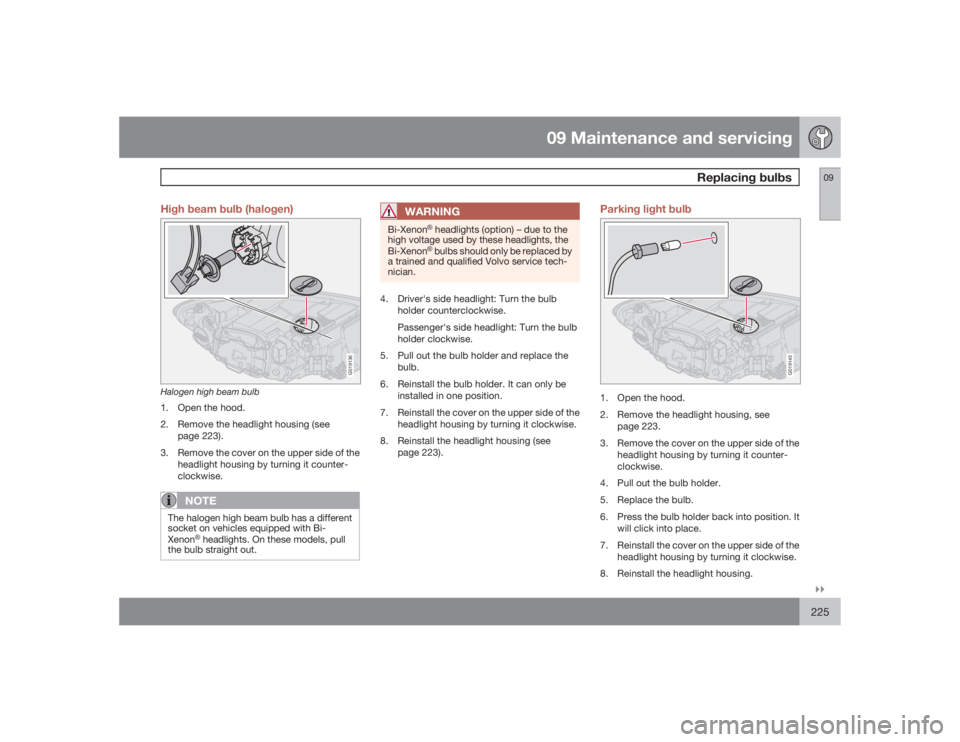

09``225 High beam bulb (halogen)
G019136
Halogen high beam bulb1. Open the hood.
2. Remove the headlight housing (see
page 223).
3. Remove the cover on the upper side of the
headlight housing by turning it counter-
clockwise.
NOTE
The halogen high beam bulb has a different
socket on vehicles equipped with Bi-
Xenon
Ÿ headlights. On these models, pull
the bulb straight out.
WARNING
Bi-Xenon
Ÿ headlights (option) – due to the
high voltage used by these headlights, the
Bi-XenonŸ bulbs should only be replaced by
a trained and qualified Volvo service tech-
nician.
4. Driver's side headlight: Turn the bulb
holder counterclockwise.
Passenger's side headlight: Turn the bulb
holder clockwise.
5. Pull out the bulb holder and replace the
bulb.
6. Reinstall the bulb holder. It can only be
installed in one position.
7. Reinstall the cover on the upper side of the
headlight housing by turning it clockwise.
8. Reinstall the headlight housing (see
page 223).
Parking light bulb
G019145
1. Open the hood.
2. Remove the headlight housing, see
page 223.
3. Remove the cover on the upper side of the
headlight housing by turning it counter-
clockwise.
4. Pull out the bulb holder.
5. Replace the bulb.
6. Press the bulb holder back into position. It
will click into place.
7. Reinstall the cover on the upper side of the
headlight housing by turning it clockwise.
8. Reinstall the headlight housing.

09 Maintenance and servicingReplacing bulbs
09226
Turn signal
G019150
1. Open the hood.
2. Remove the headlight housing, see
page 223.
3. Turn the bulb holder counterclockwise and
remove it.
4. Remove the bulb from the holder by press-
ing it in and twisting it counterclockwise.
5. Insert a new bulb and reinstall the bulb
holder in the headlight housing.
6. Reinstall the headlight housing.
Side marker light
G018050
1. Open the hood.
2. Remove the headlight housing, see
page 223.
3. Turn the bulb holder counterclockwise,
pull it out, and replace the bulb.
4. Reinstall the bulb holder. It can only be
installed in one position.
5. Reinstall the headlight housing.
Front fog light (option)
G019605
1. Switch off all lights and turn the key to
position0.
2. Remove the panel around the fog light
housing by inserting a screw driver as
shown in the illustration and pressing the
panel outward to release the retaining
clips.
3. Grasp the edge of the panel and pull it
straight out.
4. Unscrew the screw in the fog light housing
and remove it.
5. Turn the bulb counterclockwise and
remove it.

11 SpecificationsElectrical system
11272
General information12-volt system with voltage controlled gener-
ator. Single wire system in which the chassis
and engine block are used as conductors,
grounded on the chassis.BatteryVoltage
12 V
12 V
Cold start
capacity
(CCA)
600 A
A
700 A
B
Reserve
capacity
(RC)
120 min
135 min
Capacity
(Ah)
70
80
AModels equipped with the High Performance audio systemBModels equipped with the Premium Sound audio system,
the Volvo Navigation System and/or keyless drive
If the battery must be replaced, replace it with
one with the same cold start capacity and
reserve capacity as the original (see the decal
on the battery).
WARNING
PROPOSITION 65 WARNING!
Battery posts, terminals, and related acces-
sories contain lead and lead compounds,
chemicals known to the state of California
to cause cancer and reproductive harm.
Wash hands after handling.
Bulbs used in the carBulb
Output
Type
Low beam headlight
55W
H7
High beam headlight (applies to vehicles with halogen headlights)
55W
H9

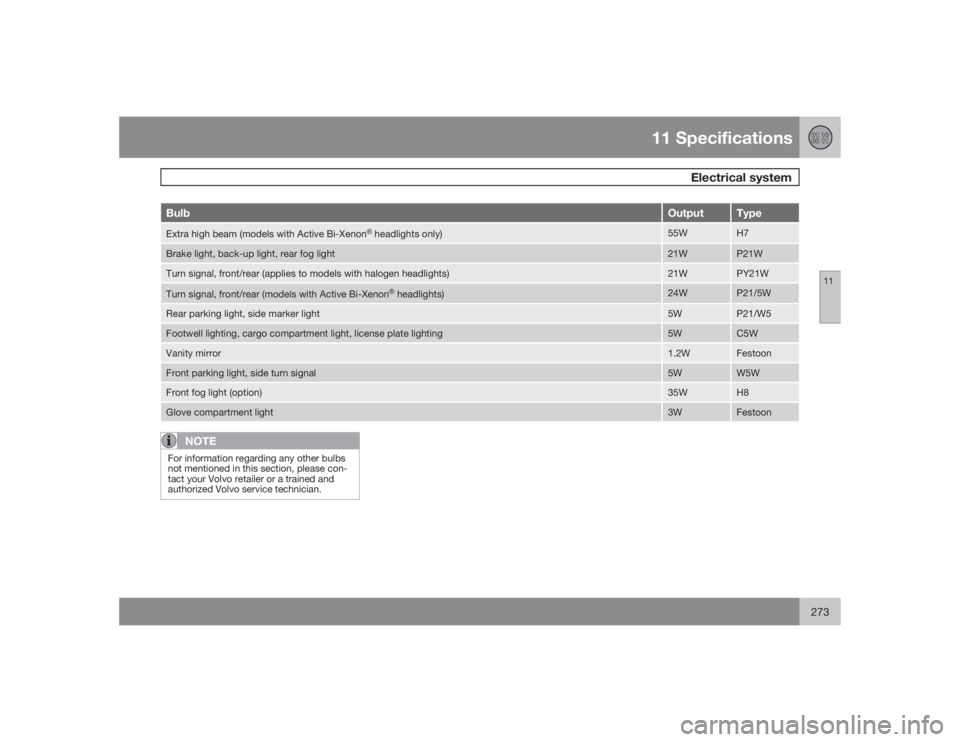

11 Specifications
Electrical system
11
273
Bulb
Output
Type
Extra high beam (models with Active Bi-Xenon
Ÿ headlights only)
55W
H7
Brake light, back-up light, rear fog light
21W
P21W
Turn signal, front/rear (applies to models with halogen headlights)
21W
PY21W
Turn signal, front/rear (models with Active Bi-Xenon
Ÿ headlights)
24W
P21/5W
Rear parking light, side marker light
5W
P21/W5
Footwell lighting, cargo compartment light, license plate lighting
5W
C5W
Vanity mirror
1.2W
Festoon
Front parking light, side turn signal
5W
W5W
Front fog light (option)
35W
H8
Glove compartment light
3W
Festoon
NOTE
For information regarding any other bulbs
not mentioned in this section, please con-
tact your Volvo retailer or a trained and
authorized Volvo service technician.

12 Index
12
277
fluid.....................................................219
general information............................. 153
Bulbs
headlights........................................... 223
list of................................................... 272
Bulbs, replacing....................................... 223
CCapacities, fluids..................................... 267
Capacity weight............................... 183, 265
Cargo area
steel grid............................................. 113
Cargo area cover..................................... 113
Cargo area net................................. 114, 115
Catalytic converter, three-way................. 274
CD changer.............................................. 249
CD player................................................. 249
Cell phone, hands-free connection......... 254
Central locking system - remote control. 118
Chains...................................................... 186
Changing a wheel.................................... 190
Child restraints
recalls and registration......................... 45Child restraint systems.............................. 36
booster cushions.................................. 41
convertible seats.................................. 39
infant seats........................................... 37
ISOFIX/LATCH anchors........................ 42
top tether anchors................................ 44
Child safety................................................ 34
booster cushions.................................. 41
child restraint systems.......................... 36
convertible seats.................................. 39
infant seats........................................... 37
Child safety locks....................................129
Climate system
air distribution....................................... 99
air vents................................................ 92
Electronic Climate Control.................... 96
manual climate control......................... 93
passenger compartment filter.............. 90
refrigerant.....................................90, 267
Climate system, general information......... 90
Clock
setting...................................................82
Coat hanger............................................. 108
Cold weather precautions........................ 137
Compact disc care..................................251
Compass in rearview mirror....................... 77Conserving electrical current................... 138
Convertible seats....................................... 39
Coolant.................................................... 267
changing............................................. 218
checking level of................................. 218
Courtesy lighting...................................... 105
Crash mode............................................... 33
Cruise control............................................ 68
Cup holders.....................................107, 109
Curb weight.....................................183, 265
DDetachable key blade.............................. 120
Detachable trailer hitch............................ 162
Dimensions.............................................. 264
Disabling the passenger's side front air-
bag............................................................. 26
Disconnecting the front passenger’s air-
bag............................................................. 26
Display....................................................... 58
Dolby Pro Logic II (DPL II)........................ 243
Door mirrors............................................... 78
