Contents
7
09
09 Maintenance and servicingVolvo service........................................... 184
Maintaining your vehicle......................... 185
Emission inspection readiness............... 186
Working on your vehicle......................... 187
Hood and engine compartment.............. 189
Engine oil................................................ 190
Fluids....................................................... 192
Wiper blades........................................... 194
Battery..................................................... 195
Replacing bulbs...................................... 198
Fuses....................................................... 206
10
10 AudioIntroduction............................................. 216
Audio system HU-650 - overview........... 217
Audio system HU-850 - overview........... 218
Radio functions HU-650/HU-850............ 219
RBDS functions HU-650/HU-850........... 223
HU-650 - CD player................................ 226
HU-850 - internal CD changer................ 227
External CD changer (option).................. 228
Dolby Surround Pro Logic II - HU-850
only.........................................................229
Audio systems - specifications...............230
11
11 SpecificationsLabel information.................................... 234
Dimensions............................................ 236
Weights ..................................................238
Capacities............................................... 240
Engine specifications.............................. 242
Bulbs....................................................... 243
Electrical system..................................... 244
Three-way catalytic converter................. 245
Suspension............................................. 246
Volvo programs....................................... 247

06 Starting and drivingAll Wheel Drive (option)
06134
All Wheel Drive (AWD) - general
informationYour Volvo can be equipped with permanent
All Wheel Drive, which means that power is
distributed automatically between the front
and rear wheels. Under normal driving condi-
tions, most engine's power is directed to the
front wheels. However, if there is any tendency
for the front wheels to spin, an electronically
controlled coupling distributes power to the
wheels that have the best traction.Tire dimensionsVolvo recommends that you always drive on
tires of the same brand, size, construction
(radial), tread pattern, load-, speed-, traction-,
temperature-, and treadwear rating. Never
drive on mixed tires, except for brief periods
when the temporary spare tire is in use.
Always use properly inflated tires of correct
dimensions. Tire size and inflation pressures
are shown on the tire inflation pressure plac-
ards, located on the driver's side B-pillar (the
structural member at the side of the vehicle, at
the rear of the driver's door opening), or on the
inside of the fuel filler door on Canadian mod-
els.
Temporary SpareThe temporary spare tire is for temporary, low-
speed, short-distance use only. Replace it with
a full-sized tire as soon as possible. Do not
drive on the temporary spare at speeds above
50 mph (80 km/h) or for distances greater than
50 miles (80 km).
Never install snow chains on a temporary
spare.

07 Wheels and tires
Temporary spare
07
167
The spare tire in your vehicle is called a "Tem-
porary Spare".
Recommended tire pressure (see the placard
on the B-pillar or on the fuel filler door) should
be maintained irrespective of which position on
the vehicle the temporary spare tire is used on.
In the event of damage to this tire, a new one
can be purchased from your Volvo retailer.
WARNING
Current legislation prohibits the use of the
"Temporary Spare" tire other than as a tem-
porary replacement for a punctured tire. It
must be replaced as soon as possible by a
standard tire. Road holding and handling
may be affected with the "Temporary
Spare" in use. Do not exceed 50 mph
(80 km/h).
CAUTION
The vehicle must not be driven with wheels
of different dimensions or with a spare tire
other than the one that came with the vehi-
cle. The use of different size wheels can
seriously damage your vehicle's transmis-
sion.

07 Wheels and tires
Changing wheels
07``169
G020331
Insert flat end of lug wrench and turn/pull straight
outThe spare wheel is located under the carpet on
the trunk floor. The jack and crank are secured
in the wheel recess.
There are two jack attachment points on each
side of the vehicle (see illustration below).To change a wheel:1. Engage the parking brake.
2.
Put the gear selector in P (automatic trans-
mission) or reverse (manual transmission).
G020332
Loosen the wheel bolts3. Remove the wheel cap (where applicable)
using the lug wrench in the tool bag.
4. With the vehicle still on the ground, use the
lug wrench to loosen the wheel bolts 1/2 -
1 turn by exerting downward pressure.
Turn the bolts counterclockwise to loosen.
CAUTION
•
The vehicle must not be driven with
wheels of different dimensions or with a
spare tire other than the one that came
with the vehicle. The use of different size
wheels can seriously damage your vehi-
cle's transmission.
•
Correct tightening torque on wheel
bolts must be observed. The wheel
bolts should never be greased or lubri-
cated. The extended, chromed wheel
bolts must not be used with steel rims,
as they make it impossible to fit the hub
caps.
•
Locking wheel bolts can be used on
both aluminum and steel wheels. If hub
caps are used on steel wheels, the lock-
ing wheel bolt should be mounted in the
hole as far from the tire's inflation valve
as possible. It would otherwise not be
possible to mount the hub cap on the
wheel.

G000000
232
Label information.................................................................................. 234
Dimensions.......................................................................................... 236
Weights ................................................................................................ 238
Capacities............................................................................................. 240
Engine specifications............................................................................ 242
Bulbs..................................................................................................... 243
Electrical system................................................................................... 244
Three-way catalytic converter............................................................... 245
Suspension........................................................................................... 246
Volvo programs..................................................................................... 247

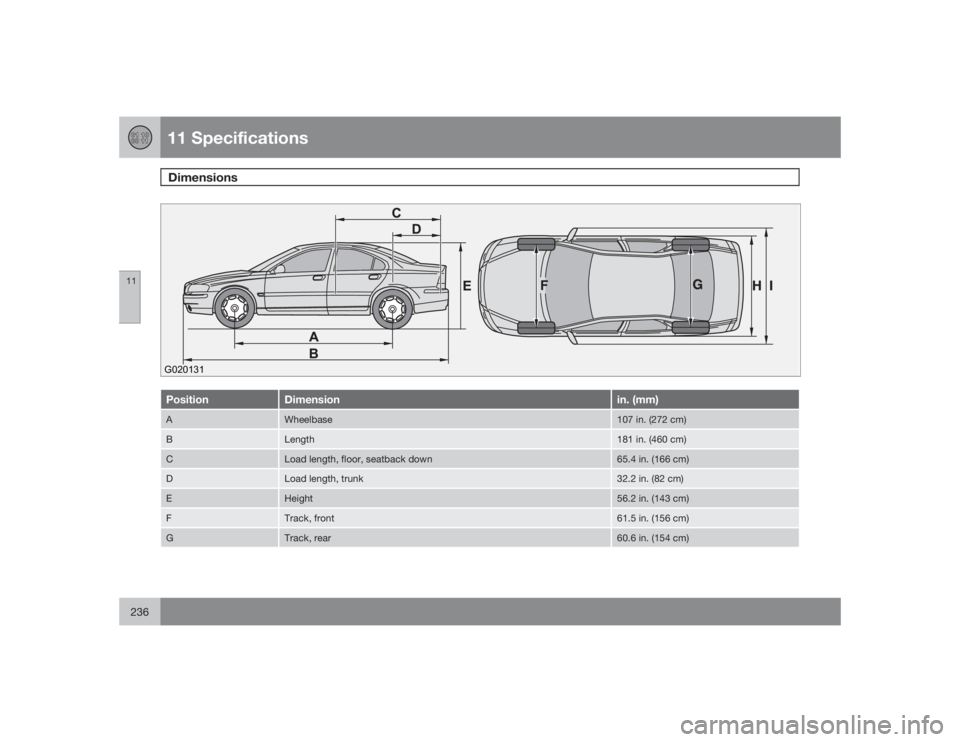

11 SpecificationsDimensions
11236
G020131Position
Dimension
in. (mm)
A
Wheelbase
107 in. (272 cm)
B
Length
181 in. (460 cm)
C
Load length, floor, seatback down
65.4 in. (166 cm)
D
Load length, trunk
32.2 in. (82 cm)
E
Height
56.2 in. (143 cm)
F
Track, front
61.5 in. (156 cm)
G
Track, rear
60.6 in. (154 cm)

11 Specifications
Dimensions
11
237
Position
Dimension
in. (mm)
H
Width
71 in. (180 cm)
I
Width incl. door mirrors
81.5 in. (207 cm)

12 Index
12
249
DDefroster.................................................... 89
Detachable trailer hitch............................ 145
Dimensions.............................................. 236
Disabling the passenger's side front air-
bag............................................................. 25
Driving economically................................ 127
Driving through water..............................128
Dynamic Stability and Traction Control
(DSTC)...................................................... 138EEconomical driving..................................127
Electrical system...................................... 244
Emission inspection................................. 186
Engine
specifications...................................... 242
starting................................................ 124
Engine compartment............................... 189
Engine oil................................................. 190
FFederal Clean Air Act............................... 184
Front airbags.................................. 21, 22, 25
Front park assist...................................... 150
Front seats
folding backrests.................................. 94
manually operated................................ 94
power operated.................................... 94
Front suspension..................................... 246
Fuel.......................................................... 120
Fuel filler cap............................................ 122
Fuel filler door
opening manually...............................122
Fuel system.............................................. 242
Fuses.......................................................206GGasoline................................................... 120
Geartronic................................................ 132
manual shifting...................................132
Generator................................................. 244
Glove compartment................................. 101Grocery bag holder.................................. 103
Gross vehicle weight (GVW).................... 163
HHandling................................................... 128
Head restraints, rear seat........................103
Hoisting the car........................................ 187
Hood - opening........................................ 189IIgnition switch.......................................... 125
Immobilizer (start inhibitor)...................... 108
Inflatable Curtain........................................ 29
Inflation pressure, checking..................... 157
Inflation pressure table
Canadian models................................ 159
US models.......................................... 158
Inspection, preparing for......................... 186
Interior lighting........................................... 97
