2009 VOLVO S60 fuse

09 Maintenance and servicing
Fuses
09``209 Fuse box in the passenger compartment, behind the plastic cover
G028412
This fuse box is located behind the plastic
cover below the steering wheel. When replac-
ing a blown fuse, be sure to replace it with a
new one of the same color and amperage (writ-
ten on the fuse).No.
A
1
Heated passenger's seat
(option)
15
2
Heated driver's seat (option)
15
3
Horn
15
4
–
–
No.
A
5
–
–
6
–
–
7
–
–
8
Alarm siren (option)
5
9
Break light switch feed
5
10
Instrument panel, climate sys-
tem, power driver's seat
(option)
10
No.
A
11
12-volt sockets - front and rear
seats
15
12
–
–
13
–
14
–
15
ABS, DSTC
5
16
Power steering, Active Bi-
Xenon headlights (option)
10

09 Maintenance and servicingFuses
09210
No.
A
17
Driver's side front foglight
(option)
7.5
18
Passenger's side front foglight
(option)
7.5
19
–
–
20
–
–
21
Transmission control module,
reverse gear block (M66)
10
22
Driver's side high beam
10
23
Passenger's side high beam
10
24
–
–
25
–
–
26
–
–
27
–
–
28
Power passenger's seat
(option), audio system
5
29
Fuel pump
7.5
30
-
-
31
–
–
No.
A
32
–
–
33
Vacuum pump
20
34
Windshield washer pump
15
35
–
–
36
–
–

09 Maintenance and servicing
Fuses
09``211 Fuse box on the edge of the dashboard
2224 2321
29272826 25
987
19181716
45632
1314151211
38363733
34353132
20
1
10
30
G032340
Fuses are located inside the access panel on
the edge of the dashboard. There are also a
number of spare fuses.No.
A
1
Power driver's seat (option)
25
2
Power passenger's seat
(option)
25
3
Climate system blower
30
4
Control module - front pas-
senger's door
25
No.
A
5
Control module - driver's door
25
6
Ceiling lighting, upper electri-
cal control module
10
7
Moon roof (option)
15
8
Ignition switch, SRS system,
engine control module, immo-
bilizer)
7,5
No.
A
9
Onboard diagnostics, head-
light switch, steering wheel
angle sensor, steering wheel
control module
5
10
Audio system
20
11
Audio system amplifier (option)
30
12
Navigation system display
(option)
10
13 –
38
–

09 Maintenance and servicingFuses
09212

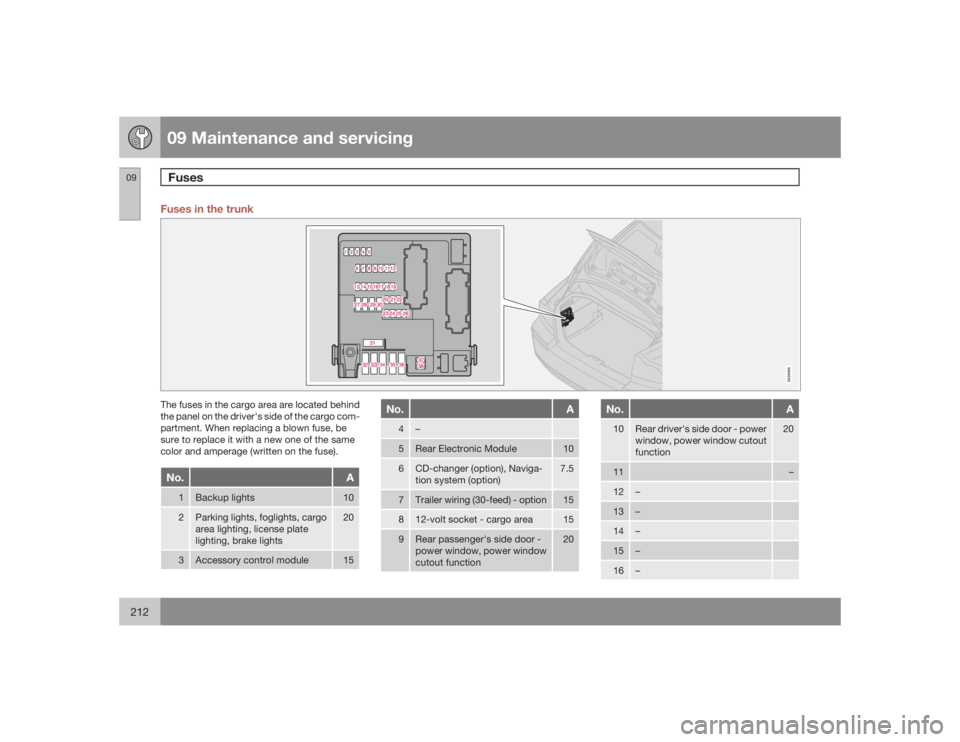

Fuses in the trunk
G026968
The fuses in the cargo area are located behind
the panel on the driver's side of the cargo com-
partment. When replacing a blown fuse, be
sure to replace it with a new one of the same
color and amperage (written on the fuse).No.
A
1
Backup lights
10
2
Parking lights, foglights, cargo
area lighting, license plate
lighting, brake lights
20
3
Accessory control module
15
No.
A
4
–
5
Rear Electronic Module
10
6
CD-changer (option), Naviga-
tion system (option)
7.5
7
Trailer wiring (30-feed) - option
15
8
12-volt socket - cargo area
15
9
Rear passenger's side door -
power window, power window
cutout function
20
No.
A
10
Rear driver's side door - power
window, power window cutout
function
20
11
–
12
–
13
–
14
–
15
–
16
–

09 Maintenance and servicing
Fuses
09
213
No.
A
17
Accessory audio
5
18
–
19
Folding head restraints
15
20
Trailer wiring (15-feed) - option
20
21
–
22
–
23
All Wheel Drive
7.5
24
Four-C chassis system
(option)
15
25
–
26
Park assist (option)
5
27
Main fuse: trailer wiring, Four-
C, park assist, All Wheel Drive
30
28
Central locking system
15
29
Driver's side trailer lighting:
parking lights, turn signal
(option)
25
30
Passenger's side trailer light-
ing: parking light, brake light,
fog light, turn signal (option)
25
No.
A
31
Main fuse: fuses 37 and 38
40
32
–
33
–
34
–
35
–
36
–
37
Heated rear window
20
38
Heated rear window
20
